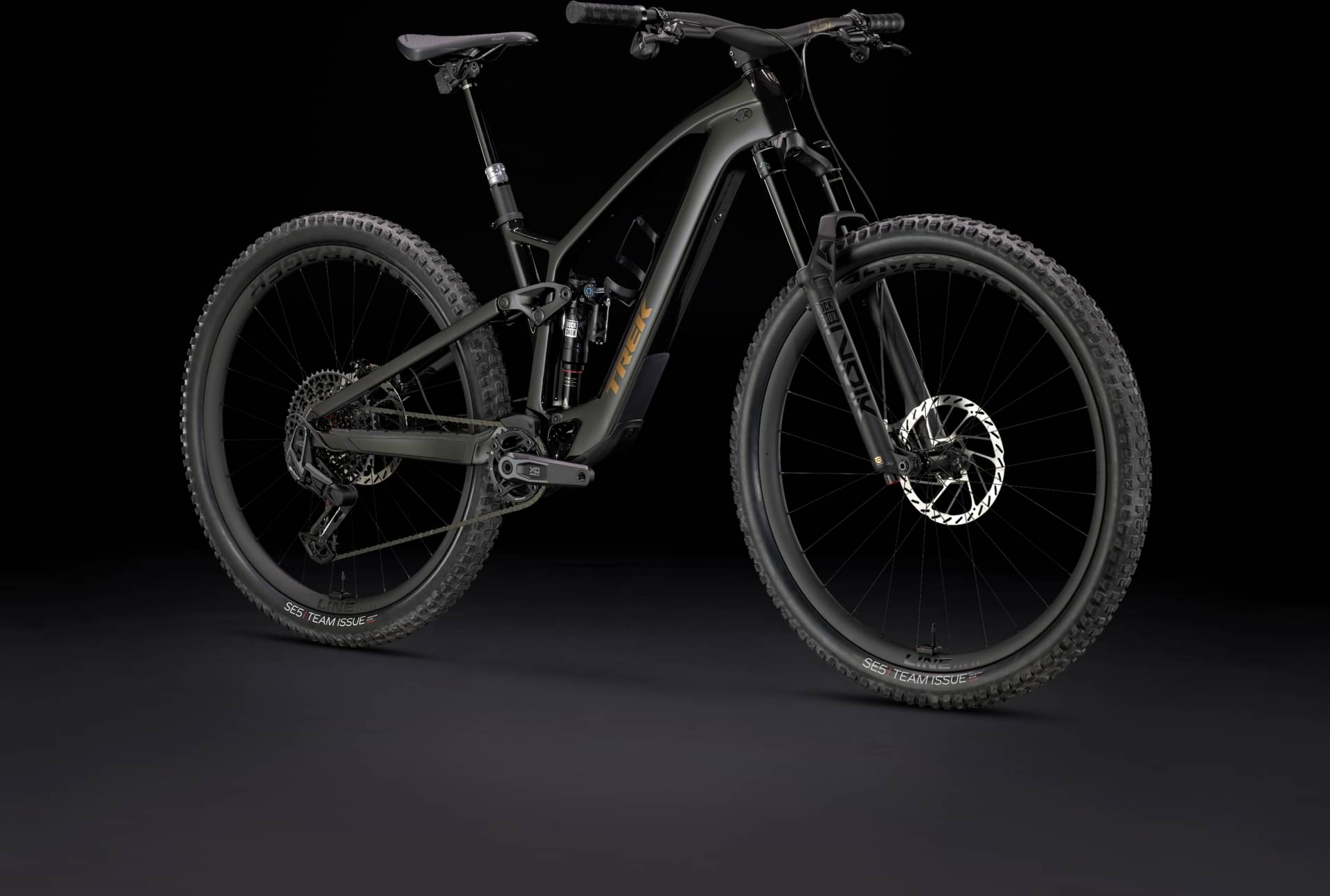

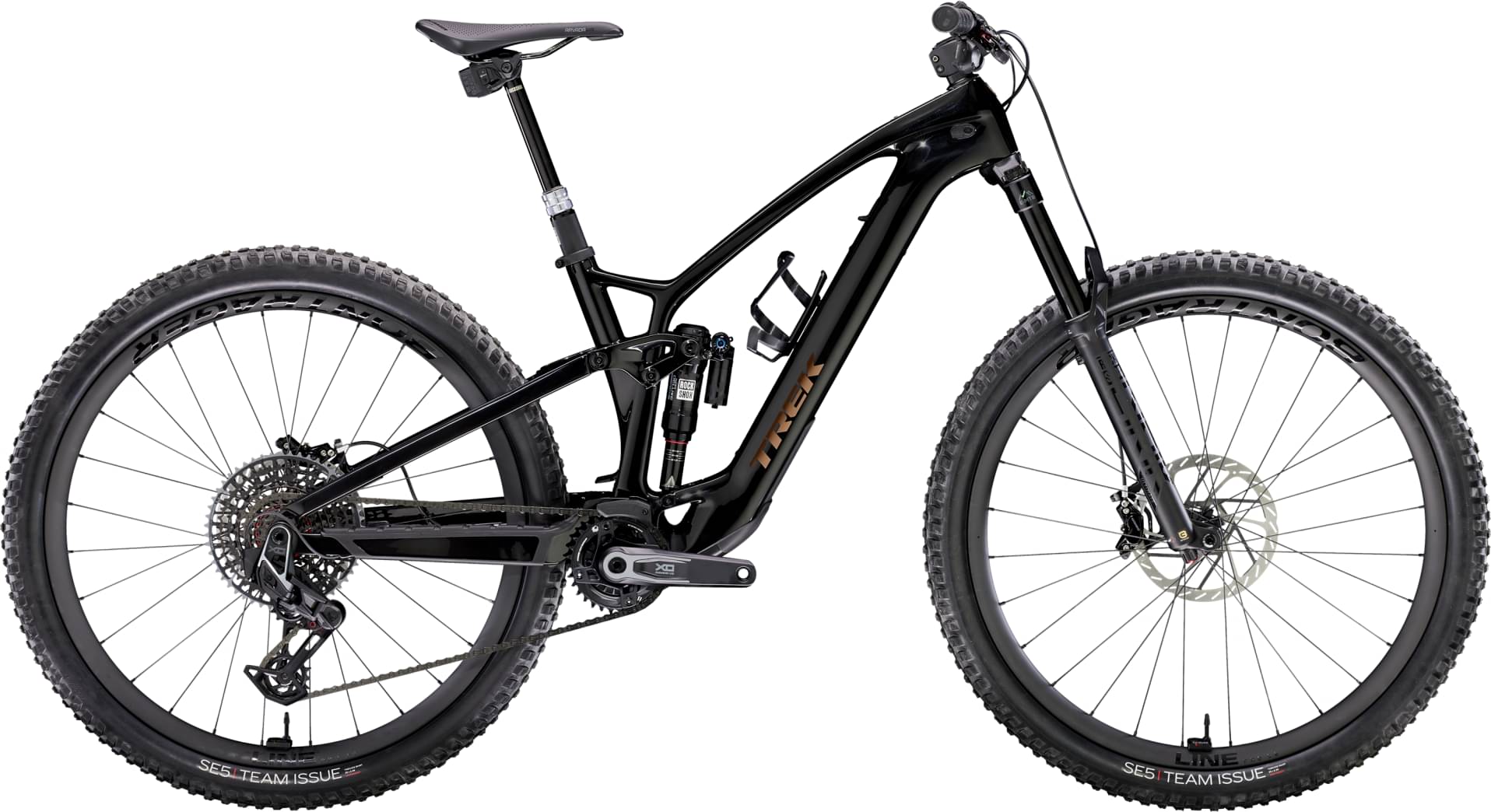

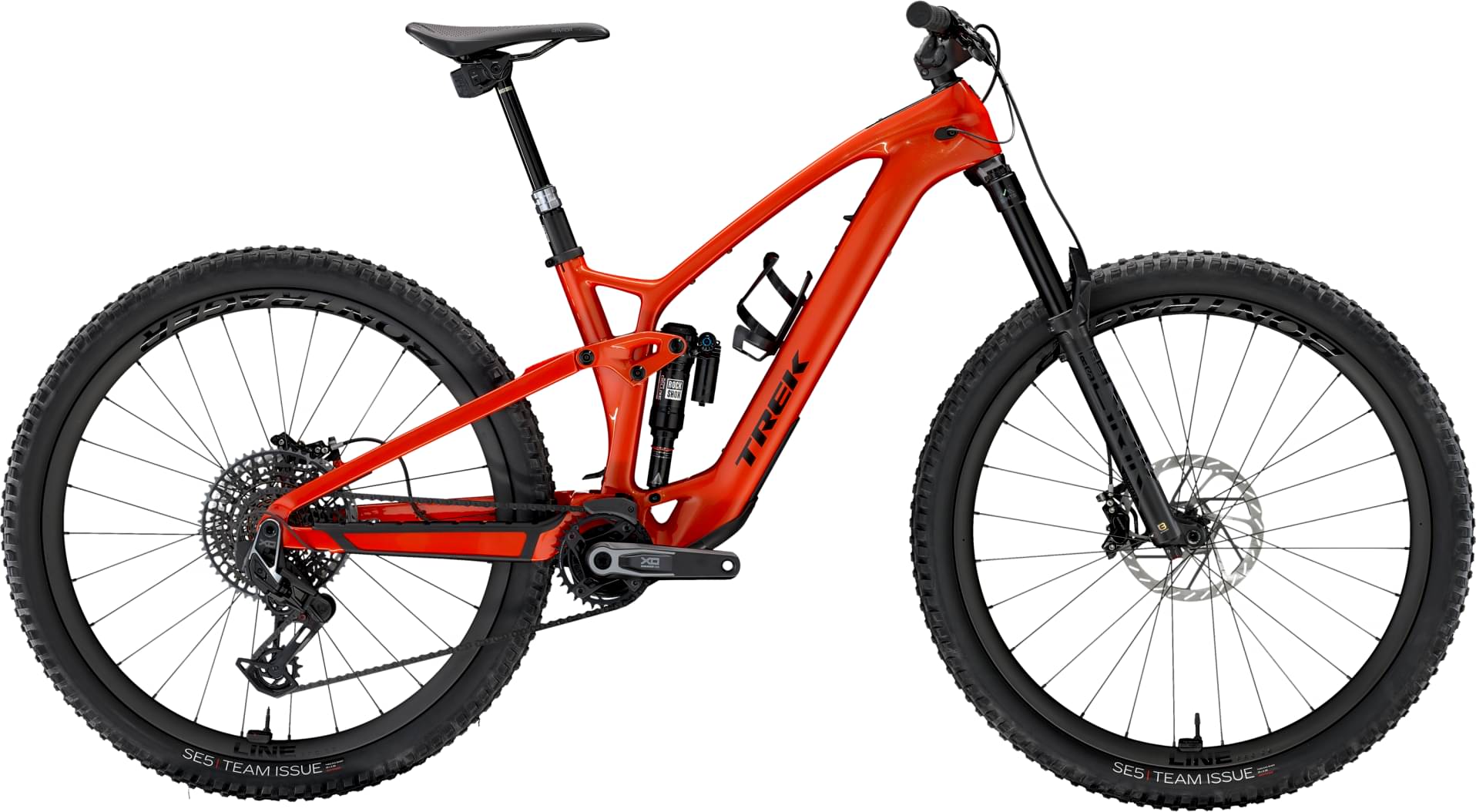

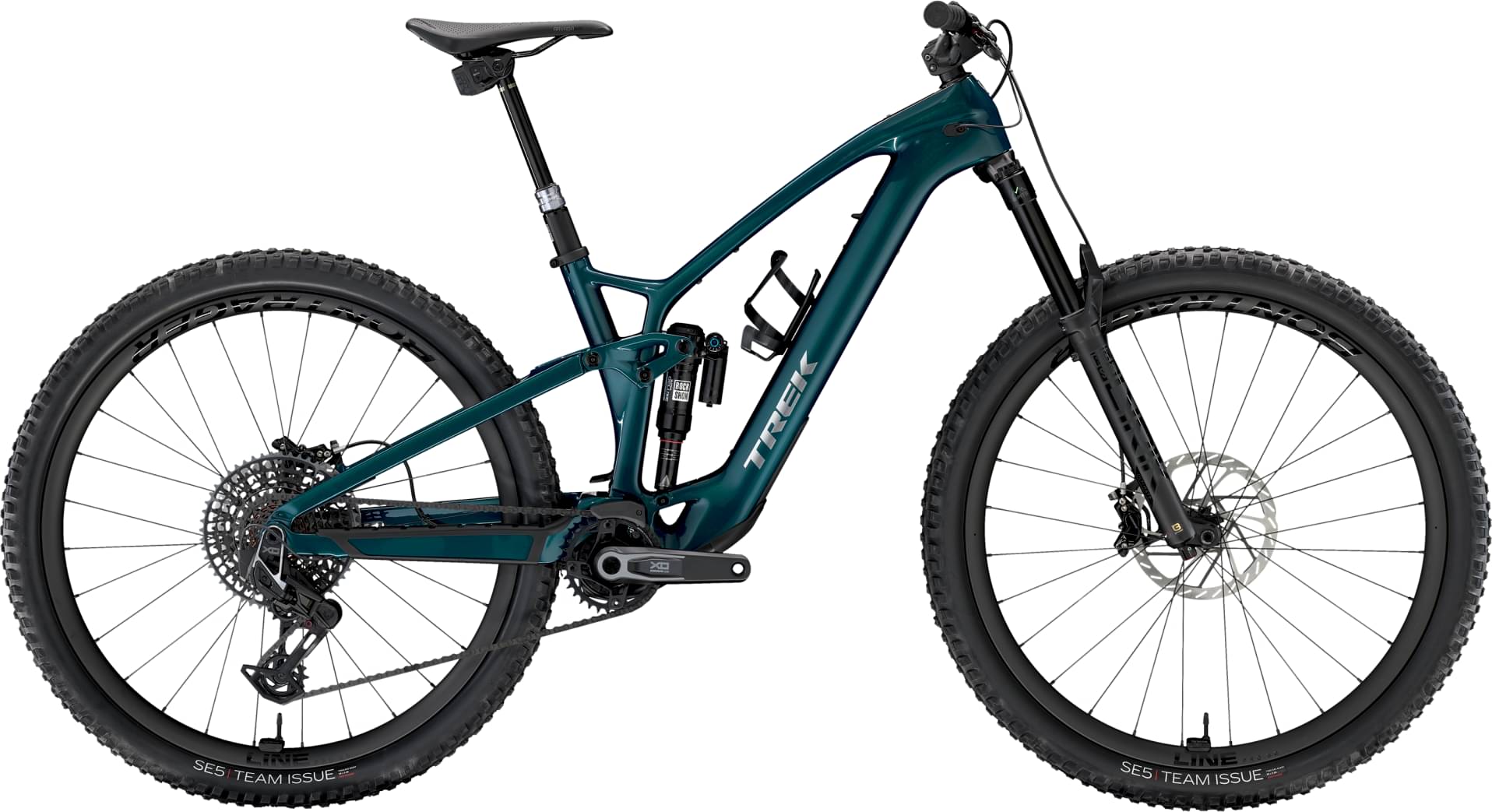

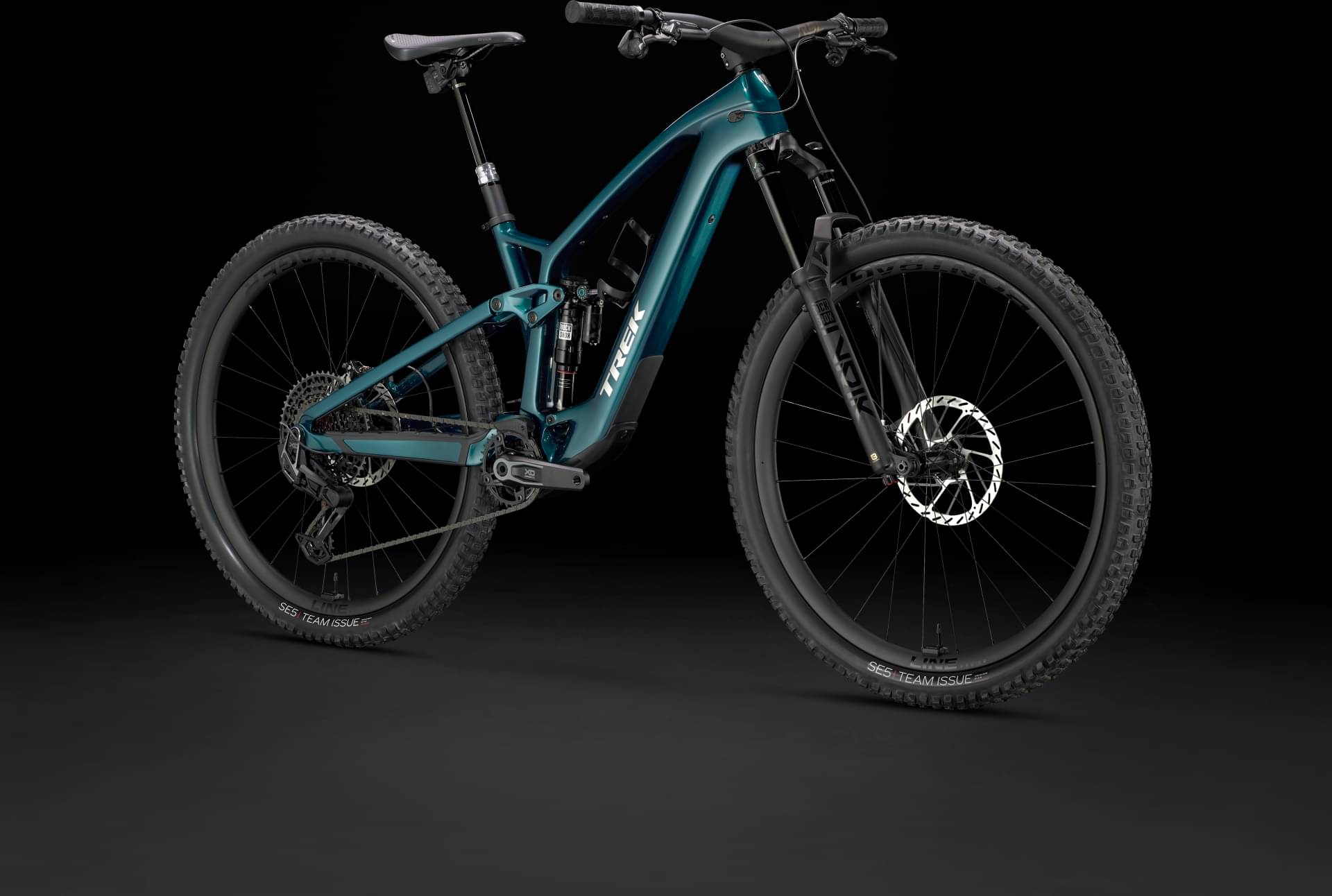

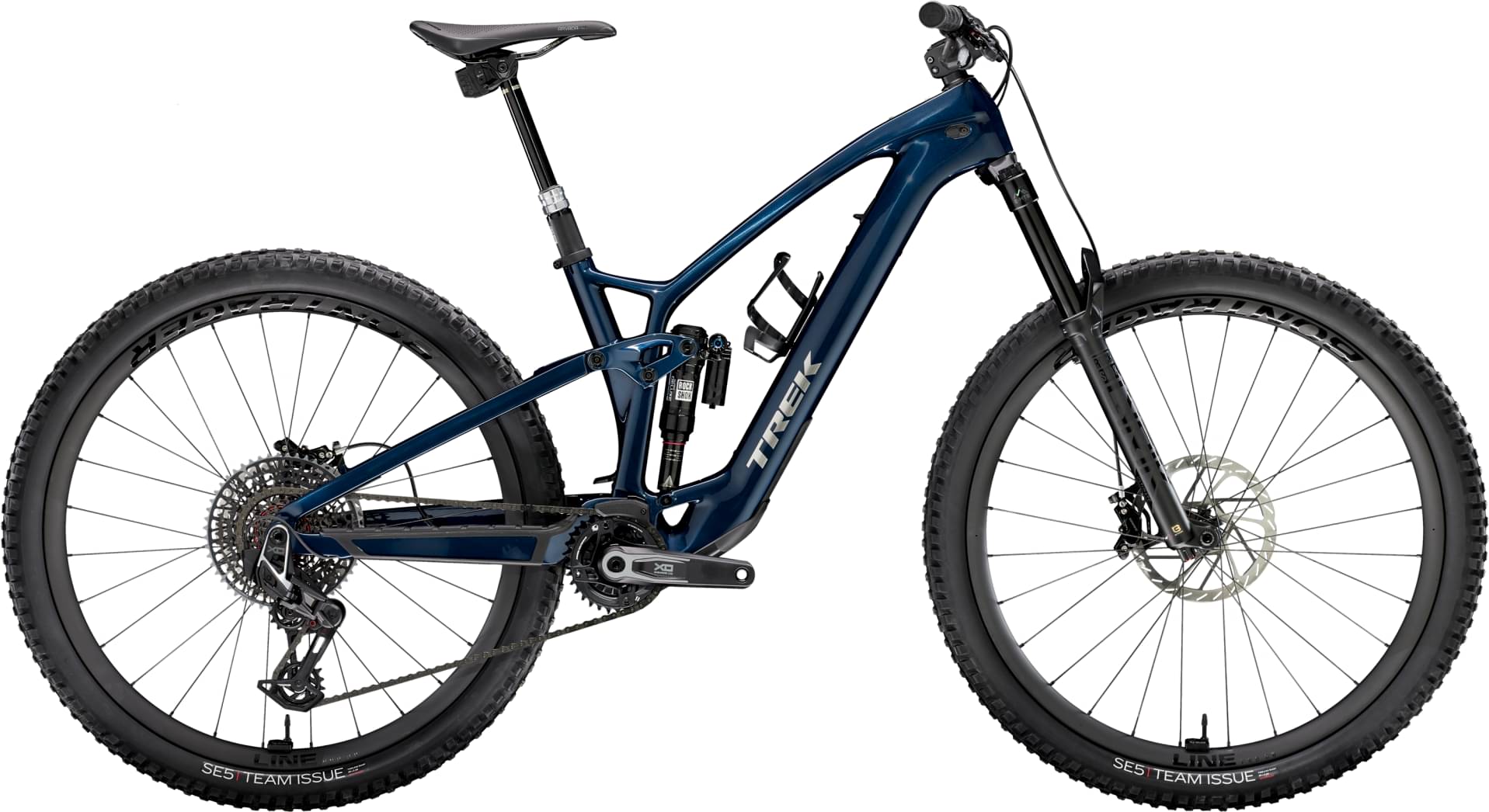

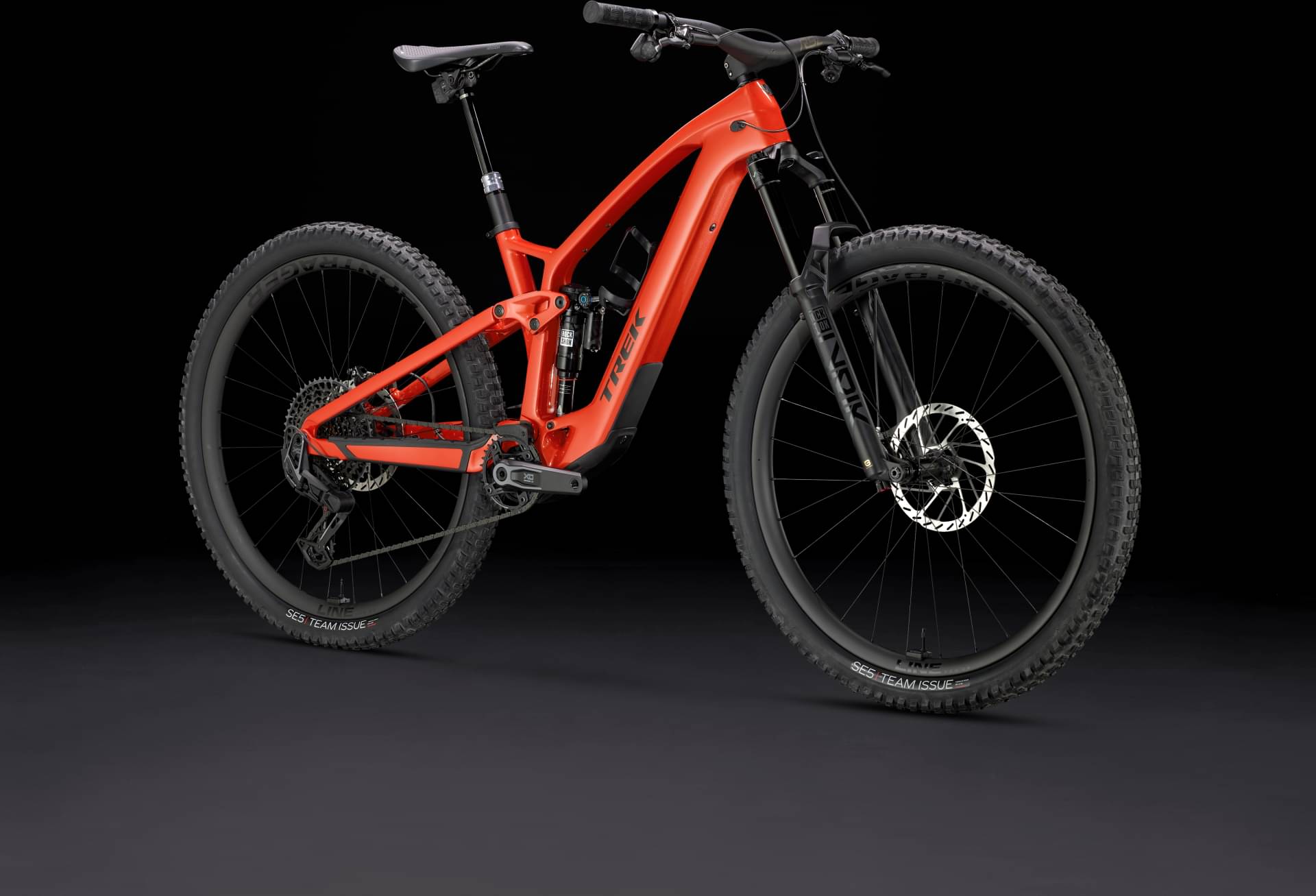

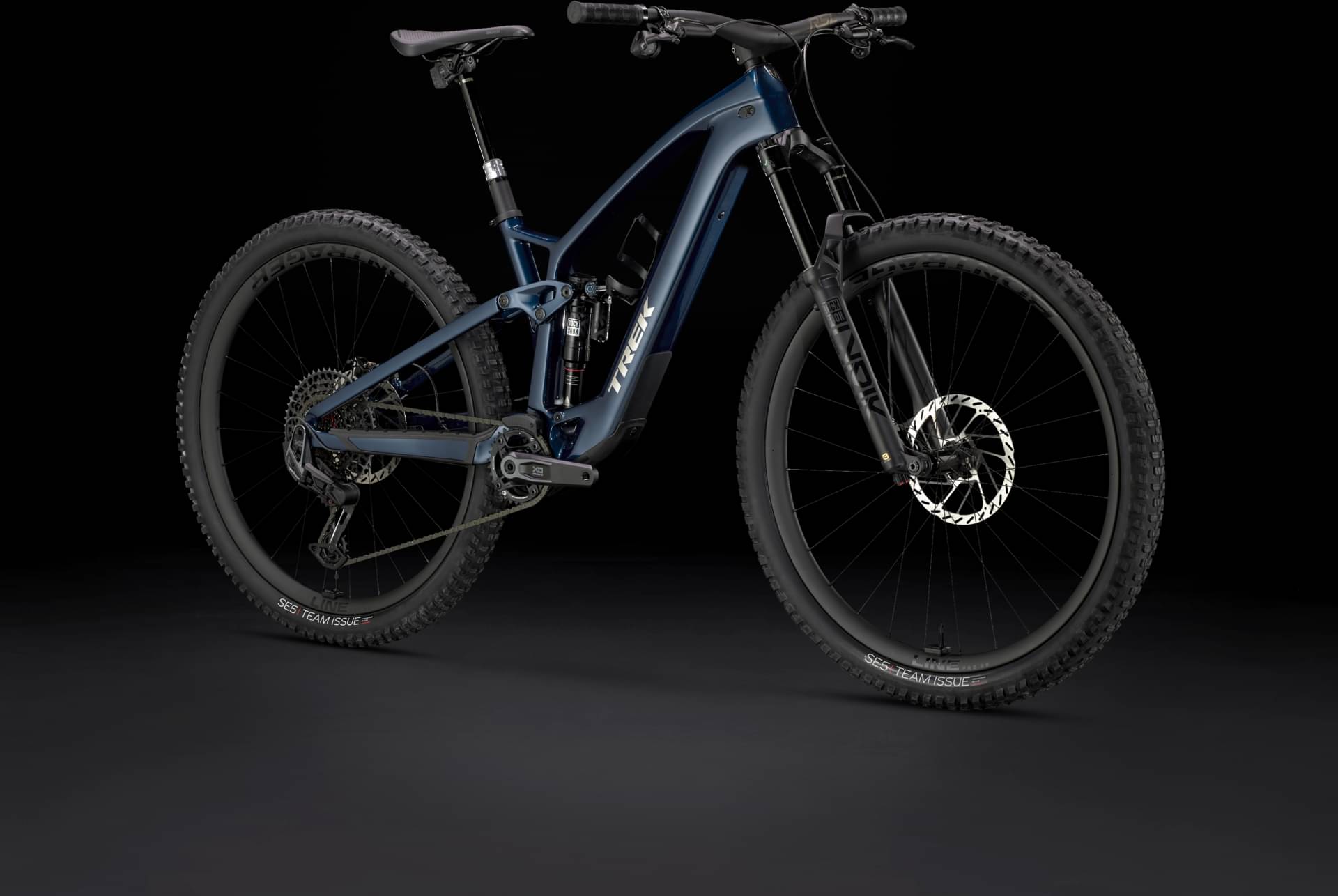

Trek Fuel EXe 9.9 X0 AXS T-Type 2024
2024 E-bike
Estimate price |
11,999$
Weight | 18.95 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset X0 Eagle Transmission, SRAM -
Suspension Full -

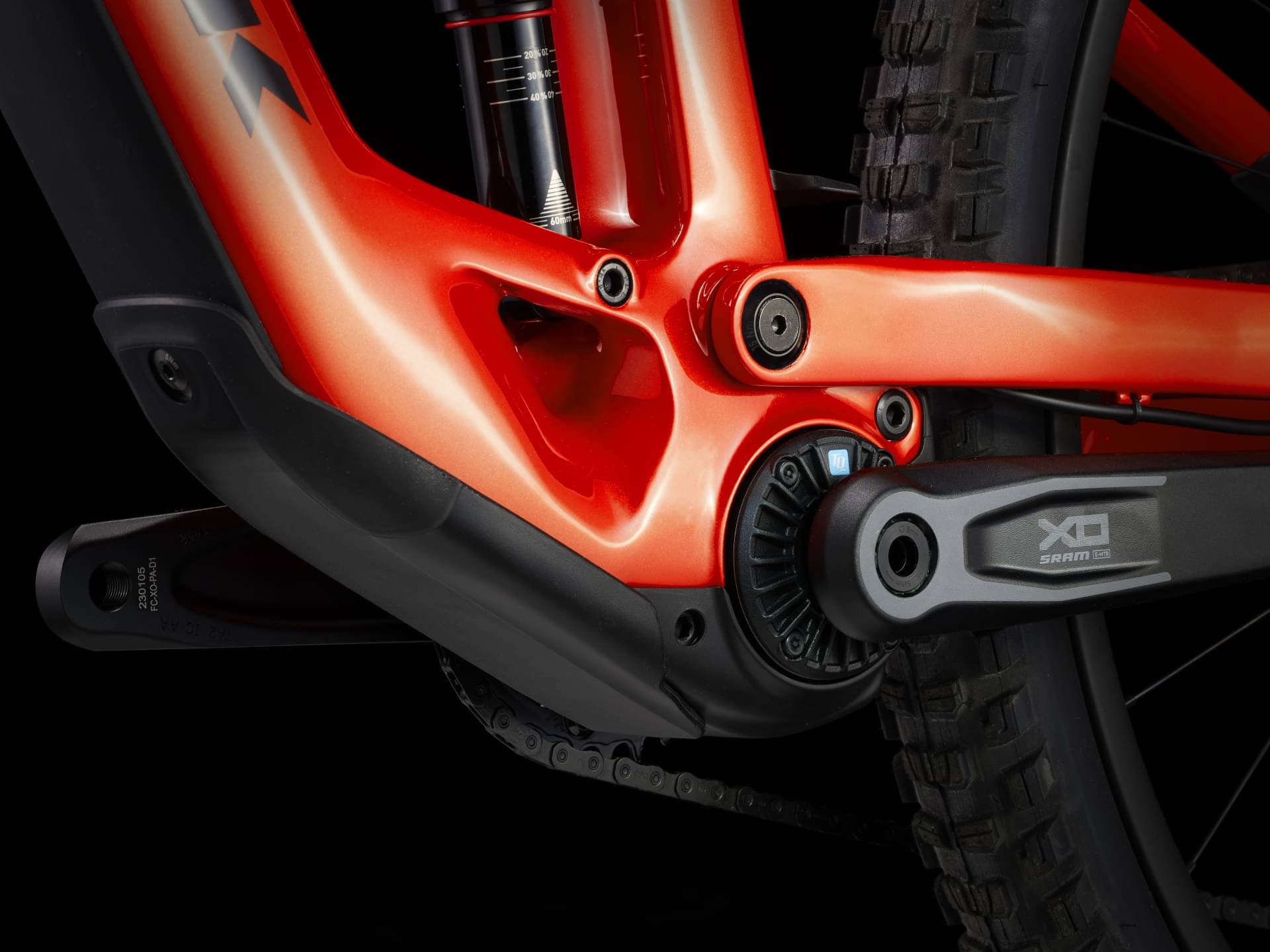

Motor TQ 250W 50Nm mid-drive -
Battery TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

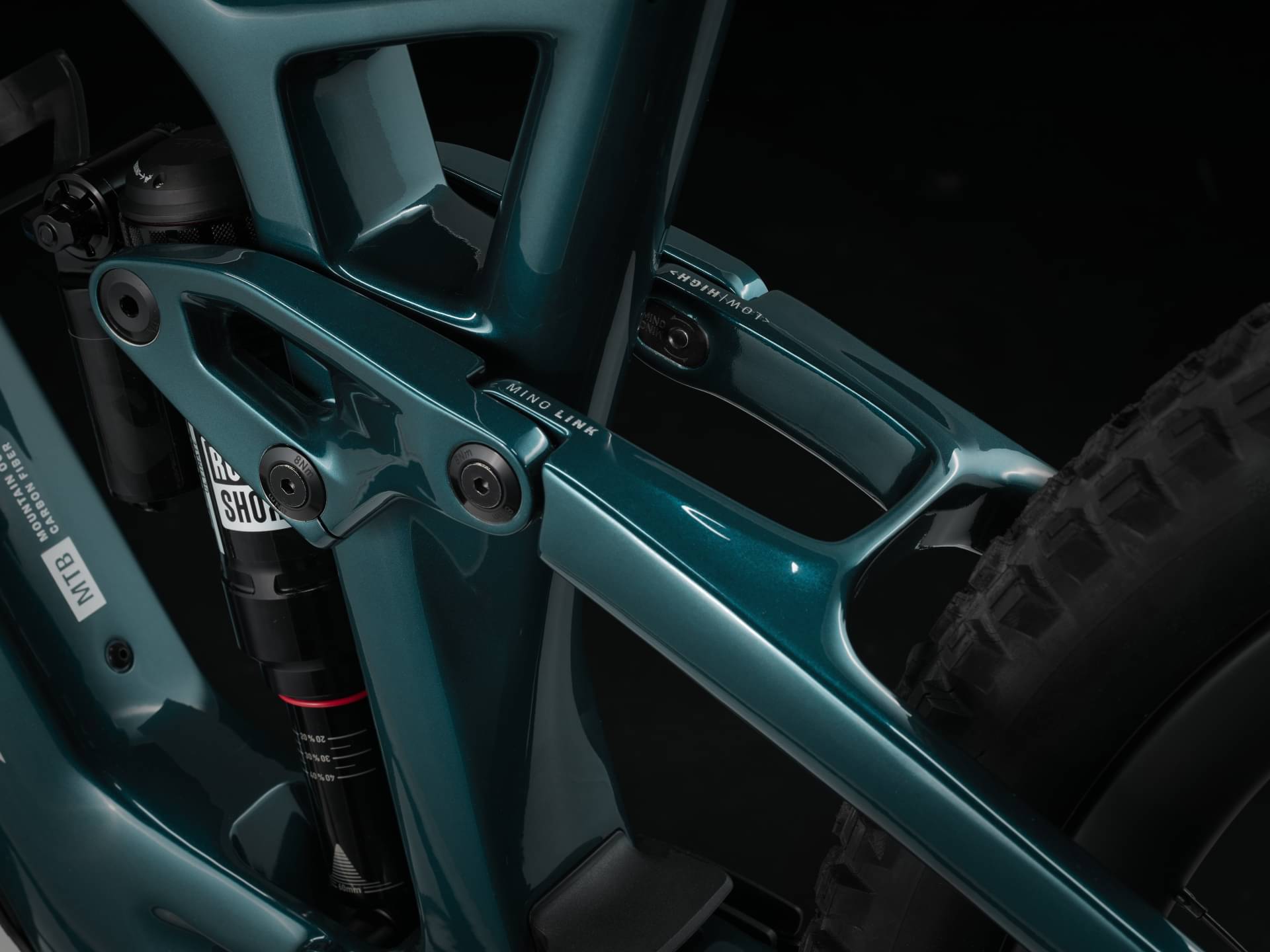

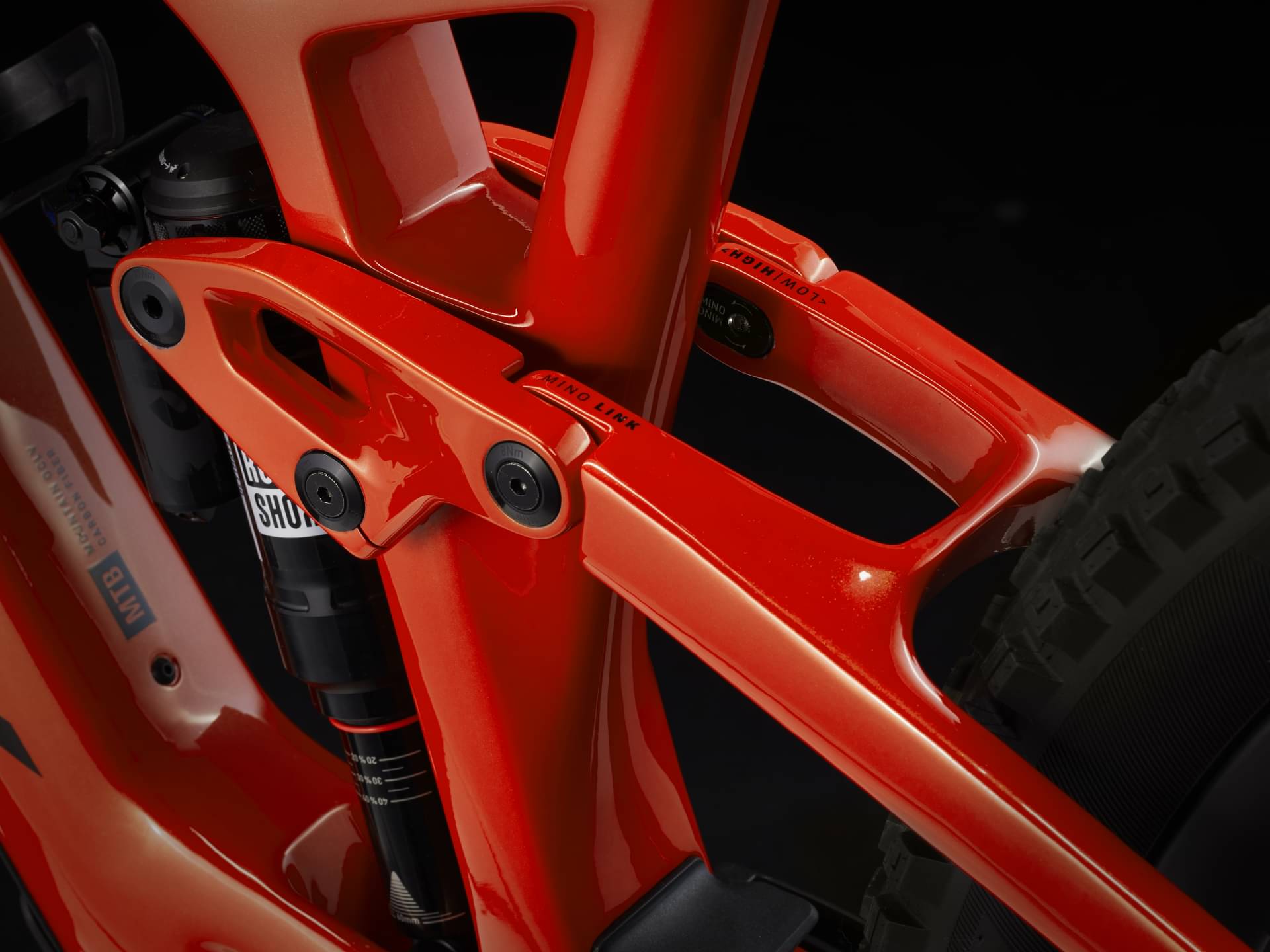

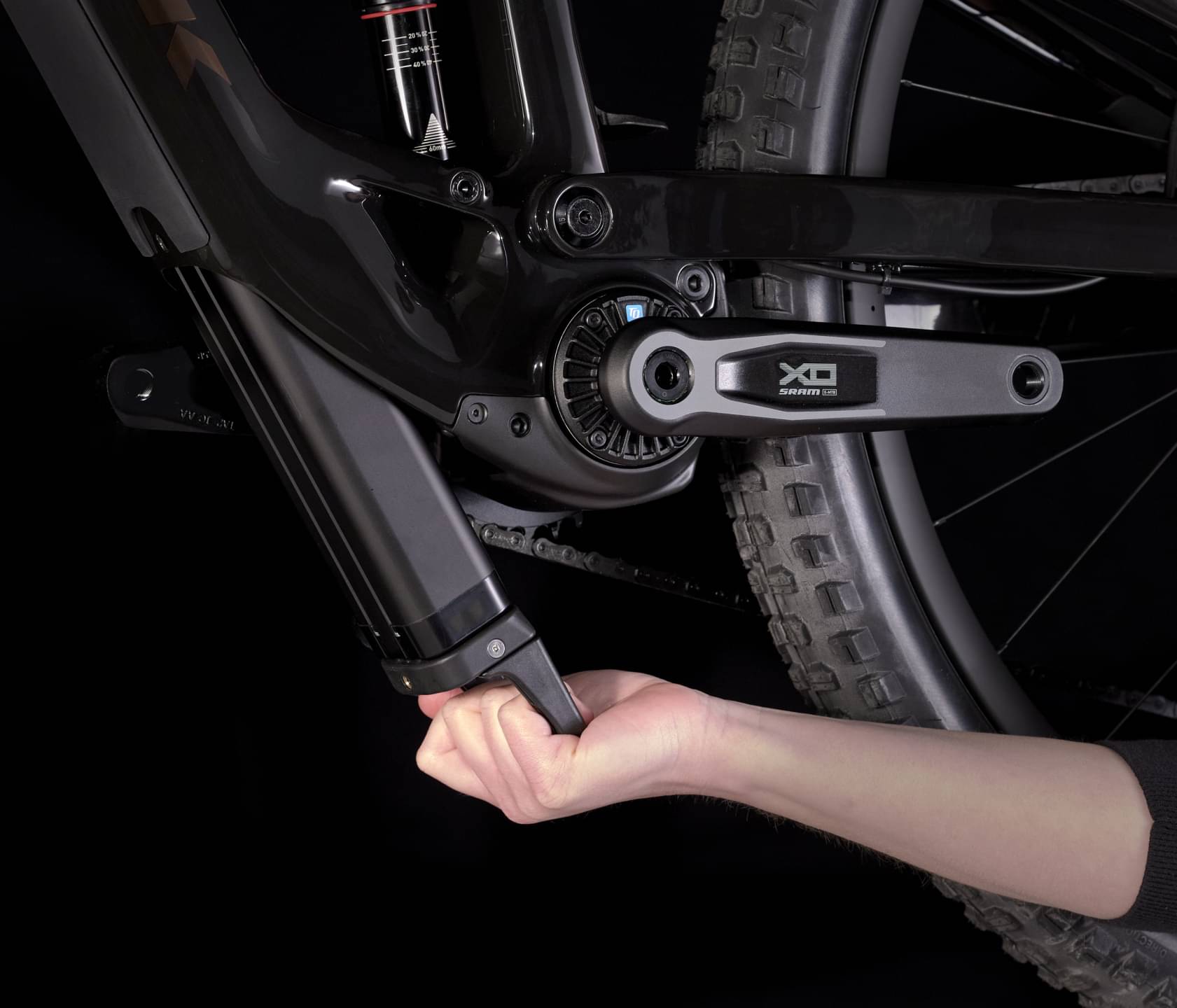

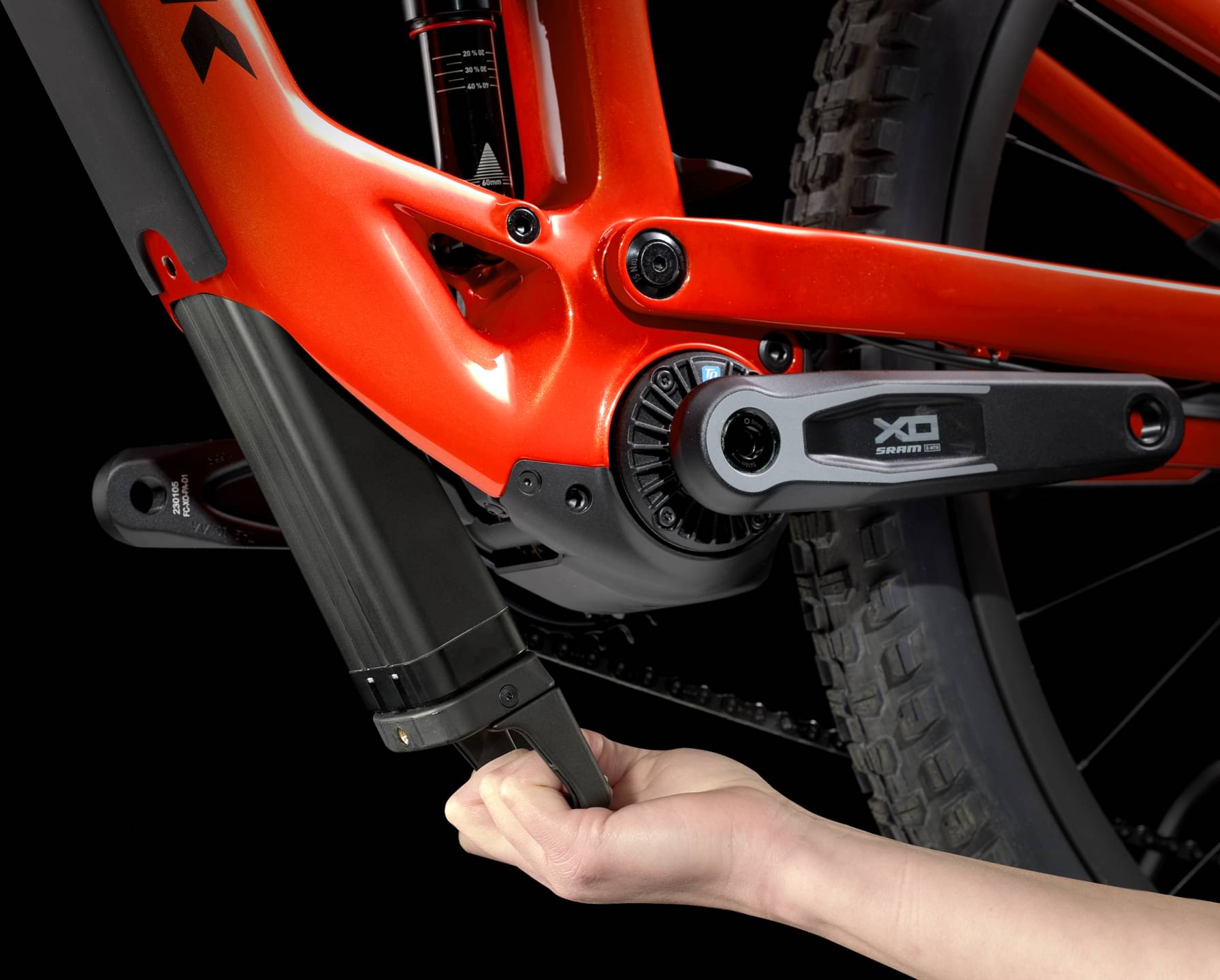

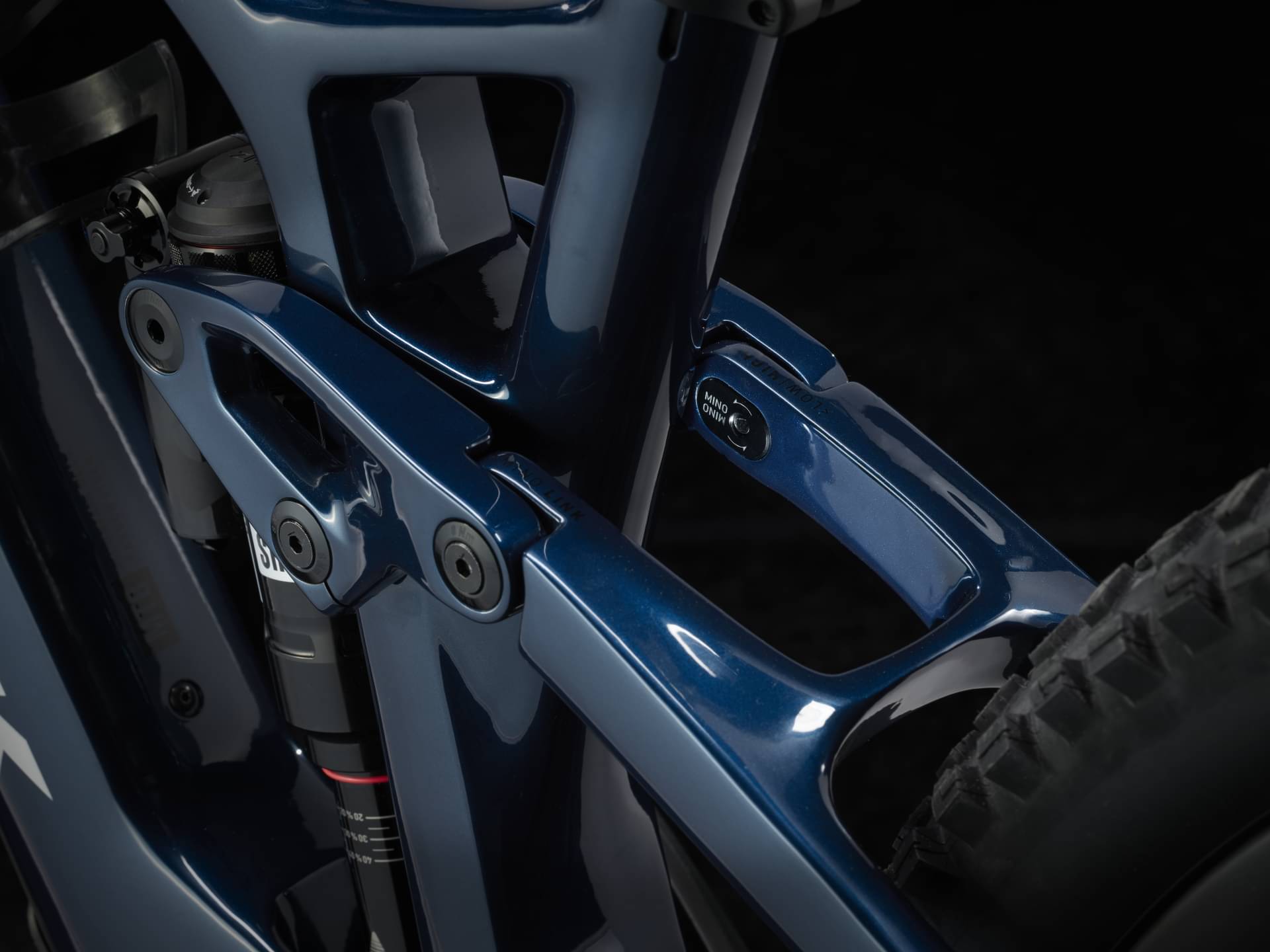

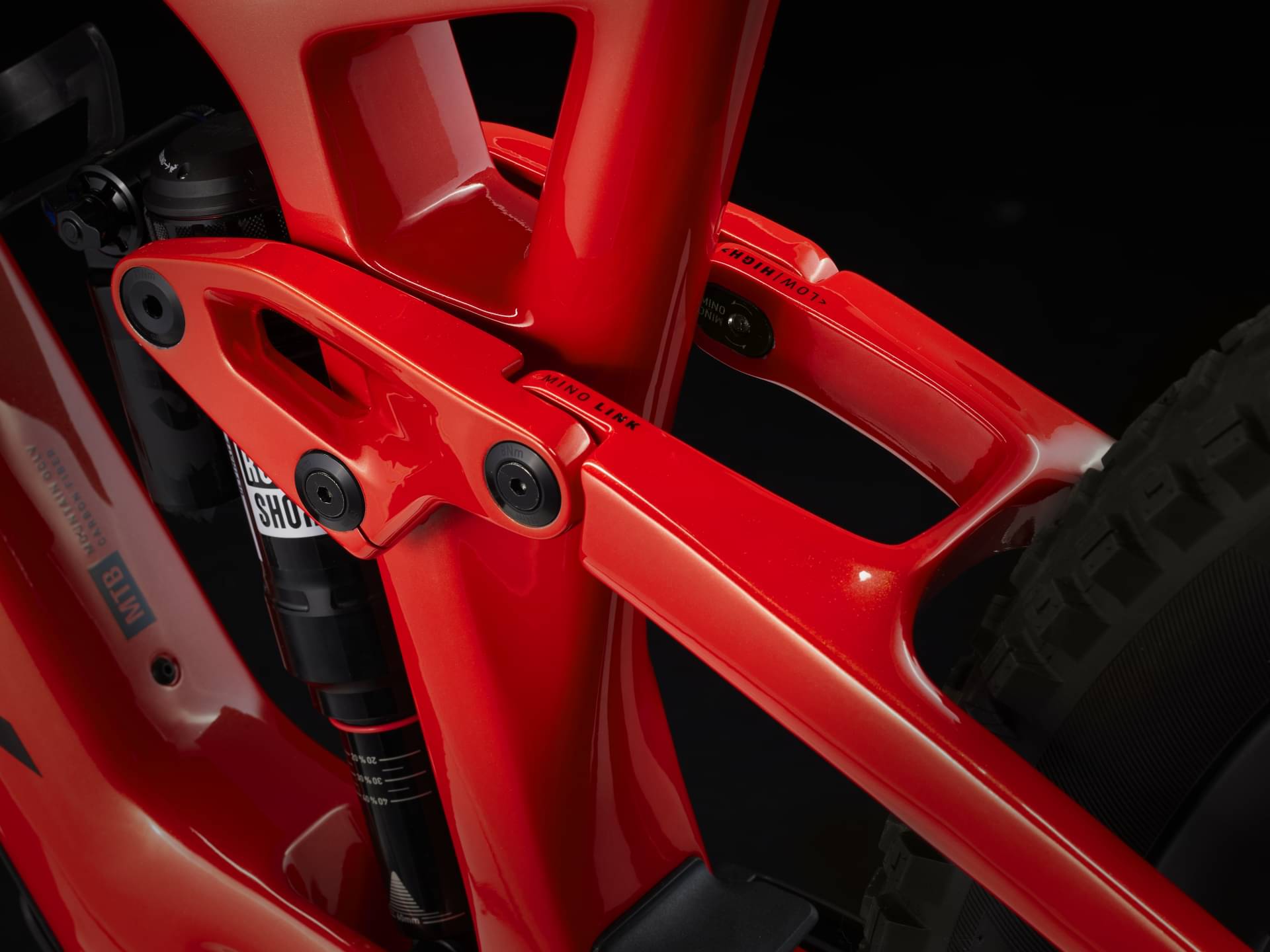

OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Suspension Fork
RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 150mm travel
Rear Shock
RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205mm x 60mm
Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS, T-Type

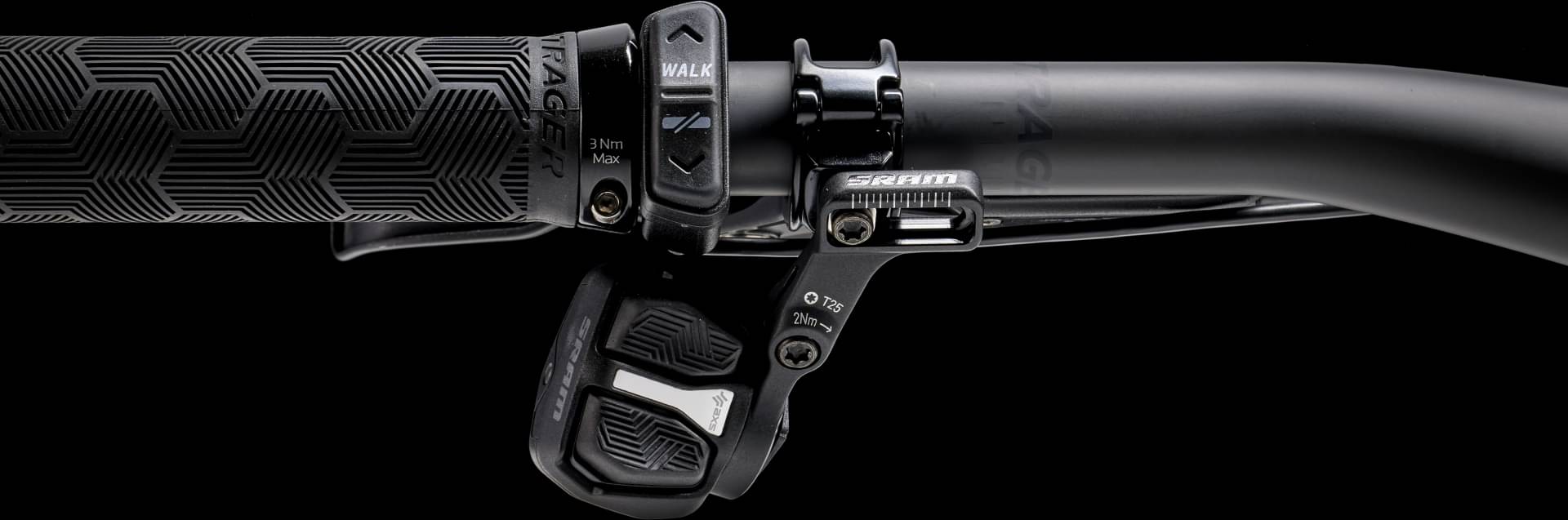

Shift Levers
SRAM AXS POD Ultimate
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed

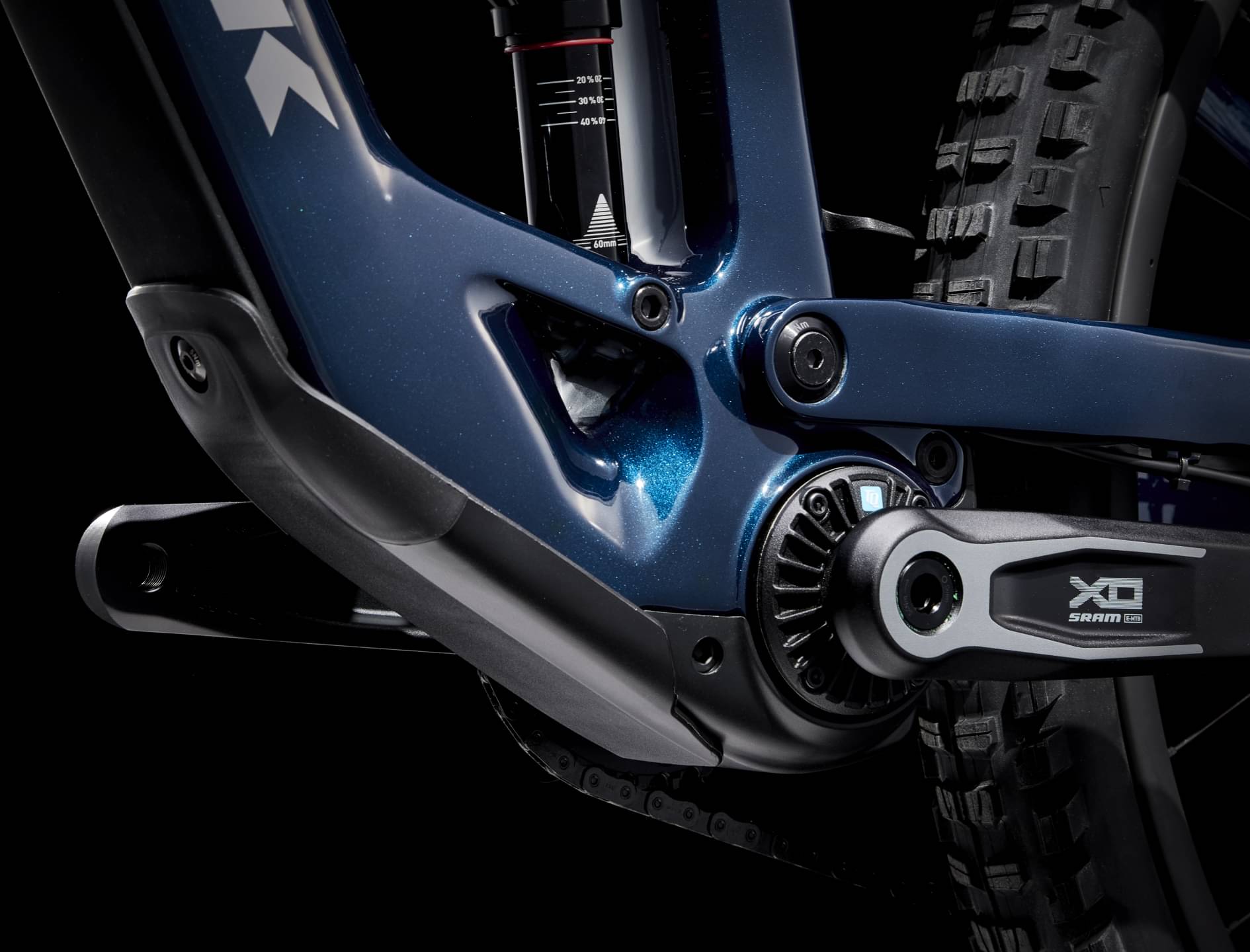

Crank
SRAM X0, 165mm length
Chain
SRAM X0 Eagle, T-Type, 12 speed
Wheels
Rims
Front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Tires
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Brakes
Brakes

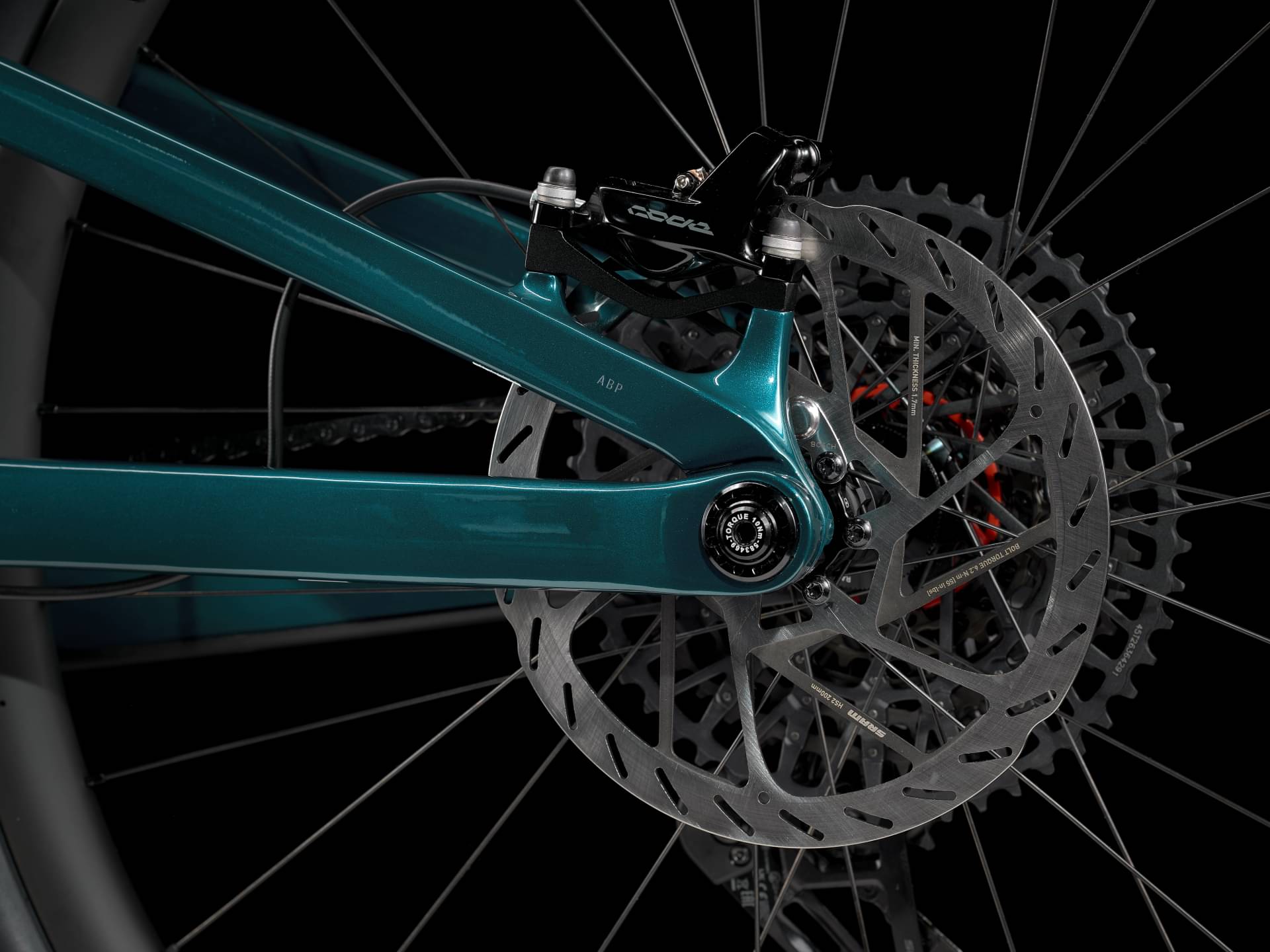

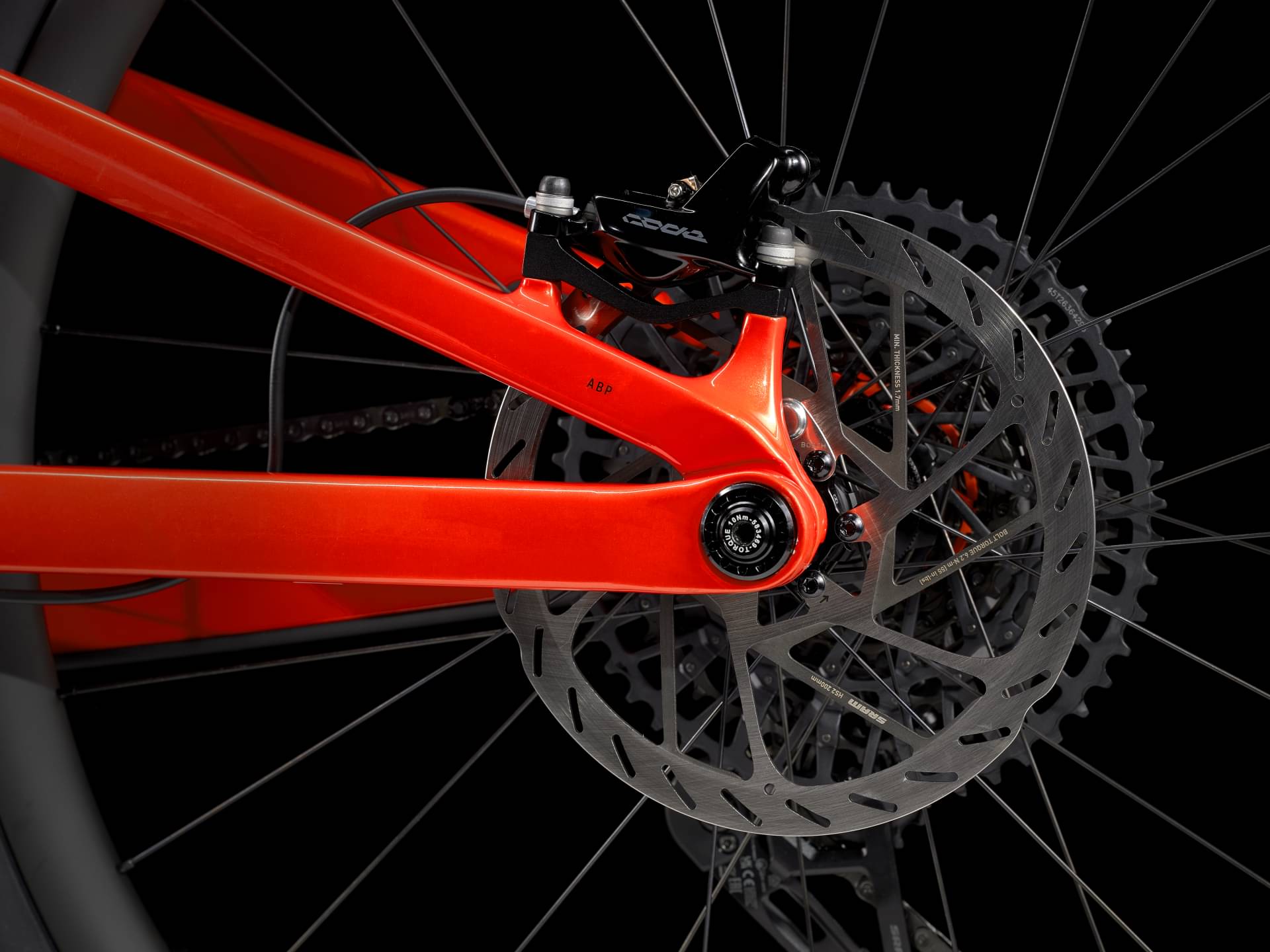

SRAM Code Silver 4-piston hydraulic disc
Cockpit
Grips

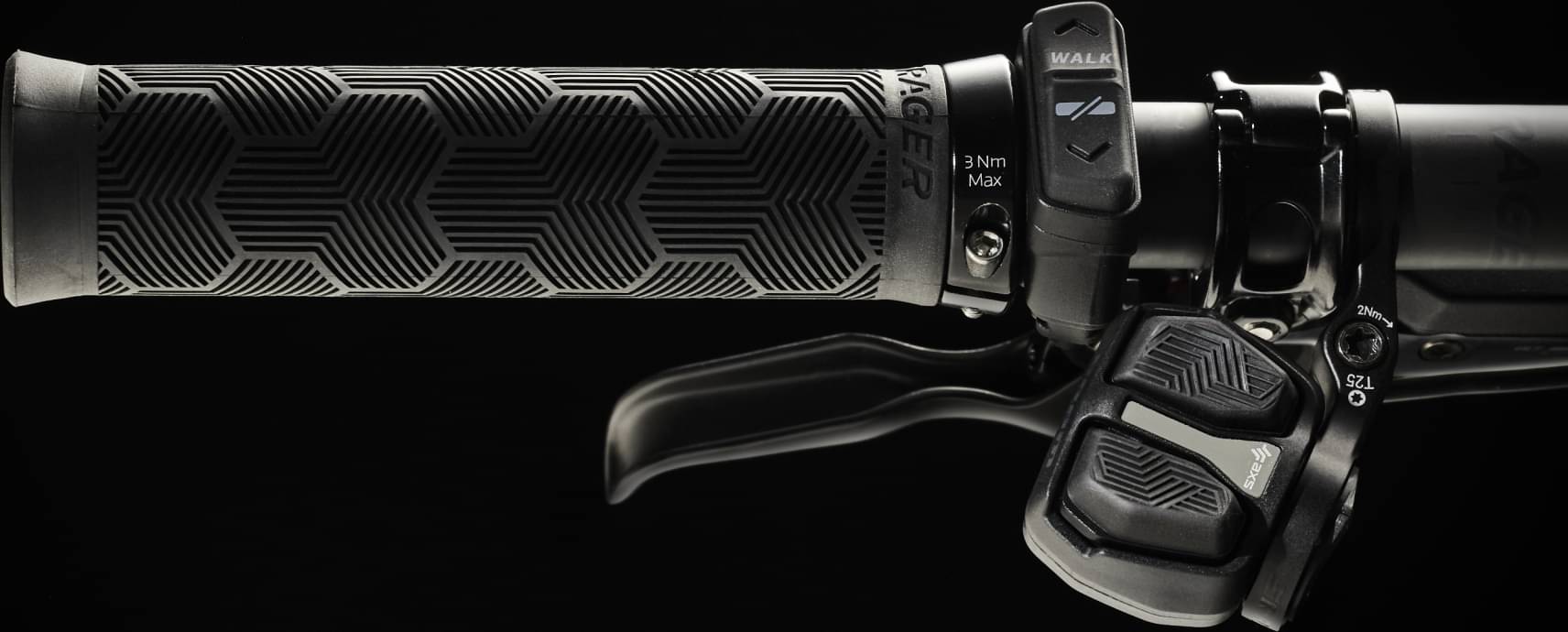

Bontrager XR Trail Elite, nylon lock-on
Headset
Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Size: S, RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length; Size: M, RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length; Size: L, XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length

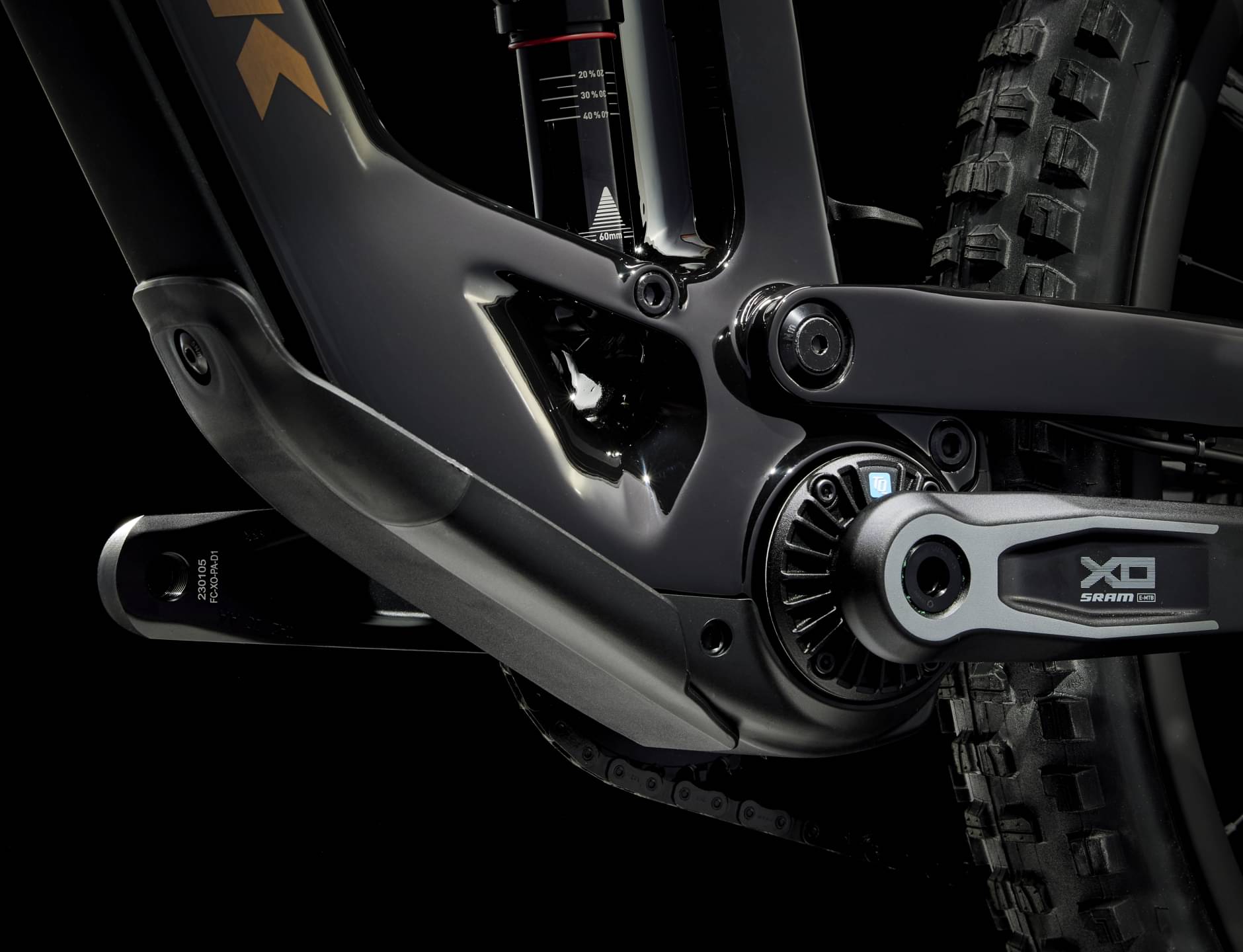

Motor & Battery

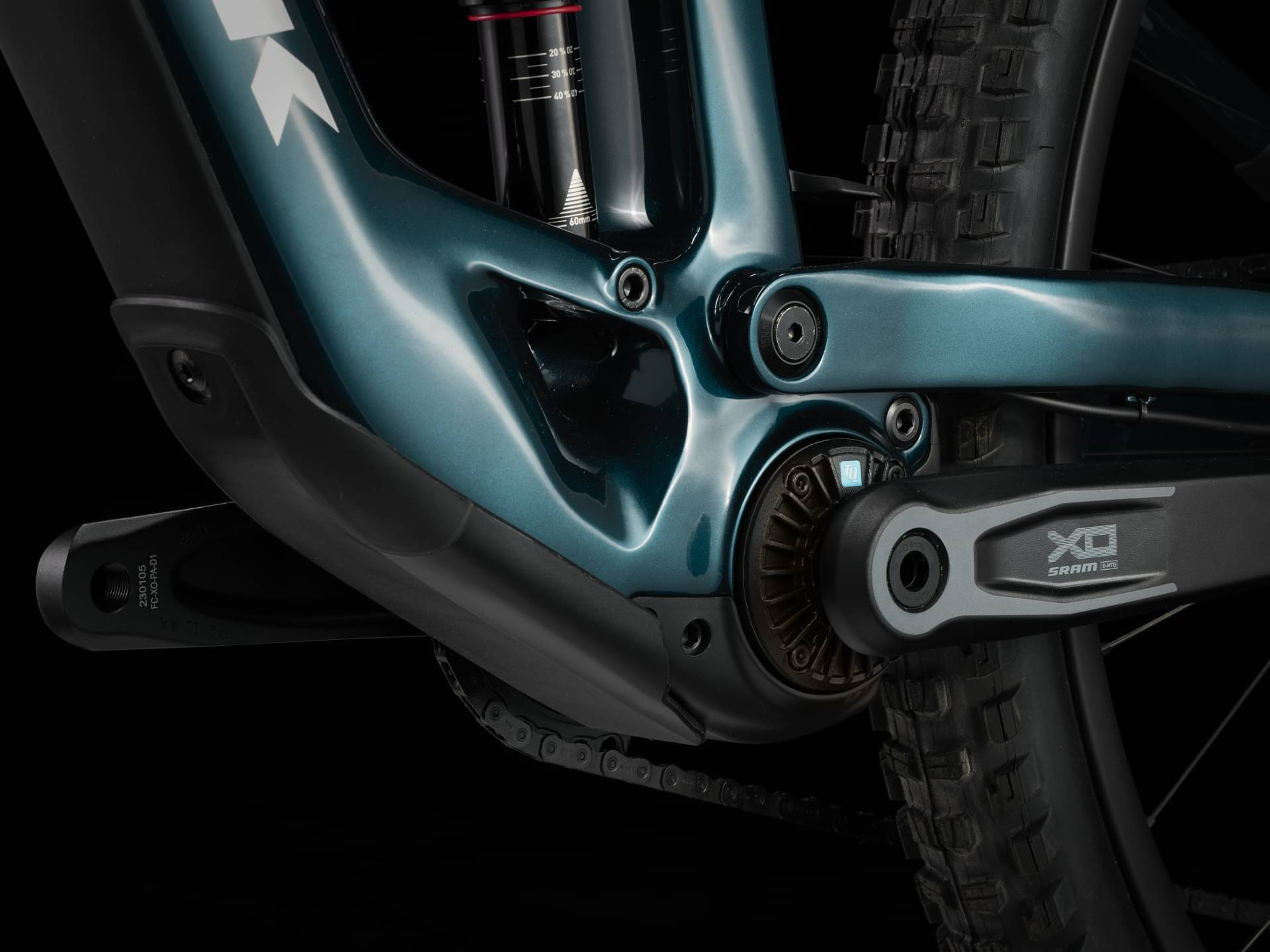

Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

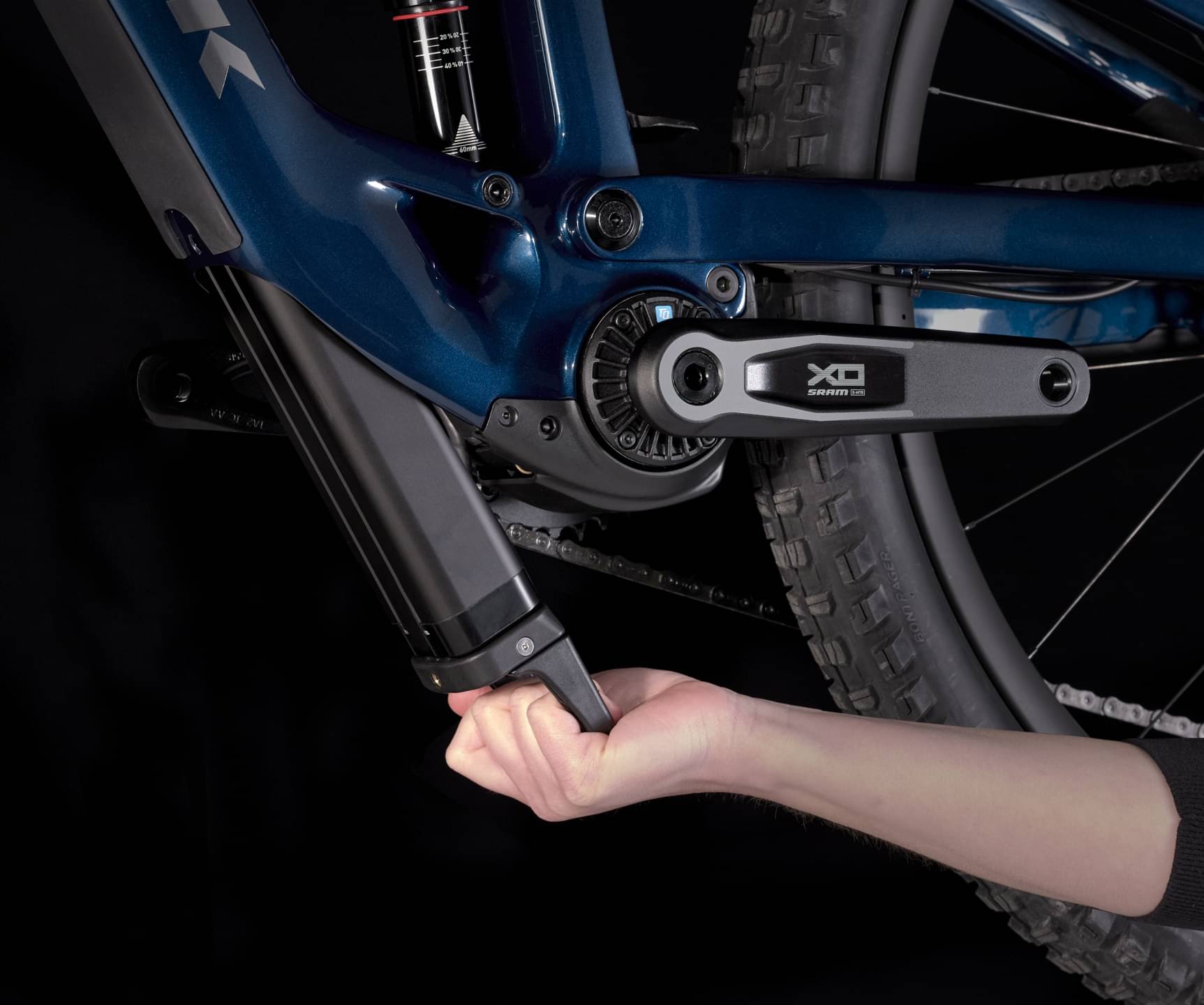

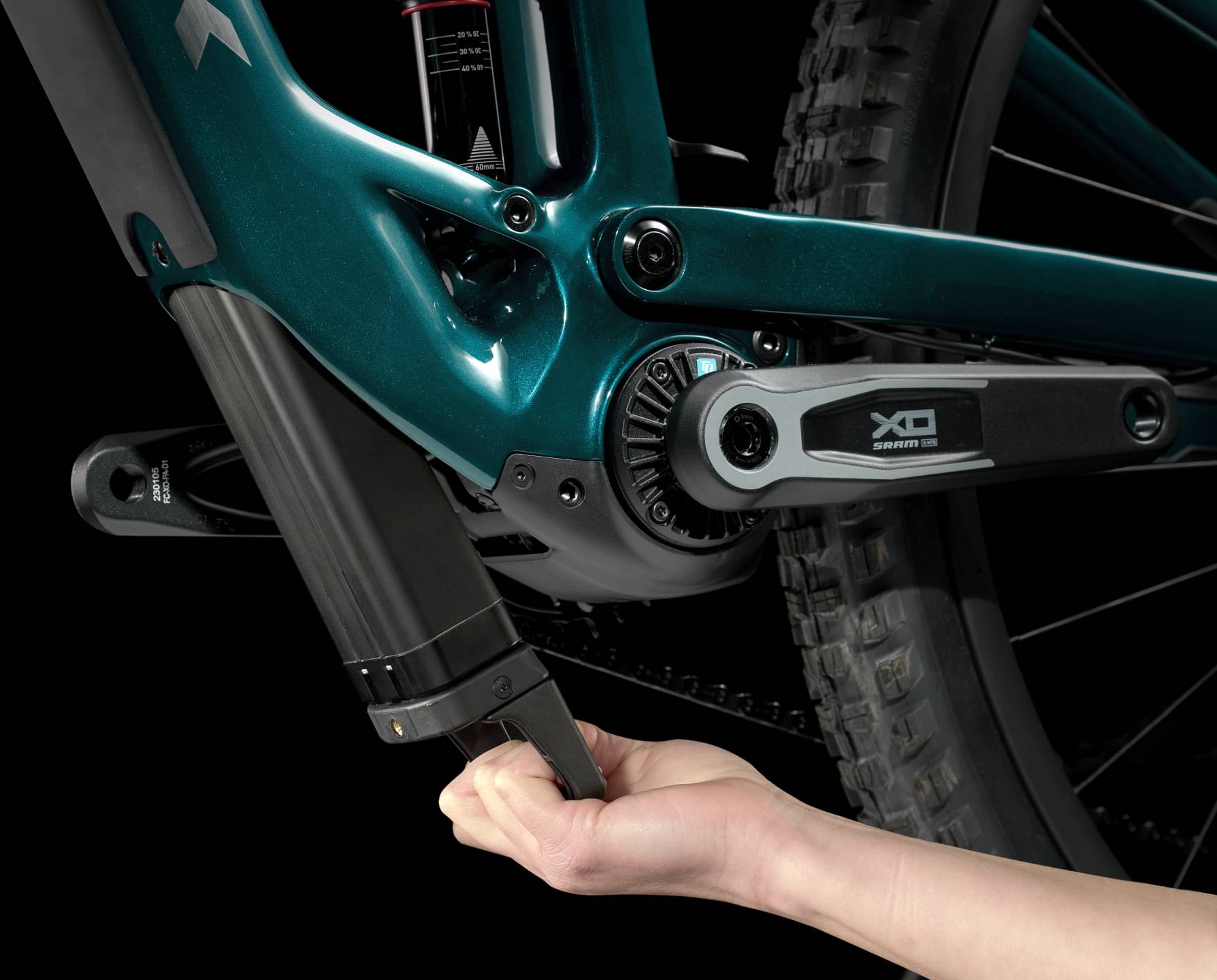

Battery
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.36 mm | 1.39 mm | 1.28 mm | 1.3 mm | 1.23 mm | 1.26 mm |
| Bottom Bracket Height | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm |
| Front Center | 751 mm | 751 mm | 780 mm | 780 mm | 810 mm | 810 mm | 840 mm | 839 mm |
| Rake | 43 mm | 44 mm | 43 mm | 44 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm |
| Stack | 613 mm | 617 mm | 622 mm | 626 mm | 622 mm | 626 mm | 631 mm | 635 mm |
| Reach | 431 mm | 425 mm | 456 mm | 450 mm | 486 mm | 480 mm | 511 mm | 505 mm |
| Top Tube Length | 569 mm | 570 mm | 596 mm | 597 mm | 626 mm | 627 mm | 653 mm | 655 mm |
| Seat Tube Angle | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm |
| Head Tube Angle | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm |
| Wheelbase | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1243 mm | 1244 mm | 1273 mm | 1273 mm |
| Bottom Bracket Drop | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm |
| Standover Height | 729 mm | 723 mm | 730 mm | 724 mm | 736 mm | 730 mm | 756 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Fuel EXe 9.9 X0 AXS T-Type is a Trek E Fuel model. Trek launched 15 e-bikes of this model so far. Take a sneak peek at all Trek E Fuel e-bikes models from 2024, by clicking here.
Model range prices
The most economical model, the Trek Fuel EXe 5 2024 has a starting price of 5499$. Trek Fuel EXe 9.9 XX AXS T-Type 2024 on the other hand is the most expensive at 13999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2024 and its price was 11999$. Doing a quick comparison, we notice that Fuel EXe 9.9 X0 AXS T-Type price is 256.58% more expensive than the average cost of a Trail e-bike.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.02 kg (50.75 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, Fuel EXe 9.9 X0 AXS T-Type has a weight of 18.95 kg (41.78 lbs). To sum up, it’s 21.48% lighter than the average weight of Trail e-bikes.

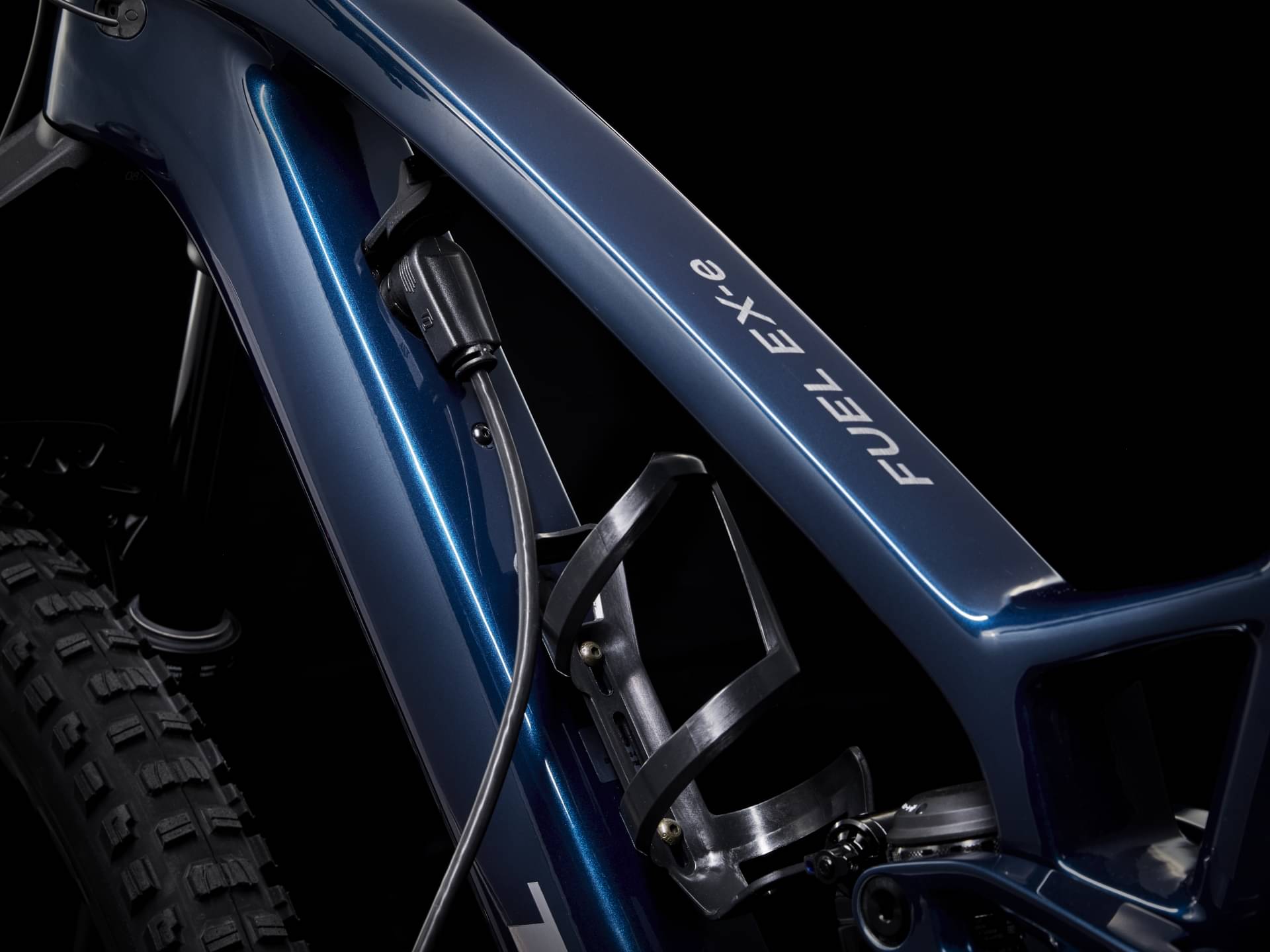

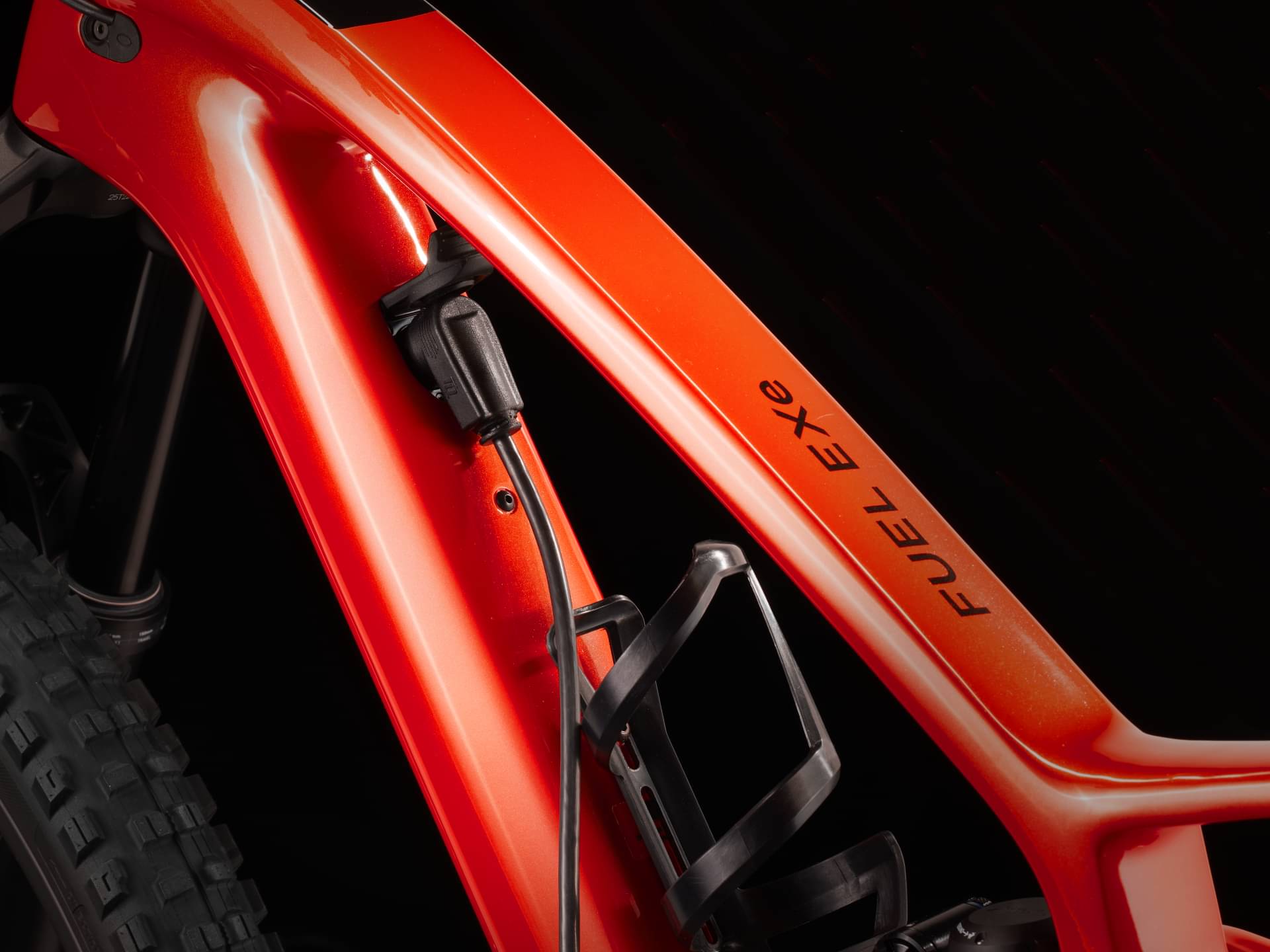

Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the RockShox Lyrik Ultimate model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.

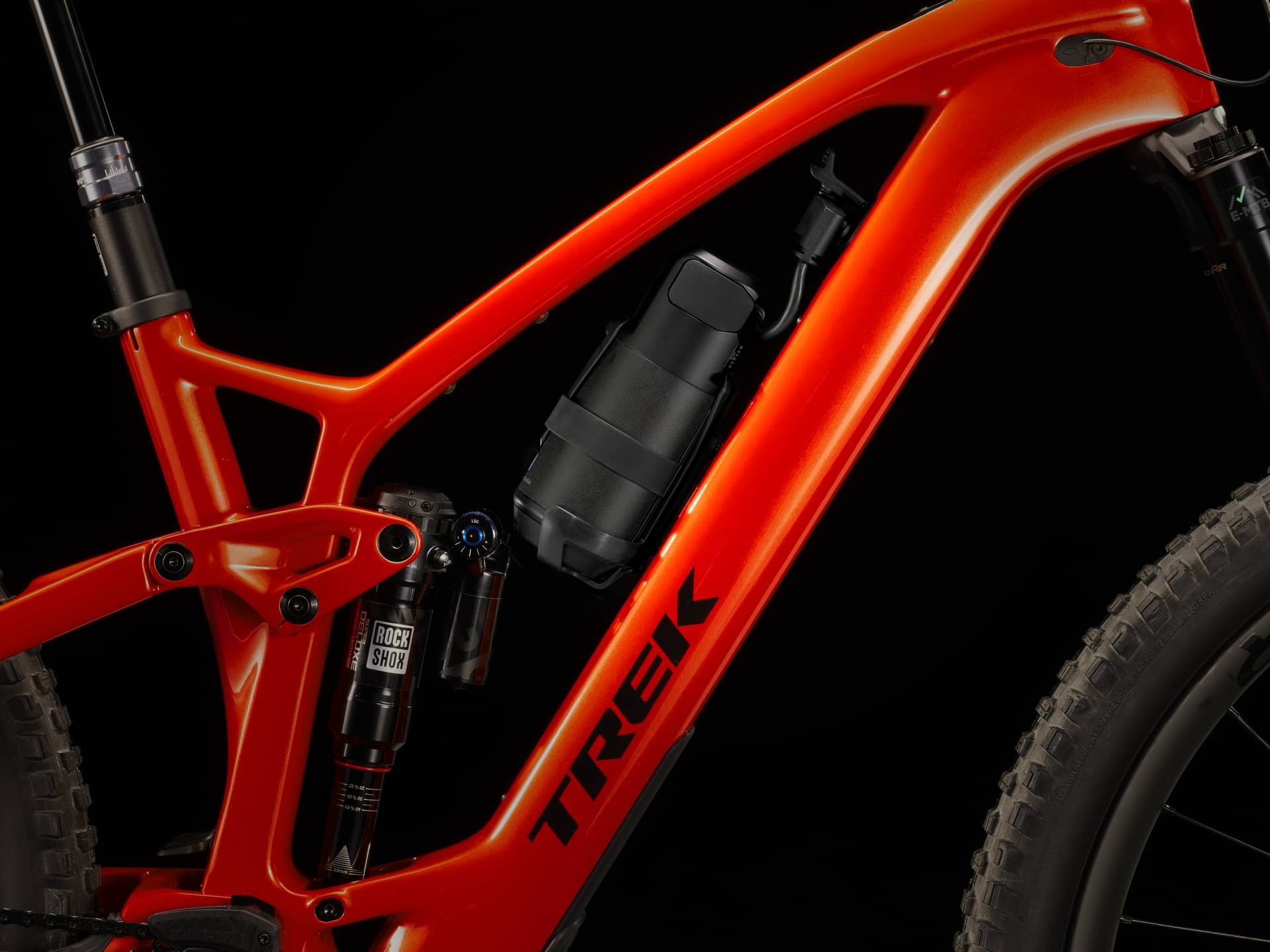

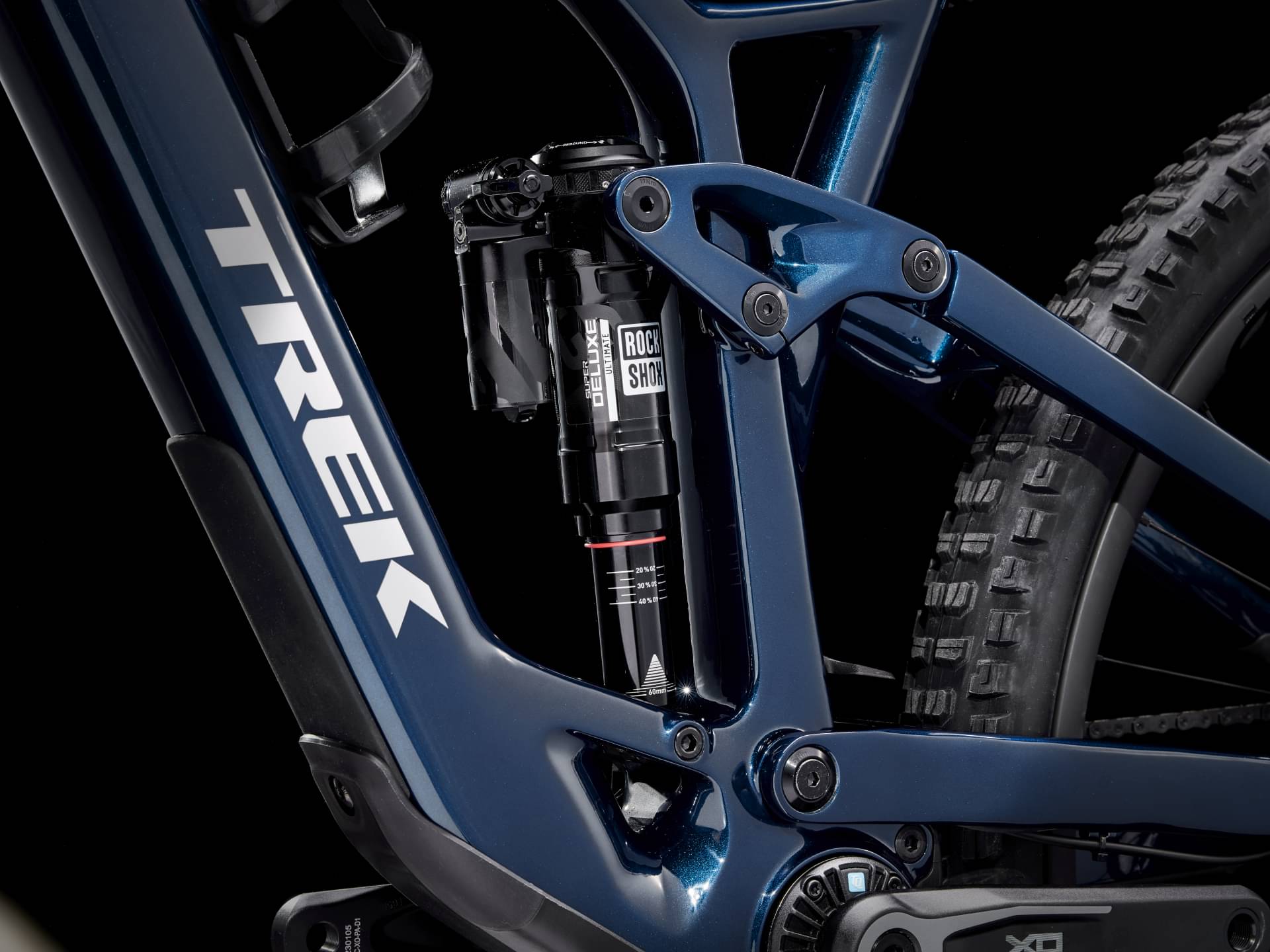

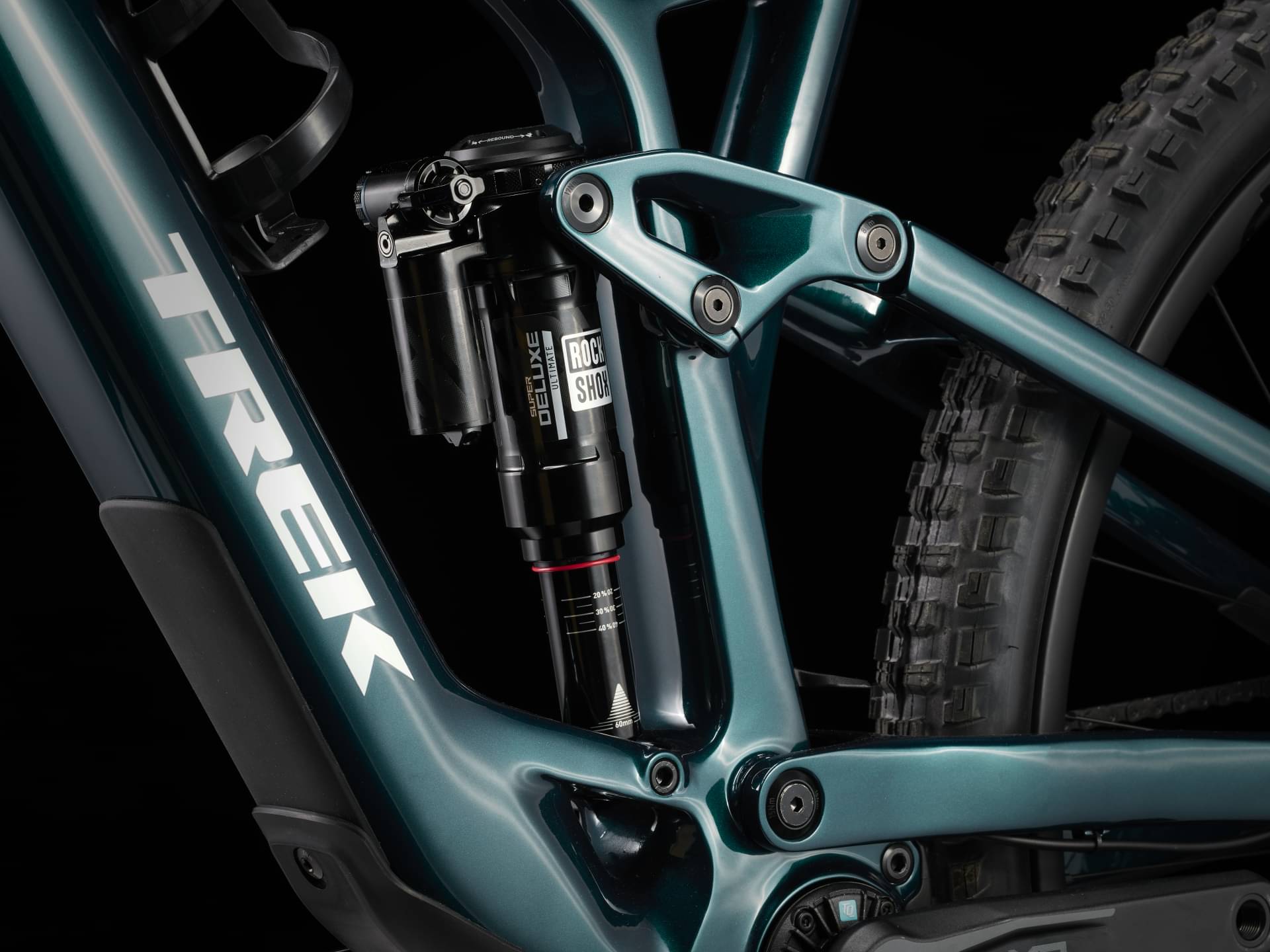

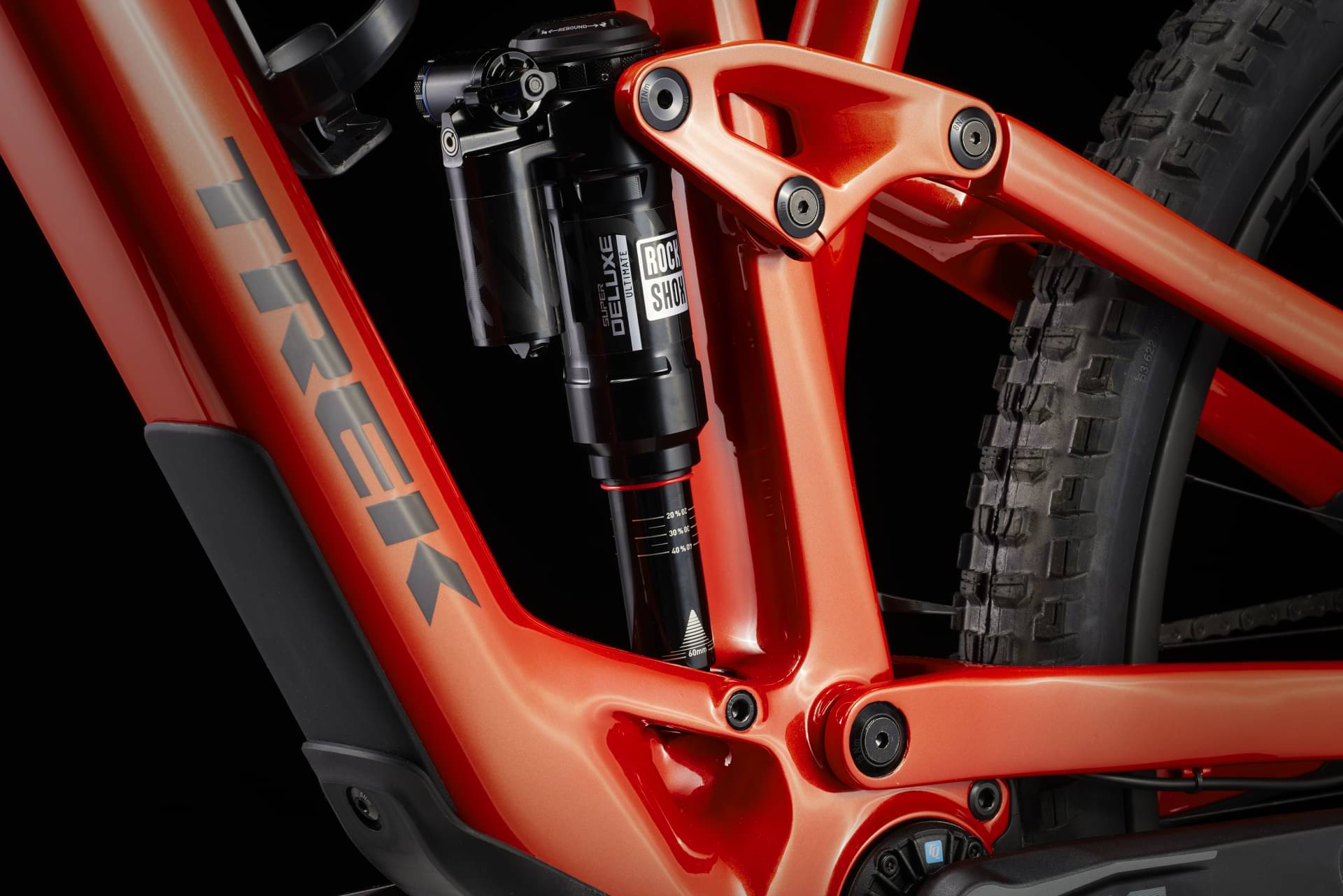

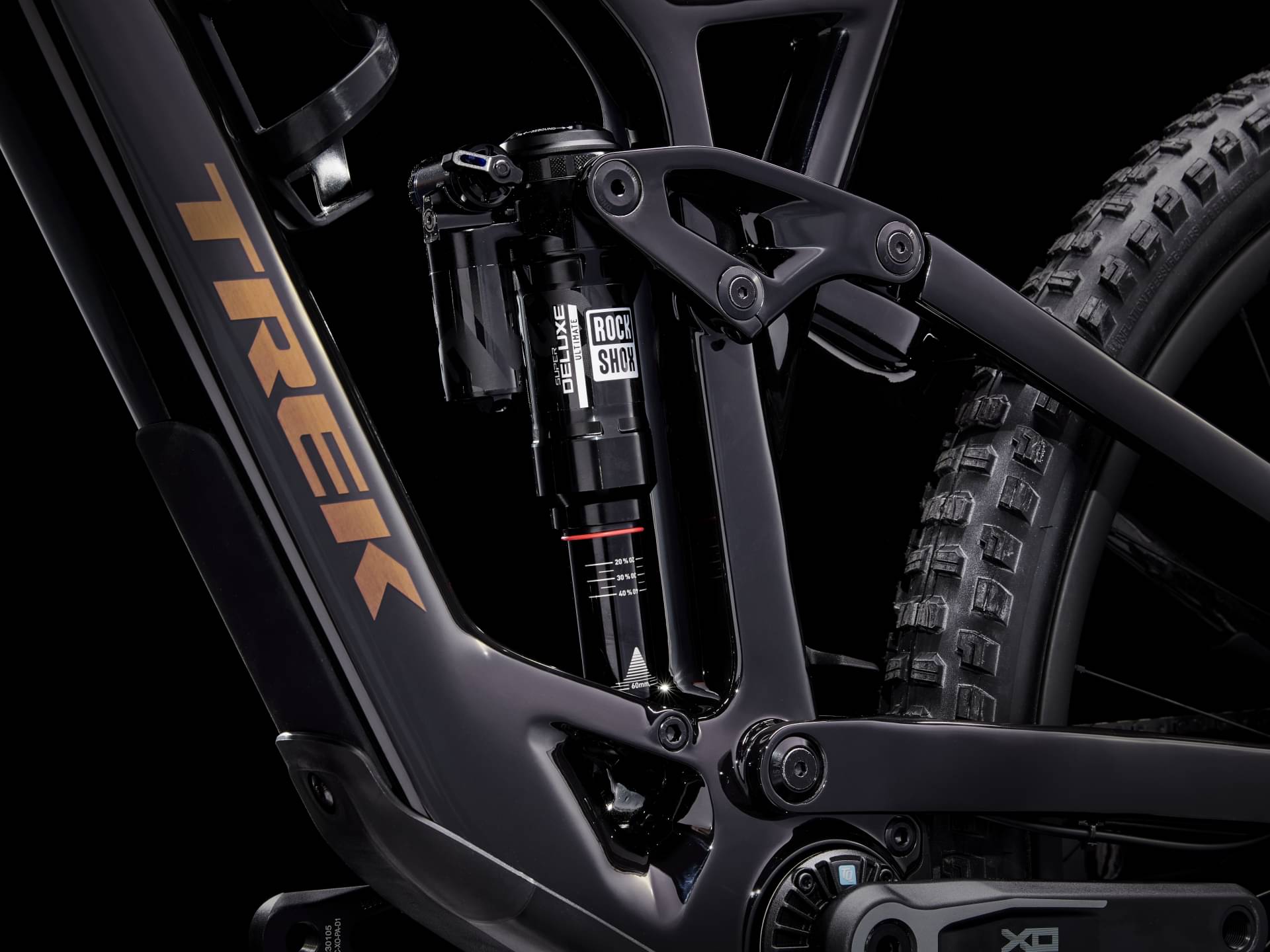

Rear Shock
The Fuel EXe 9.9 X0 AXS T-Type has a rear shock with a travel of 140mm. The model RockShox Super Deluxe Ultimate AirWiz is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Fuel EXe 9.9 X0 AXS T-Type model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.

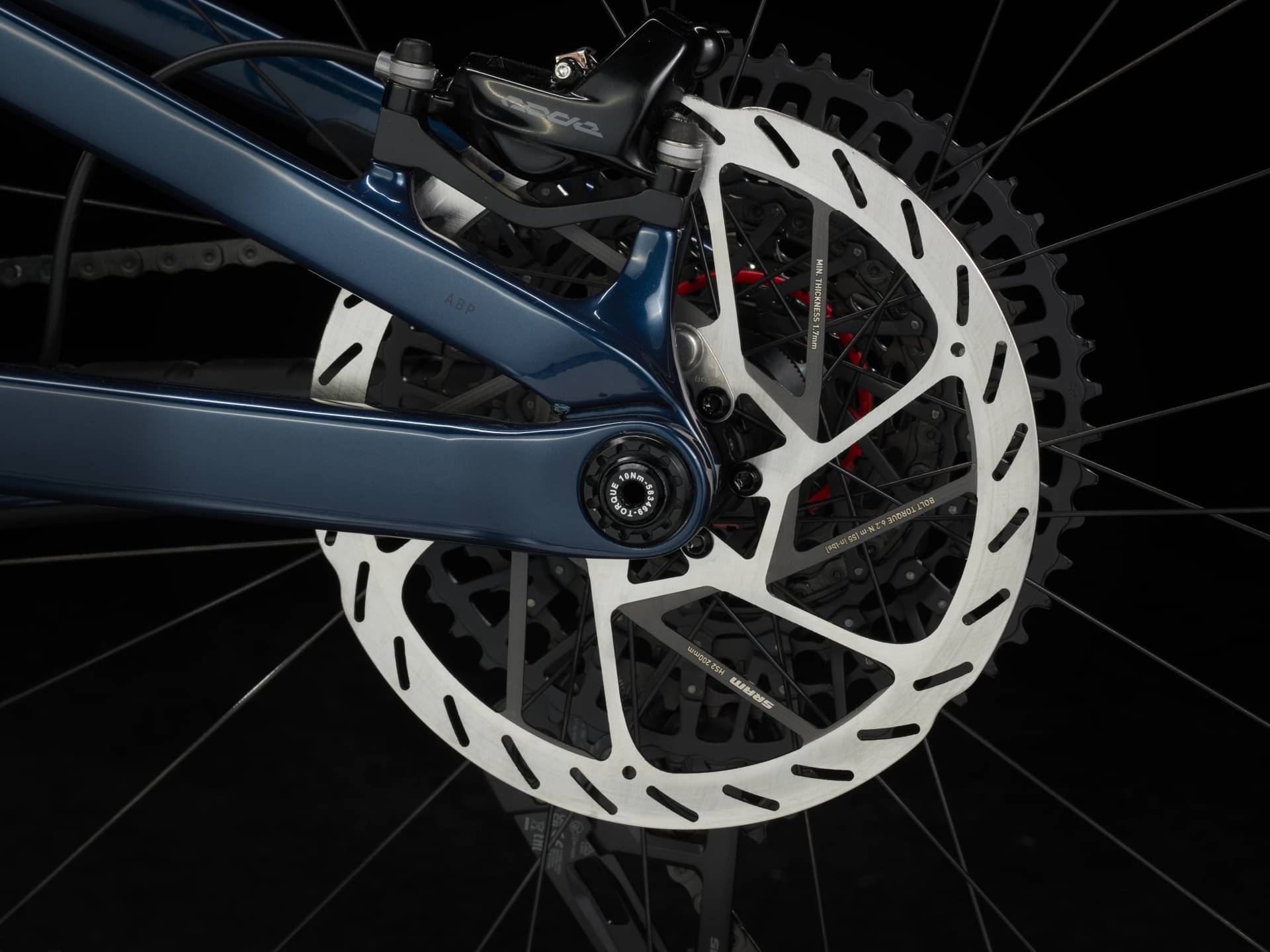

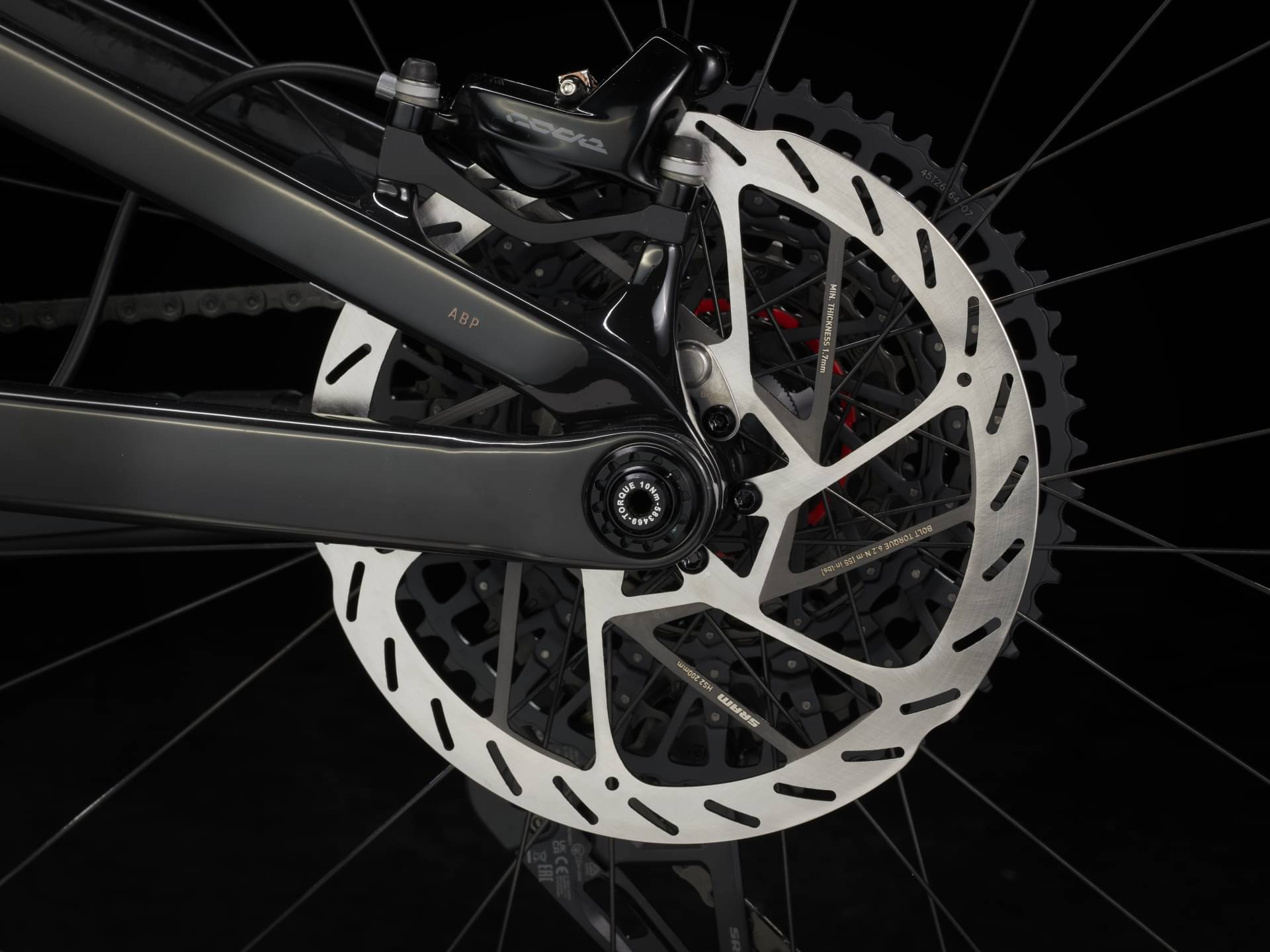

Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Fuel EXe 9.9 X0 AXS T-Type is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Fuel EXe 9.9 X0 AXS T-Type. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
