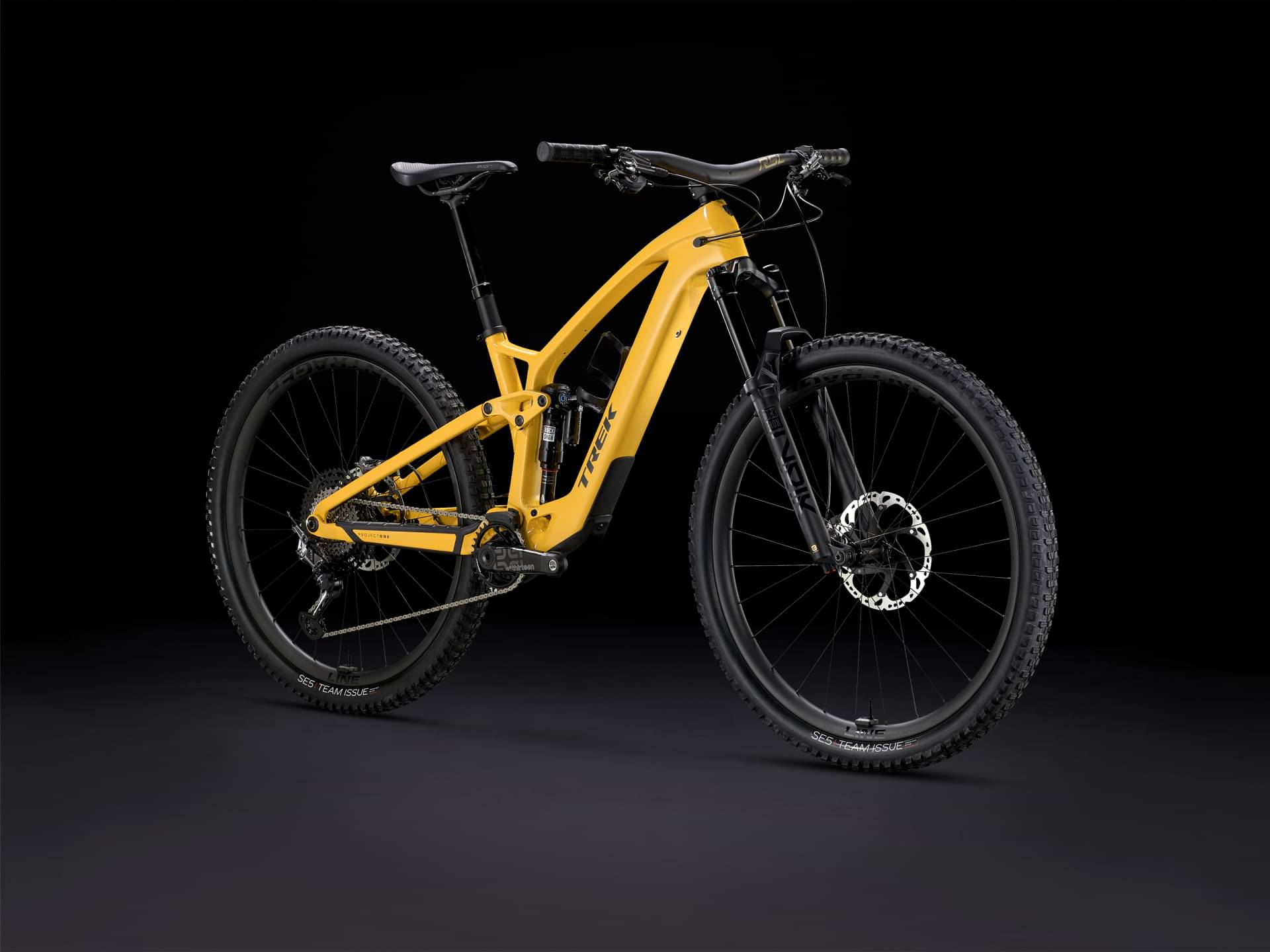

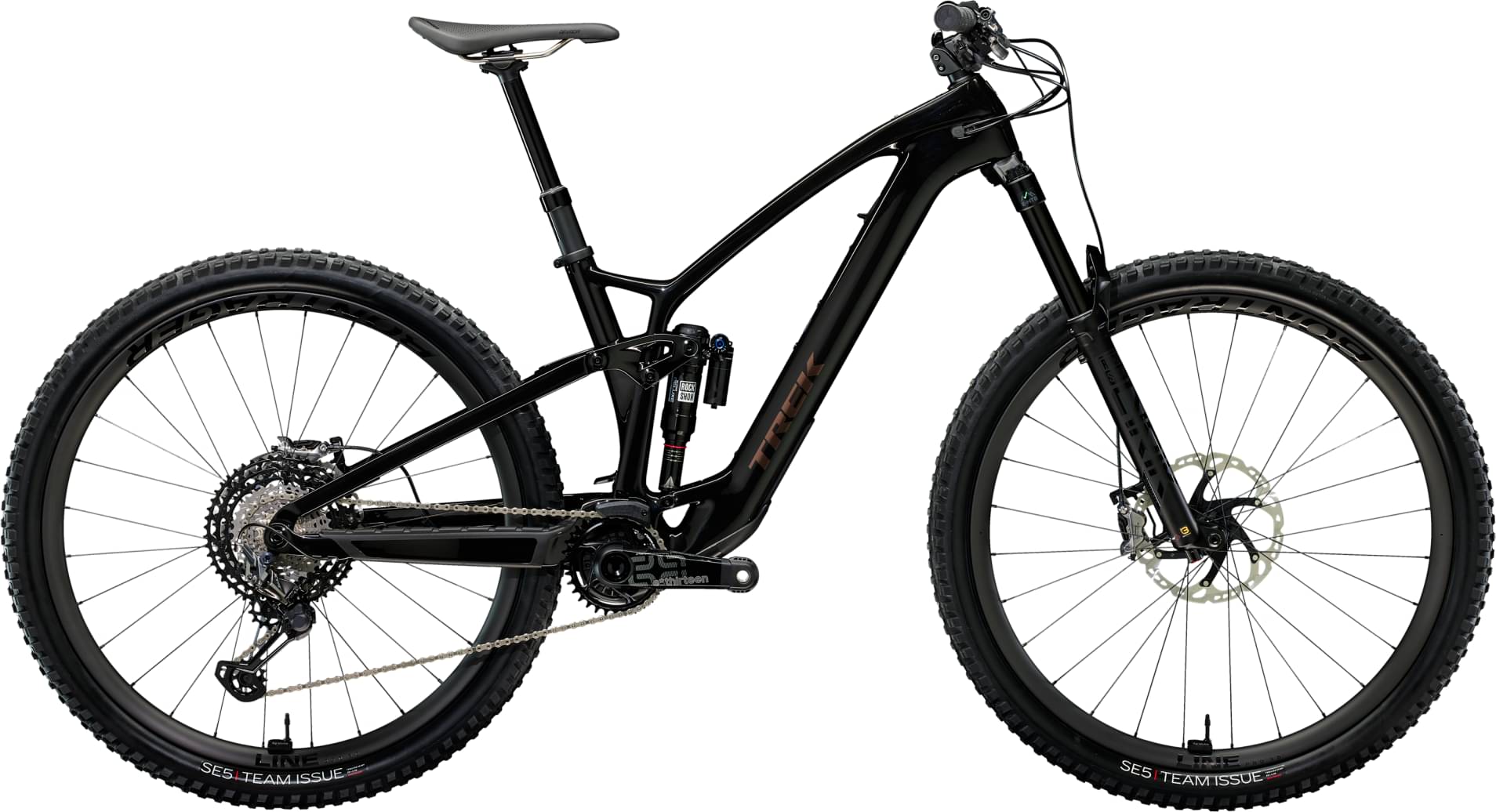

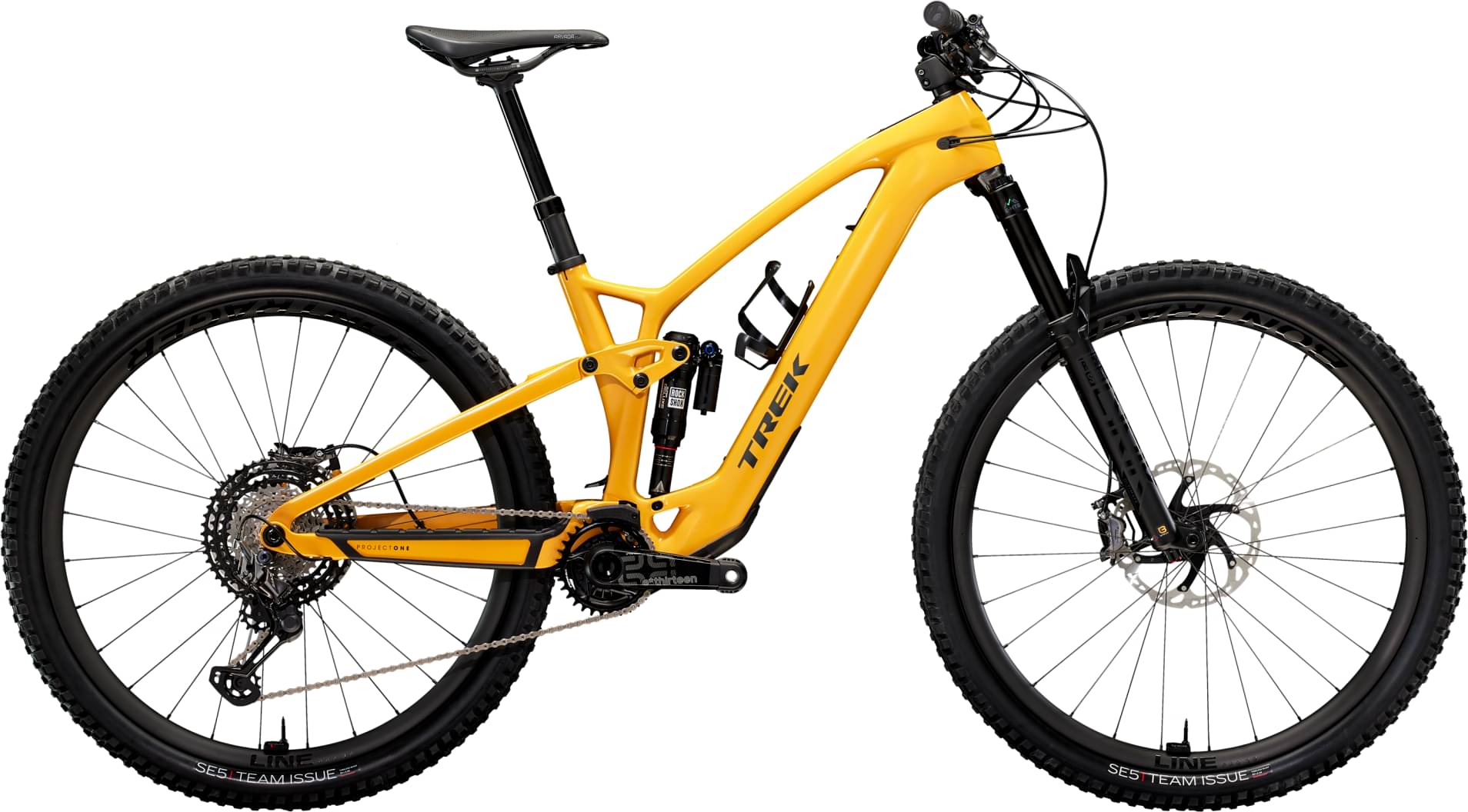

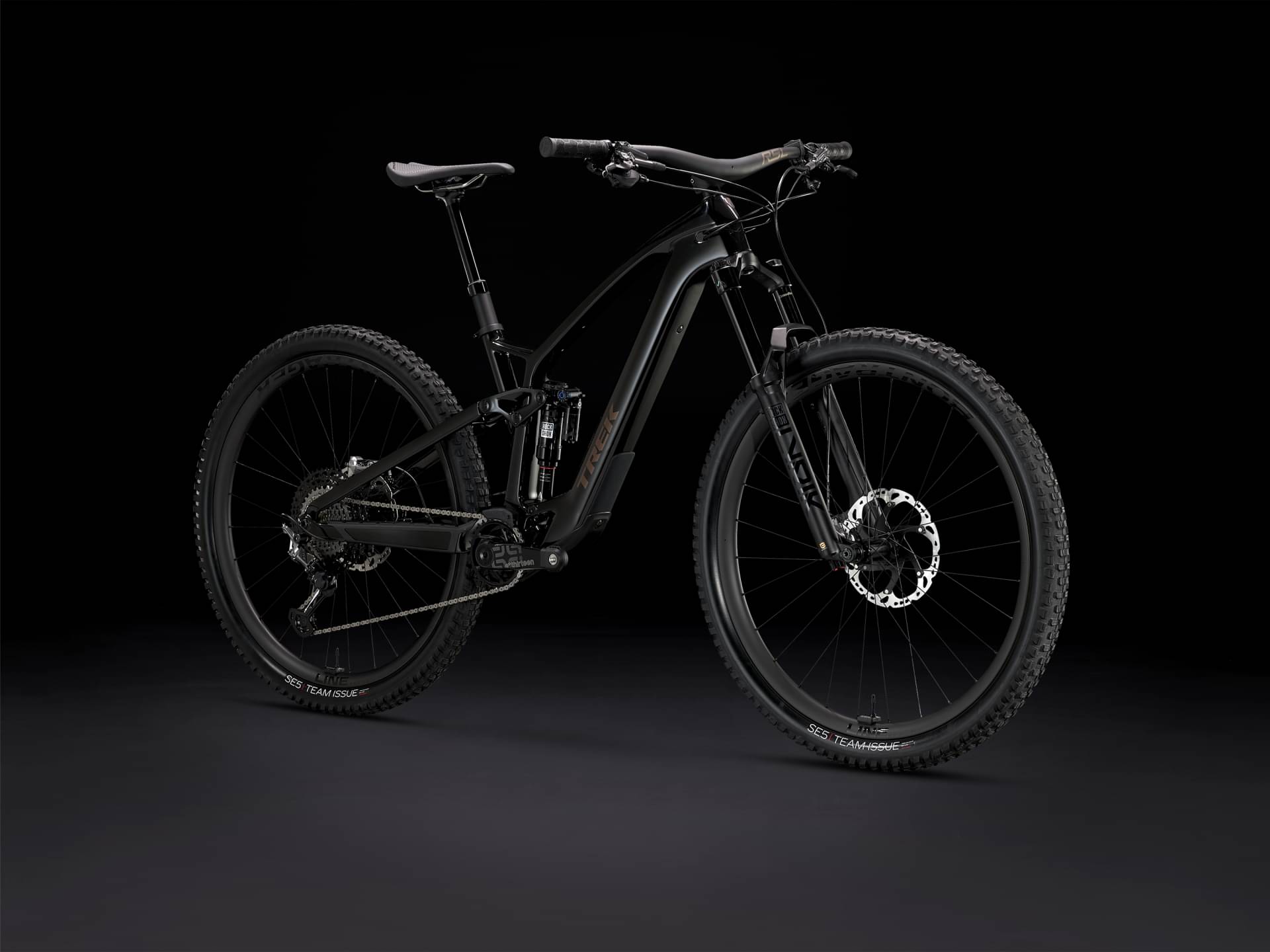

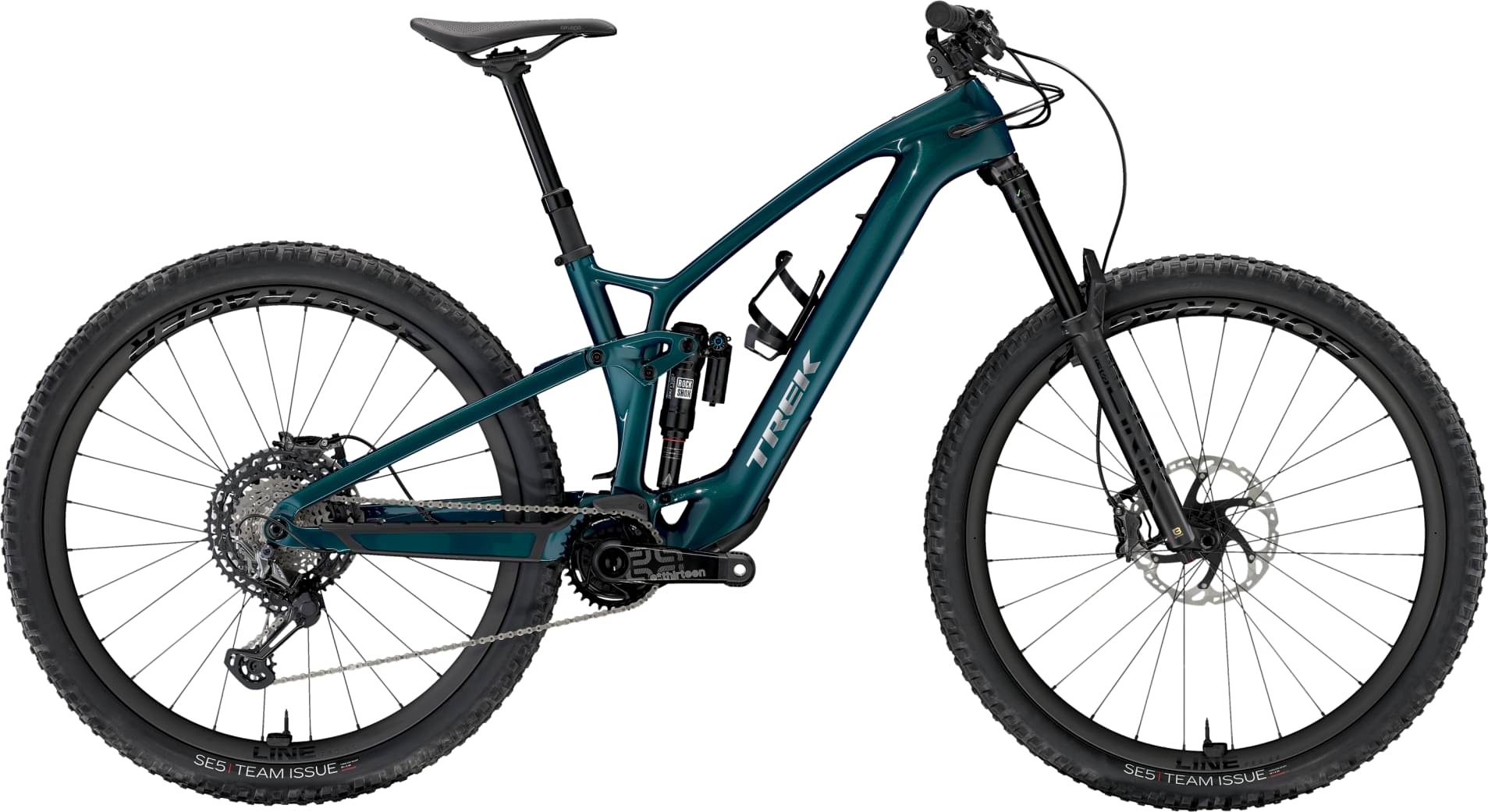

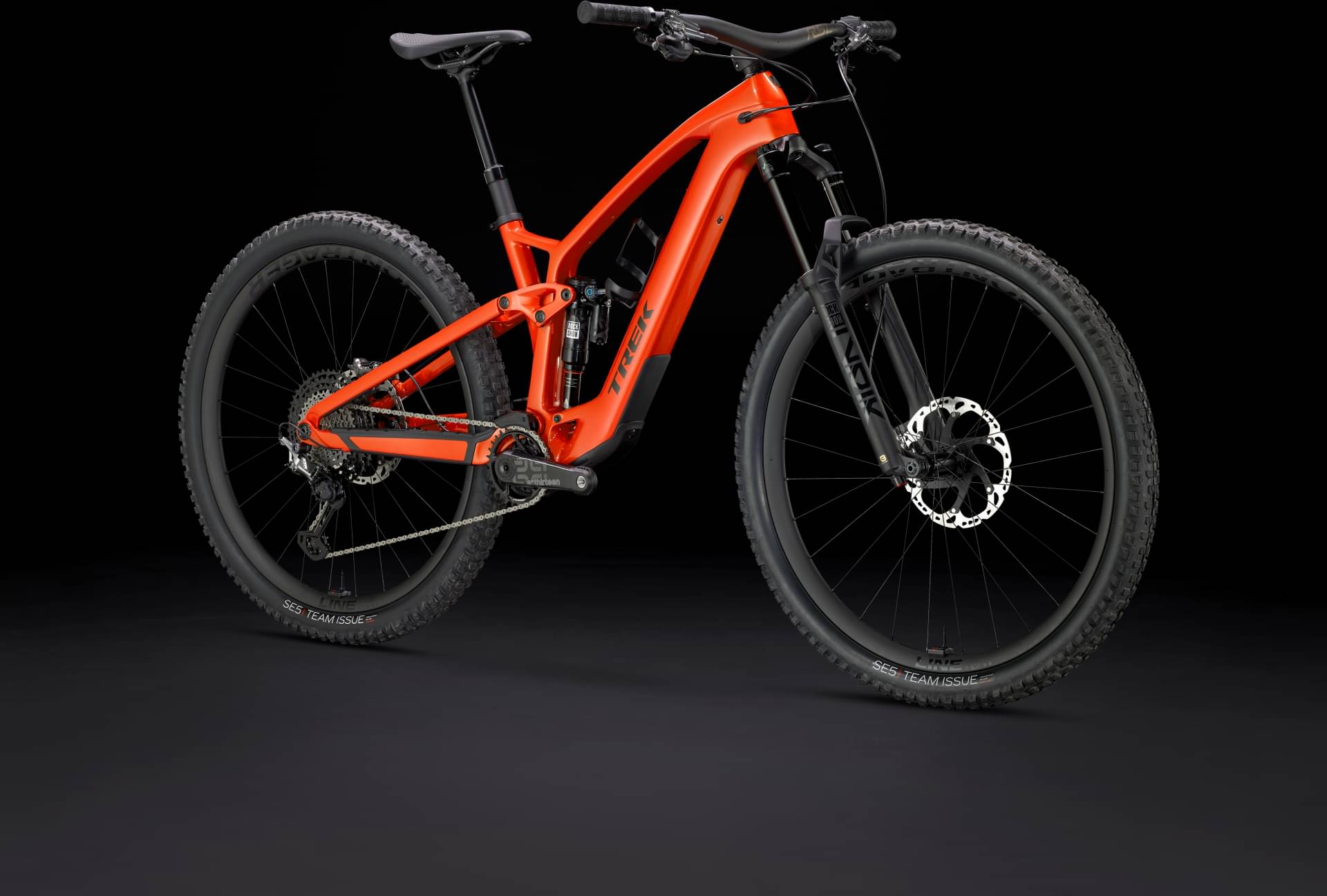

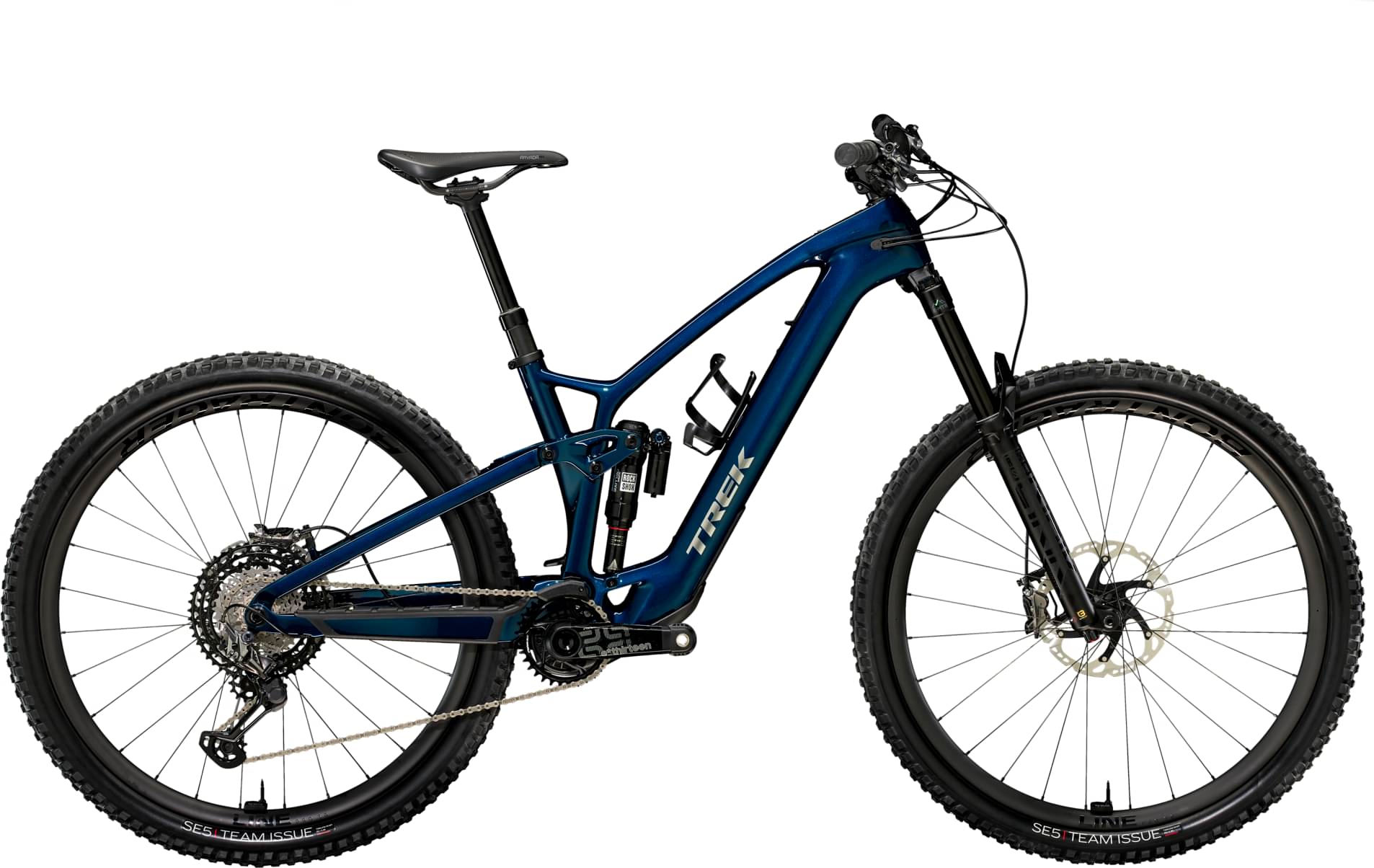

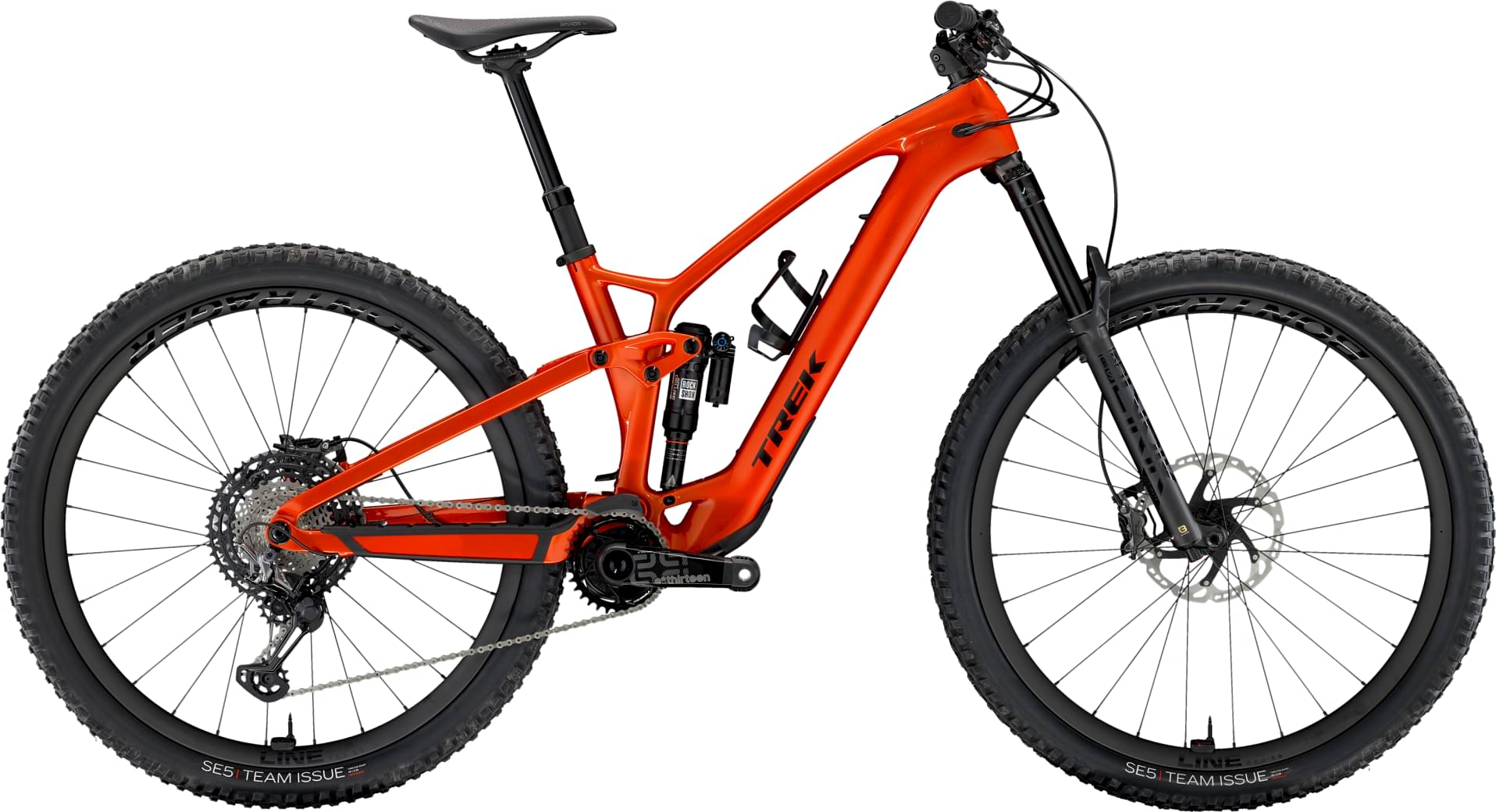

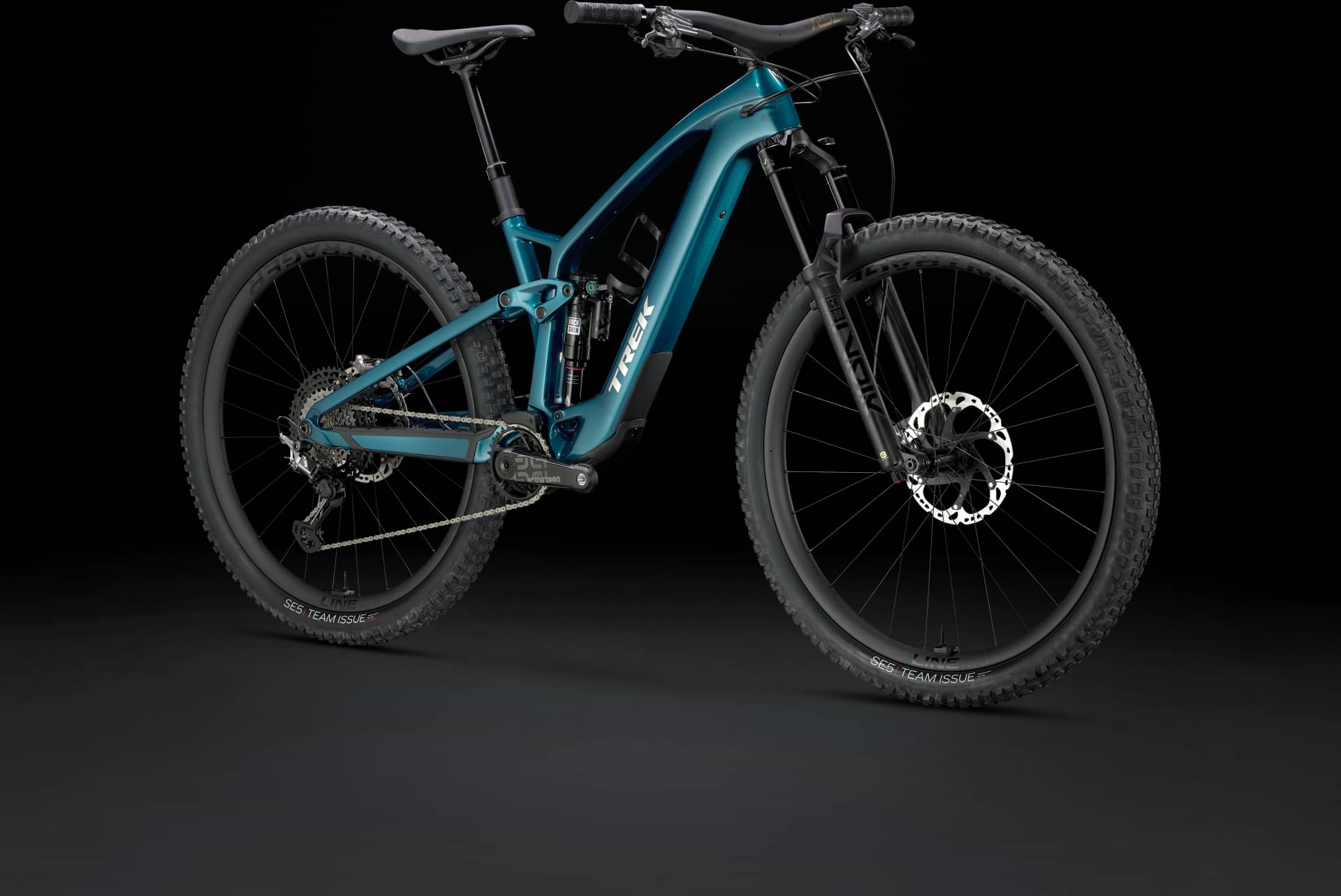

Trek Fuel EXe 9.9 XTR 2024
2024 E-bike
Estimate price |
12,999$
Weight | 18.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset XTR, e*thirteen -
Suspension Full -

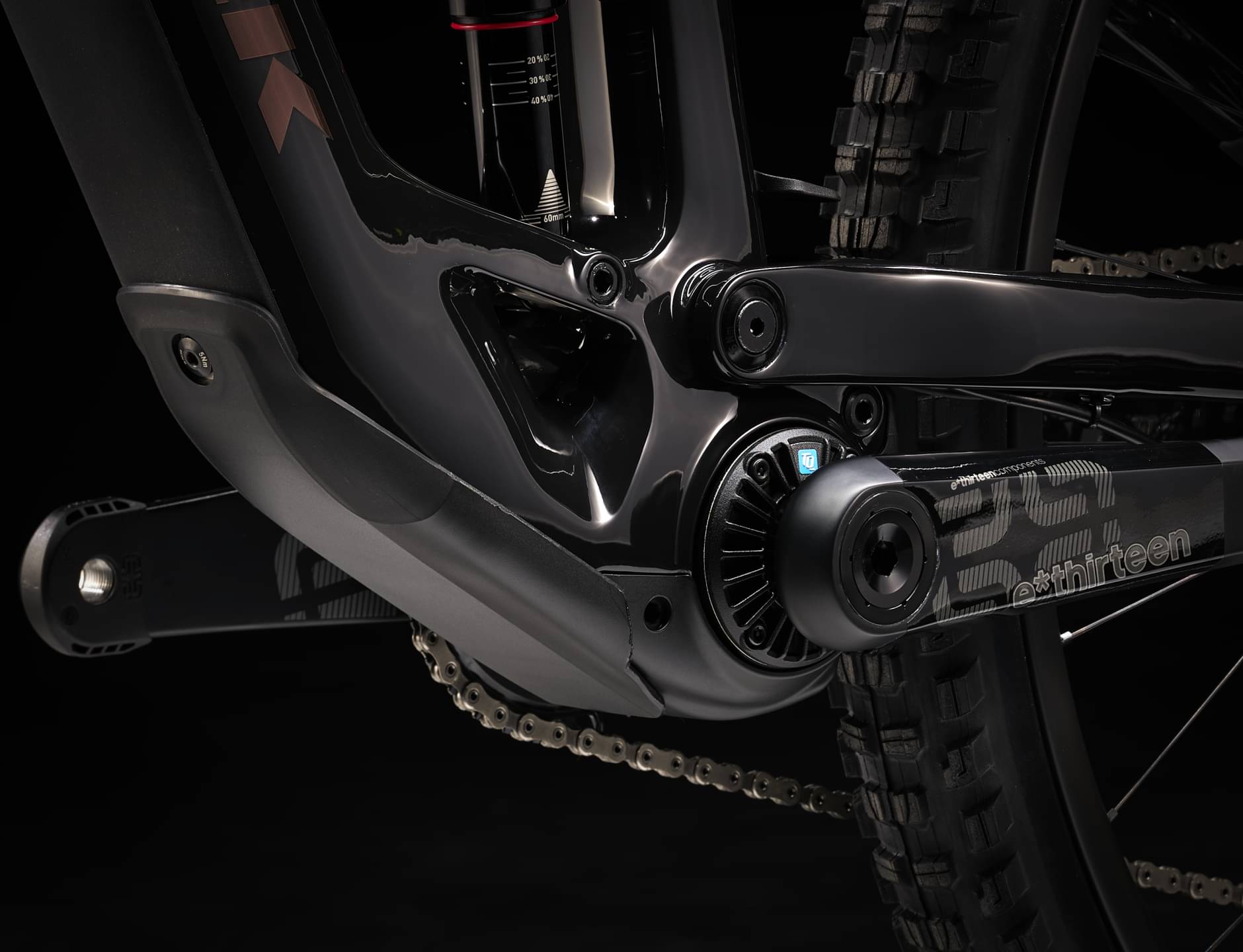

Motor TQ 250W 50Nm mid-drive -
Battery TQ 360Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

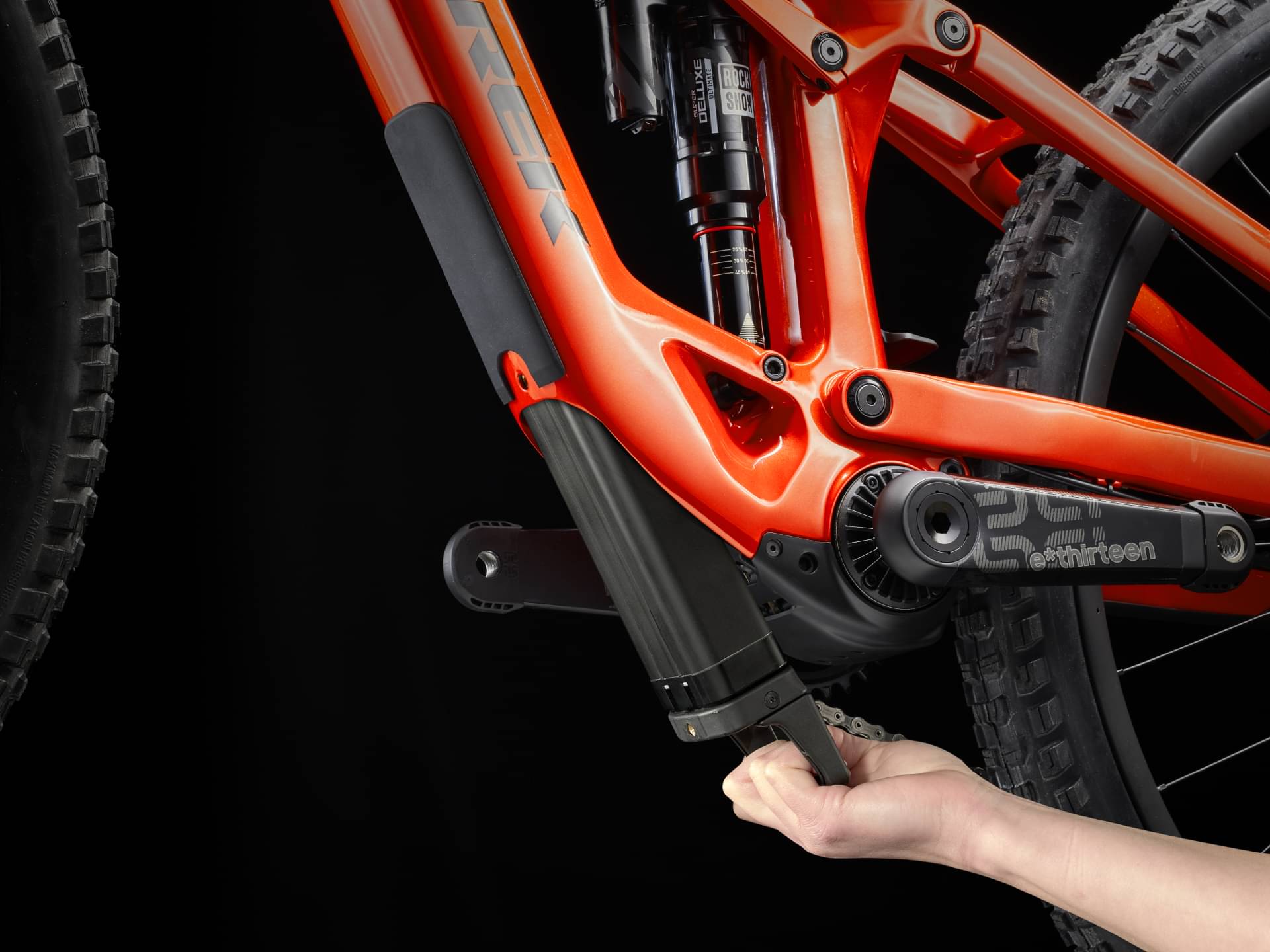

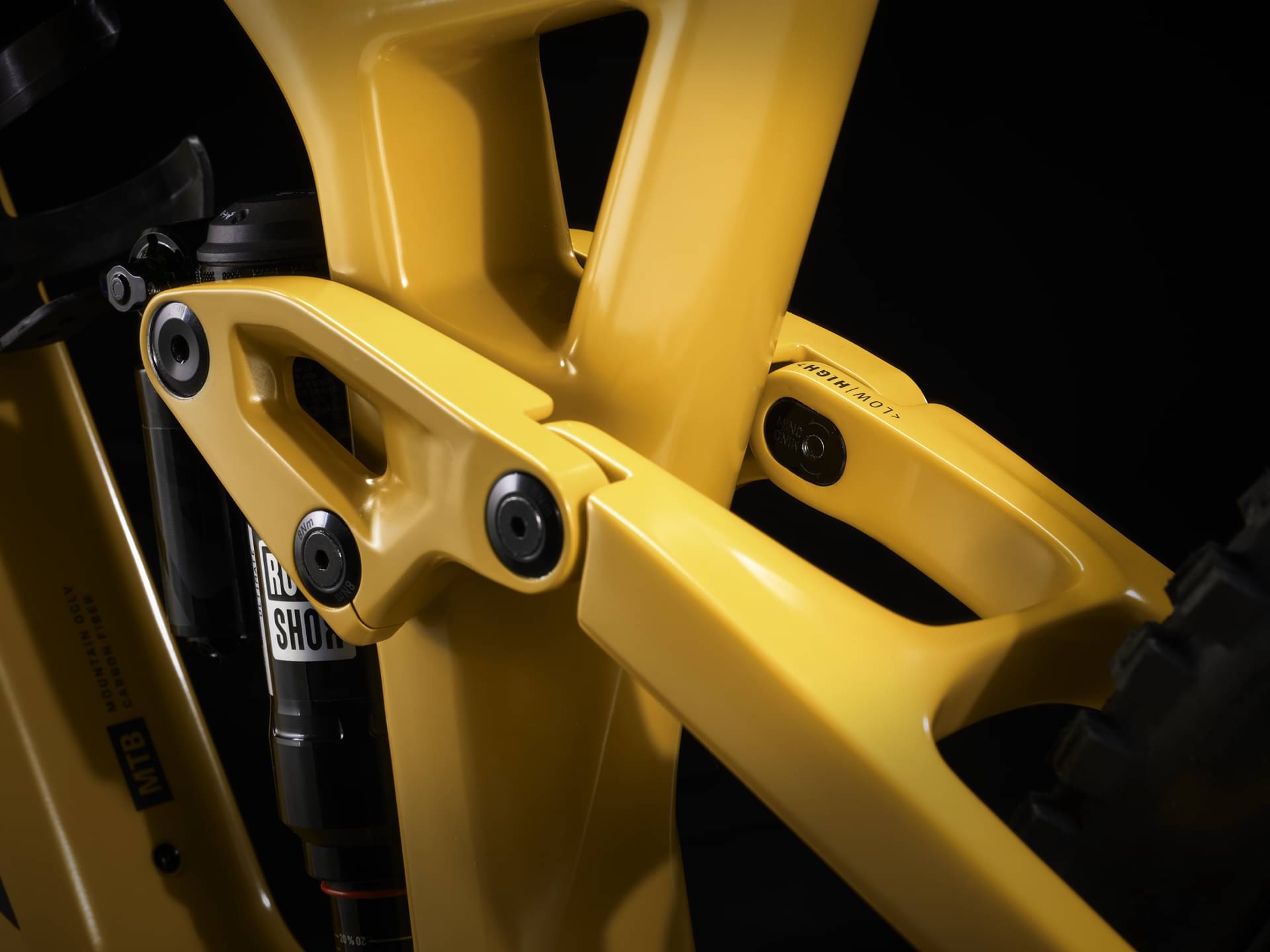

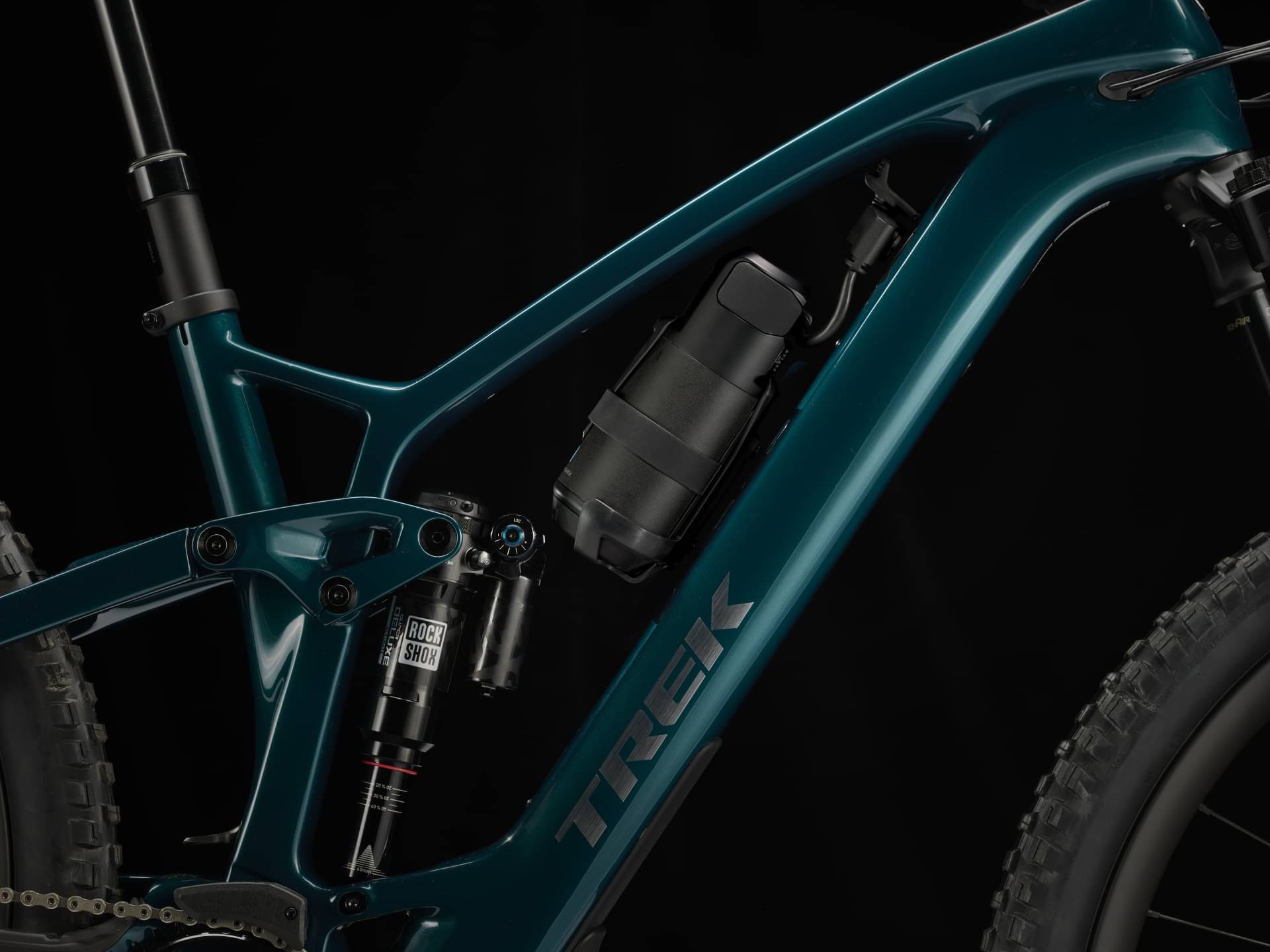

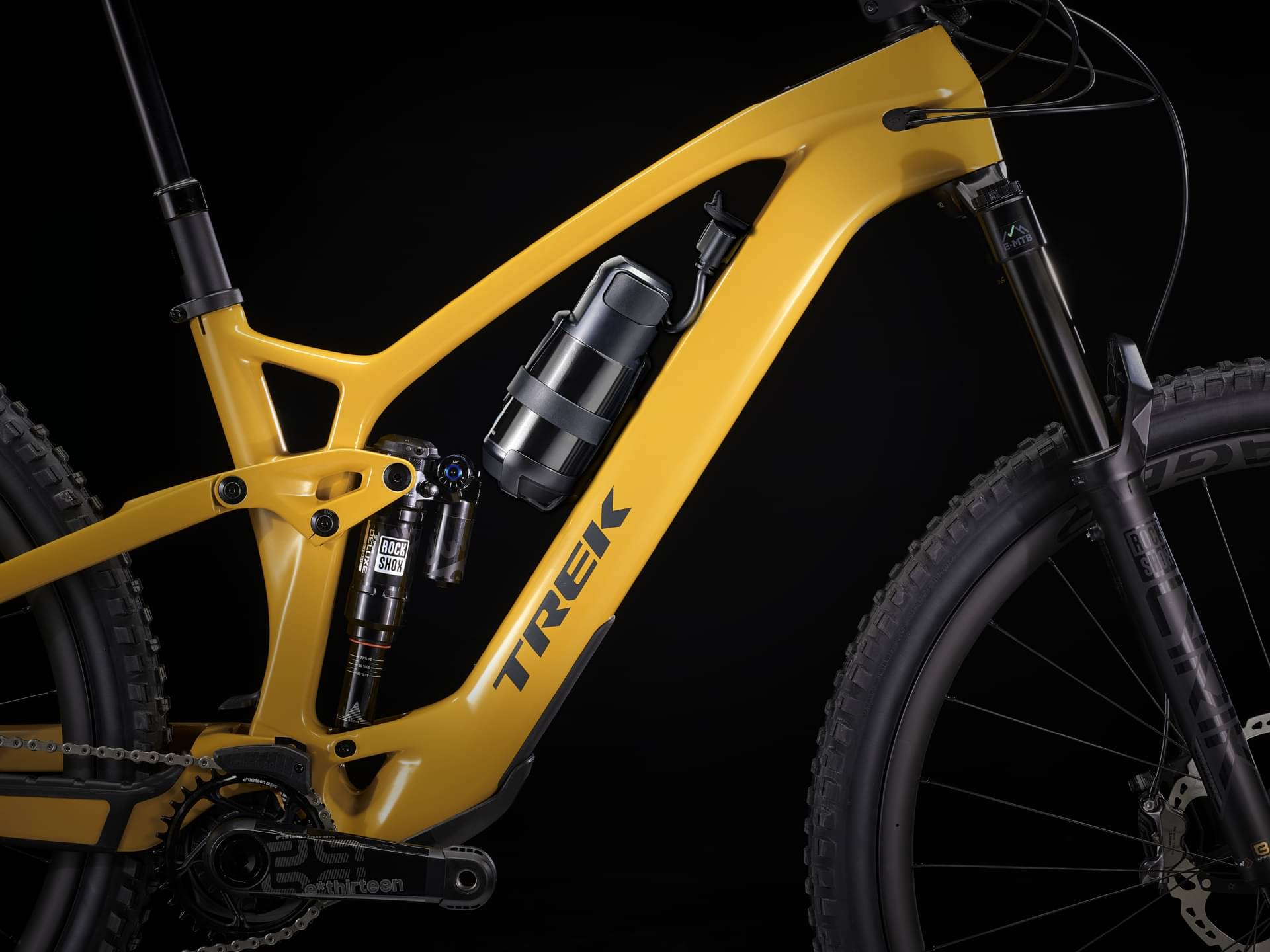

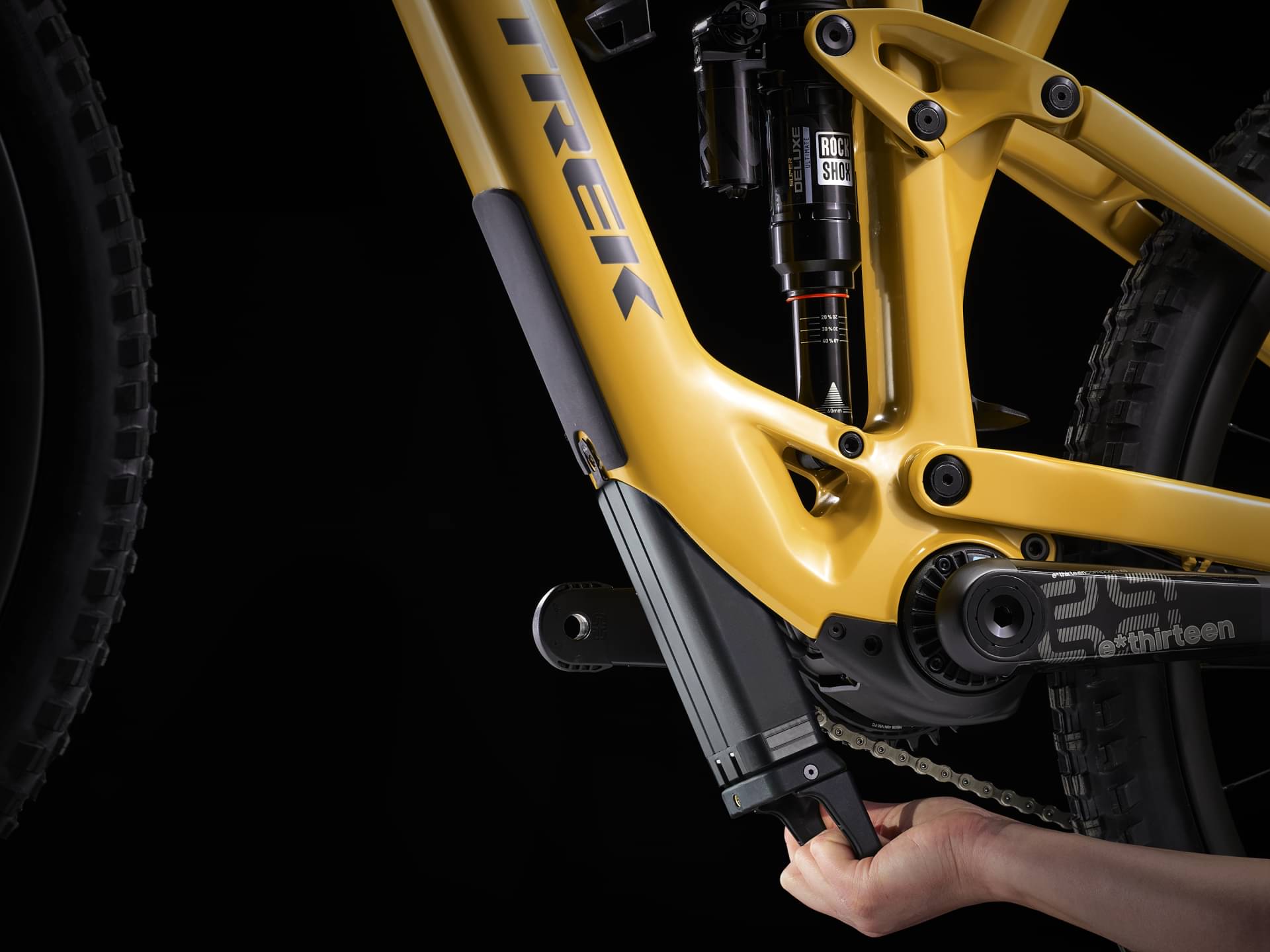

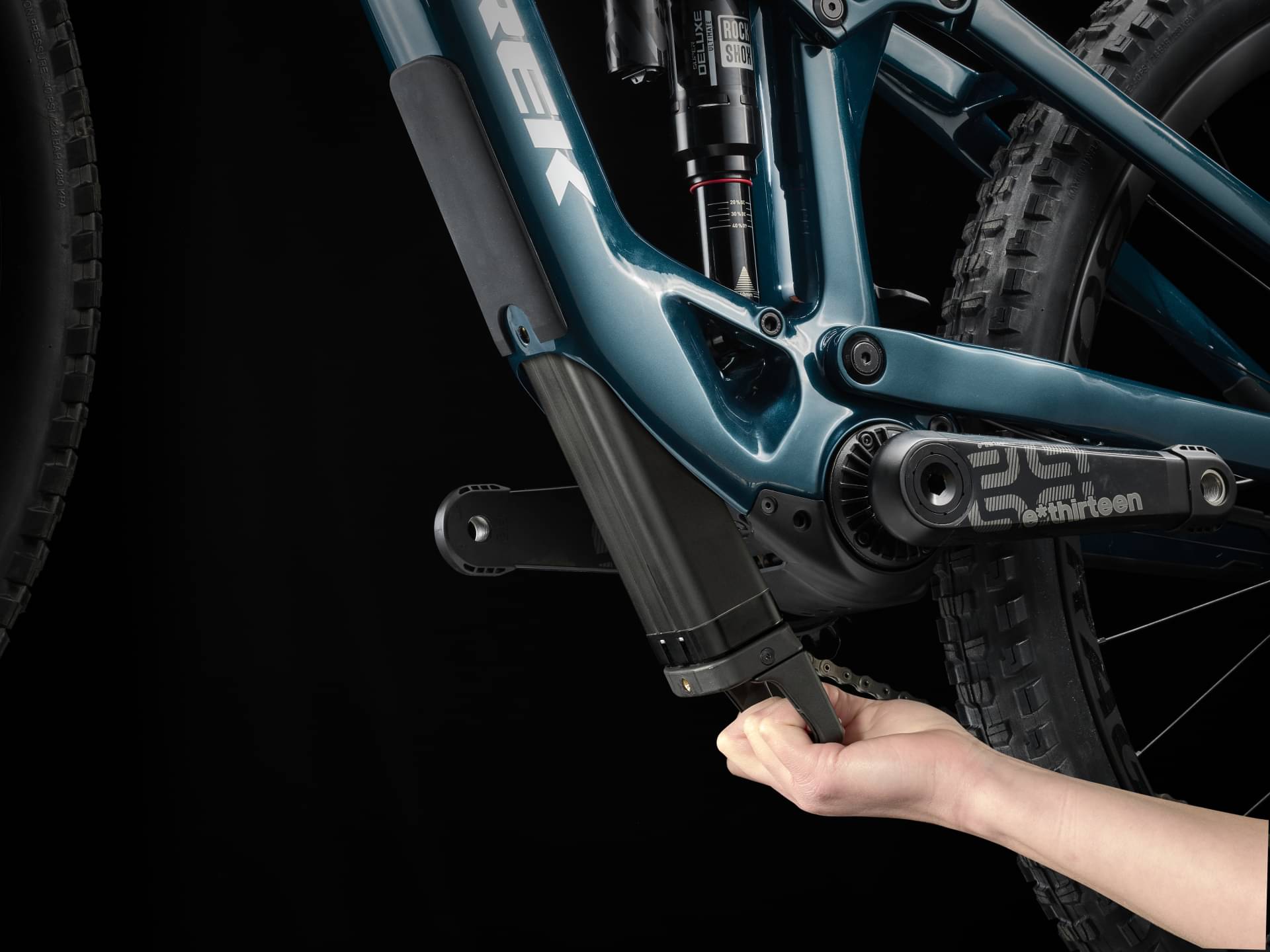

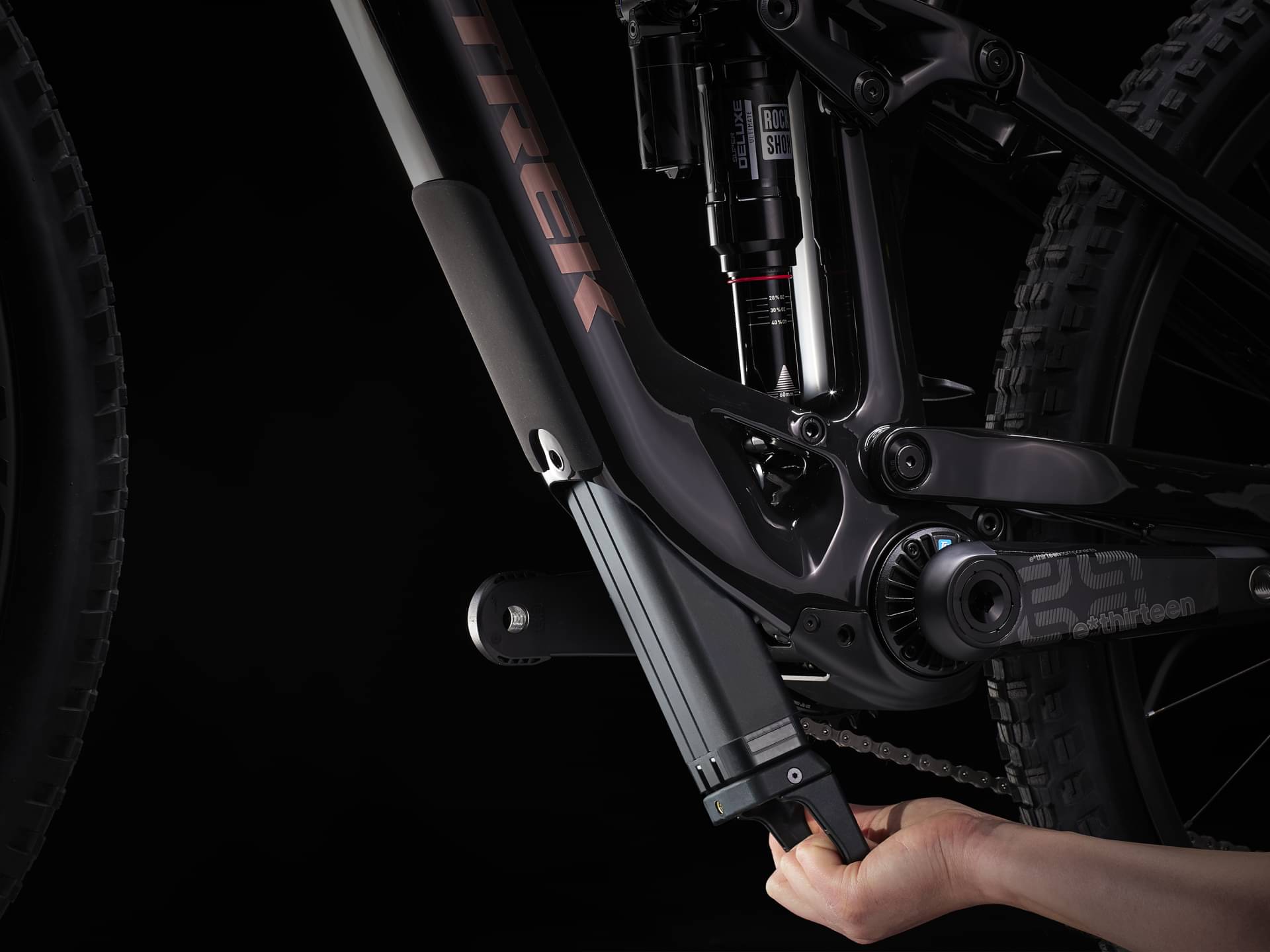

OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Suspension Fork
RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 150mm travel

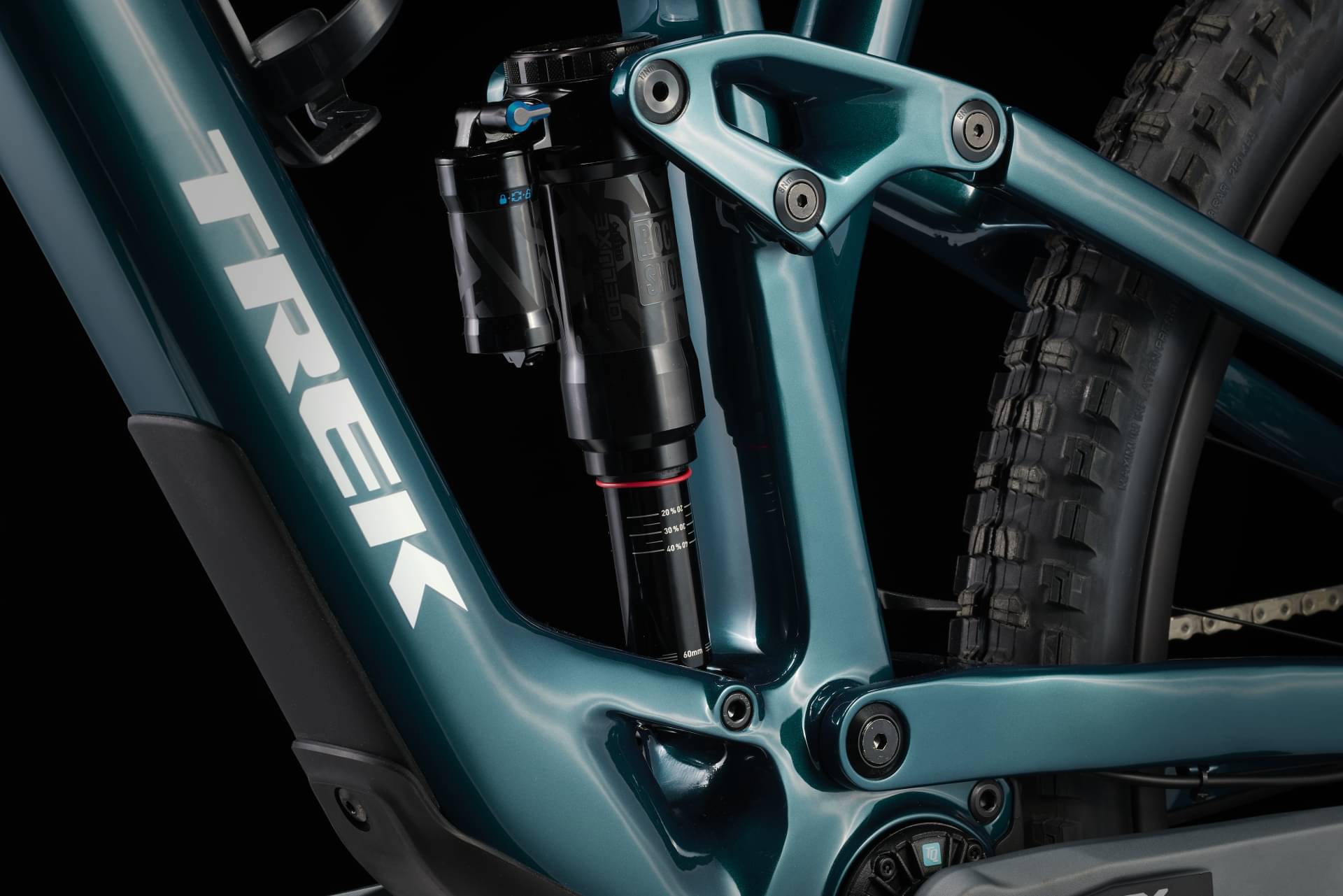

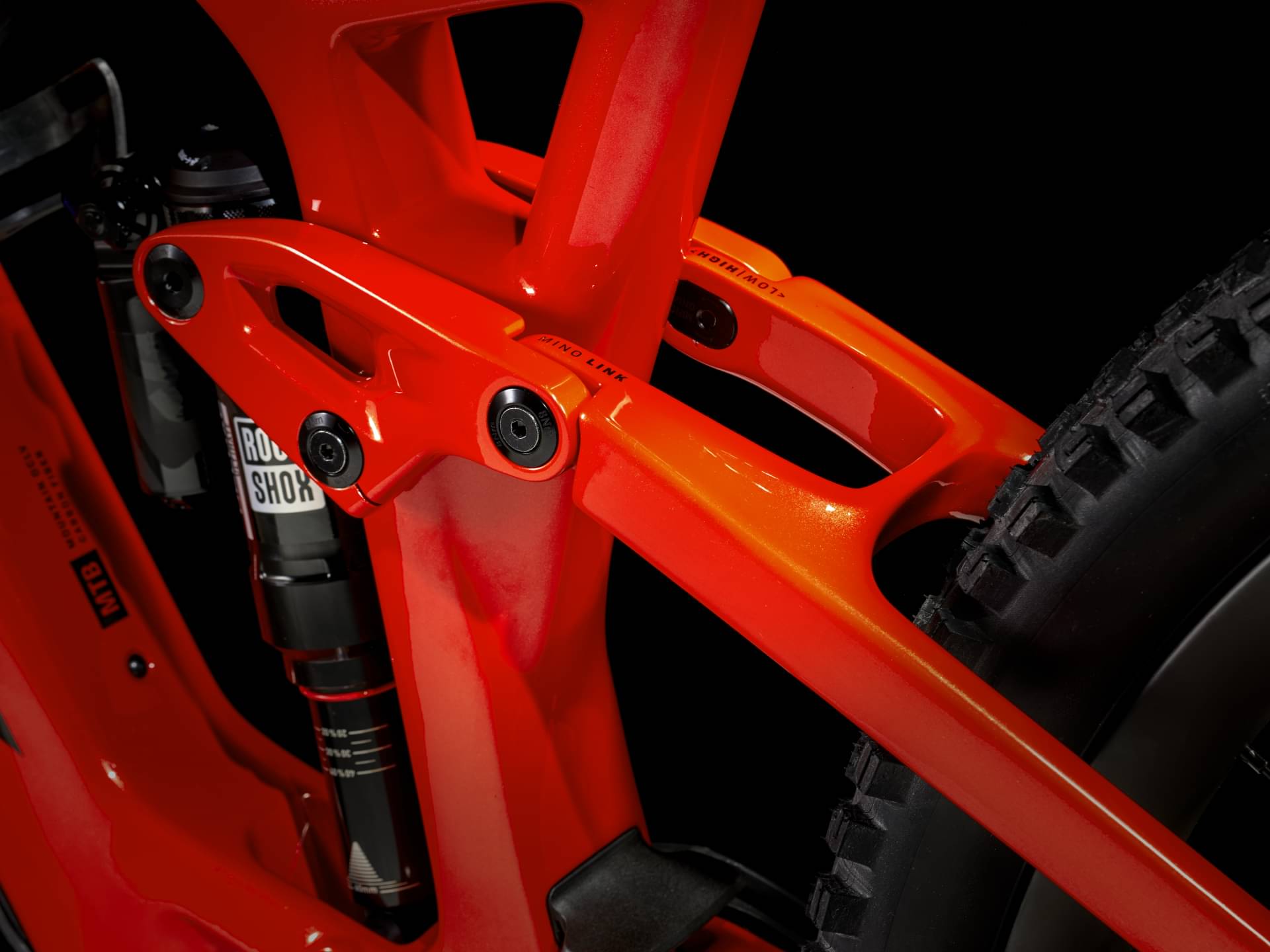

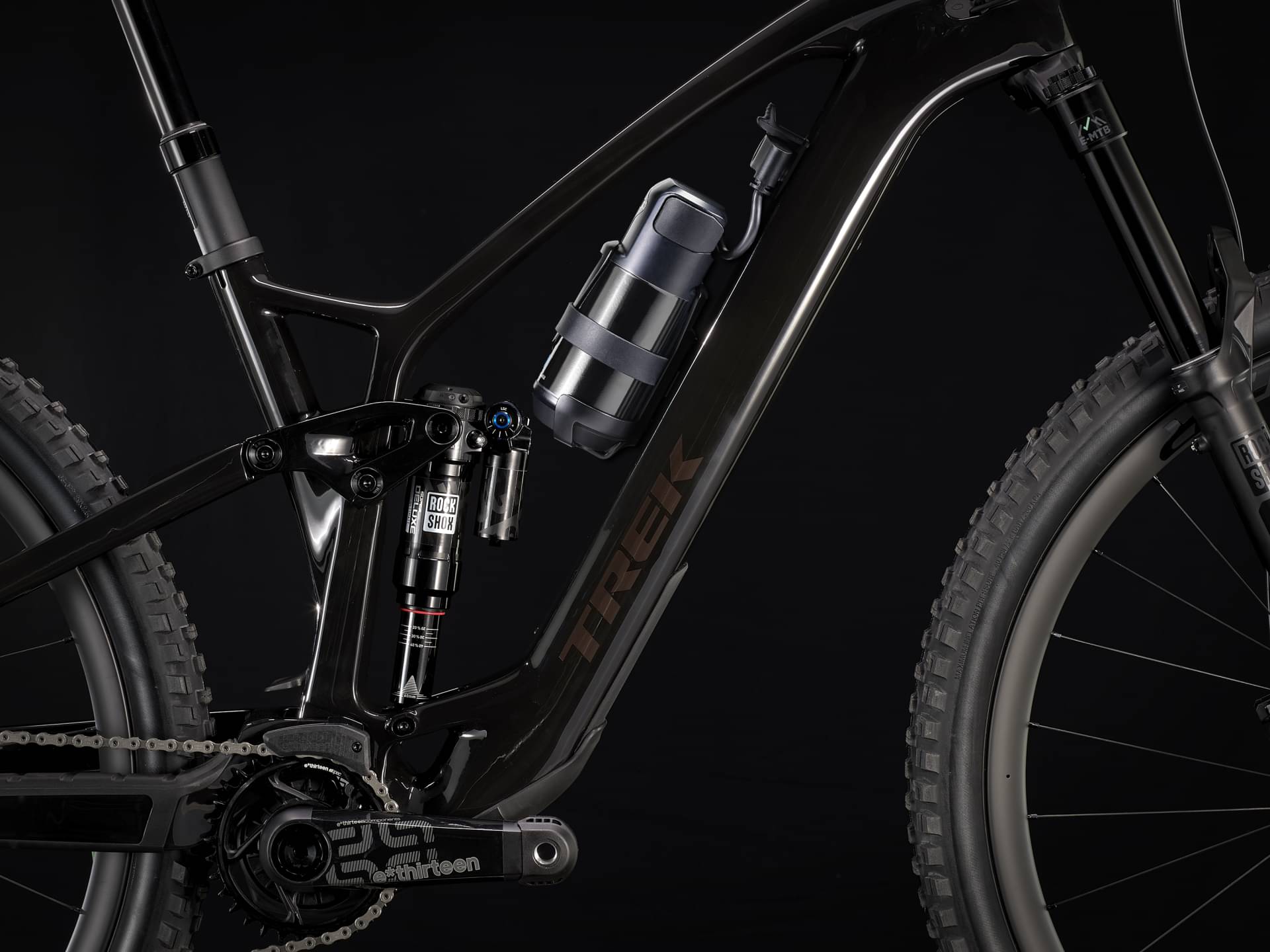

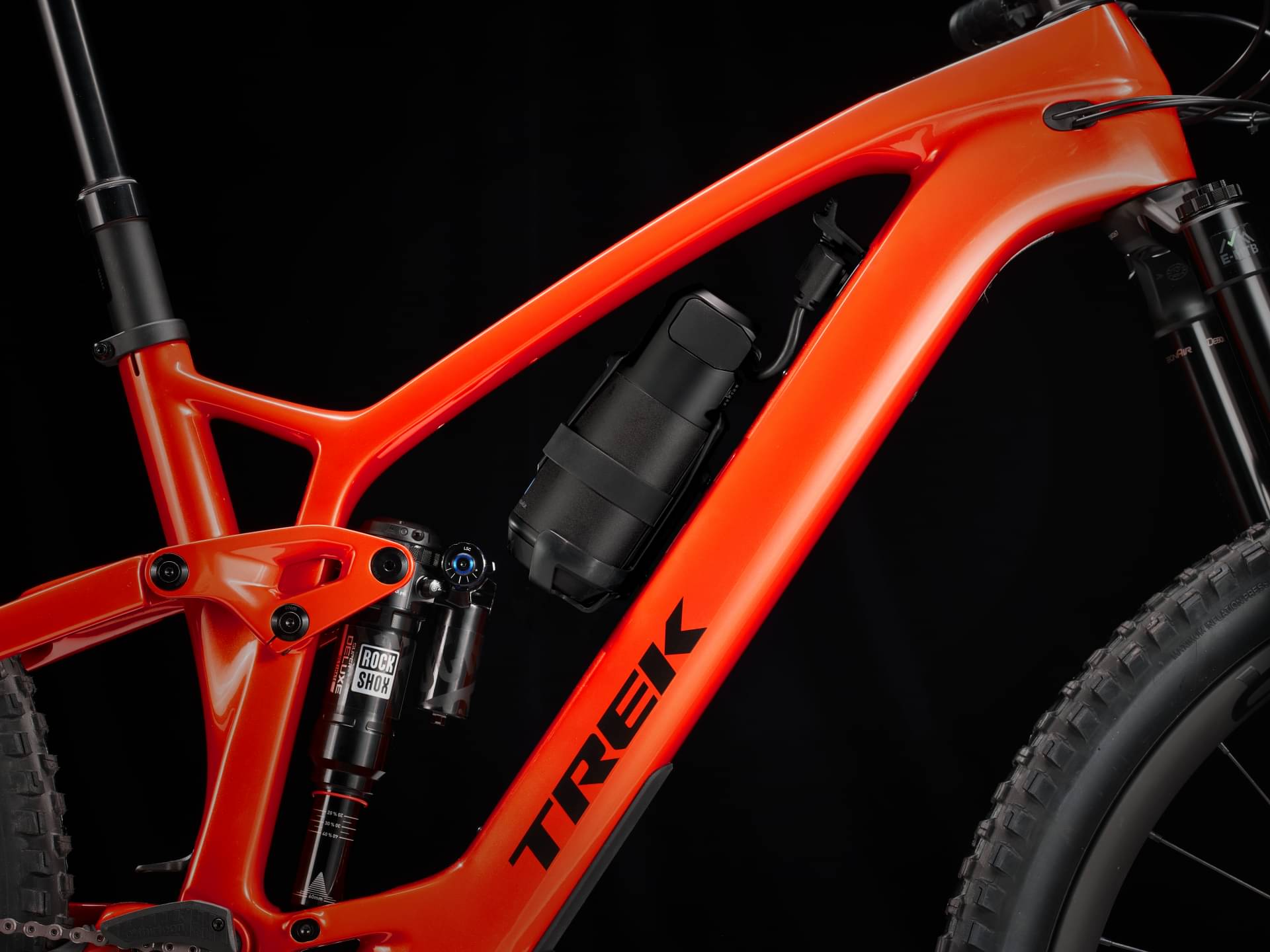

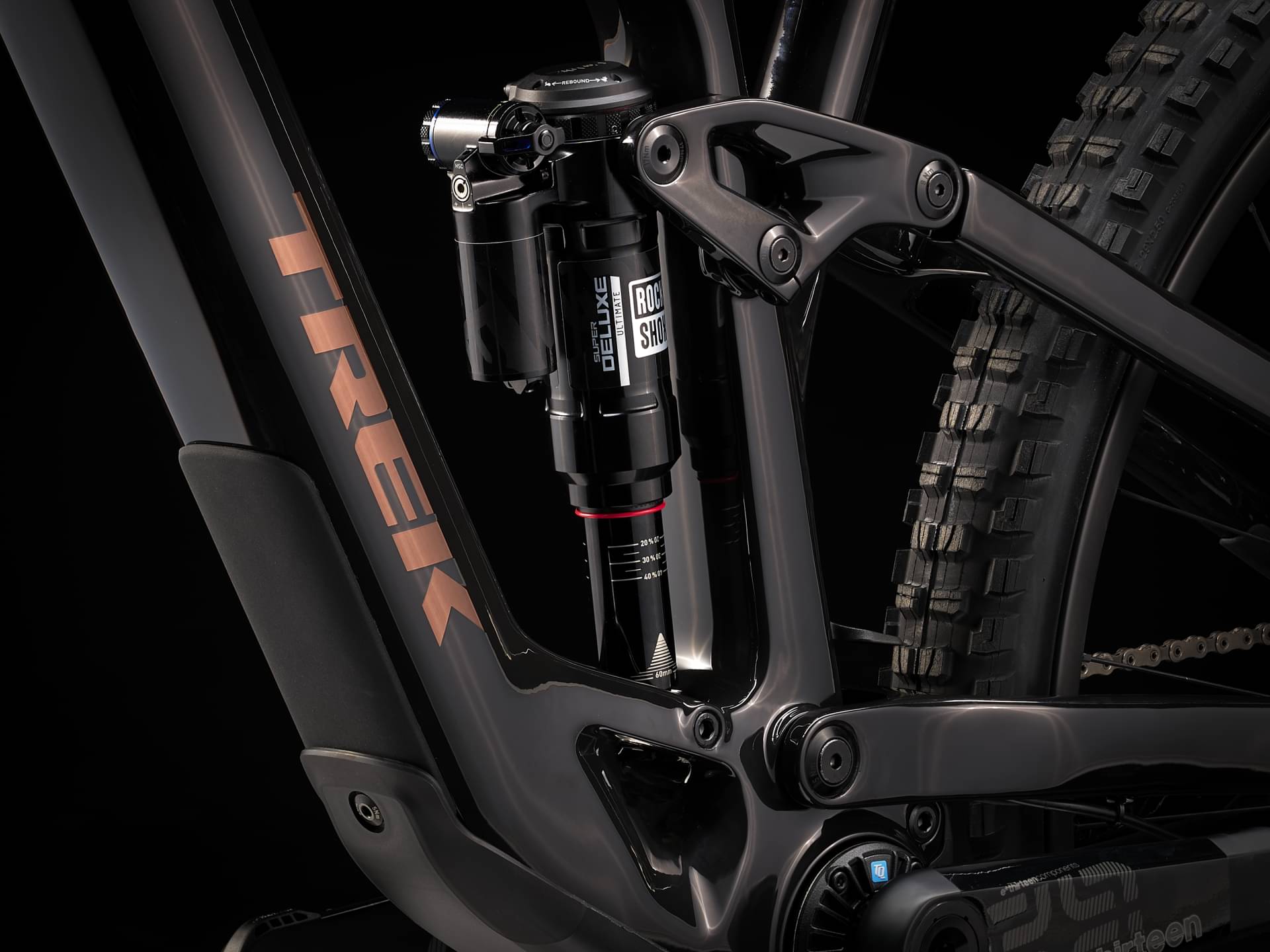

Rear Shock

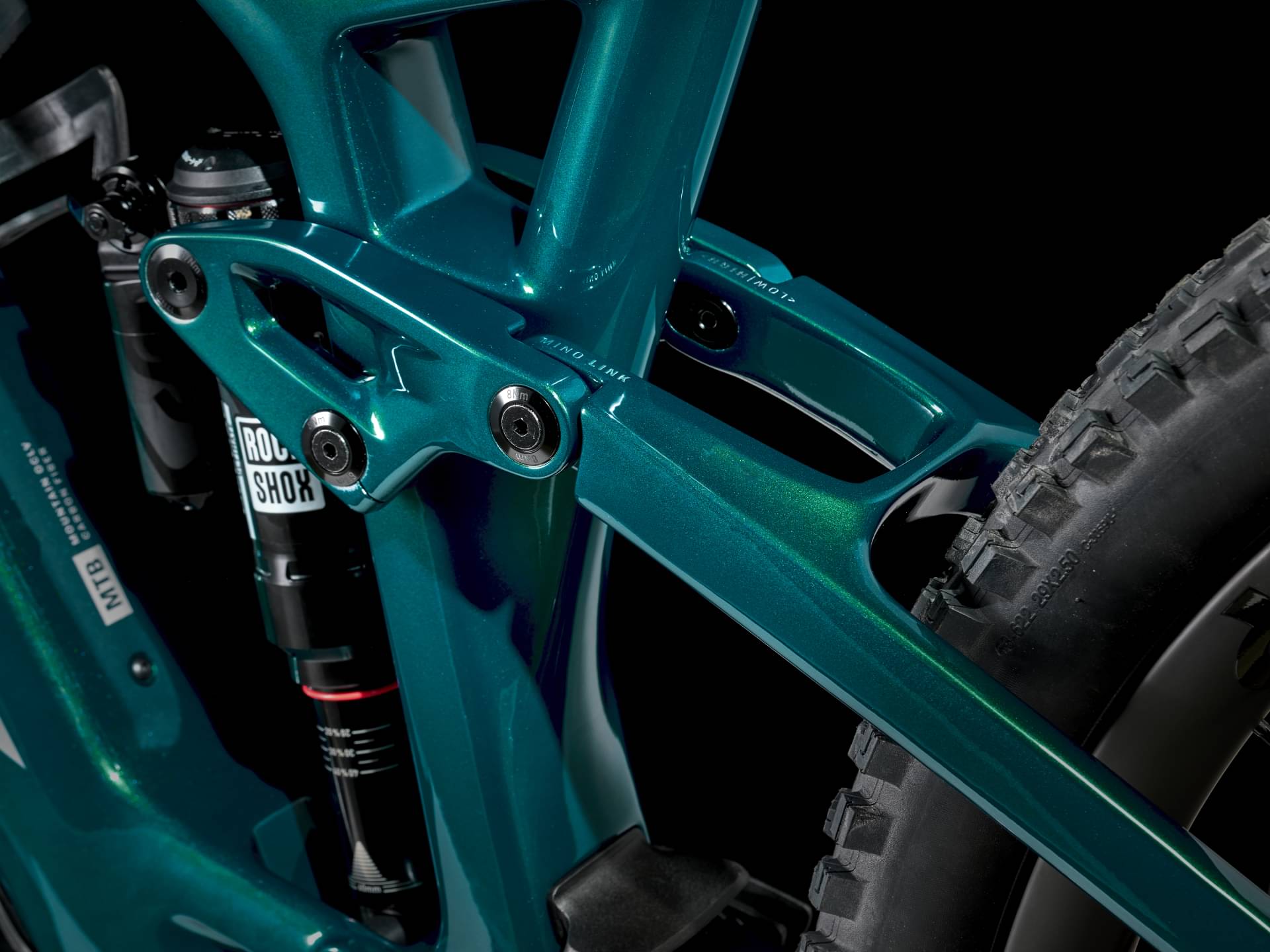

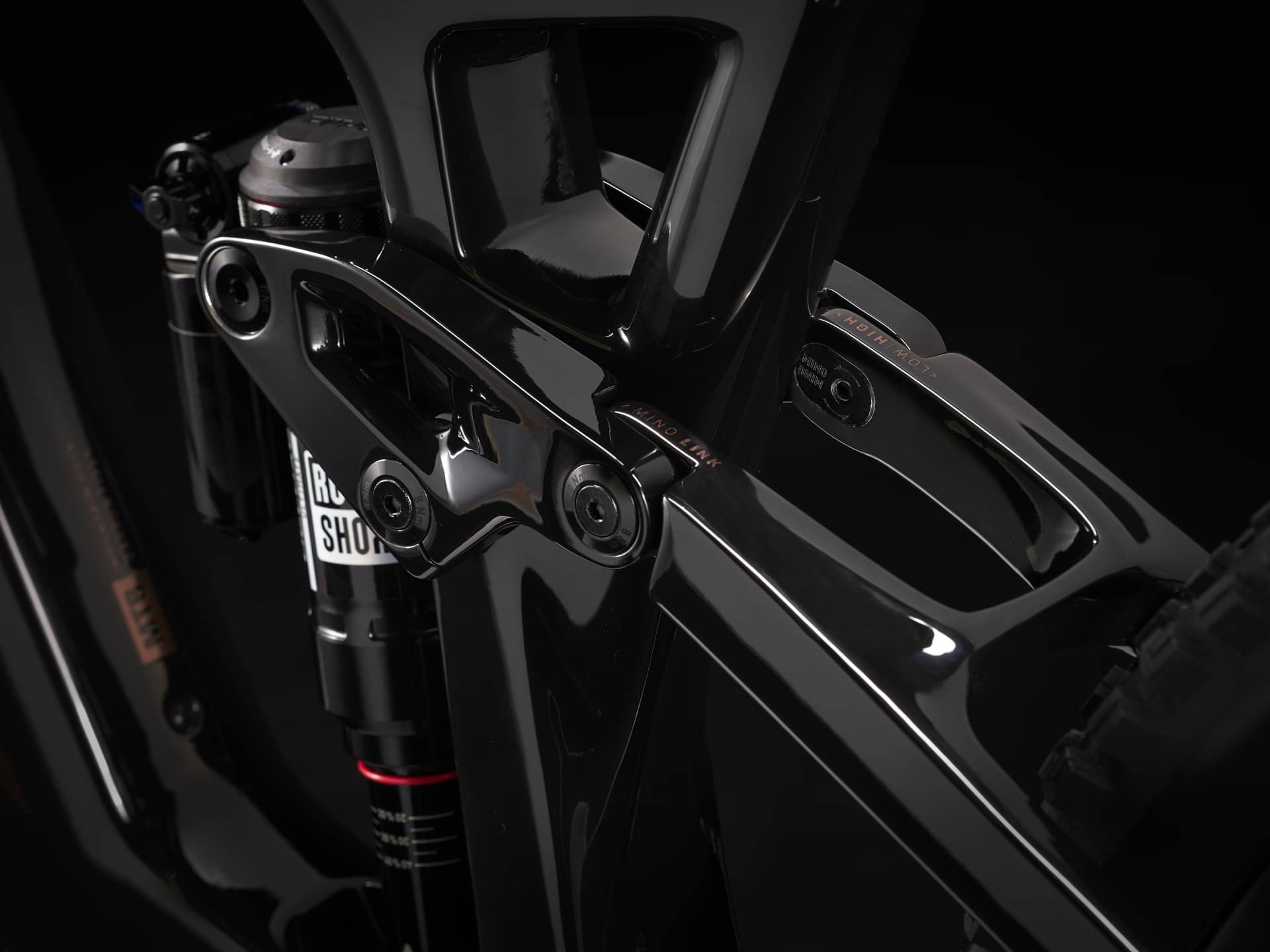

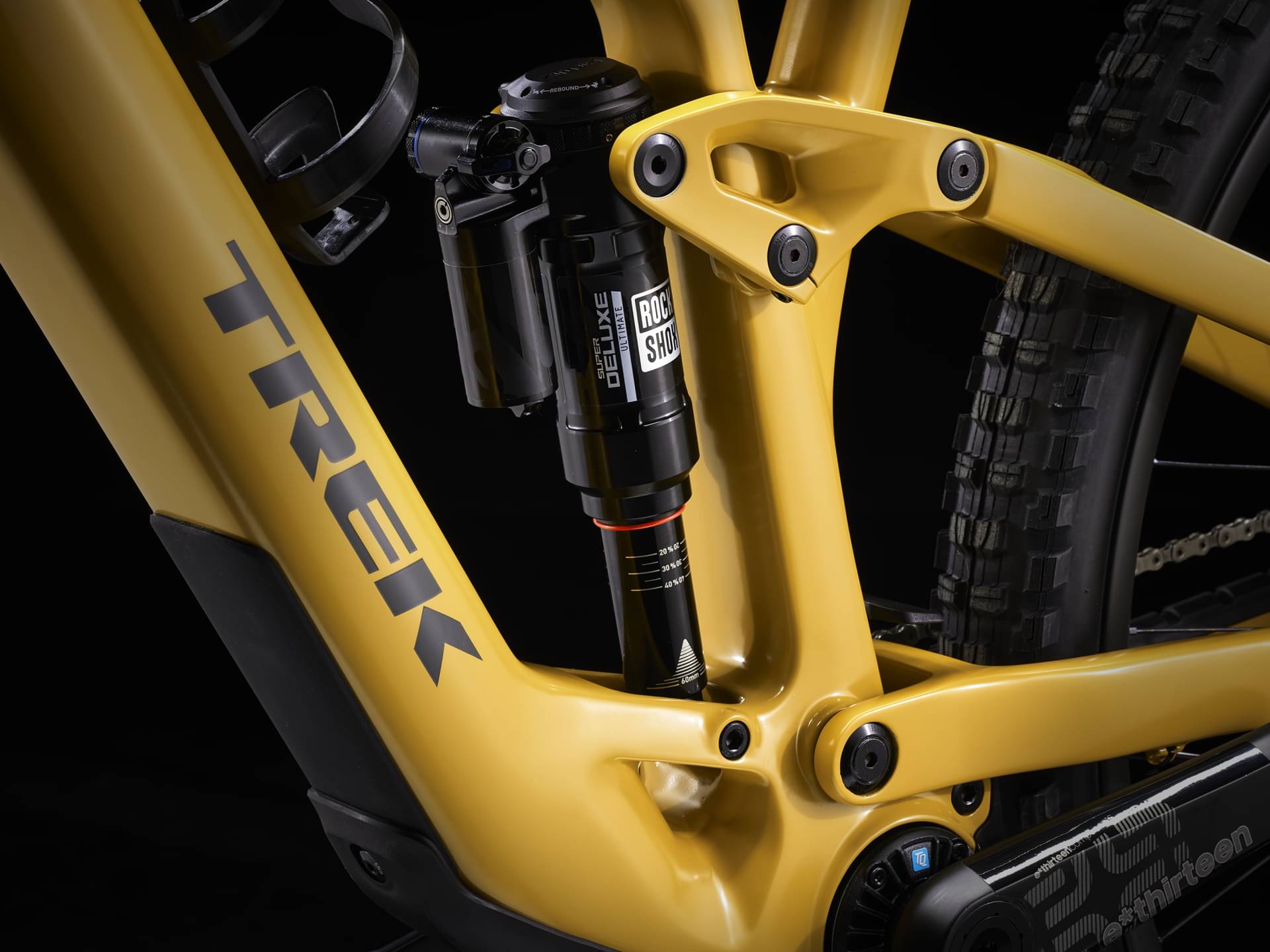

RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205mm x 60mm
Drivetrain
Rear Derailleur
Shimano XTR M9100, Shadow Plus, long cage, 51T max cog
Shift Levers
Shimano XTR M9100, 12 speed
Cassette
Shimano XTR M9101, 10-51, 12 speed
Crank
E*thirteen E*spec Race carbon, 34T, 165mm length
Chain
Shimano Dura-Ace/XTR M9100, 12 speed
Wheels
Rims
Front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Tires
Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50''; Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Brakes

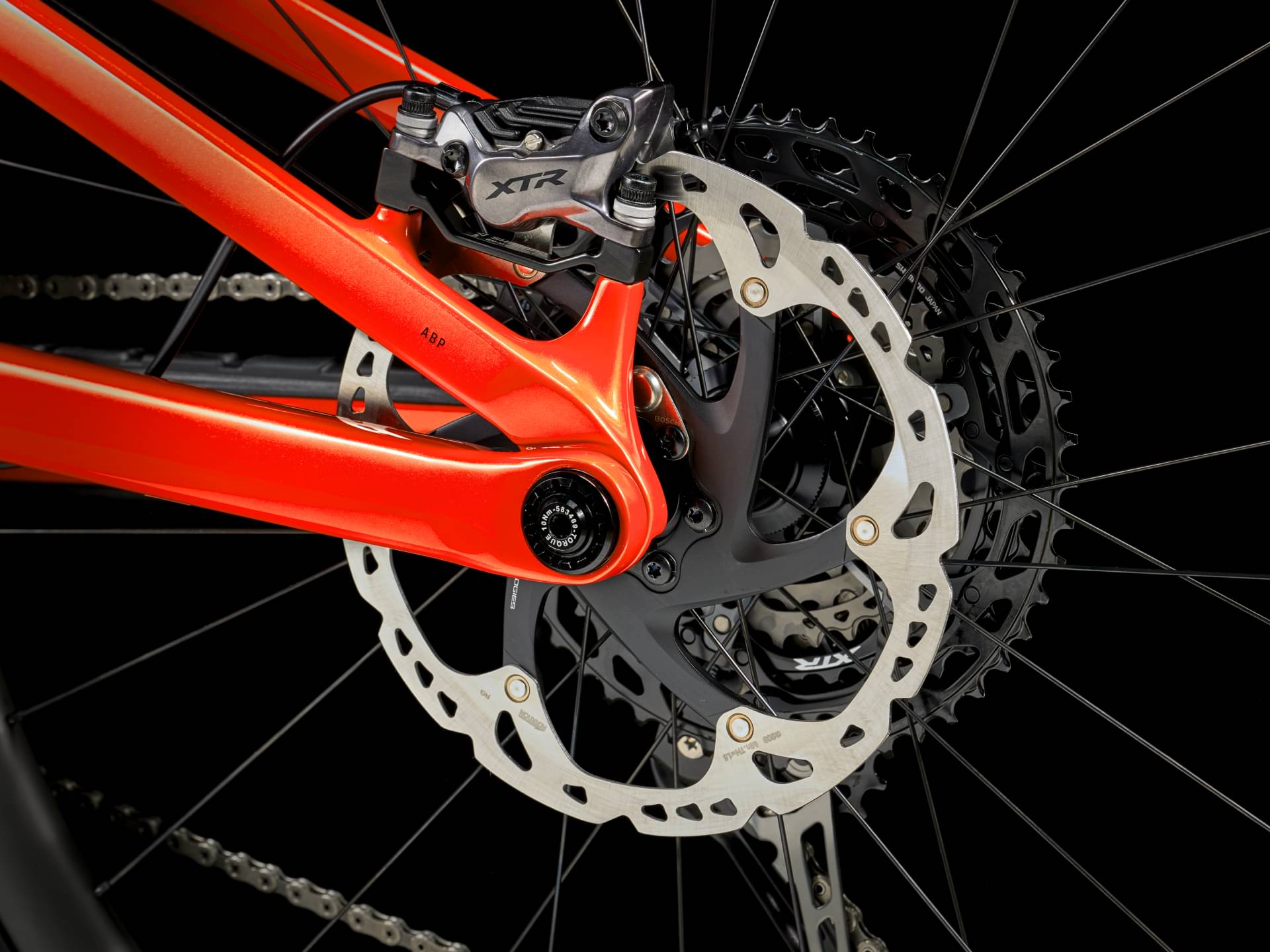

Brakes

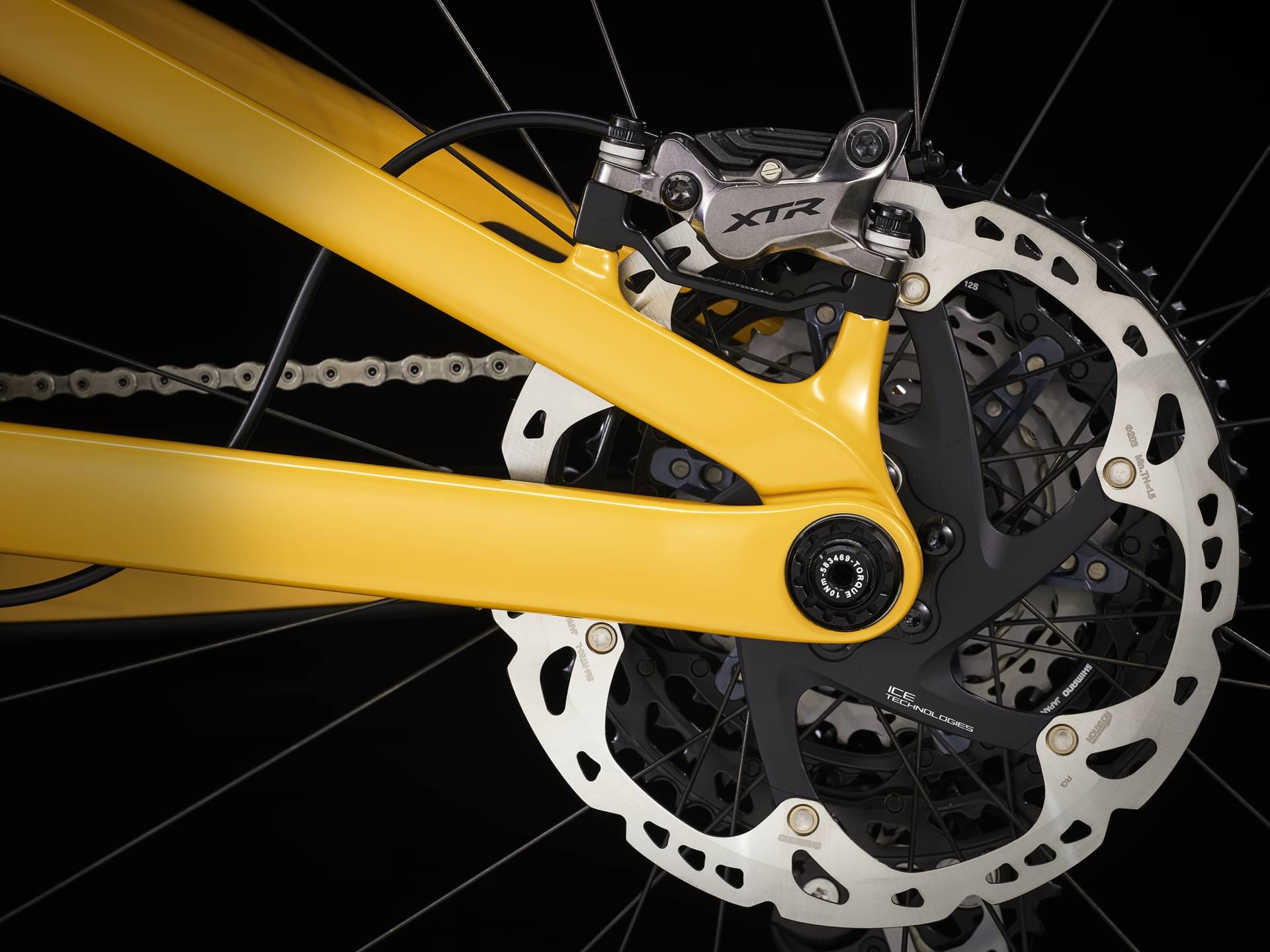

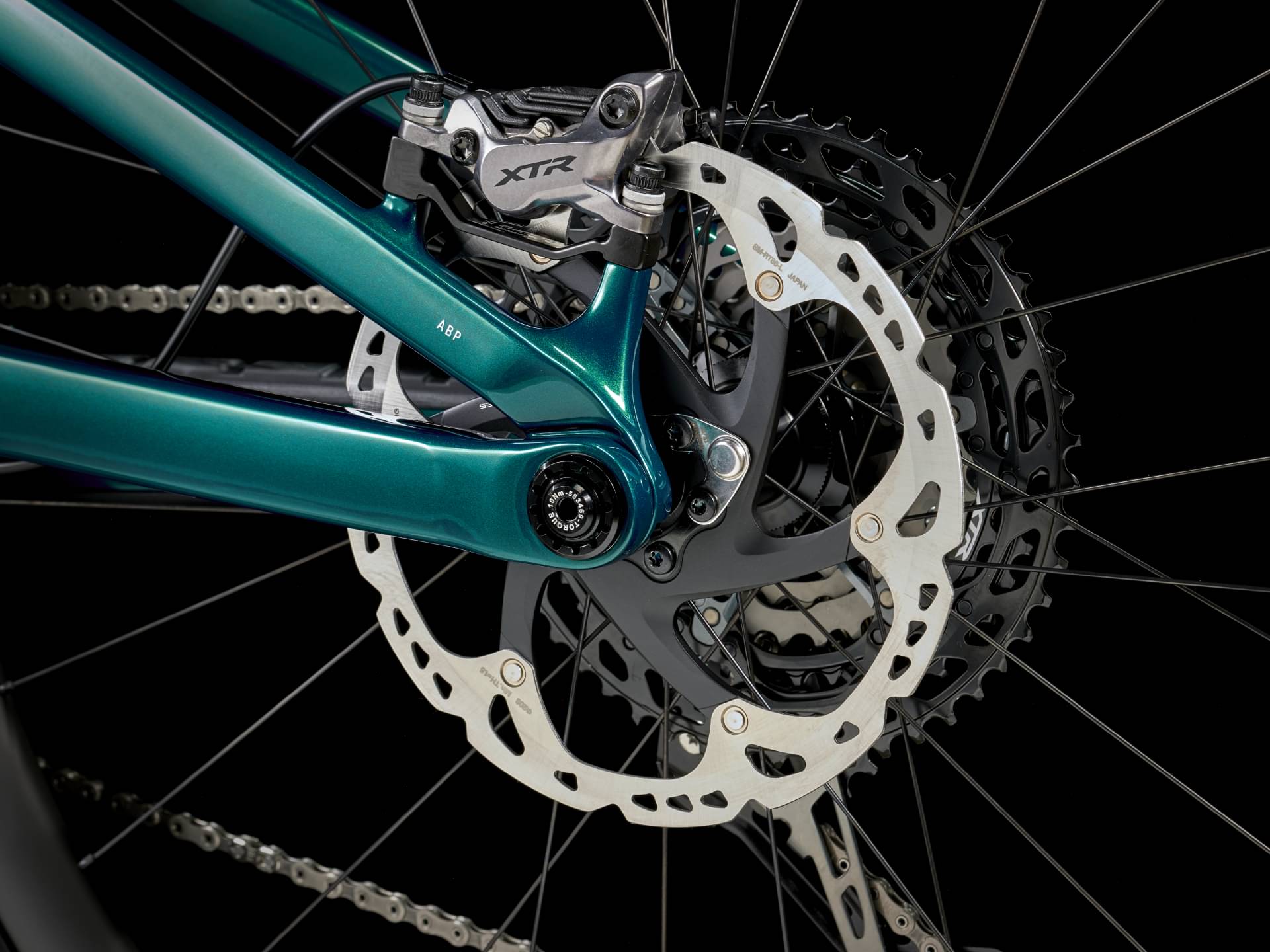

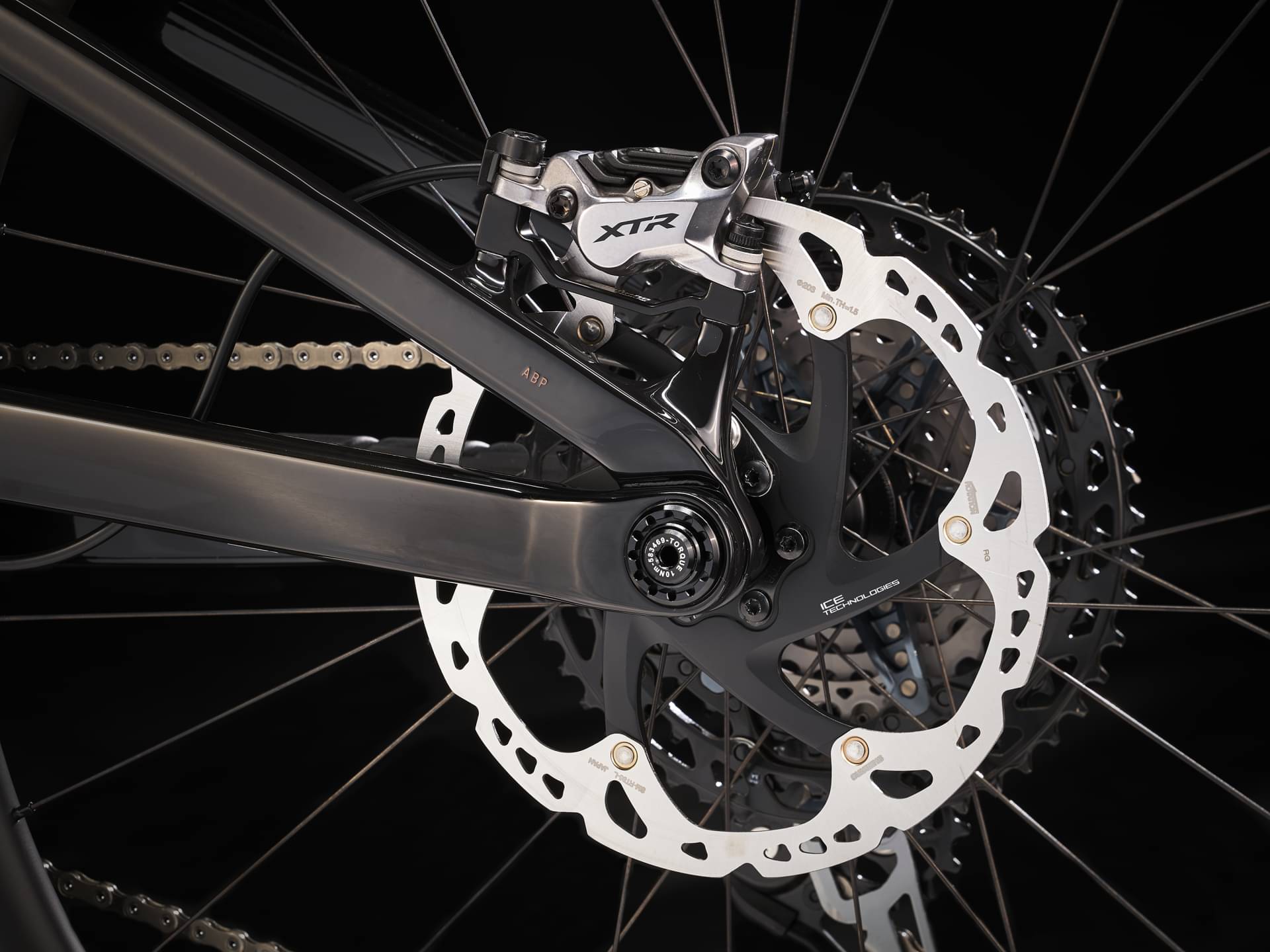

Shimano XTR M9120 4-piston hydraulic disc
Cockpit

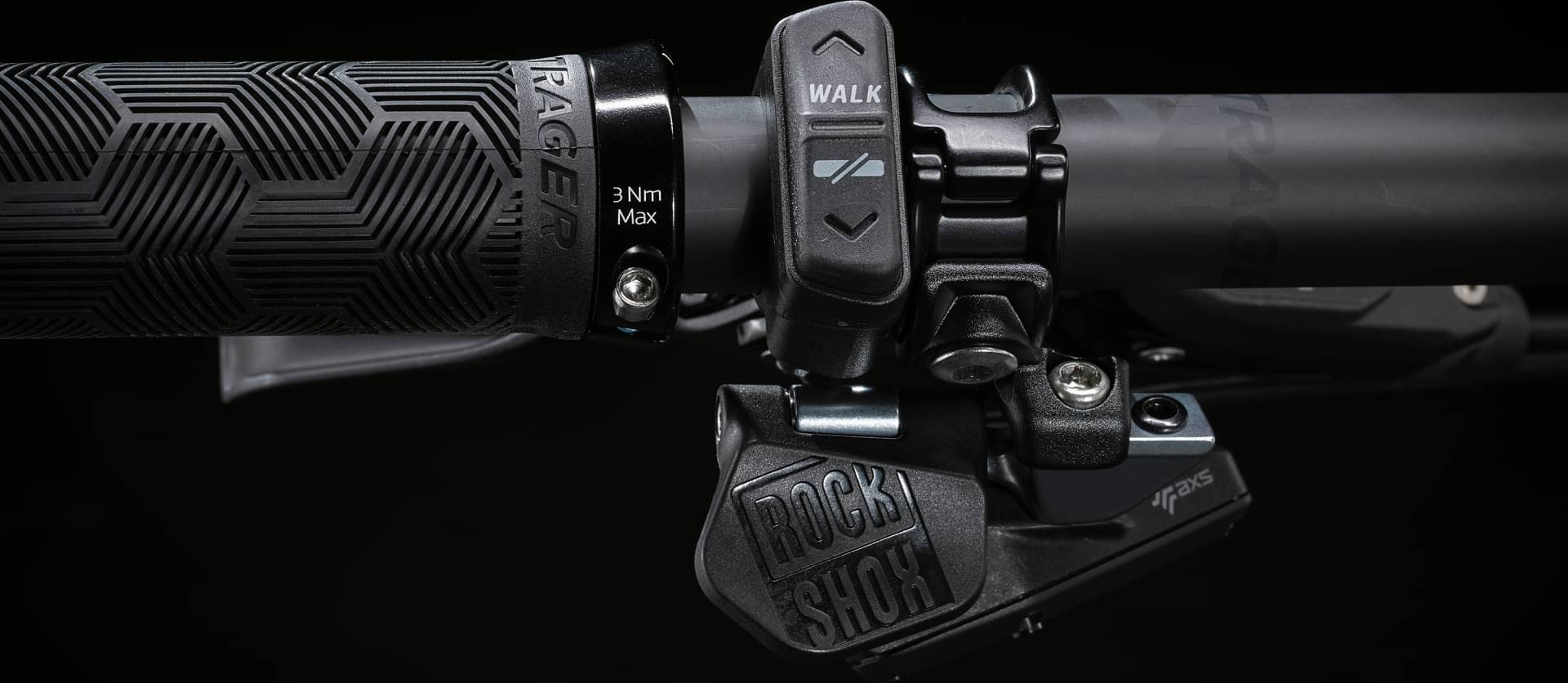

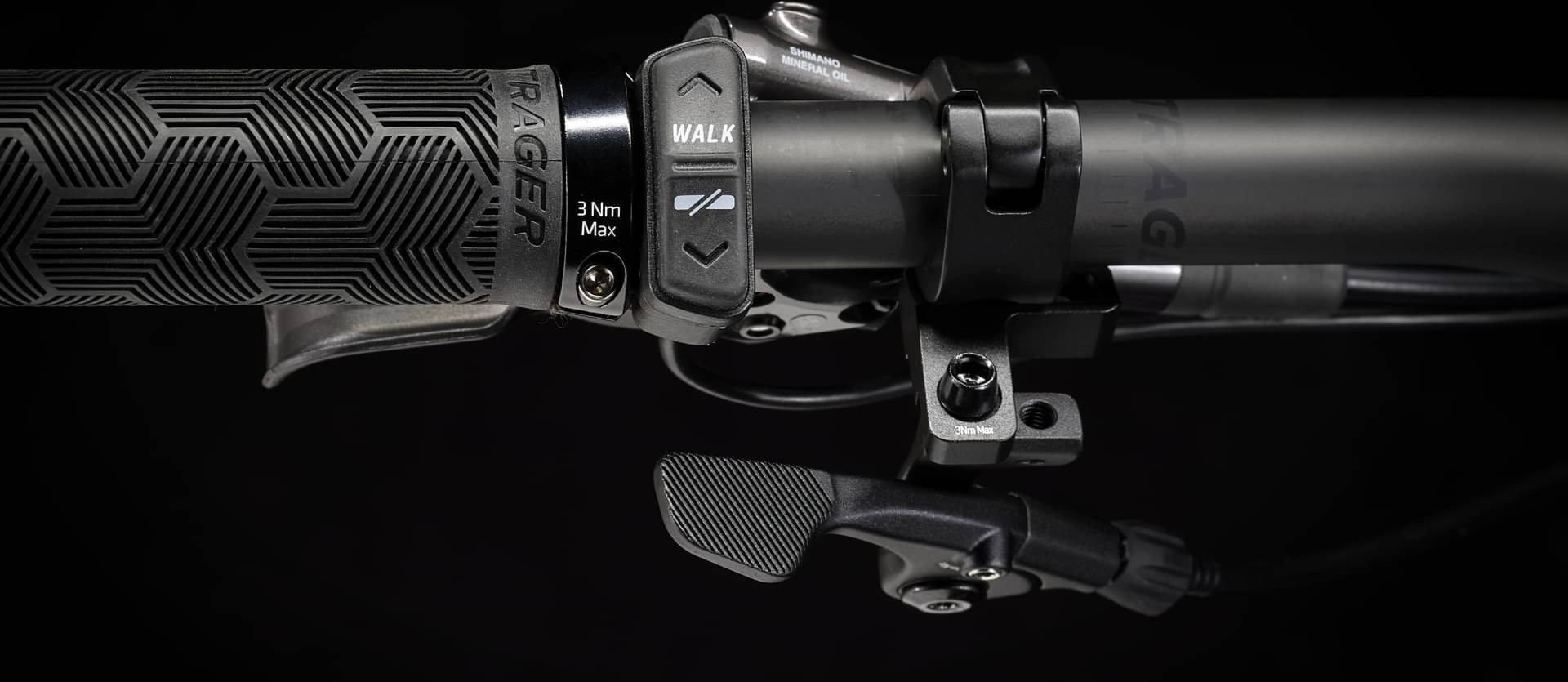

Grips
Bontrager XR Trail Elite, nylon lock-on
Seat
Saddle
Bontrager Arvada Pro, carbon rails, 138mm width
Seatpost
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Motor & Battery

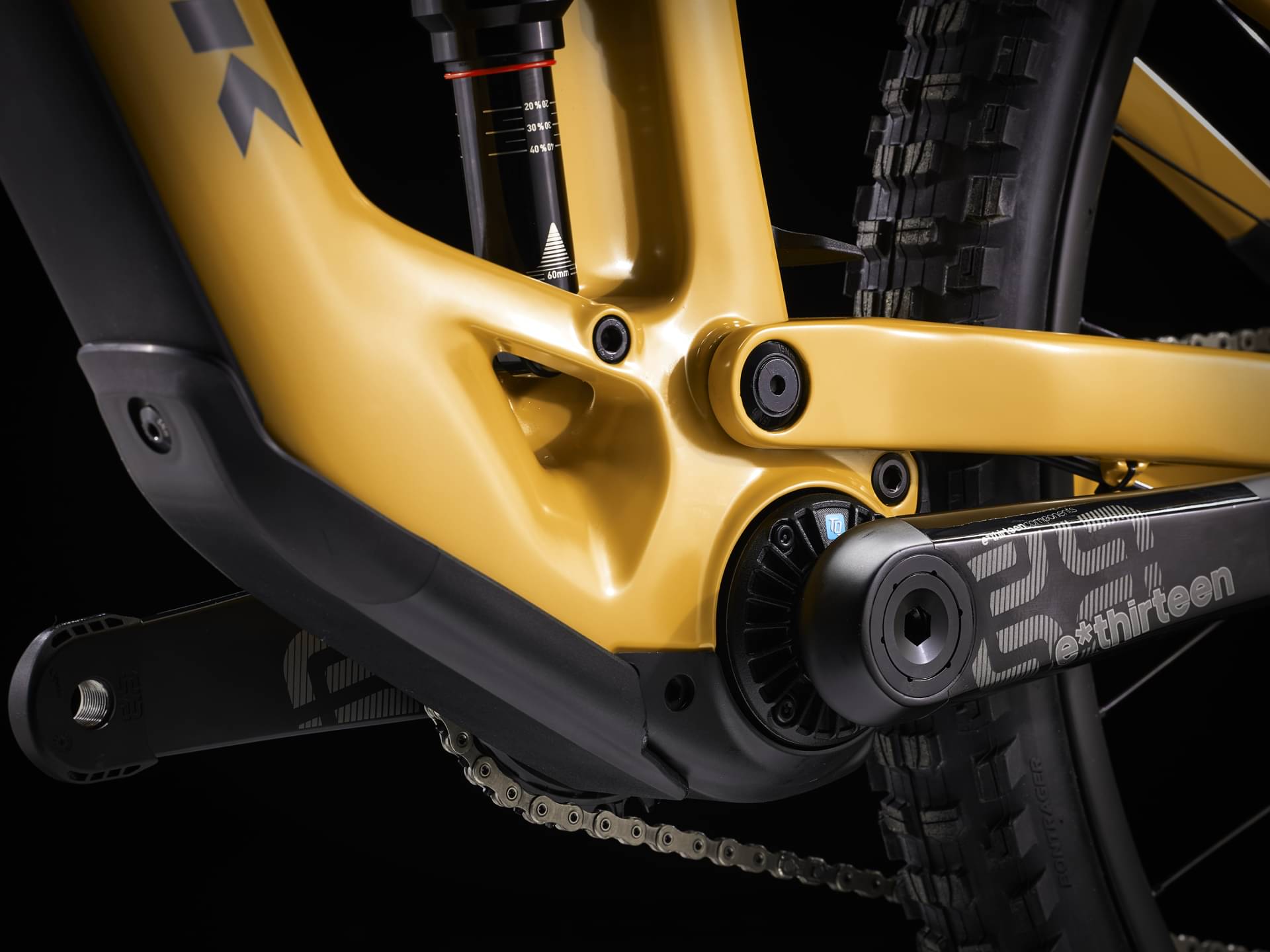

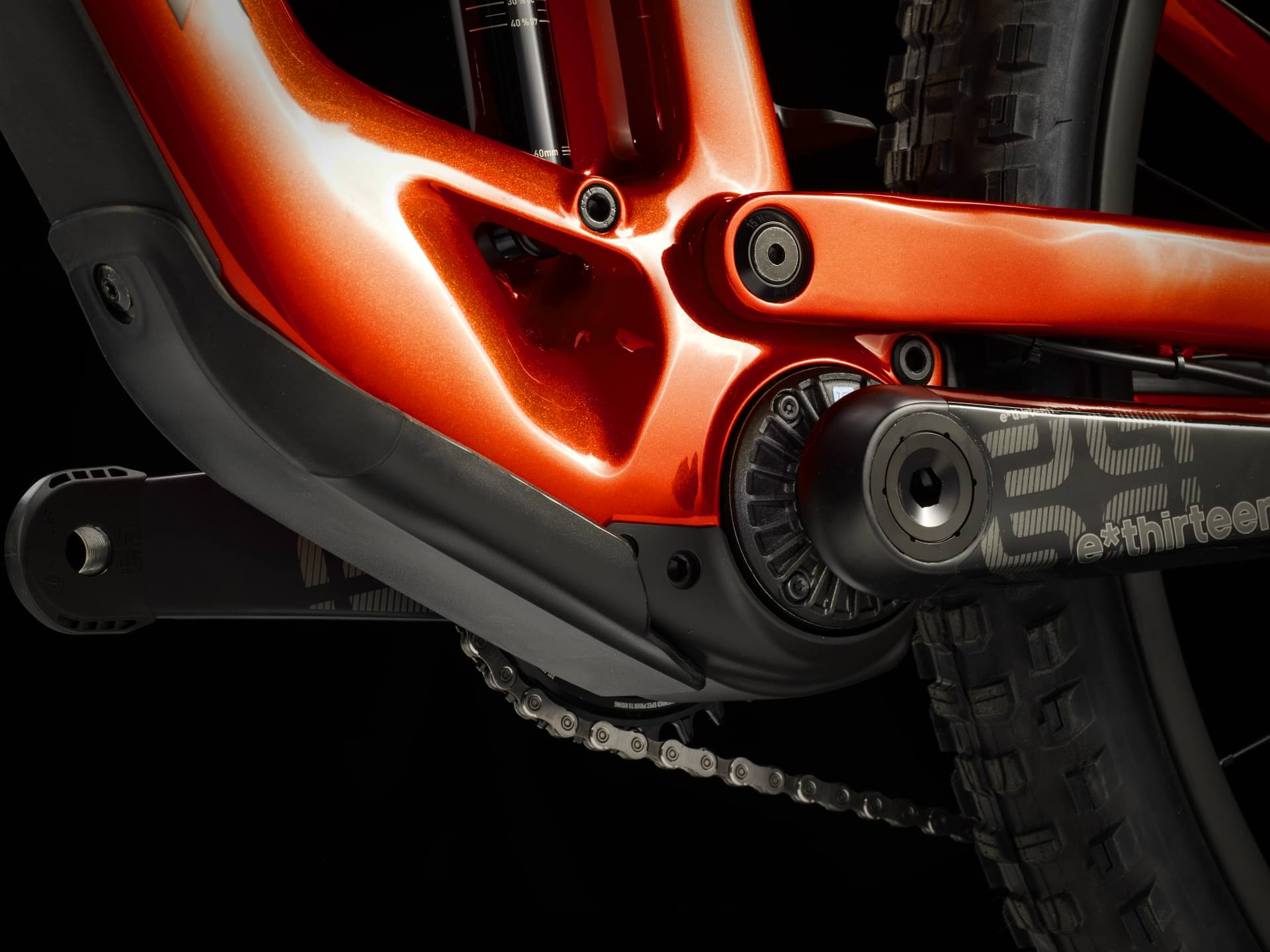

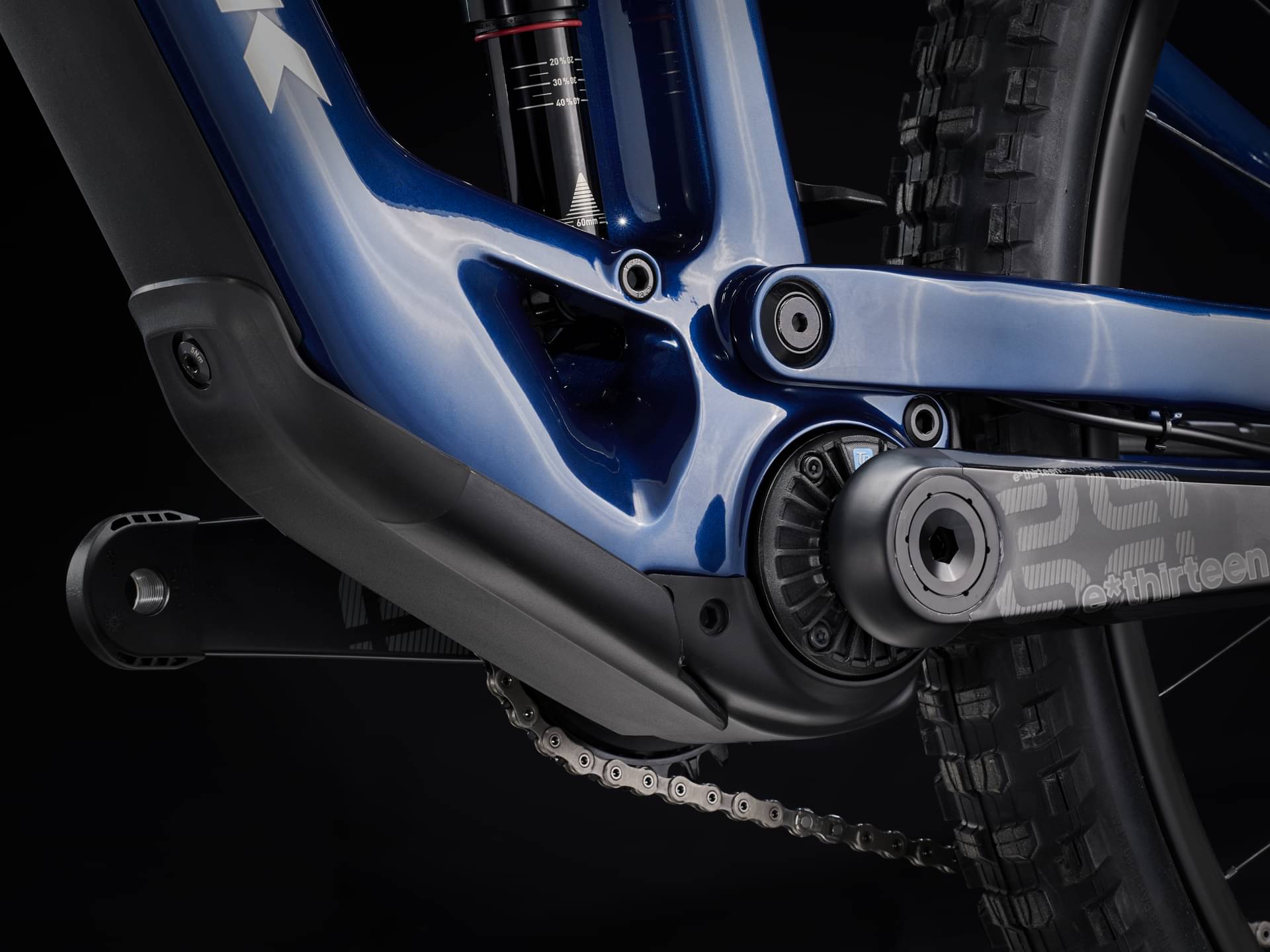

Motor

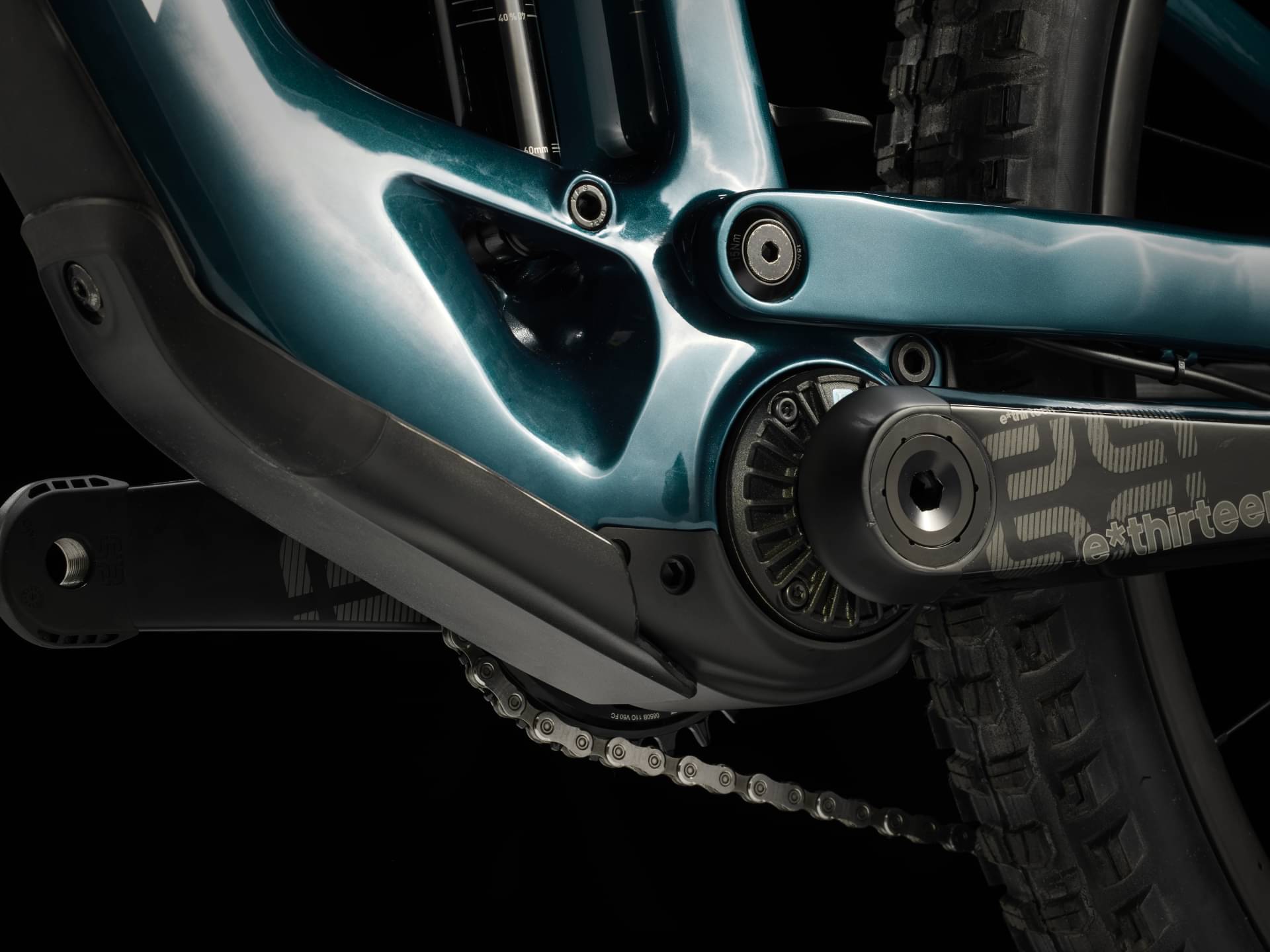

TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
TQ 360Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.36 mm | 1.39 mm | 1.28 mm | 1.3 mm | 1.23 mm | 1.26 mm |
| Bottom Bracket Height | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm |
| Front Center | 751 mm | 751 mm | 780 mm | 780 mm | 810 mm | 810 mm | 840 mm | 839 mm |
| Rake | 43 mm | 44 mm | 43 mm | 44 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm |
| Stack | 613 mm | 617 mm | 622 mm | 626 mm | 622 mm | 626 mm | 631 mm | 635 mm |
| Reach | 431 mm | 425 mm | 456 mm | 450 mm | 486 mm | 480 mm | 511 mm | 505 mm |
| Top Tube Length | 569 mm | 570 mm | 596 mm | 597 mm | 626 mm | 627 mm | 653 mm | 655 mm |
| Seat Tube Angle | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm |
| Head Tube Angle | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm |
| Wheelbase | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1243 mm | 1244 mm | 1273 mm | 1273 mm |
| Bottom Bracket Drop | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm |
| Standover Height | 729 mm | 723 mm | 730 mm | 724 mm | 736 mm | 730 mm | 756 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Fuel EXe 9.9 XTR belongs to the Trek E Fuel model. 15 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
The most economical model, the Trek Fuel EXe 5 2024 has a starting price of 5499$. Trek Fuel EXe 9.9 XX AXS T-Type 2024 on the other hand is the most expensive at 13999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2024 for 12999$. Comparing this to the average Trail e-bike price, we see that the price is 286.3% higher.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.02 kg (50.75 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 18.3 kg (40.34 lbs), the Fuel EXe 9.9 XTR model is much lighter than average. In other words, this model is 25.79% lighter than the average Trail e-bike.

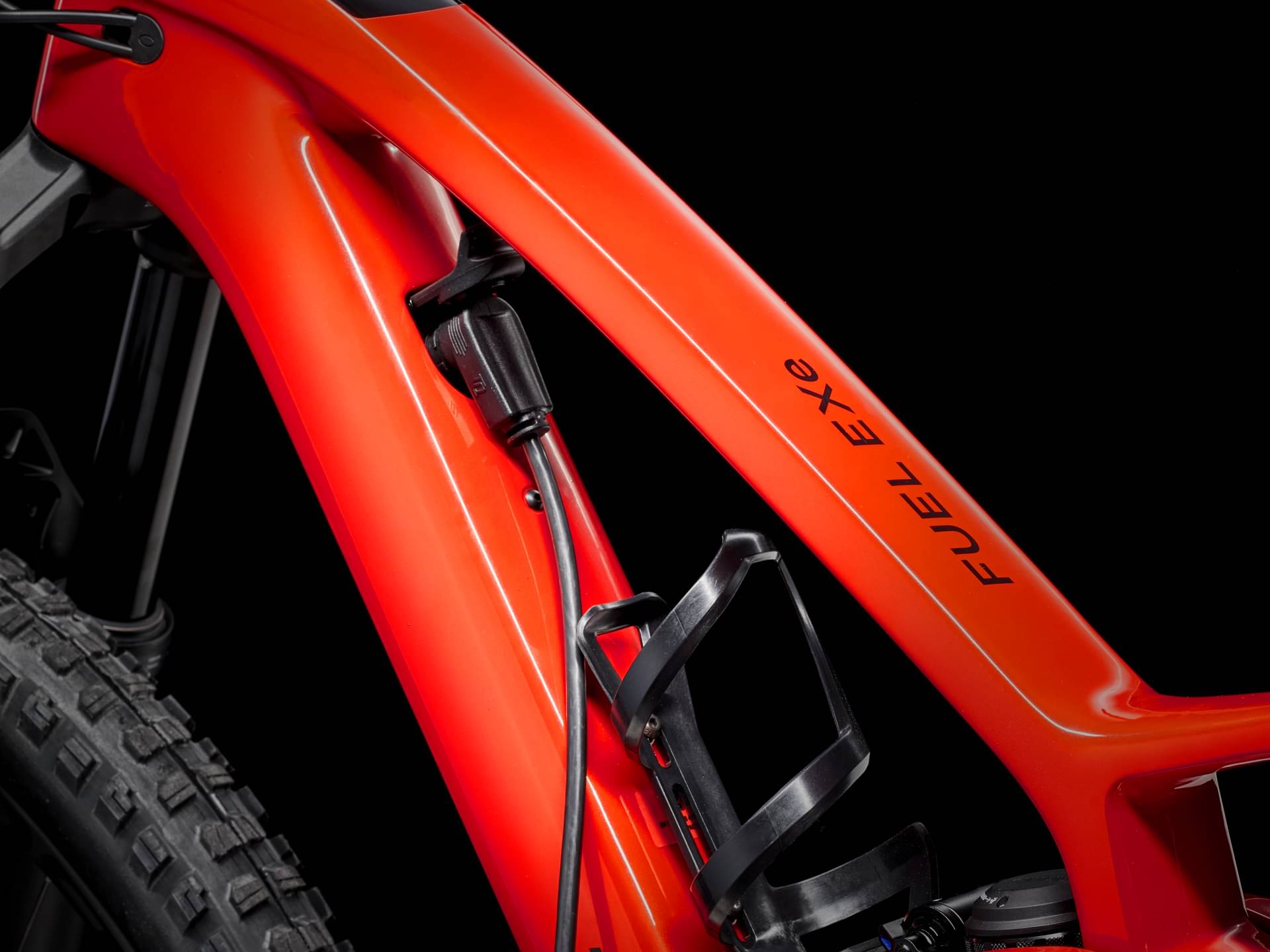

Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The RockShox Lyrik Ultimate is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.

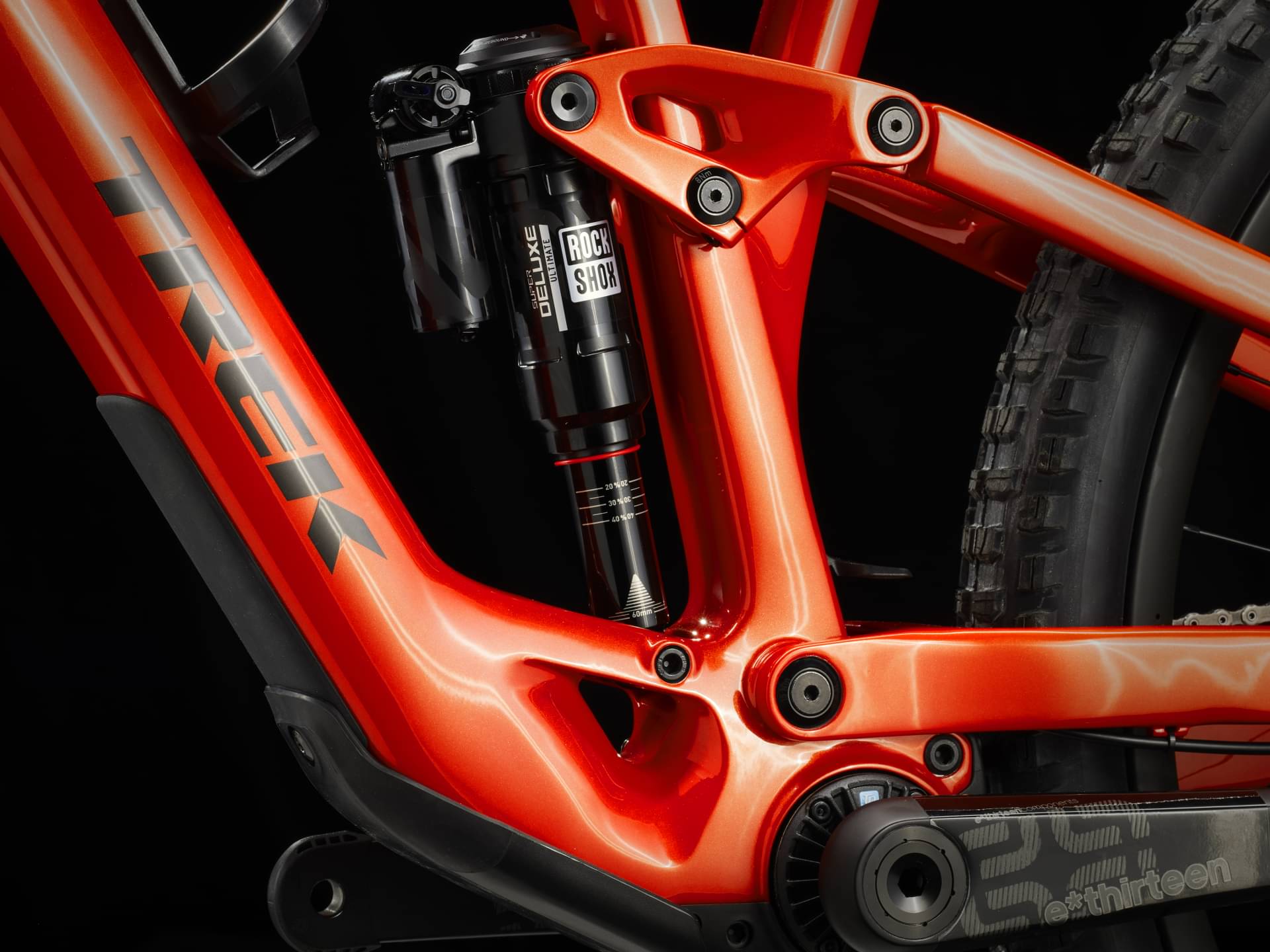

Rear Shock
The Fuel EXe 9.9 XTR has a rear shock with a travel of 140mm. The model RockShox Super Deluxe Ultimate AirWiz is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Fuel EXe 9.9 XTR 2024 e-bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Fuel EXe 9.9 XTR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Trek Fuel EXe 9.9 XTR includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
