Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 198cm
XXL
196cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, rack & fender mounts, DuoTrap S compatible, cantilever brake mount, 135x5mm QR
Suspension Fork
FX Steel, threadless steel steerer, rack mounts, cantilever brake mount, 405mm axle-to-crown, 5x100mm QR
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano Altus EF500, 7 speed
Cassette
SunRace MFM300 freewheel, 14-34, 7 speed
Crank
Forged alloy, 48/38/28, chainguard, 170mm length
Bottom Bracket
VP BC73, 68mm, threaded
Chain
KMC Z7
Wheels
Front Hub
Formula FM21 alloy, 100x5mm QR
Rear Hub
Formula FM31 alloy, 135x5mm QR
Rims
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Tires
Bontrager H2, wire bead, 30 tpi, 700x35c
Brakes
Brakes
Tektro alloy linear-pull
Cockpit
Stem
Size: S, M, Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length; Size: L, XL, Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length
Handlebar
Size: S, M, L, Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width; Size: XL, Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width
Grips
Bontrager Satellite
Headset
1-1/8'' threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.43 mm | 1.5 mm | 1.56 mm | 1.66 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 619 mm | 619 mm | 620 mm | 626 mm | 627 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm |
| Trail | 70 mm | 70 mm | 70 mm | 62 mm | 62 mm |
| Stack | 539 mm | 553 mm | 587 mm | 619 mm | 648 mm |
| Reach | 392 mm | 387 mm | 392 mm | 398 mm | 390 mm |
| Top Tube Length | 542 mm | 546 mm | 566 mm | 588 mm | 601 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72 ° |
| Seat Tube Length | 381 mm | 444 mm | 508 mm | 571 mm | 635 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1055 mm | 1055 mm | 1056 mm | 1062 mm | 1063 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 691 mm | 733 mm | 781 mm | 829 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm | 196 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 198 cm | 203 cm |

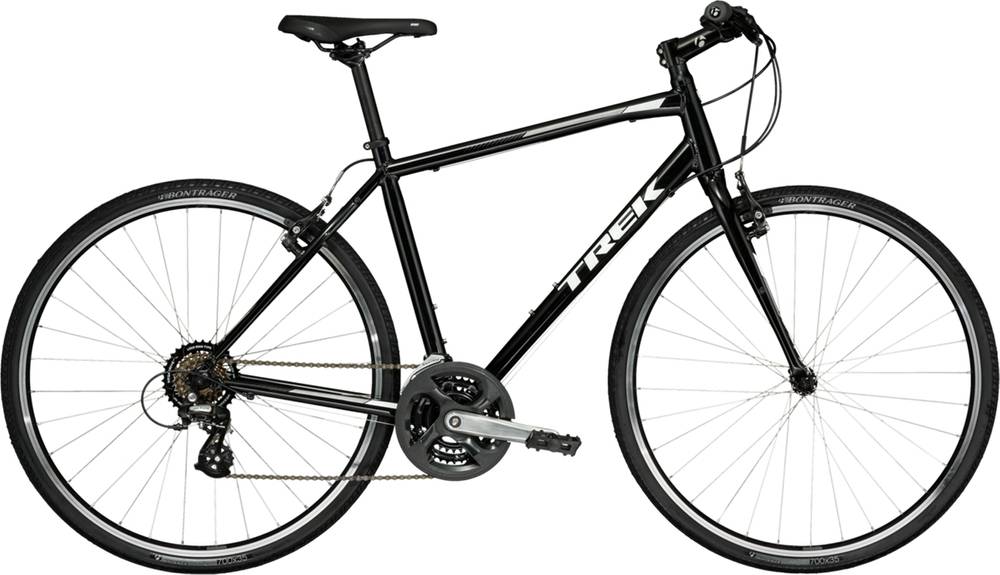

About this model
FX 1 is part of the Trek Fx model. 128 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Trek FX 1 Stagger 2020 is the cheapest bike model and costs 439$. Trek FX Sport 6 2020 is the most expensive one and costs 2099$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness bikes average price
Our math shows that the average cost of a dependable Fitness bike is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Trek released this model in 2020, its price was 439$. Doing a quick comparison, we notice that FX 1 price is 49.43% smaller than the average cost of a Fitness bike.
Average weight for Fitness bikes
If we make a quick analysis of the average weight of a Fitness bike, we get 11.24 kg (24.78 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 12.55 kg (27.67 lbs), the FX 1 model is considerably heavier than average. In other words, this model is 11.65% heavier than the average Fitness bike.
Overview of components
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
When it comes to wheels, the FX 1 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek FX 1 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 155 cm – 203 cm (5.09 ft – 6.66 ft). In short, you can easily find one that suits you.
