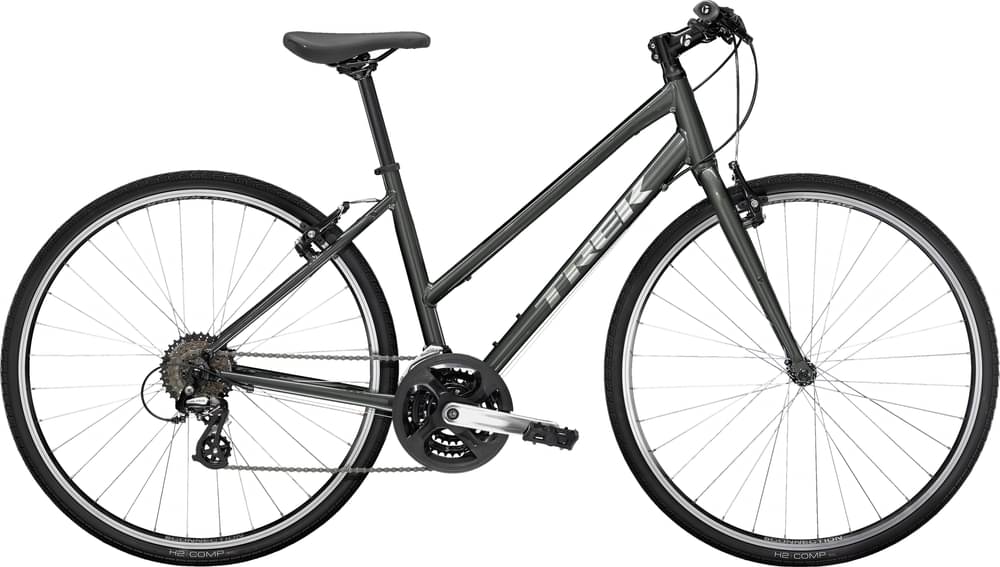

Trek FX 1 Stagger 2022
2022 Urban
Estimate price |
539$
Weight | 12.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, stagger top tube, rack & fender mounts, DuoTrap S compatible, cantilever brake mount, 135x5mm QR
Suspension Fork
FX Steel, threadless steel steerer, rack mounts, cantilever brake mount, 405mm axle-to-crown, 5x100mm QR
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano Altus EF500, 7 speed
Cassette
SunRace MFM300 freewheel, 14-34, 7 speed
Crank
Forged alloy, 48/38/28, chainguard, 170mm length
Bottom Bracket
VP BC73, 68mm, threaded
Chain
KMC Z7
Wheels
Front Hub
Formula FM21 alloy, 100x5mm QR
Rear Hub
Formula FM31 alloy, 135x5mm QR
Rims
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Spokes
14g stainless steel
Tires
Bontrager H2 Comp, wire bead, 30tpi, 700x35c
Brakes
Brakes
Tektro alloy linear-pull
Cockpit
Stem
Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length
Handlebar
Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width
Grips
Bontrager Satellite
Headset
1-1/8'' threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Sport Women's
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 296 mm | 296 mm |
| Front Center | 613 mm | 625 mm |
| Rake | 50 mm | 50 mm |
| Trail | 75 mm | 75 mm |
| Stack | 552 mm | 570 mm |
| Reach | 382 mm | 387 mm |
| Top Tube Length | 535 mm | 551 mm |
| Seat Tube Angle | 74.5 ° | 74 ° |
| Seat Tube Length | 381 mm | 445 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm |
| Chainstay Length | 448 mm | 448 mm |
| Wheelbase | 1053 mm | 1065 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 709 mm | 755 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm |
| Rider Max Height | 166 cm | 176 cm |
Model Overview
FX 1 Stagger is a Trek Fx model. Trek launched 128 bikes of this model so far. You can easily view all of the Trek Fx bikes models from 2022, here.
Model range prices
Trek FX 1 2022 is the most affordable bike of this model and has a price of 539$. On the other hand, Trek FX Sport 6 2022, is the most expensive and costs 3290$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness bikes
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Trek FX 1 Stagger price was 539$. If we compare this with the average Fitness bike cost we notice that the price is 21.71% smaller.
Fitness bikes average weight
The average weight for Fitness bikes is 11.24 kg (24.78 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Trek FX 1 Stagger it’s weighing 12.48 kg (27.51 lbs). At this weight, is considerably heavier than average. In conclusion, the average Fitness bike weighs 11.03% less than FX 1 Stagger.
Overview of components
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The wheels on FX 1 Stagger are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
FX 1 Stagger comes in 2 sizes, that range from 155 cm – 176 cm (5.09 ft – 5.77 ft). In conclusion, it won’t take much to find one that’s right for you.
