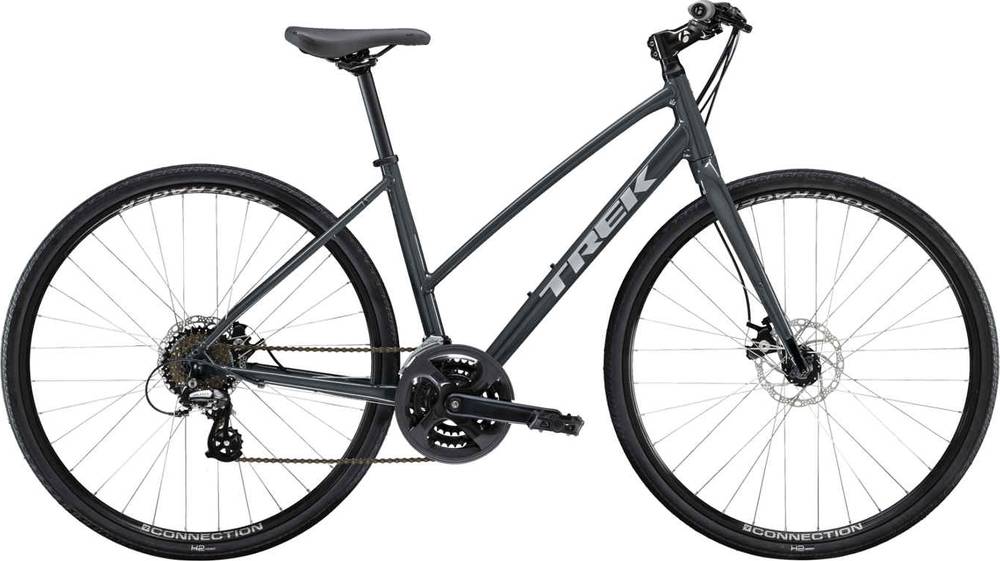

Trek FX 1 Stagger Disc 2020
2020 Urban
Estimate price |
549$
Weight | 12.84 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, stagger top tube, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
Suspension Fork
FX Steel, flat mount disc, rack mounts, 405mm axle-to-crown, ThruSkew 5mm QR
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano Altus EF500, 7 speed
Cassette
SunRace MFM300 freewheel, 14-34, 7 speed
Crank
Forged alloy, 48/38/28, chainguard, 170mm length
Chain
KMC Z51
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR
Rims
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Tires
Bontrager H2, wire bead, 30 tpi, 700x35c
Brakes
Brakes
Tektro MD-U310 mechanical disc, flat mount, 160mm rotor
Cockpit
Stem
Size: S, M, Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length; Size: L, Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length
Handlebar
Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width
Grips
Bontrager Satellite
Headset
1-1/8'' threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Sport Women's
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm |
| Front Center | 613 mm | 625 mm | 625 mm |
| Rake | 50 mm | 50 mm | 51 mm |
| Trail | 75 mm | 75 mm | 68 mm |
| Stack | 552 mm | 570 mm | 593 mm |
| Reach | 382 mm | 387 mm | 389 mm |
| Top Tube Length | 535 mm | 551 mm | 566 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1053 mm | 1065 mm | 1065 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 709 mm | 755 mm | 786 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
FX 1 Stagger Disc completes the Trek Fx model. Trek launched 128 bikes of this model so far. You can easily view all of the Trek Fx bikes models from 2020, here.
Model range prices
Trek FX 1 Stagger 2020 is the cheapest bike model and costs 439$. Trek FX Sport 6 2020 is the most expensive one and costs 2099$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fitness bikes
If you want an acceptable Fitness bike you should know that the average price is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2020 and its price was 549$. In conclusion, this bike price is 19.49% lower than the price of the average Fitness bike.
Average weight for Fitness bikes
The average weight for Fitness bikes is 11.24 kg (24.78 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 12.84 kg (28.31 lbs), Trek bike is considerably heavier than average. To sum up, it’s 14.23% heavier than the average weight of Fitness bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
FX 1 Stagger Disc has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
When leaving the production line, the FX 1 Stagger Disc model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek FX 1 Stagger Disc is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
FX 1 Stagger Disc comes in 3 sizes, that range from 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, you won’t have a problem finding one that suits you.
