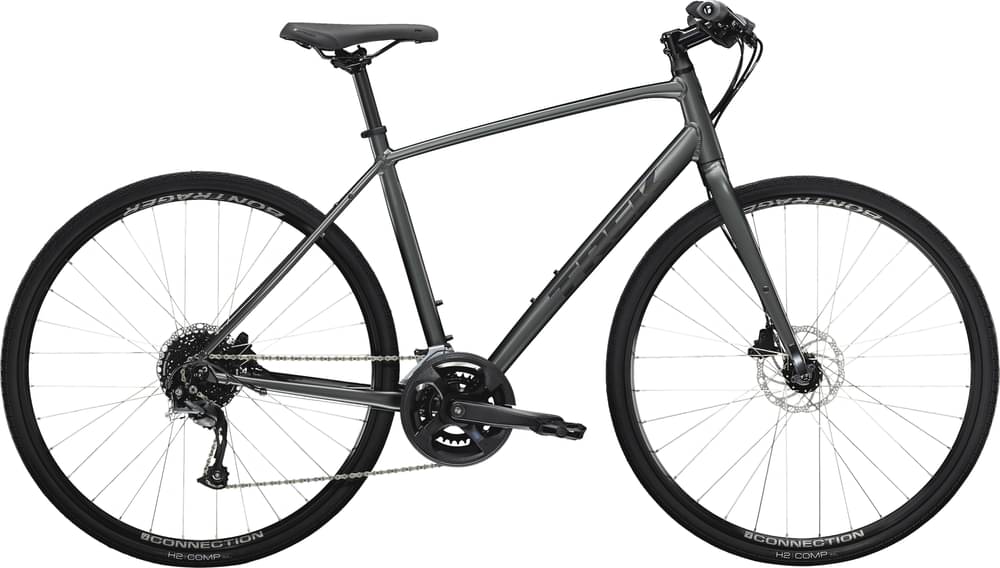

Trek FX 2 DISC 2022
2022 Urban
Estimate price |
685$
Weight | 11.73 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Acera -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXL
197cm - 203cm
XS
147cm - 156cm
SM
154cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Suspension Fork
FX Alloy, flat-mount disc, rack mounts, 405 mm axle-to-crown, ThruSkew 5 mm QR
Drivetrain
Rear Derailleur
Shimano Altus M2000, long cage
Front Derailleur
Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull
Shift Levers
Shimano Altus M2010, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Forged alloy, 46/30, chainguard, 170 mm length
Chain
KMC X9
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 700x35c
Brakes
Brakes
Size: XS, S, M, L, XL, XXL, Tektro HD-R280 hydraulic disc, flat-mount, 160 mm rotor; Size: XS, S, M, L, XL, XXL, Tektro HD-R280 hydraulic disc, flat mount, 160mm rotor
Cockpit
Stem
Size: XS, S, M, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length; Size: L, XL, XXL, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
Handlebar
Size: XS, S, M, Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, XXL, Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager Satellite
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXL | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.41 mm | 1.47 mm | 1.56 mm | 1.65 mm |
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm | 296 mm | 296 mm | 296 mm |
| Front Center | 611 mm | 617 mm | 618 mm | 628 mm | 628 mm | 630 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 49 mm |
| Trail | 78 mm | 75 mm | 68 mm | 68 mm | 62 mm | 62 mm |
| Stack | 535 mm | 537 mm | 555 mm | 584 mm | 616 mm | 645 mm |
| Reach | 381 mm | 391 mm | 395 mm | 396 mm | 396 mm | 390 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 569 mm | 585 mm | 599 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72 ° |
| Seat Tube Length | 330 mm | 381 mm | 445 mm | 508 mm | 572 mm | 635 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 115 mm | 130 mm | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1051 mm | 1057 mm | 1058 mm | 1068 mm | 1068 mm | 1070 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 671 mm | 702 mm | 736 mm | 797 mm | 846 mm | 883 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 197 cm | 147 cm | 154 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 203 cm | 156 cm | 166 cm | 176 cm | 187 cm | 197 cm |
Model Overview
FX 2 DISC is a Trek Fx model. There are 128 bikes that carry this model name. Take a sneak peek at all Trek Fx bikes models from 2022, by clicking here.
Model range prices
Trek FX 1 2022 is the most affordable bike of this model and has a price of 539$. On the other hand, Trek FX Sport 6 2022, is the most expensive and costs 3290$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness bikes average price
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2022 and its price was 604$. Comparing the average cost of a Fitness bike to this one, you will see that FX 2 DISC price is 8.61% smaller.
Fitness bikes average weight
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
FX 2 DISC weighs 11.73 kg (25.86 lbs) and is slightly heavier than the average. In conclusion, the average Fitness bike weighs 4.36% less than FX 2 DISC.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
FX 2 DISC components
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The FX 2 DISC 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The FX 2 DISC comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 197 cm – 197 cm (6.46 ft – 6.46 ft). In short, it won’t be difficult to find the right one for you.
