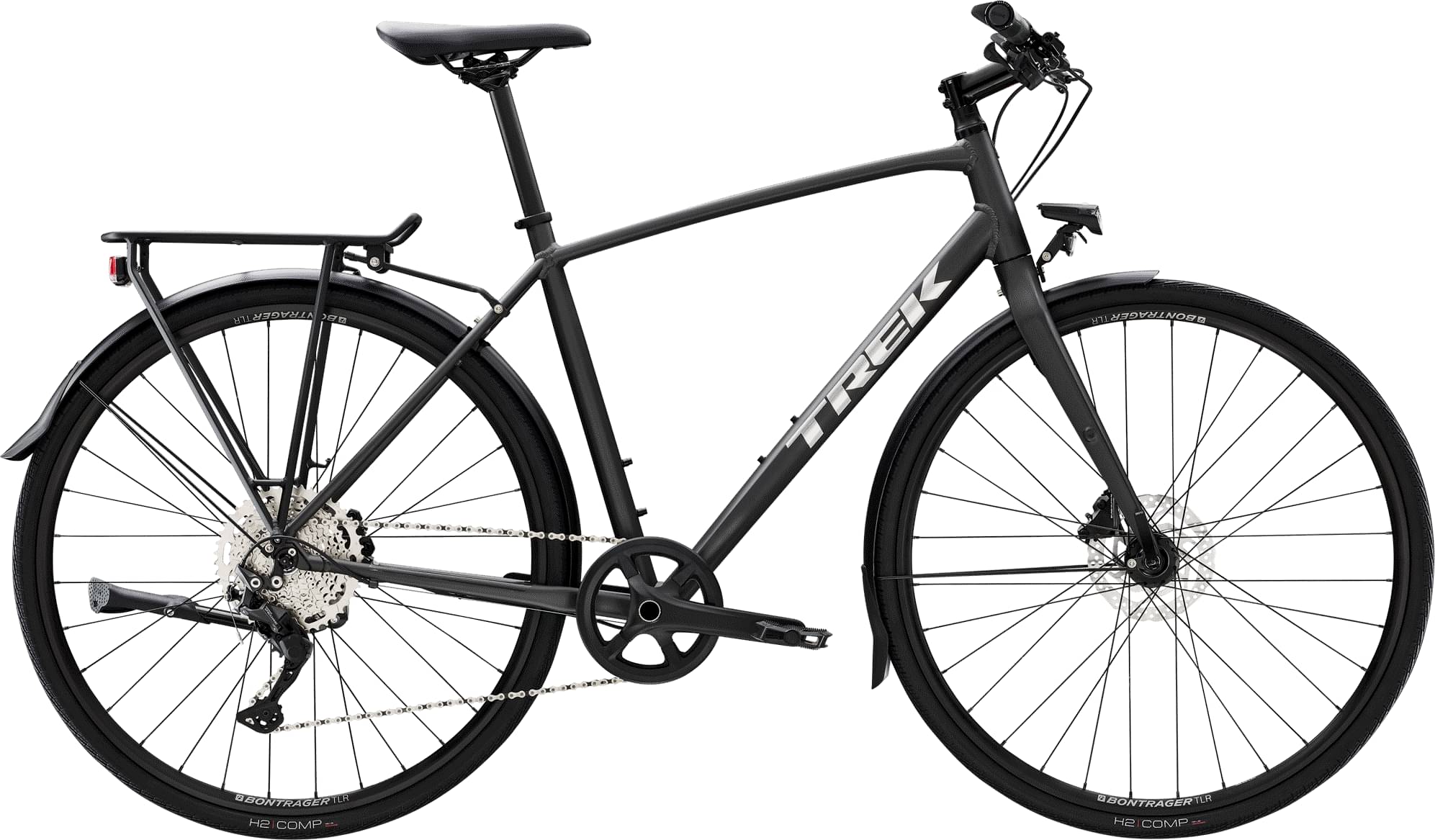

Trek FX 3 Disc Equipped 2022
2022 Urban
Estimate price |
1,174$
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Suspension Fork
FX Carbon, rack and mudguard mounts, flat-mount disc, 405 mm axle-to-crown. ThruSkew 5 mm QR
Drivetrain
Rear Derailleur
Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10 speed
Cassette
Shimano Deore M4100, 11-46, 10-speed
Crank
Size: S, M, Prowheel alloy, 40T narrow-wide ring, 170 mm length; Size: L, XL, Prowheel alloy, 40T narrow-wide ring, 175 mm length
Chain
KMC X10, 10-speed
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Spokes
14 g stainless steel
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 700x32c
Brakes
Brakes
Size: S, M, L, XL, Shimano hydraulic disc, MT201 lever, UR300 calliper; Size: S, M, L, XL, Shimano MT201 hydraulic disc, flat-mount, 160 mm rotor
Disk Rotors
Shimano RT26, 6-bolt,160 mm
Cockpit
Stem
Size: S, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length; Size: M, L, XL, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
Handlebar
Size: S, M, Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.47 mm | 1.56 mm |
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm | 296 mm |
| Front Center | 617 mm | 618 mm | 628 mm | 628 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75 mm | 68 mm | 68 mm | 62 mm |
| Stack | 537 mm | 555 mm | 584 mm | 616 mm |
| Reach | 391 mm | 395 mm | 396 mm | 396 mm |
| Top Tube Length | 540 mm | 555 mm | 569 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm | 572 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 160 mm | 190 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1057 mm | 1058 mm | 1068 mm | 1068 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 702 mm | 736 mm | 797 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
About this model
FX 3 Disc Equipped belongs to the Trek Fx model. 128 bikes variations carry this model name so far. Take a sneak peek at all Trek Fx bikes models from 2022, by clicking here.
Model range prices
Trek FX 1 2022 is the cheapest bike model and costs 539$. Trek FX Sport 6 2022 is the most expensive one and costs 3290$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1087$. In conclusion, this bike price is 65.7% more expensive than the price of the average Fitness bike.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Trek FX 3 Disc Equipped it’s weighing 13.2 kg (29.1 lbs). At this weight, is much heavier than average. In short, the average Fitness bike weight is 17.44% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the FX 3 Disc Equipped model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The FX 3 Disc Equipped has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Trek FX 3 Disc Equipped bike has 4 sizes, in the range of 155 cm – 197 cm (5.09 ft – 6.46 ft). In short, it won’t be difficult to find the right one for you.
