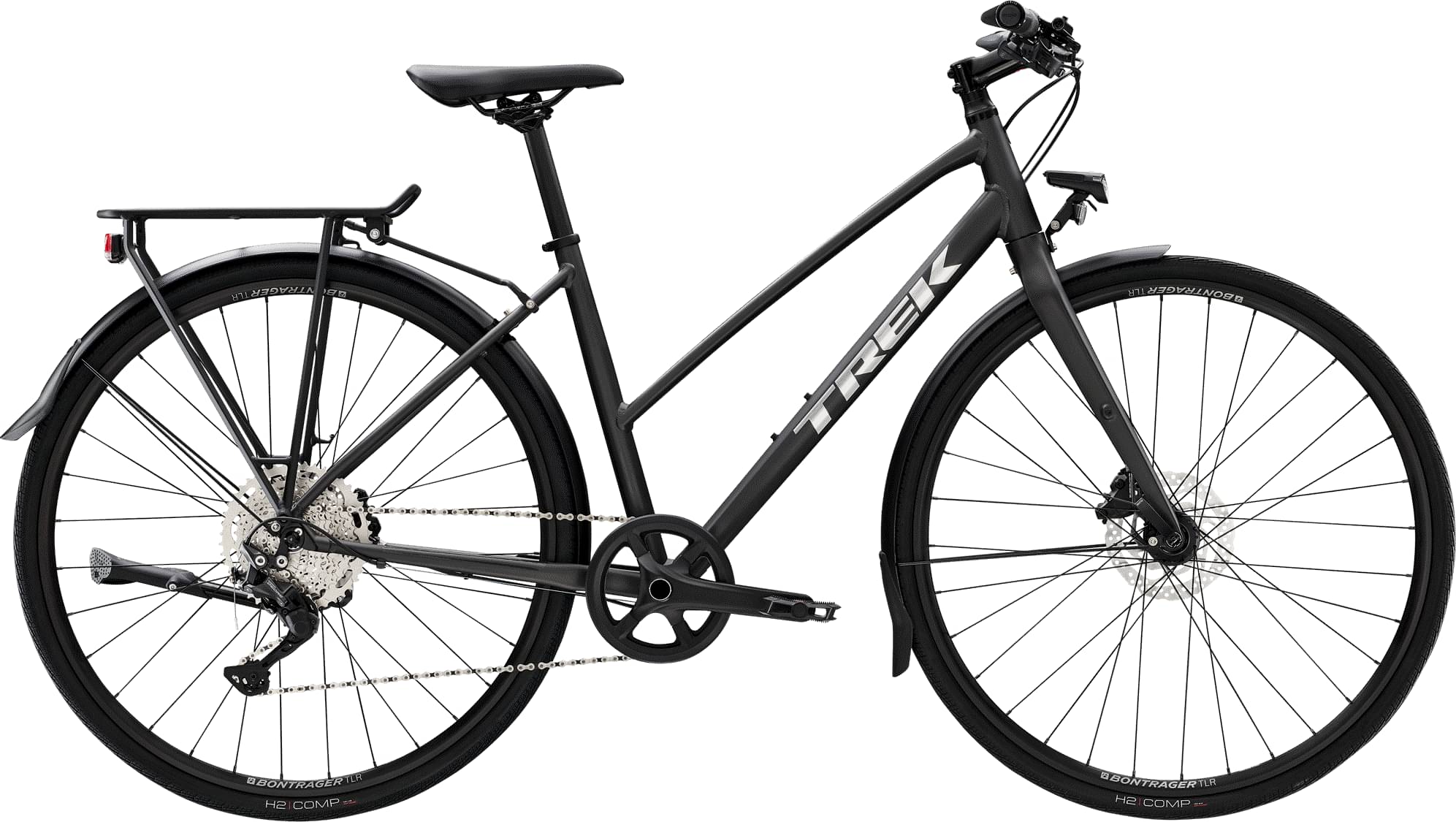

Trek FX 3 Disc Equipped Stagger 2022
2022 Urban
Estimate price |
1,174$
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, stagger top tube, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Suspension Fork
FX Carbon, rack and mudguard mounts, flat-mount disc, 405 mm axle-to-crown. ThruSkew 5 mm QR
Drivetrain
Rear Derailleur
Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10 speed
Cassette
Shimano Deore M4100, 11-46, 10-speed
Crank
Size: S, M, Prowheel alloy, 40T narrow-wide ring, 170 mm length; Size: L, Prowheel alloy, 40T narrow-wide ring, 175 mm length
Chain
KMC X10, 10-speed
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Spokes
14 g stainless steel
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 700x32c
Brakes
Brakes
Size: S, M, L, Shimano hydraulic disc, MT201 lever, UR300 calliper; Size: S, M, L, Shimano MT201 hydraulic disc, flat-mount, 160 mm rotor
Disk Rotors
Shimano RT26, 6-bolt,160 mm
Cockpit
Stem
Size: S, M, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
Handlebar
Size: S, M, Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm |
| Front Center | 613 mm | 625 mm | 625 mm |
| Rake | 50 mm | 50 mm | 51 mm |
| Trail | 75 mm | 75 mm | 68 mm |
| Stack | 552 mm | 570 mm | 593 mm |
| Reach | 382 mm | 387 mm | 389 mm |
| Top Tube Length | 535 mm | 551 mm | 566 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1053 mm | 1065 mm | 1065 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 709 mm | 755 mm | 786 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
FX 3 Disc Equipped Stagger is a Trek Fx model. Trek released 128 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Trek FX 1 2022 is the cheapest bike model and costs 539$. Trek FX Sport 6 2022 is the most expensive one and costs 3290$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fitness bikes average price
According to our math, the average price for a trustworthy Fitness bike is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek FX 3 Disc Equipped Stagger price was 1087$. Doing a quick comparison, we notice that FX 3 Disc Equipped Stagger price is 65.7% higher than the average cost of a Fitness bike.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, FX 3 Disc Equipped Stagger has a weight of 13.2 kg (29.1 lbs). In short, the average Fitness bike weight is 17.44% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
FX 3 Disc Equipped Stagger has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the FX 3 Disc Equipped Stagger bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek FX 3 Disc Equipped Stagger is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Trek FX 3 Disc Equipped Stagger bike has 3 sizes, in the range of 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, it won’t take much to find one that’s right for you.
