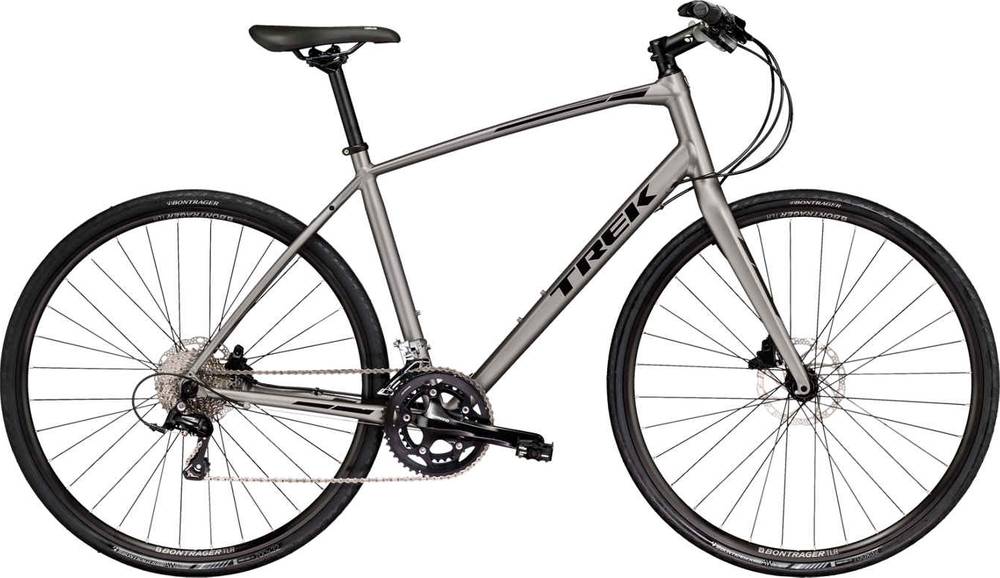

Trek FX Sport 4 2019
2019 Urban
Estimate price |
1,199$
Weight | 10.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XL
185cm - 197cm
MD
164cm - 177cm
SM
154cm - 167cm
XS
147cm - 156cm
LG
174cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
200 Series Alpha Aluminum, DuoTrap S compatible, rack & fender mounts
Suspension Fork
FX carbon, flat mount disc, hidden fender mounts
Drivetrain
Rear Derailleur
Shimano RD-4700 Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra rapid-fire, 10 speed
Cassette
Shimano Tiagra, 11-34, 10 speed
Crank
Shimano R460, 48/34
Bottom Bracket
Sealed cartridge, external cup
Chain
KMC X10
Pedals
Resin body, alloy cage
Wheels
Front Hub
Formula alloy, centerlock disc, 12mm thru axle, 32h
Rear Hub
Formula alloy, centerlock disc, QR, 32h
Rims
Bontrager Tubeless Ready Disc, 32h
Tires
Bontrager AW1 Hard-Case Lite, 700x32c
Brakes
Brakes
Shimano MT-201, hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Satellite Plus IsoZone, 31.8mm, 15mm rise
Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Headset
1-1/8? threadless, sealed cartridge bearings
Seat
Saddle
Bontrager H1
Seatpost
Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XL | MD | SM | XS | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.44 mm | 1.49 mm | 1.52 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 615 mm | 626 mm | 637 mm | 642 mm | 650 |
| Rake | 50 mm | 50 mm | 49 mm | 45 mm | 44 mm |
| Trail | 74 mm | 71 mm | 70 mm | 67 mm | 63 mm |
| Stack | 540 mm | 565 mm | 591 mm | 618 mm | 647 mm |
| Reach | 395 mm | 402 mm | 410 mm | 416 mm | 426 mm |
| Top Tube Length | 538 mm | 557 mm | 577 mm | 597 mm | 627 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 110 mm | 135 mm | 160 mm | 185 mm | 210 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1052 mm | 1063 mm | 1074 mm | 1079 mm | 1087 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 691 mm | 719 mm | 750 mm | 788 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 185 cm | 164 cm | 154 cm | 147 cm | 174 cm |
| Rider Max Height | 197 cm | 177 cm | 167 cm | 156 cm | 187 cm |
About this model
FX Sport 4 belongs to the Trek Fx model. There are 128 bikes that carry this model name. You can easily view all of the Trek Fx bikes models from 2019, here.
Model range prices
The most economical model, the Trek FX 1 Stagger 2019 has a starting price of 439$. Trek FX Sport 6 2019 on the other hand is the most expensive at 2099$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fitness bikes average price
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek FX Sport 4 price was 1199$. Comparing this to the average Fitness bike price, we see that the price is 82.77% more expensive.
Fitness bikes average weight
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 10.3 kg (22.71 lbs), Trek bike is a bit lighter than average. In short, the average Fitness bike weight is 9.13% higher than this one.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the FX Sport 4 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
FX Sport 4 comes in 5 sizes, that range from 185 cm – 187 cm (6.07 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
