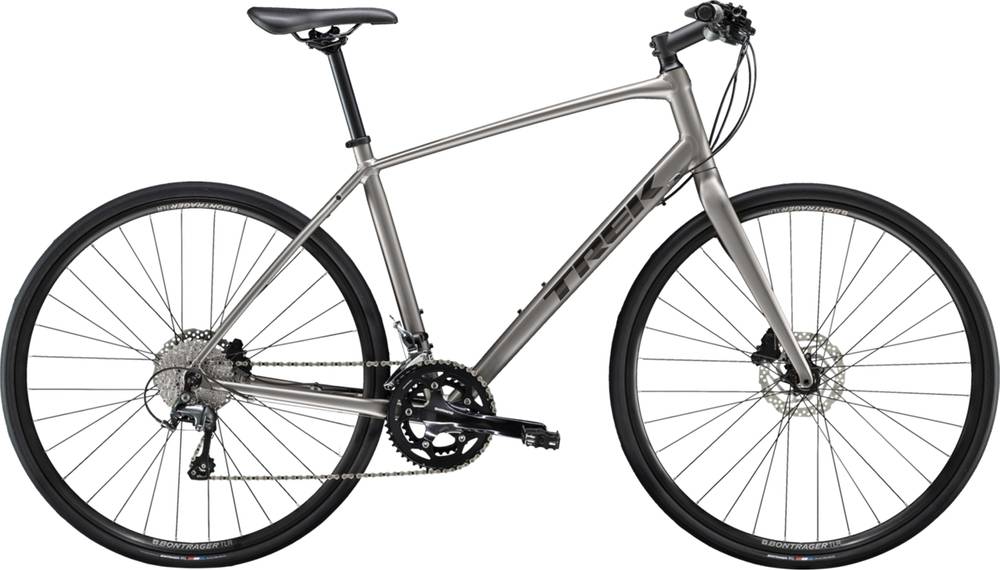

Trek FX Sport 4 2020
2020 Urban
Estimate price |
1,199$
Weight | 10.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 156cm
SM
154cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
200 Series Alpha Aluminum, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
Suspension Fork
Size: S, XL, FX Carbon, threadless alloy steerer, hidden fender mounts, flat mount disc, 405mm axle-to-crown, 100x12mm thru axle; Size: S, XL, FX Carbon, flat mount disc, hidden fender mounts, 405mm axle-to-crown, 100x12mm thru axle
Drivetrain
Rear Derailleur
Shimano Tiagra 4700, medium cage
Front Derailleur
Shimano Tiagra 4700, 34.9mm clamp, down swing
Shift Levers
Shimano Tiagra 4700, 10 speed
Cassette
Shimano Tiagra HG500, 11-34, 10 speed
Crank
Size: S, Shimano R460, 48/34, 170mm length; Size: XL, Shimano R460, 48/34, 175mm length
Wheels
Front Hub
Formula alloy, centerlock disc, 100x12mm thru-axle
Rear Hub
Formula alloy, centerlock disc, 135x5mm QR
Rims
Bontrager Tubeless Ready Disc, 32-hole, presta valve
Spokes
14g, stainless steel, black
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
Brakes
Brakes
Shimano MT201 hydraulic disc, flat mount, 160mm rotor
Cockpit
Stem
Size: S, Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length; Size: XL, Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: S, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width; Size: XL, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Headset
1-1/8'' threadless, sealed cartridge bearings
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.44 mm | 1.49 mm | 1.52 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 615 mm | 626 mm | 637 mm | 642 mm | 650 |
| Rake | 50 mm | 50 mm | 49 mm | 45 mm | 44 mm |
| Trail | 74 mm | 71 mm | 70 mm | 67 mm | 63 mm |
| Stack | 540 mm | 565 mm | 591 mm | 618 mm | 647 mm |
| Reach | 395 mm | 402 mm | 410 mm | 416 mm | 426 mm |
| Top Tube Length | 538 mm | 557 mm | 577 mm | 597 mm | 627 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 110 mm | 135 mm | 160 mm | 185 mm | 210 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1052 mm | 1063 mm | 1074 mm | 1079 mm | 1087 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 691 mm | 719 mm | 750 mm | 788 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 154 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 156 cm | 166 cm | 176 cm | 187 cm | 197 cm |
Model Overview
FX Sport 4 is a Trek Fx model. Trek launched 128 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Trek FX 1 Stagger 2020 is the most economical model, with a starting price of 439$. Trek FX Sport 6 2020 on the other hand costs 2099$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness bikes
If you want an acceptable Fitness bike you should know that the average price is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2020 and its price was 1199$. Comparing this to the average Fitness bike price, we see that the price is 82.77% higher.
Average weight for Fitness bikes
If we make a quick analysis of the average weight of a Fitness bike, we get 11.24 kg (24.78 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 10.48 kg (23.1 lbs), the FX Sport 4 model is a bit lighter than average. To sum up, it’s 7.25% lighter than the average weight of Fitness bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on FX Sport 4 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The FX Sport 4 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 197 cm (4.82 ft – 6.46 ft). In conclusion, finding one for you shouldn’t be a problem.
