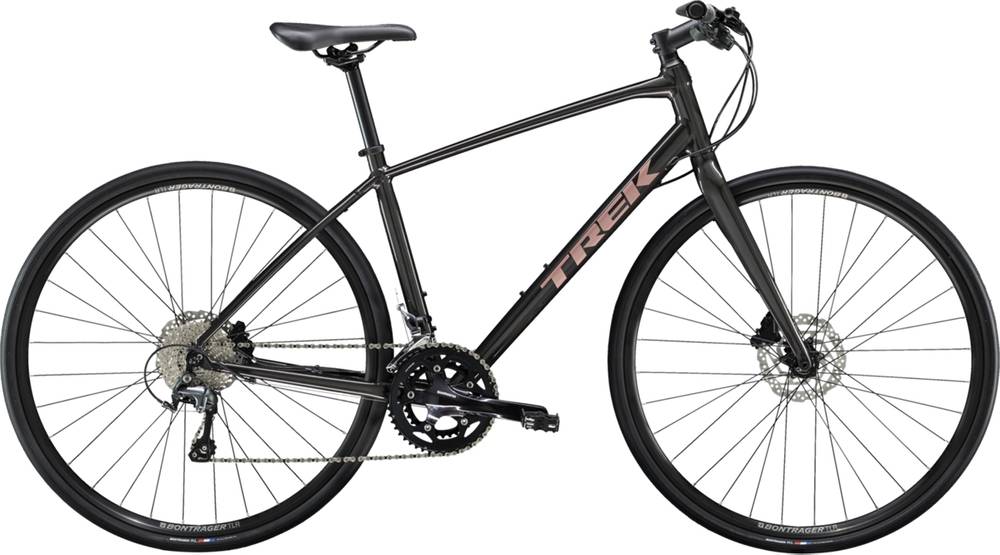

Trek FX Sport 4 Women’s 2020
2020 Urban
Estimate price |
1,199$
Weight | 10.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 156cm
SM
154cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
200 Series Alpha Aluminum, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
Suspension Fork
Size: XS, S, FX Carbon, threadless alloy steerer, hidden fender mounts, flat mount disc, 405mm axle-to-crown, 100x12mm thru axle; Size: XS, S, FX Carbon, flat mount disc, hidden fender mounts, 405mm axle-to-crown, 100x12mm thru axle
Drivetrain
Rear Derailleur
Shimano Tiagra 4700, medium cage
Front Derailleur
Shimano Tiagra 4700, 34.9mm clamp, down swing
Shift Levers
Shimano Tiagra 4700, 10 speed
Cassette
Shimano Tiagra HG500, 11-34, 10 speed
Crank
Shimano R460, 48/34, 170mm length
Wheels
Front Hub
Formula alloy, centerlock disc, 100x12mm thru-axle
Rear Hub
Formula alloy, centerlock disc, 135x5mm QR
Rims
Bontrager Tubeless Ready Disc, 32-hole, presta valve
Spokes
14g, stainless steel, black
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
Brakes
Brakes
Shimano MT201 hydraulic disc, flat mount, 160mm rotor
Cockpit
Stem
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Handlebar
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width
Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Headset
1-1/8'' threadless, sealed cartridge bearings
Seat
Saddle
Bontrager H1 Women's
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.44 mm | 1.49 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 615 mm | 626 mm | 637 mm | 642 mm |
| Rake | 50 mm | 50 mm | 49 mm | 45 mm |
| Trail | 74 mm | 71 mm | 70 mm | 67 mm |
| Stack | 540 mm | 565 mm | 591 mm | 618 mm |
| Reach | 395 mm | 402 mm | 410 mm | 416 mm |
| Top Tube Length | 538 mm | 557 mm | 577 mm | 597 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 110 mm | 135 mm | 160 mm | 185 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1052 mm | 1063 mm | 1074 mm | 1079 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 691 mm | 719 mm | 750 mm | 788 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 154 cm | 164 cm | 174 cm |
| Rider Max Height | 156 cm | 166 cm | 176 cm | 186 cm |
Model Overview
FX Sport 4 Women’s belongs to the Trek Fx model. 128 bikes variations carry this model name so far. You can easily view all of the Trek Fx bikes models from 2020, here.
Model range prices
Trek FX 1 Stagger 2020 is the most economical model, with a starting price of 439$. Trek FX Sport 6 2020 on the other hand costs 2099$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
According to our math, the average price for a trustworthy Fitness bike is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2020 and its price was 1199$. Doing a quick comparison, we notice that FX Sport 4 Women’s price is 82.77% higher than the average cost of a Fitness bike.
Fitness bikes average weight
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek FX Sport 4 Women’s it’s weighing 10.4 kg (22.93 lbs). At this weight, is a bit lighter than average. In conclusion, the average Fitness bike weighs 8.08% more than FX Sport 4 Women’s.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
FX Sport 4 Women’s components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The FX Sport 4 Women’s 2020 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 147 cm – 186 cm (4.82 ft – 6.1 ft). In conclusion, finding one for you shouldn’t be a problem.
