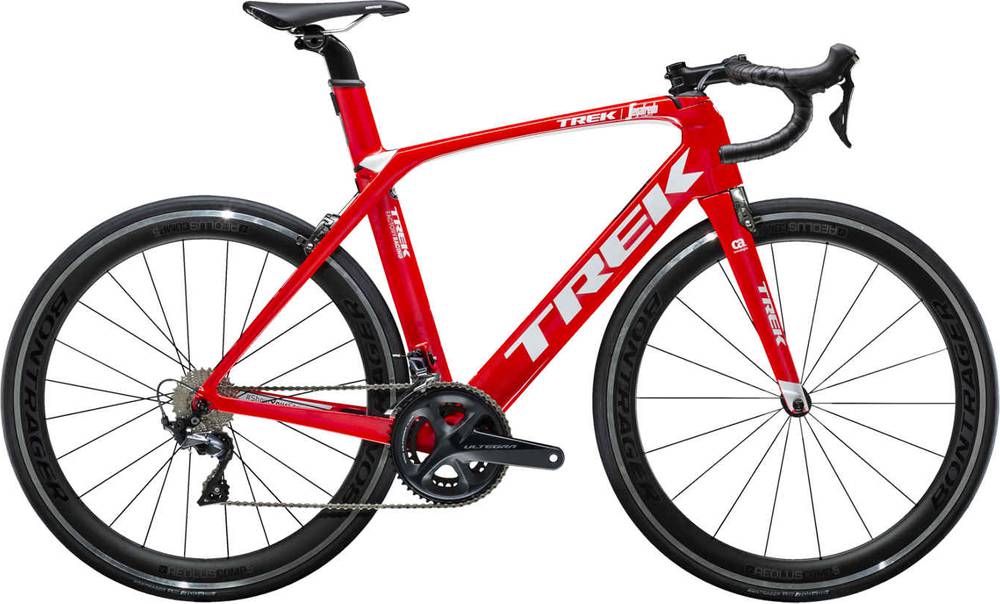

Trek Madone SL 6 2019
2019 Road
Estimate price |
4,199$
Weight | 8.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone Rear IsoSpeed, Micro-adjust seatmast, tapered head tube, BB90, direct mount rim brakes, invisible cable routing, control center, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
Suspension Fork
Madone KVF full carbon, carbon tapered steerer, carbon dropouts, Madone integrated brake
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra, braze-on
Shift Levers
Shimano Ultegra, 11 speed
Cassette
Shimano Ultegra, 11-28, 11 speed
Crank
Shimano Ultegra, 50/34 (compact)
Bottom Bracket
BB90
Chain
Shimano Ultegra
Pedals
Not included
Wheels
Rims
Bontrager Aeolus Comp Tubeless Ready
Tires
Bontrager R2 Hard-Case Lite, 700x25c
Brakes
Brakes
Madone aero, integrated
Cockpit
Stem
Bontrager Pro, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Elite Aero VR-CF, 31.8mm
Grips
Bontrager tape
Headset
Madone integrated, stainless cartridge bearings, sealed, 1-3/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Comp, chromoly rails
Seatpost
Madone Micro-adjust carbon seatmast cap, 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.48 mm | 1.52 mm | 1.55 mm | 1.58 mm | 1.62 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 43 mm | 44 mm | 44 mm | 39 mm | 39 mm | 40 mm | 39 mm |
| Trail | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm |
| Stack | 531 mm | 543 mm | 551 mm | 573 mm | 592 mm | 611 mm | 630 mm |
| Reach | 365 mm | 370 mm | 372 mm | 378 mm | 382 mm | 386 mm | 389 mm |
| Top Tube Length | 512 mm | 523 mm | 534 mm | 551 mm | 564 mm | 577 mm | 589 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 476 mm | 493 mm | 506 mm | 533 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm | 402 mm | 402 mm | 403 mm |
| Wheelbase | 965 mm | 968 mm | 972 mm | 974 mm | 983 mm | 992 mm | 1001 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 698 mm | 720 mm | 733 mm | 758 mm | 777 mm | 795 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 162 cm | 167 cm | 172 cm | 178 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 196 cm |
Model Overview
Madone SL 6 completes the Trek Madone model. Trek released 360 bikes variations of this model so far. Take a sneak peek at all Trek Madone bikes models from 2019, by clicking here.
Model range prices
Trek Madone SL 6 2019 is the cheapest bike model and costs 4199$. Trek Madone SLR 9 Disc 2019 is the most expensive one and costs 12299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 4199$. Comparing the average cost of an Aero bike to this one, you will see that Madone SL 6 price is 0.29% smaller.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably heavier than average, Madone SL 6 has a weight of 8.2 kg (18.08 lbs). In other words, this model is 11.72% heavier than the average Aero bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Madone SL 6 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Trek Madone SL 6 2019, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Madone SL 6 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 196 cm (5.15 ft – 6.43 ft). In short, you can easily find one that suits you.
