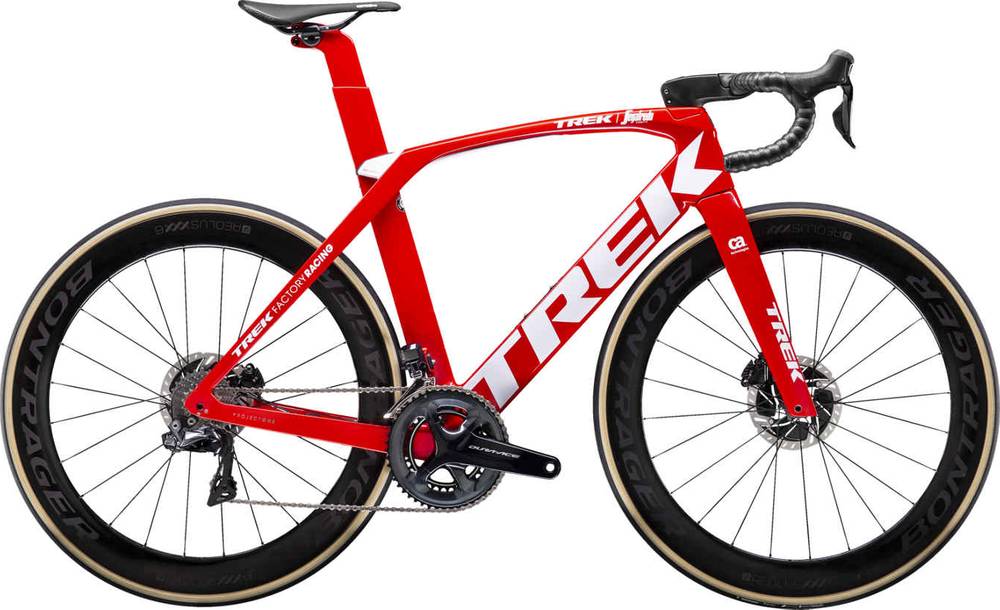

Trek Madone SLR 9 Disc 2019
2019 Road
Estimate price |
12,299$
Weight | 7.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Adjustable Top Tube IsoSpeed, Micro-adjust seatmast, tapered head tube, BB90, flat mount disc brakes, 12mm thru-axle, invisible cable routing, control center, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
Suspension Fork
Madone KVF full carbon disc, carbon tapered steerer, carbon dropouts, hidden cable routing, flat mount disc brake, 12mm thru-axle
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2
Front Derailleur
Shimano Dura-Ace Di2, braze-on
Shift Levers
Shimano Dura-Ace Di2, 11 speed
Cassette
Shimano Dura-Ace, 11-28, 11 speed
Crank
Shimano Dura-Ace, 50/34 (compact)
Bottom Bracket
BB90
Chain
Shimano Dura-Ace
Pedals
Not included
Wheels
Rims
Bontrager Aeolus XXX 6 Tubeless Ready Disc, 12mm thru-Axle
Tires
Bontrager R4 320, 320 tpi, 700x25c
Brakes
Brakes
Shimano Dura-Ace flat mount hydraulic disc
Cockpit
Stem
Madone specific internal cable routing
Handlebar
Madone specific adjustable aero VR-CF, internal cable routing
Grips
Bontrager tape
Headset
Madone integrated, stainless cartridge bearings, sealed, 1-3/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Pro, carbon rails
Seatpost
Madone carbon seatpost, 25mm offset w/integrated light mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.4 mm | 1.44 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 523 mm | 535 mm | 543 mm | 565 mm | 583 mm | 603 mm | 622 mm |
| Reach | 380 mm | 385 mm | 388 mm | 393 mm | 398 mm | 401 mm | 405 mm |
| Top Tube Length | 523 mm | 536 mm | 545 mm | 561 mm | 576 mm | 588 mm | 600 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 413 mm | 413 mm | 414 mm |
| Wheelbase | 976 mm | 979 mm | 983 mm | 985 mm | 994 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 713 mm | 734 mm | 746 mm | 770 mm | 795 mm | 813 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 162 cm | 167 cm | 172 cm | 178 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 196 cm |
About this model
Madone SLR 9 Disc belongs to the Trek Madone model. Trek released 360 bikes variations of this model so far. Take a sneak peek at all Trek Madone bikes models from 2019, by clicking here.
Model range prices
Trek Madone SL 6 2019 is the most economical model, with a starting price of 4199$. Trek Madone SLR 9 Disc 2019 on the other hand costs 12299$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 12299$. In conclusion, this bike price is 192.07% higher than the price of the average Aero bike.
Average weight for Aero bikes
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek Madone SLR 9 Disc it’s weighing 7.65 kg (16.87 lbs). At this weight, is slightly heavier than average. In other words, this model is 4.22% heavier than the average Aero bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
Madone SLR 9 Disc has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Trek Madone SLR 9 Disc 2019, has a 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Madone SLR 9 Disc has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Madone SLR 9 Disc comes in 7 sizes, that range from 157 cm – 196 cm (5.15 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
