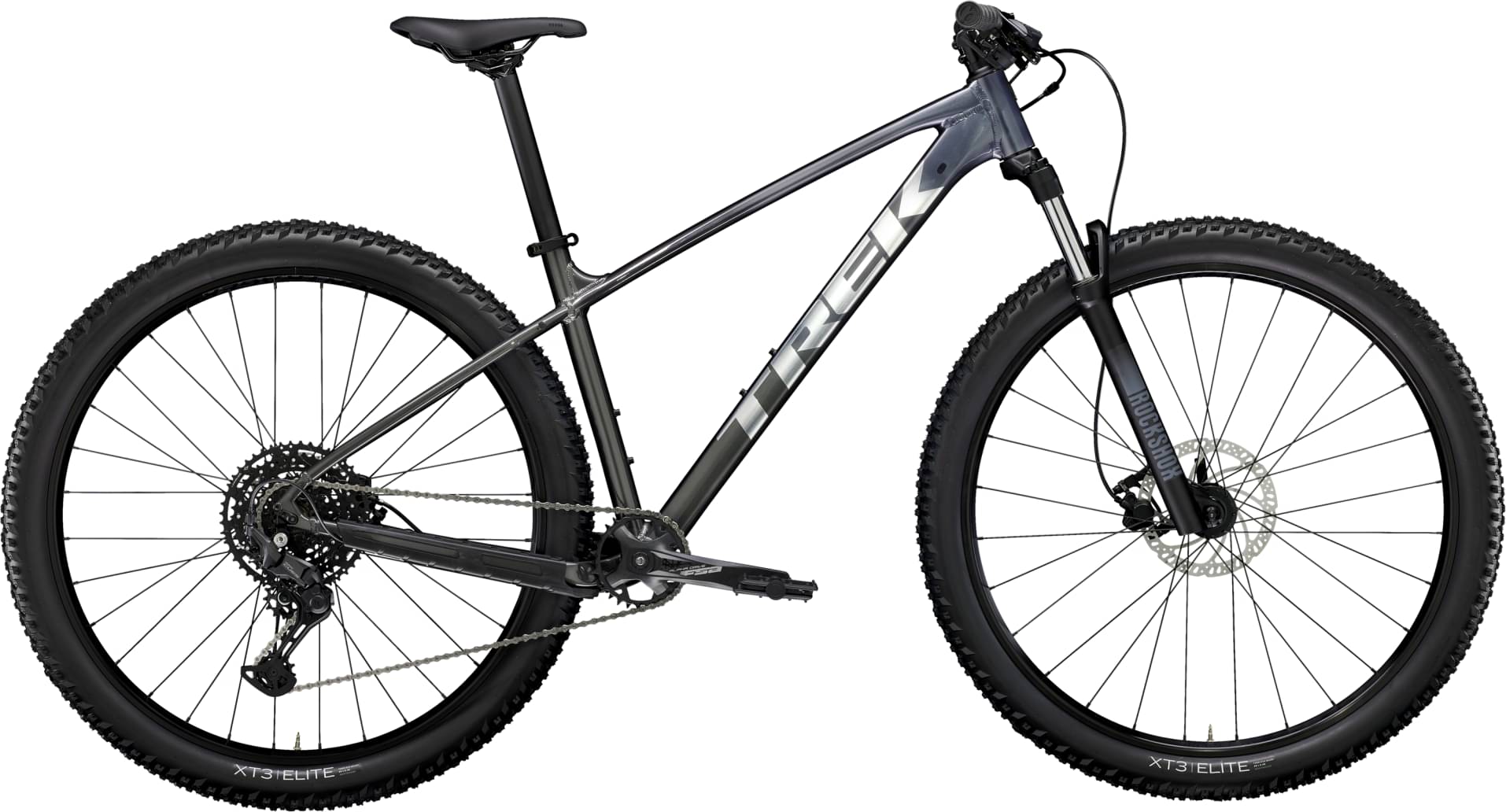

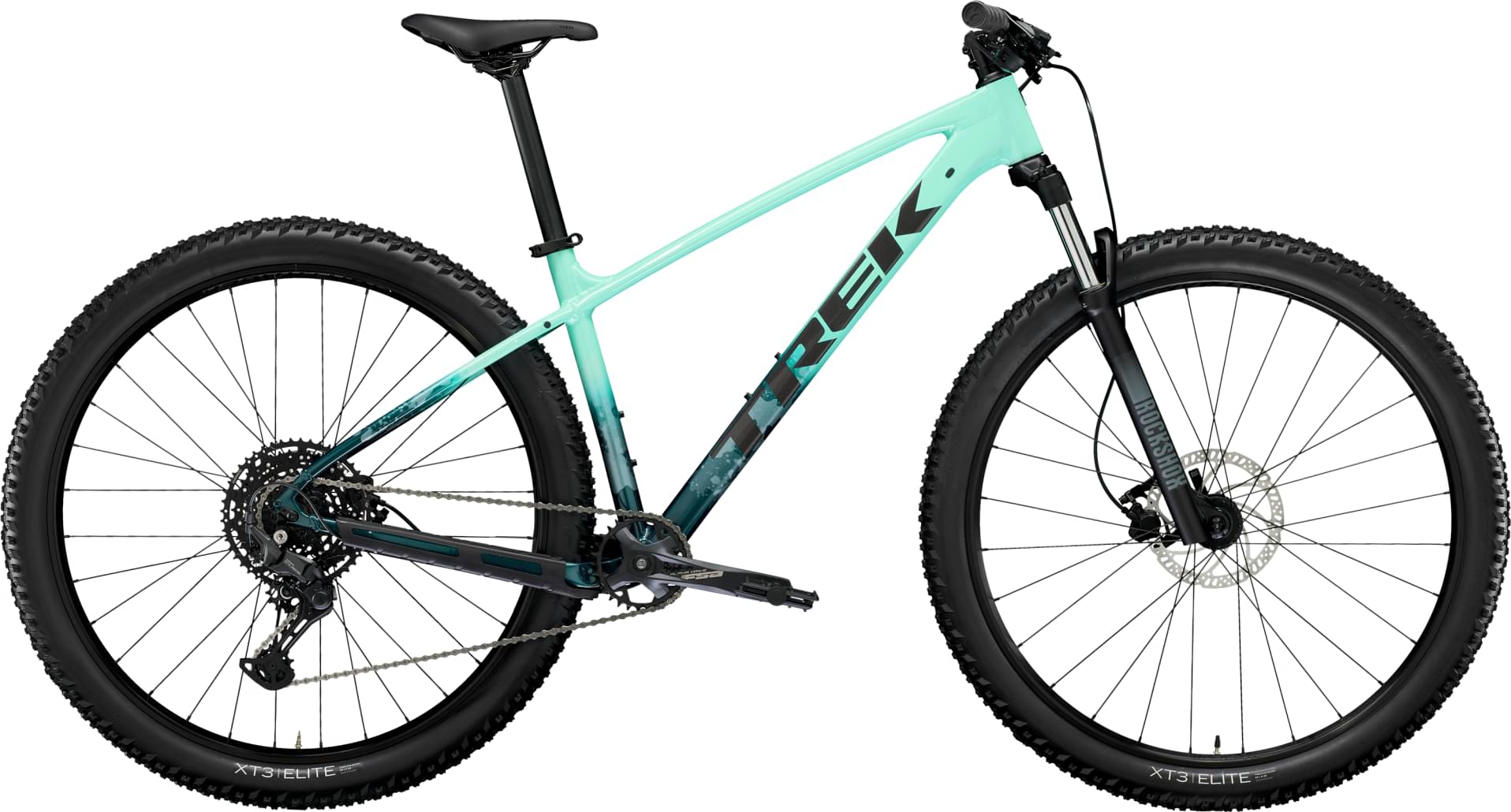

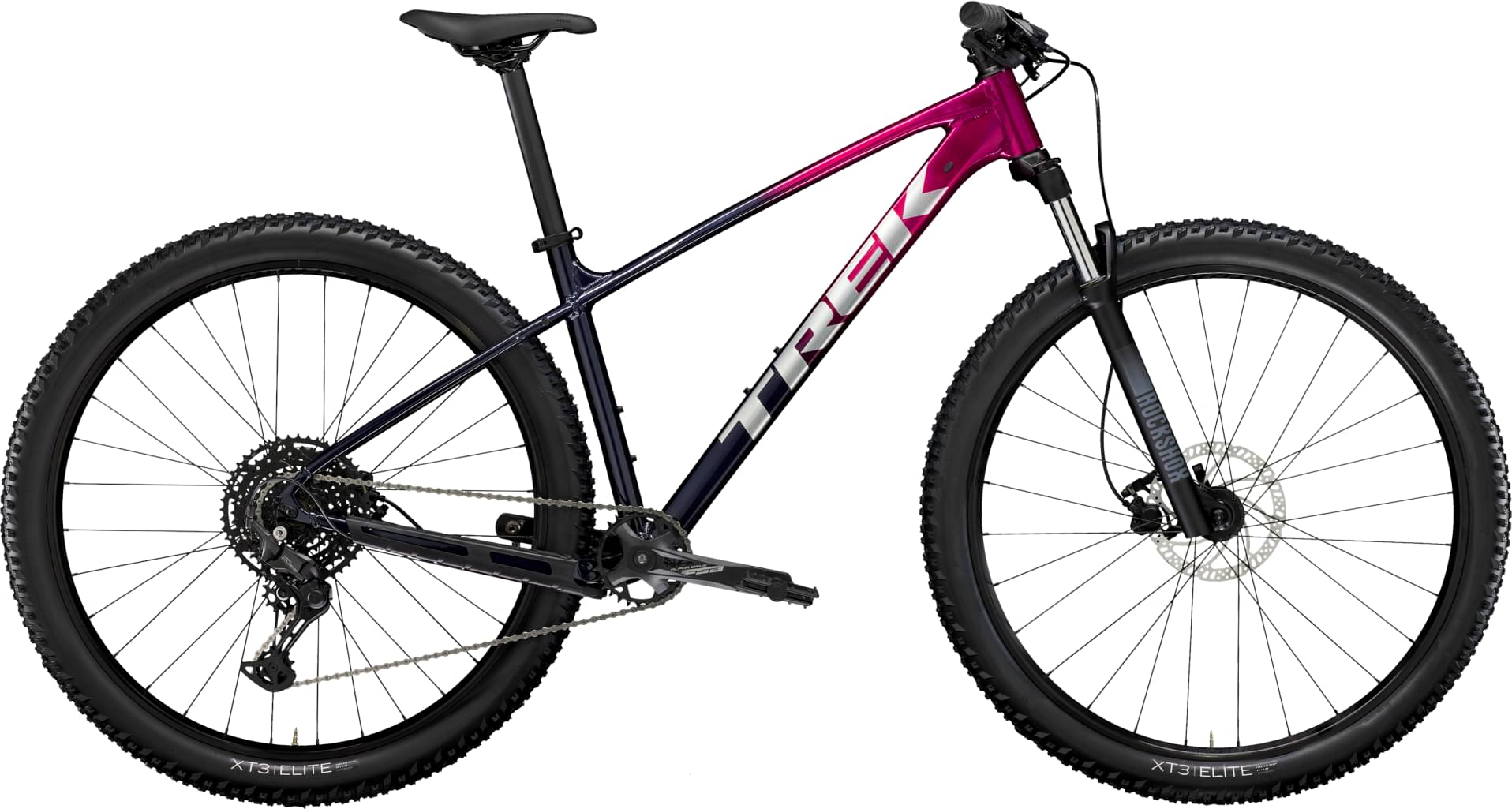

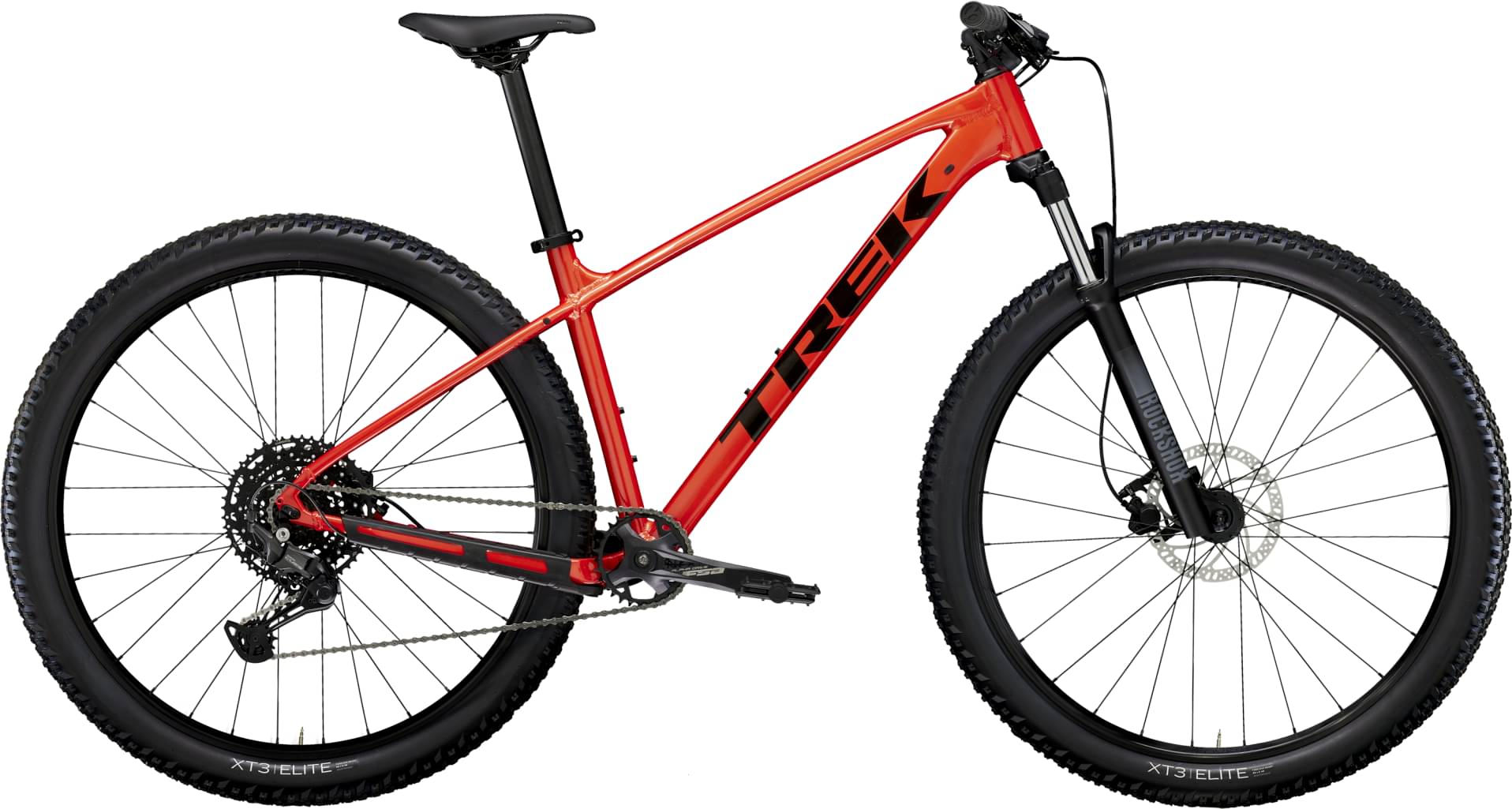

Trek Marlin 6 Gen 3 2024
2024 Mountain
Estimate price |
1,046$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 80mm -
Fork RockShox Judy
-
Groupset CUES, FSA -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
13.5"
135cm - 146cm
14.5"
144cm - 156cm
15.5"
154cm - 166cm
17.5"
164cm - 176cm
18.5"
173cm - 180cm
19.5"
177cm - 189cm
21.5"
187cm - 196cm
23"
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size: XXS, XS, Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew; Size: S, M, ML, L, XL, XXL, Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Suspension Fork
Size: XXS, RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel; Size: XS, S, RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel; Size: M, ML, L, XL, XXL, RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano U6000, 10-speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Crank
Size: XXS, XS, FSA Alpha Drive, 30T, 160 mm length; Size: S, M, ML, FSA Alpha Drive, 30T, 170 mm length; Size: L, XL, XXL, FSA Alpha Drive, 30T, 175 mm length
Bottom Bracket
FSA, 73 mm, threaded cartridge, 122.5 mm spindle
Chain
Shimano LG500
Pedals
VP-536 nylon platform
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Tires
Size: XXS, Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35"; Size: XS, S, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 27.5x2.35"; Size: M, ML, L, XL, XXL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 29x2.35"
Brakes
Brakes
Size: XXS, XS, S, Tektro HD-M276 hydraulic disc, short reach; Size: M, ML, L, XL, XXL, Tektro HD-M275 hydraulic disc
Cockpit
Stem
Size: XXS, XS, S, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length; Size: M, ML, L, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length; Size: XL, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length; Size: XXL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Handlebar
Size: XXS, XS, Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width; Size: S, Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width; Size: M, ML, L, XL, XXL, Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Seat
Saddle
Bontrager Verse Short, stainless steel rails
Seatpost
Size: XXS, Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length; Size: XS, S, M, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 14.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.44 mm | 1.37 mm | 1.38 mm | 1.35 mm | 1.31 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 302 mm | 313 mm | 313 mm | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 630 mm | 663 mm | 692 mm | 732 mm | 749 mm | 765 mm | 798 mm | 829 mm |
| Rake | 40 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 104 mm | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Stack | 549 mm | 568 mm | 577 mm | 614 mm | 619 mm | 623 mm | 642 mm | 656 mm |
| Reach | 370 mm | 395 mm | 420 mm | 445 mm | 460 mm | 475 mm | 500 mm | 525 mm |
| Top Tube Length | 526 mm | 556 mm | 584 mm | 620 mm | 636 mm | 652 mm | 683 mm | 712 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 320 mm | 340 mm | 370 mm | 420 mm | 435 mm | 450 mm | 500 mm | 540 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 105 mm | 110 mm | 115 mm | 135 mm | 150 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1065 mm | 1097 mm | 1126 mm | 1168 mm | 1185 mm | 1202 mm | 1235 mm | 1266 mm |
| Bottom Bracket Drop | 38 mm | 45 mm | 45 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 655 mm | 663 mm | 697 mm | 752 mm | 764 mm | 776 mm | 796 mm | 821 mm |
| Wheels | 26" | 27" | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 135 cm | 144 cm | 154 cm | 164 cm | 173 cm | 177 cm | 187 cm | 194 cm |
| Rider Max Height | 146 cm | 156 cm | 166 cm | 176 cm | 180 cm | 189 cm | 196 cm | 203 cm |
About this model
Marlin 6 Gen 3 completes the Trek Marlin model. 90 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Trek Marlin 4 Gen 2 2024 is the most affordable bike of this model and has a price of 541$. On the other hand, Trek Marlin 7 Gen 3 2024, is the most expensive and costs 1209$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2024 for 955$. If we compare this with the average Crosscountry bike cost we notice that the price is 99.48% lower.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.31 kg (27.14 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 14.5 kg (31.97 lbs), the Marlin 6 Gen 3 model is much heavier than average. In other words, this model is 17.79% heavier than the average Crosscountry bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The RockShox Judy is included from the factory. It has a travel distance of 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Marlin 6 Gen 3 2024 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Marlin 6 Gen 3 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Trek Marlin 6 Gen 3 bike has 8 sizes, in the range of 135 cm – 203 cm (4.43 ft – 6.66 ft). In conclusion, you won’t have a problem finding one that suits you.
