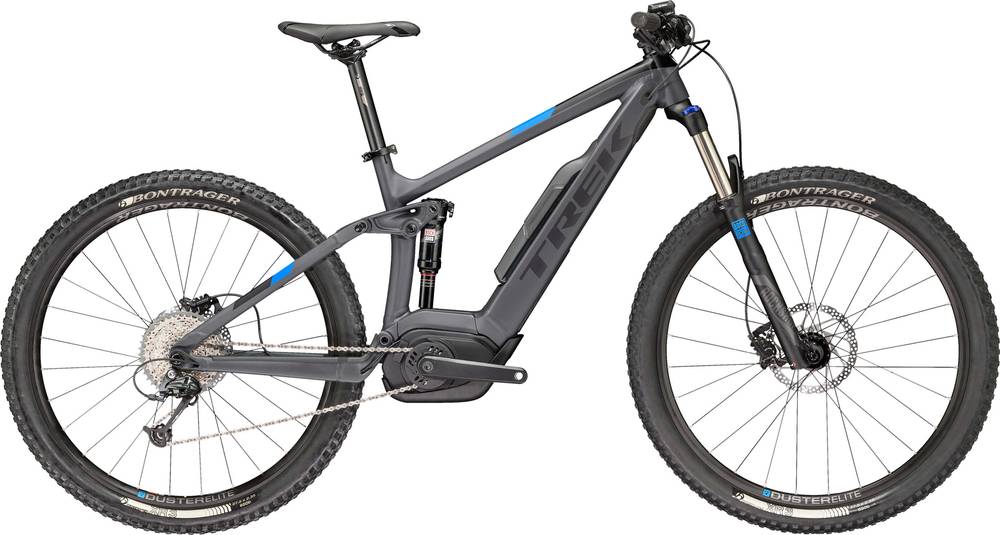

Trek Powerfly 5 FS 2018
2018 E-bike
Estimate price |
4,499$
Weight | 23.19 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powerpack Performance 500 downtube -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, EVO link, E2 tapered head tube, Knock Block, internal derailleur & dropper post routing, integrated battery, G2 Geometry, Boost148, 130mm travel
Suspension Fork
RockShox Recon RL, Solo Air, lockout, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset, 130mm travel
Rear Shock
RockShox Deluxe RL, 205mm x 50mm
Drivetrain
Rear Derailleur
Shimano Deore M6000, Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano Deore M6000, 10 speed
Cassette
Shimano HG50, 11-42, 10 speed
Crank
Miranda Delta, 15T
Chain
KMC X10
Chain Guide
N/A
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula Alloy DC511, Boost110
Rear Hub
Bontrager sealed bearing alloy axle, Boost148
Rims
Bontrager Duster Elite Tubeless Ready 32-hole, tubeless strips and valves sold separately
Tires
Bontrager XR3, 27.5x2.35?
Brakes
Brakes
Shimano M315 hydraulic disc
Brake Levers
Shimano M315
Cockpit
Stem
Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 degree, 60mm length
Handlebar
Bontrager alloy, 31.8mm, 15mm rise
Grips
Bontrager Race
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset
Motor & Battery
Motor
Bosch Performance CX, 250 watt, 75Nm
Battery
Bosch Powerpack Performance 500 downtube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.36 mm | 1.32 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 704 mm | 734 mm | 755 mm | 770 mm | 800 mm |
| Rake | 51 mm | 51 mm | 52 mm | 52 mm | 53 mm |
| Trail | 88 mm | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 596 mm | 595 mm | 600 mm | 604 mm | 618 mm |
| Reach | 407 mm | 437 mm | 455 mm | 468 mm | 492 mm |
| Top Tube Length | 572 mm | 602 mm | 622 mm | 636 mm | 664 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 368 mm | 419 mm | 445 mm | 470 mm | 521 mm |
| Head Tube Angle | 66.9 ° | 66.9 ° | 66.9 ° | 66.9 ° | 66.9 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 110 mm | 125 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1179 mm | 1209 mm | 1230 mm | 1245 mm | 1275 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 762 mm | 742 mm | 737 mm | 732 mm | 742 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model
Powerfly 5 FS belongs to the Trek E Powerfly model. Trek launched 92 e-bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Trek Powerfly 5 2018 has a starting price of 3499$. Trek Powerfly 7 FS Plus 2018 on the other hand is the most expensive at 4999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Trek released this model in 2018, its price was 4499$. In conclusion, this e-bike price is 33.7% more expensive than the price of the average Trail e-bike.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 23.19 kg (51.13 lbs), Trek e-bike is slightly lighter than average. In conclusion, the average Trail e-bike weighs 2.2% more than Powerfly 5 FS.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Powerfly 5 FS components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Trek Powerfly 5 FS e-bike has the RockShox Deluxe RL model installed, and has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Powerfly 5 FS are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Powerfly 5 FS has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Trek Powerfly 5 FS e-bike has 5 sizes, in the range of 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
