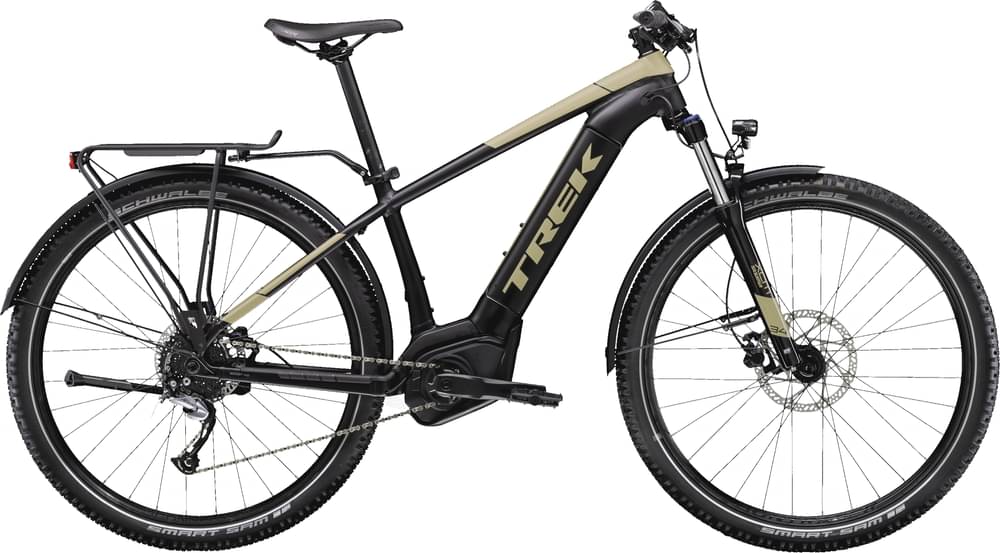

Trek Powerfly Sport 4 Equipped 2020
2020 E-bike
Estimate price |
3,784$
Weight | 22.67 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, vertical, 500 wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Suspension Fork
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel
Drivetrain
Rear Derailleur
Shimano Acera M3000, Shadow design, long cage
Shift Levers
Shimano Altus M2000, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
FSA 310, 36 T w/chain guard
Chain
KMC E9S, 9-speed
Pedals
VP-536 nylon platform
Wheels
Front Hub
Formula DC-511, 6-bolt, Boost110, 15 mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Schwalbe Smart Sam Performance, 29x2.25"
Brakes
Brakes
Tektro HD-M275 hydraulic disc
Cockpit
Stem
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise
Grips
Bontrager XR Endurance Comp
Seat
Saddle
Bontrager Commuter Comp, 165 mm width
Seatpost
Bontrager alloy, 31.6 mm, 12 mm offset
Motor & Battery
Motor
Bosch Performance CX, 250 Watt, 75 Nm, 25 km/h max assist
Battery
Bosch PowerTube, vertical, 500 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.58 mm | 1.52 mm | 1.48 mm |
| Bottom Bracket Height | 307 mm | 324 mm | 324 mm | 324 mm |
| Front Center | 674 mm | 704 mm | 729 mm | 761 mm |
| Rake | 43 mm | 51 mm | 51 mm | 51 mm |
| Trail | 101 mm | 98 mm | 98 mm | 98 mm |
| Stack | 617 mm | 633 mm | 642 mm | 661 mm |
| Reach | 384 mm | 400 mm | 421 mm | 446 mm |
| Top Tube Length | 592 mm | 611 mm | 635 mm | 666 mm |
| Seat Tube Angle | 71.5 ° | 71.7 ° | 71.7 ° | 71.7 ° |
| Seat Tube Length | 394 mm | 419 mm | 470 mm | 521 mm |
| Head Tube Angle | 67.6 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1119 mm | 1149 mm | 1174 mm | 1206 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 50 mm | 50 mm |
| Standover Height | 715 mm | 788 mm | 810 mm | 812 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Powerfly Sport 4 Equipped belongs to the Trek E Powerfly model. 92 e-bikes variations carry this model name so far. You can easily view all of the Trek E Powerfly e-bikes models from 2020, here.
Model range prices
Trek Powerfly 4 Women’s 2020 is the most affordable e-bike of this model and has a price of 3184$. On the other hand, Trek Powerfly LT 9.7 2020, is the most expensive and costs 5999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 3503$. In conclusion, this e-bike price is 4.1% higher than the price of the average Trail e-bike.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Trek Powerfly Sport 4 Equipped it’s weighing 22.67 kg (49.98 lbs). At this weight, is slightly lighter than average. In conclusion, the average Trail e-bike weighs 4.54% more than Powerfly Sport 4 Equipped.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Powerfly Sport 4 Equipped comes factory-installed with the SunTour XCM fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Powerfly Sport 4 Equipped model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Powerfly Sport 4 Equipped is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
