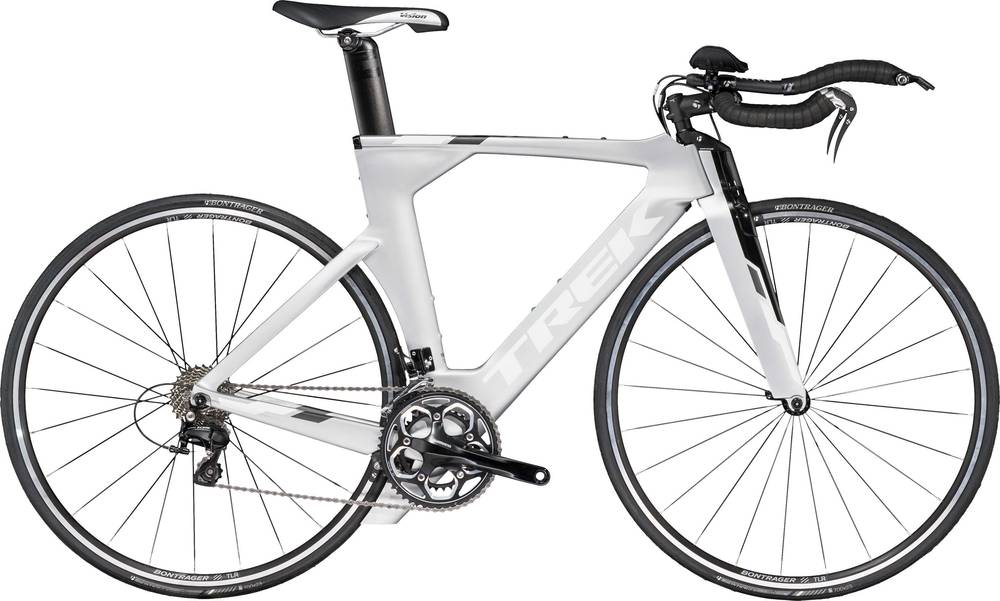

Trek Speed Concept 7.0 2017
2017 Road
Estimate price |
2,999$
Weight | 9.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90 w/Speed Fin, DuoTrap compatible, SC Draft Box 2 & SC Speed Box compatible
Suspension Fork
SC full foil carbon, integrated brake & stem
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano Dura-Ace, bar end control, 11 speed
Cassette
Shimano 105, 11-28, 11 speed
Crank
Shimano RS500, 50/34 (compact)
Bottom Bracket
BB90
Wheels
Front Hub
Alloy
Rear Hub
Alloy
Rims
Bontrager Tubeless Ready
Tires
Bontrager R1 Hard-Case Lite, 700x23c
Brakes
Brakes
Bontrager Speed Limit integrated brakes, Bontrager Race Lite aero levers
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Race Bullhorn w/Race Lite clip-on
Grips
Bontrager gel cork tape
Headset
Integrated, sealed bearings
Seat
Saddle
Vision AeroMax Tri
Seatpost
Bontrager Speed Concept Race Lite, Alloy, +/-20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 575 mm | 598 mm | 623 mm | 650 |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 60 mm | 60 mm | 60 mm |
| Stack | 493 mm | 518 mm | 542 mm | 566 mm |
| Reach | 391 mm | 409 mm | 427 mm | 446 mm |
| Top Tube Length | 496 mm | 519 mm | 542 mm | 566 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 503 mm | 529 mm | 553 mm | 578 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 65 mm | 90 mm | 115 mm | 140 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm |
| Wheelbase | 962 mm | 986 mm | 1011 mm | 1038 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 751 mm | 776 mm | 800 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Speed Concept 7.0 is part of the Trek Speed model. Trek launched 112 bikes of this model so far. You can easily view all of the Trek Speed bikes models from 2017, here.
Model range prices
The most economical model, the Trek Speed Concept 7.0 2017 has a starting price of 2999$. Trek Speed Concept 9.9 2017 on the other hand is the most expensive at 10999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Triathlon bikes
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Trek Speed Concept 7.0 price was 2999$. In conclusion, this bike price is 39.28% lower than the price of the average Triathlon bike.
Average weight for Triathlon bikes
Triathlon bikes weigh an average of 8.9 kg (19.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Trek Speed Concept 7.0 it’s weighing 9.3 kg (20.5 lbs). At this weight, is slightly heavier than average. To sum up, it’s 4.49% heavier than the average weight of Triathlon bikes.
Speed Concept 7.0 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Speed Concept 7.0 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Speed Concept 7.0 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
