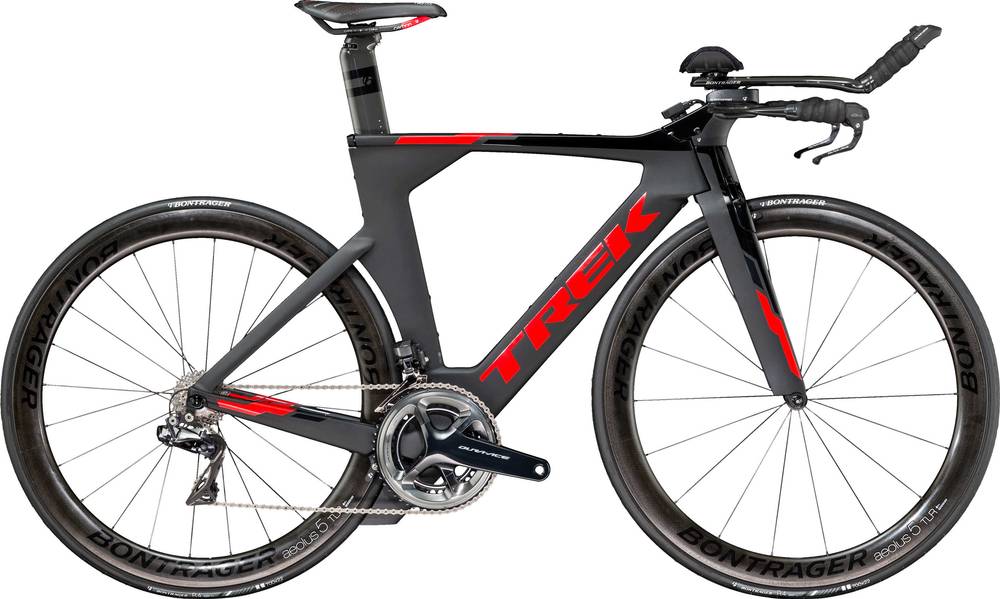

Trek Speed Concept 9.9 2017
2017 Road
Estimate price |
10,999$
Weight | 8.13 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90 w/Speed Fin, DuoTrap compatible, SC Speed Box compatible, includes SC Draft Box 2
Suspension Fork
SC full foil carbon, carbon dropout, integrated brake & stem
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2
Front Derailleur
Shimano Dura-Ace Di2, braze-on
Shift Levers
Shimano Dura-Ace Di2, bar end control, 11 speed
Cassette
Shimano Dura-Ace, 11-25, 11 speed
Crank
Shimano Dura-Ace, 53/39 (double)
Bottom Bracket
BB90
Wheels
Rims
Bontrager Aeolus 5 D3 Tubeless Ready
Tires
Bontrager R4 Aero, 220tpi, aramid bead, 700x22c
Brakes
Brakes
Bontrager Speed Limit integrated brakes, Shimano Dura-Ace Di2, bar end control levers
Cockpit
Stem
Bontrager Speed Concept, direct mount
Handlebar
Bontrager Speed Concept full foil aero bar, carbon, direct mount
Grips
Bontrager gel cork tape
Headset
Integrated, sealed bearings
Seat
Saddle
Bontrager Hilo XXX, carbon rails
Seatpost
Bontrager Speed Concept Race X Lite, OCLV Carbon, +/-15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 575 mm | 598 mm | 623 mm | 650 |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 60 mm | 60 mm | 60 mm |
| Stack | 493 mm | 518 mm | 542 mm | 566 mm |
| Reach | 391 mm | 409 mm | 427 mm | 446 mm |
| Top Tube Length | 496 mm | 519 mm | 542 mm | 566 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 503 mm | 529 mm | 553 mm | 578 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 65 mm | 90 mm | 115 mm | 140 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm |
| Wheelbase | 962 mm | 986 mm | 1011 mm | 1038 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 751 mm | 776 mm | 800 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Speed Concept 9.9 completes the Trek Speed model. Trek launched 112 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Trek Speed Concept 7.0 2017 is the most affordable bike of this model and has a price of 2999$. On the other hand, Trek Speed Concept 9.9 2017, is the most expensive and costs 10999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Triathlon bikes average price
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2017 and its price was 10999$. In conclusion, this bike price is 163.32% more expensive than the price of the average Triathlon bike.
Average weight for Triathlon bikes
The average weight for Triathlon bikes is 8.9 kg (19.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Speed Concept 9.9 weighs 8.13 kg (17.92 lbs) and is a bit lighter than the average. In other words, this model is 9.47% lighter than the average Triathlon bike.
Overview of components
Fork material
Speed Concept 9.9 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Speed Concept 9.9 bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
