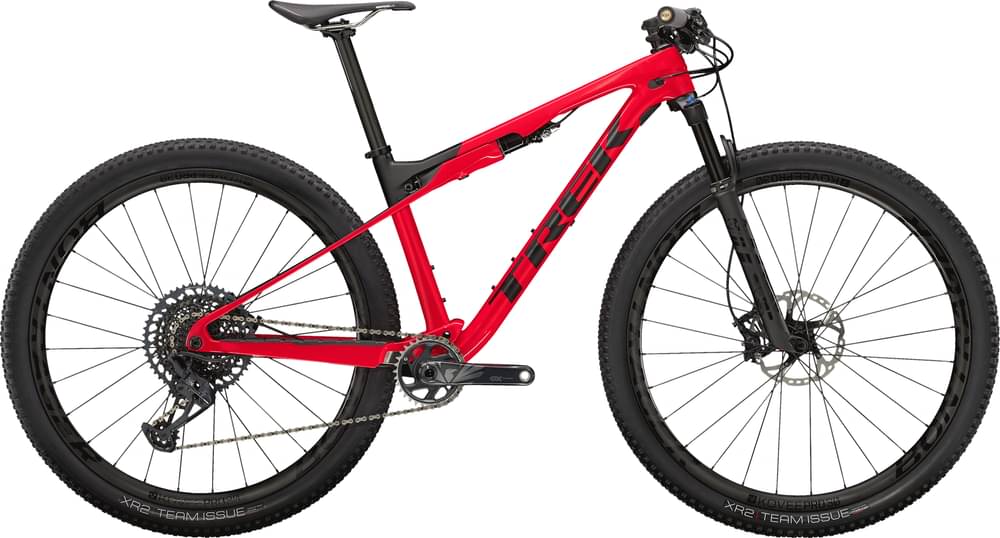

Trek Supercaliber 9.8 GX 2021
2021 Mountain
Estimate price |
6,999$
Weight | 10.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 60mm -
Fork Fox Performance Float 32
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 172cm
MD/LG
165cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Suspension Fork
Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 100mm travel
Rear Shock
Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle, 12 speed
Cassette
SRAM Eagle XG-1275, 10-52, 12 speed
Crank
SRAM GX Eagle Carbon, DUB, 32T alloy ring, Boost (52mm chainline), 170mm length
Bottom Bracket
SRAM DUB, 92mm, PressFit
Chain
SRAM GX Eagle, 12 speed
Wheels
Rims
Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tires
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Brakes
Brakes
Shimano Deore XT M8100 hydraulic disc
Disk Rotors
Size: S, M, M/L, L, XL, Shimano RT76, 6-bolt, 160mm; Size: S, M, M/L, L, XL, Shimano RT76, 6-bolt, 180mm
Cockpit
Stem
Size: S, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length; Size: M, M/L, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length; Size: L, XL, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 80mm length
Handlebar
Bontrager Kovee Pro, OCLV Carbon, 35mm, 5mm rise, 720mm width
Grips
ESI Chunky
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Montrose Elite, titanium rails, 138mm width
Seatpost
Size: S, Bontrager Pro, OCLV Carbon, 31.6mm, 0mm offset, 330mm length; Size: M, M/L, L, XL, Bontrager Pro, OCLV Carbon, 31.6mm, 0mm offset, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.4 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 654 mm | 681 mm | 696 mm | 711 mm | 747 mm |
| Rake | 46 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 588 mm | 588 mm | 588 mm | 602 mm |
| Reach | 389 mm | 419 mm | 434 mm | 449 mm | 479 mm |
| Top Tube Length | 559 mm | 589 mm | 604 mm | 619 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1073 mm | 1100 mm | 1115 mm | 1130 mm | 1166 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 744 mm | 754 mm | 754 mm | 781 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 165 cm | 177 cm | 186 cm |
| Rider Max Height | 166 cm | 172 cm | 179 cm | 188 cm | 197 cm |
Model Overview
Supercaliber 9.8 GX completes the Trek Supercaliber model. Trek released 68 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Trek Supercaliber 9.7 2021 is the most affordable bike of this model and has a price of 4799$. On the other hand, Trek Supercaliber 9.9 XX1 AXS 2021, is the most expensive and costs 10999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Supercaliber 9.8 GX price was 6999$. Comparing the average cost of a Crosscountry bike to this one, you will see that Supercaliber 9.8 GX price is 267.4% higher.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Trek Supercaliber 9.8 GX it’s weighing 10.38 kg (22.88 lbs). At this weight, is much lighter than average. In short, the average Crosscountry bike weight is 19.46% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the Trek IsoStrut model, with a travel of 60mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Trek Supercaliber 9.8 GX 2021, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Supercaliber 9.8 GX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Supercaliber 9.8 GX comes in 5 sizes, that range from 153 cm – 197 cm (5.02 ft – 6.46 ft). In conclusion, it won’t take much to find one that’s right for you.
