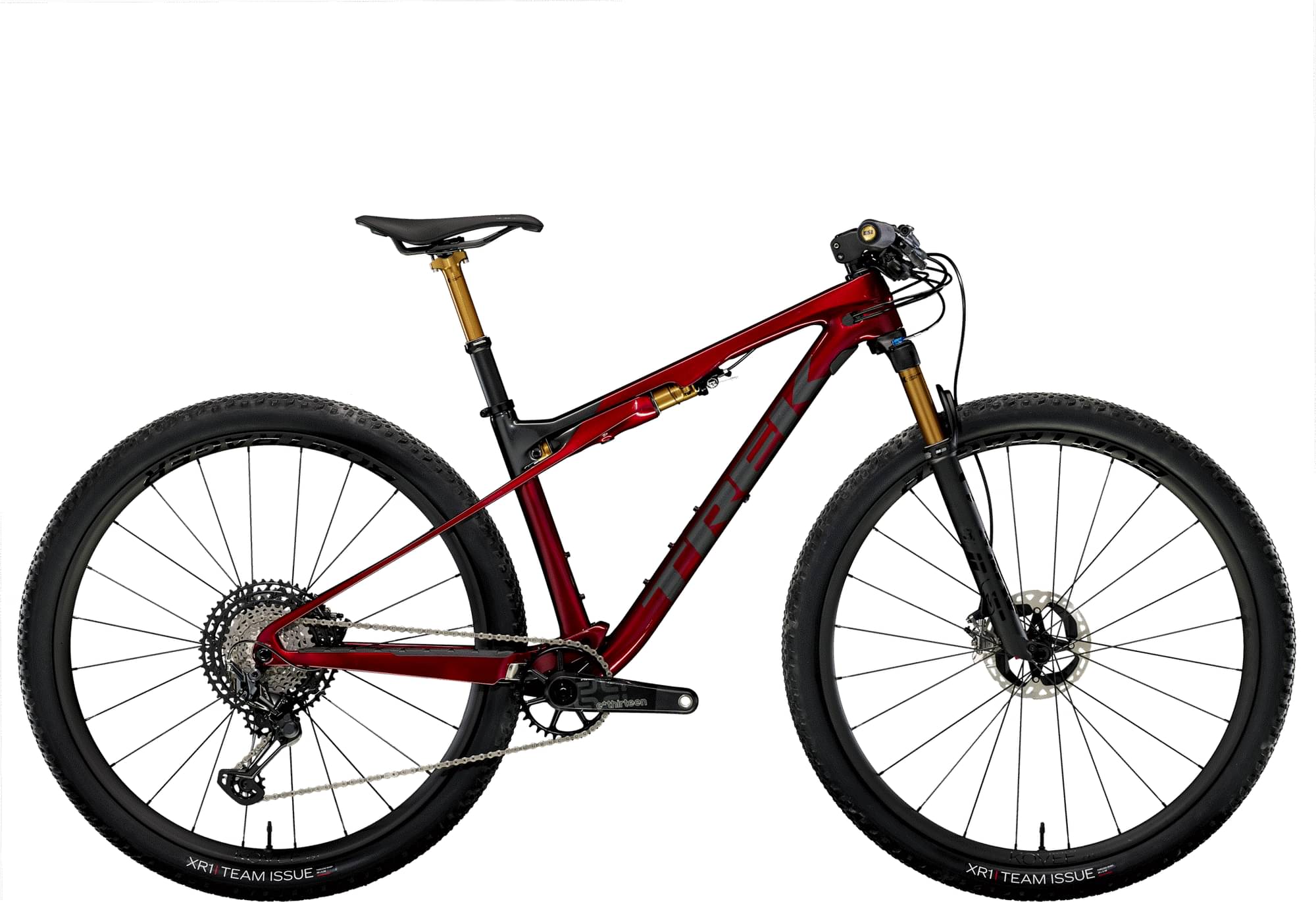

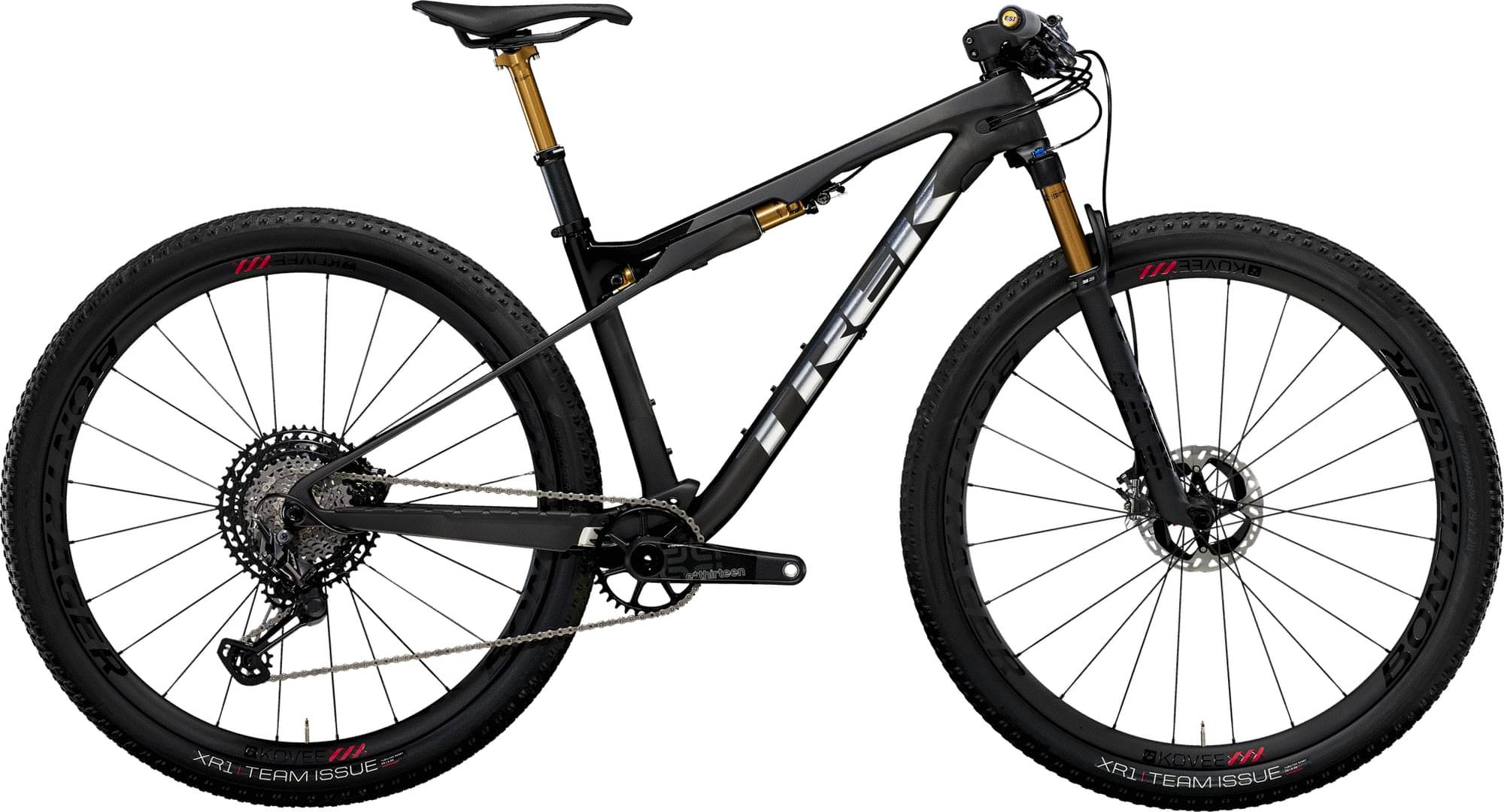

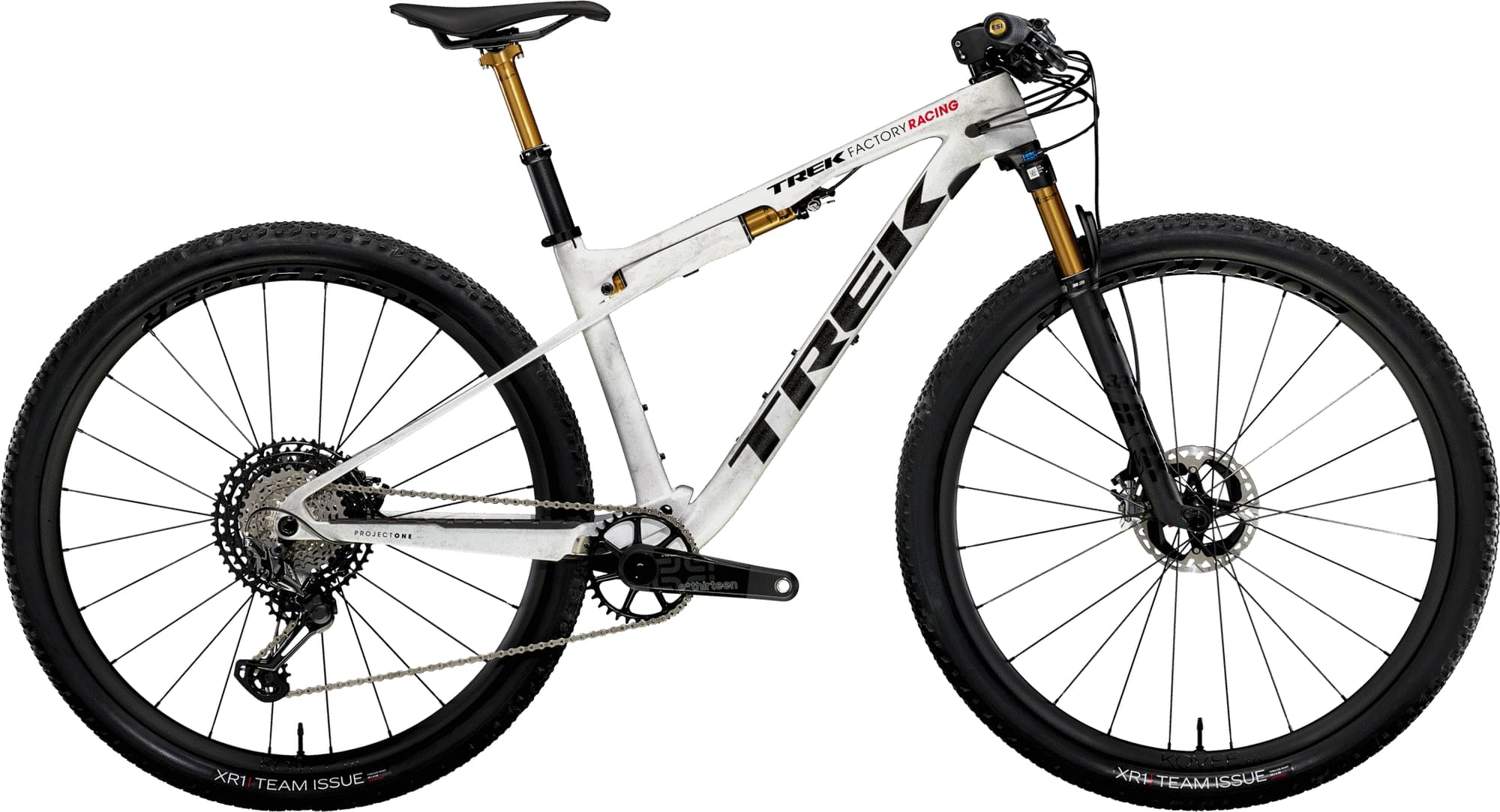

Trek Supercaliber 9.9 XTR Gen 1 2023
2023 Mountain
Estimate price |
8,549$
Weight | 9.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 60mm -
Fork Fox Factory Float 32
-
Groupset XTR, e*thirteen XCX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Suspension Fork
Fox Factory 32 Step-Cast, Float EVOL air spring, FIT4 2-position remote damper, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 100mm travel
Rear Shock
Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm
Drivetrain
Rear Derailleur
Shimano XTR M9100, Shadow Plus, long cage, 51T max cog
Shift Levers
Shimano XTR M9100, 12 speed
Cassette
Shimano XTR M9101, 10-51, 12 speed
Crank
Size: S, E*thirteen XCX Race, carbon, 34T ring, Boost, 170mm length; Size: M, M/L, L, XL, E*thirteen XCX Race, carbon, 34T ring, Boost, 175mm length
Bottom Bracket
E*thirteen BB20-92
Chain
Shimano Dura-Ace/XTR M9100, 12 speed
Wheels
Rims
Front: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CenterLock, Boost110, 15mm thru axle, Rear: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, Centerlock, Boost148, 12mm thru axle
Tires
Bontrager XR1 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Brakes
Brakes
Shimano XTR M9100 hydraulic disc
Cockpit
Grips
ESI Chunky
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Verse Pro, carbon rails, 145mm width
Seatpost
Size: S, M, M/L, Fox Transfer SL, 100mm travel, internal routing, 31.6mm; Size: L, XL, Fox Transfer SL, 125mm travel, internal routing, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.4 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 654 mm | 681 mm | 696 mm | 711 mm | 747 mm |
| Rake | 46 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 588 mm | 588 mm | 588 mm | 602 mm |
| Reach | 389 mm | 419 mm | 434 mm | 449 mm | 479 mm |
| Top Tube Length | 559 mm | 589 mm | 604 mm | 619 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1073 mm | 1100 mm | 1115 mm | 1130 mm | 1166 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 744 mm | 754 mm | 754 mm | 781 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview
Supercaliber 9.9 XTR Gen 1 is part of the Trek Supercaliber model. 68 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Trek Supercaliber 9.6 Gen 1 2023 is the most affordable bike of this model and has a price of 3299$. On the other hand, Trek Supercaliber 9.9 XX1 AXS 2023, is the most expensive and costs 11699$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Trek Supercaliber 9.9 XTR Gen 1 price was 8549$. If we compare this with the average Crosscountry bike cost we notice that the price is 348.77% higher.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.31 kg (27.14 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, Supercaliber 9.9 XTR Gen 1 has a weight of 9.75 kg (21.5 lbs). To sum up, it’s 26.26% lighter than the average weight of Crosscountry bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Trek Supercaliber 9.9 XTR Gen 1 2023 bike is equipped with the Fox Factory Float 32 fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Trek IsoStrut rear shock model, which has a travel of 60mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Supercaliber 9.9 XTR Gen 1 2023 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Supercaliber 9.9 XTR Gen 1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Supercaliber 9.9 XTR Gen 1 comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Supercaliber 9.9 XTR Gen 1. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
