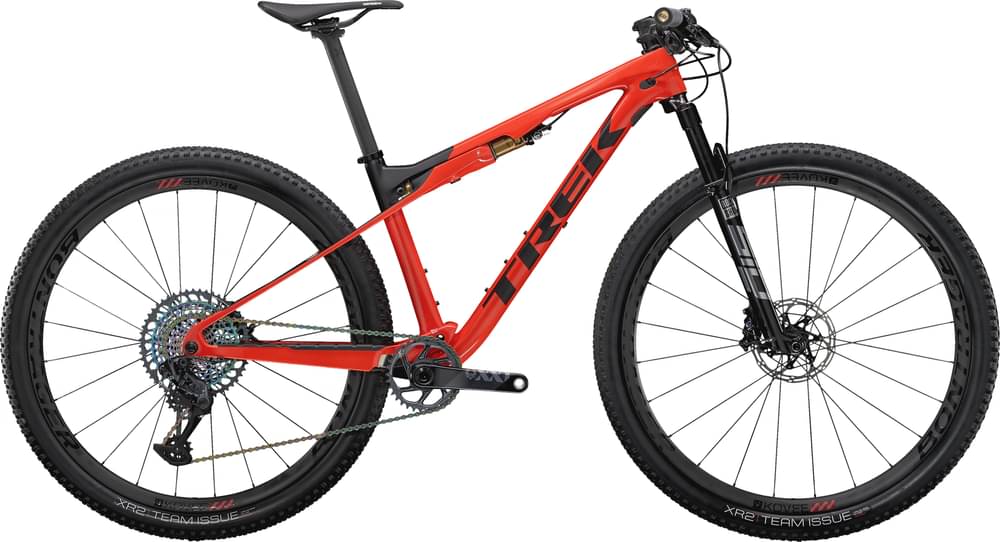

Trek Supercaliber 9.9 XX1 2021
2021 Mountain
Estimate price |
9,999$
Weight | 9.29 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 60mm -
Fork RockShox SID SL Ultimate
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 172cm
MD/LG
165cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Suspension Fork
RockShox SID SL Ultimate, DebonAir spring, Charger Race Day, damper, 44mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
Rear Shock
Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235x32.5mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Shift Levers
SRAM XX1 Eagle, 12 speed
Cassette
SRAM Eagle XG-1299, 10-52, 12 speed
Crank
Size: S, SRAM XX1 Eagle AXS Carbon, DUB, 34T alloy ring, Boost (52mm chainline), 170mm length; Size: M, M/L, L, XL, SRAM XX1 Eagle AXS Carbon, DUB, 34T alloy ring, Boost (52mm chainline), 175mm length
Bottom Bracket
SRAM DUB, 92mm, PressFit
Chain
SRAM XX1 Eagle, 12 speed
Wheels
Rims
Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle
Tires
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Brakes
Brakes
Size: S, M, M/L, L, XL, SRAM Level Ultimate hydraulic disc, carbon levers; Size: S, M, M/L, L, XL, SRAM Level Ultimate 4-piston hydraulic disc, carbon levers
Cockpit
Stem
Size: S, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length; Size: M, M/L, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length; Size: L, XL, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 80mm length
Handlebar
Bontrager Kovee XXX, OCLV Carbon, 35mm, 0mm rise, 720mm width
Grips
ESI Chunky
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Montrose Pro, 7x10mm carbon rails, 138mm width
Seatpost
Size: S, Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 330mm length; Size: M, M/L, L, XL, Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.4 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 654 mm | 681 mm | 696 mm | 711 mm | 747 mm |
| Rake | 46 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 588 mm | 588 mm | 588 mm | 602 mm |
| Reach | 389 mm | 419 mm | 434 mm | 449 mm | 479 mm |
| Top Tube Length | 559 mm | 589 mm | 604 mm | 619 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1073 mm | 1100 mm | 1115 mm | 1130 mm | 1166 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 744 mm | 754 mm | 754 mm | 781 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 165 cm | 177 cm | 186 cm |
| Rider Max Height | 166 cm | 172 cm | 179 cm | 188 cm | 197 cm |
About this model
Supercaliber 9.9 XX1 belongs to the Trek Supercaliber model. There are 68 bikes that carry this model name. Take a sneak peek at all Trek Supercaliber bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Trek Supercaliber 9.7 2021 has a starting price of 4799$. Trek Supercaliber 9.9 XX1 AXS 2021 on the other hand is the most expensive at 10999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9999$. Doing a quick comparison, we notice that Supercaliber 9.9 XX1 price is 424.88% higher than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek Supercaliber 9.9 XX1 it’s weighing 9.29 kg (20.48 lbs). At this weight, is much lighter than average. To sum up, it’s 33.48% lighter than the average weight of Crosscountry bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Supercaliber 9.9 XX1 components
Fork
Trek Supercaliber 9.9 XX1 2021 bike is equipped with the RockShox SID SL Ultimate fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the Trek IsoStrut model, with a travel of 60mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Trek Supercaliber 9.9 XX1 2021, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Supercaliber 9.9 XX1 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 153 cm – 197 cm (5.02 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
