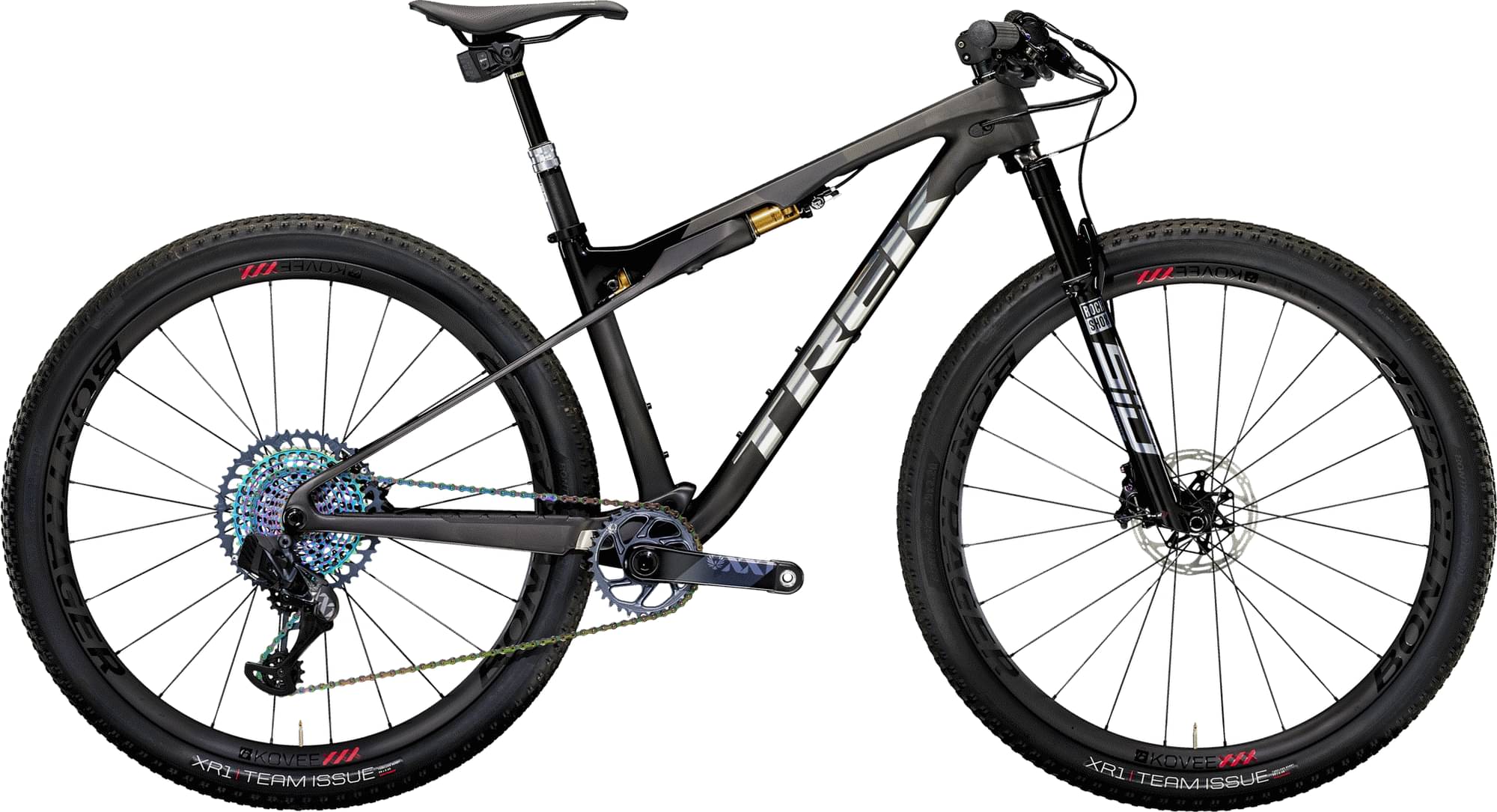

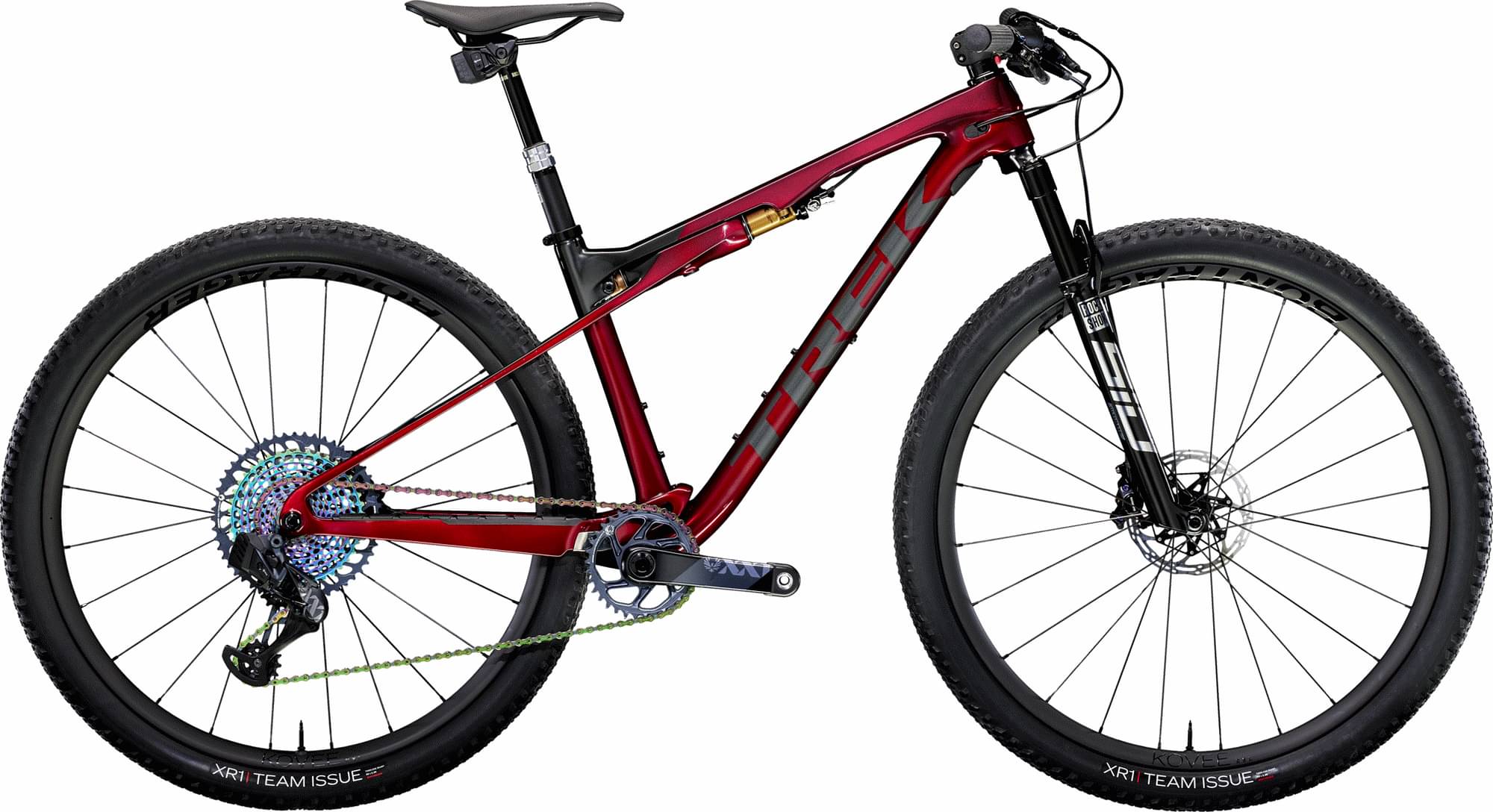

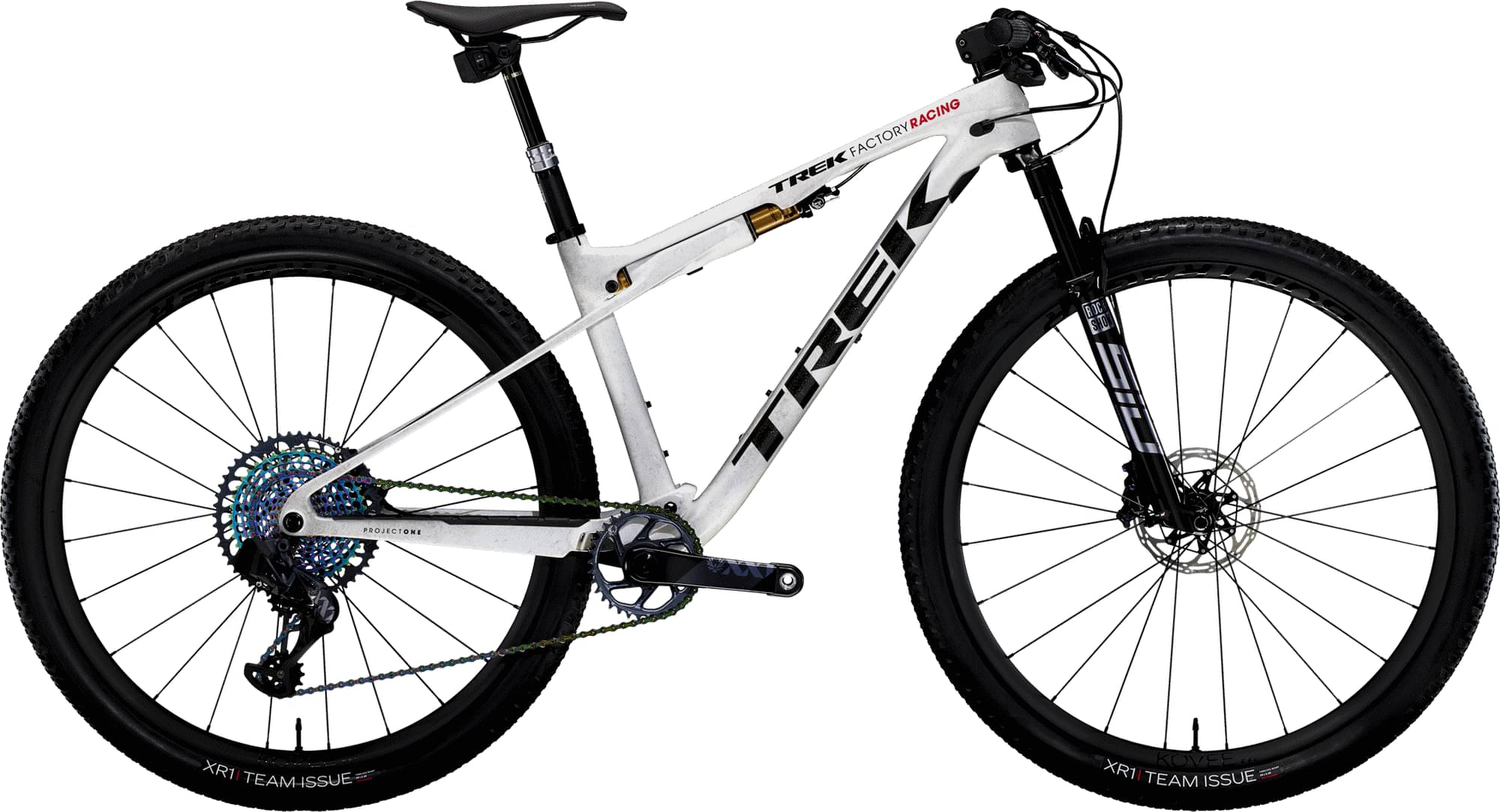

Trek Supercaliber 9.9 XX1 AXS Gen 1 2023
2023 Mountain
Estimate price |
10,699$
Weight | 9.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 60mm -
Fork RockShox SID SL Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Suspension Fork
RockShox SID SL Ultimate, DebonAir spring, Charger Race Day, damper, 44mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
Rear Shock
Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
Size: S, M, M/L, L, XL, SRAM Eagle AXS, wireless, 12 speed; Size: S, M, M/L, L, XL, SRAM AXS POD Ultimate
Cassette
SRAM Eagle XG-1299, 10-52, 12 speed
Crank
Size: S, M, SRAM XX1 Eagle AXS Carbon, DUB, 34T alloy ring, Boost, 52mm chainline, 170mm length; Size: M/L, L, XL, SRAM XX1 Eagle AXS Carbon, DUB, 34T alloy ring, Boost, 52mm chainline, 175mm length
Bottom Bracket
SRAM DUB, 92mm, PressFit
Chain
SRAM XX1 Eagle, 12 speed
Wheels
Rims
Front: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CenterLock, Boost110, 15mm thru axle, Rear: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, Centerlock, Boost148, 12mm thru axle
Tires
Bontrager XR1 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Brakes
Brakes
Size: S, M, M/L, L, XL, SRAM Level Ultimate hydraulic disc, carbon levers; Size: S, M, M/L, L, XL, SRAM Level Ultimate 4-piston hydraulic disc, carbon levers
Cockpit
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Verse Pro, carbon rails, 145mm width
Seatpost
Size: S, M, RockShox Reverb AXS, 100mm travel, wireless, 31.6mm, 340mm length; Size: M/L, L, XL, RockShox Reverb AXS, 150mm travel, wireless, 31.6mm, 440mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.4 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 654 mm | 681 mm | 696 mm | 711 mm | 747 mm |
| Rake | 46 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 588 mm | 588 mm | 588 mm | 602 mm |
| Reach | 389 mm | 419 mm | 434 mm | 449 mm | 479 mm |
| Top Tube Length | 559 mm | 589 mm | 604 mm | 619 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1073 mm | 1100 mm | 1115 mm | 1130 mm | 1166 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 744 mm | 754 mm | 754 mm | 781 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview
Supercaliber 9.9 XX1 AXS Gen 1 is a Trek Supercaliber model. There are 68 bikes that carry this model name. You can easily view all of the Trek Supercaliber bikes models from 2023, here.
Model range prices
Trek Supercaliber 9.6 Gen 1 2023 is the most affordable bike of this model and has a price of 3299$. On the other hand, Trek Supercaliber 9.9 XX1 AXS 2023, is the most expensive and costs 11699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 10699$. Comparing this to the average Crosscountry bike price, we see that the price is 461.63% more expensive.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.31 kg (27.14 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 9.9 kg (21.83 lbs), Trek bike is much lighter than average. In short, the average Crosscountry bike weight is 24.34% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RockShox SID SL Ultimate is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Trek IsoStrut, with a travel distance of 60mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Supercaliber 9.9 XX1 AXS Gen 1 2023 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Trek Supercaliber 9.9 XX1 AXS Gen 1 includes a dropper post. Therefore, climbing or descending will be a breeze.
