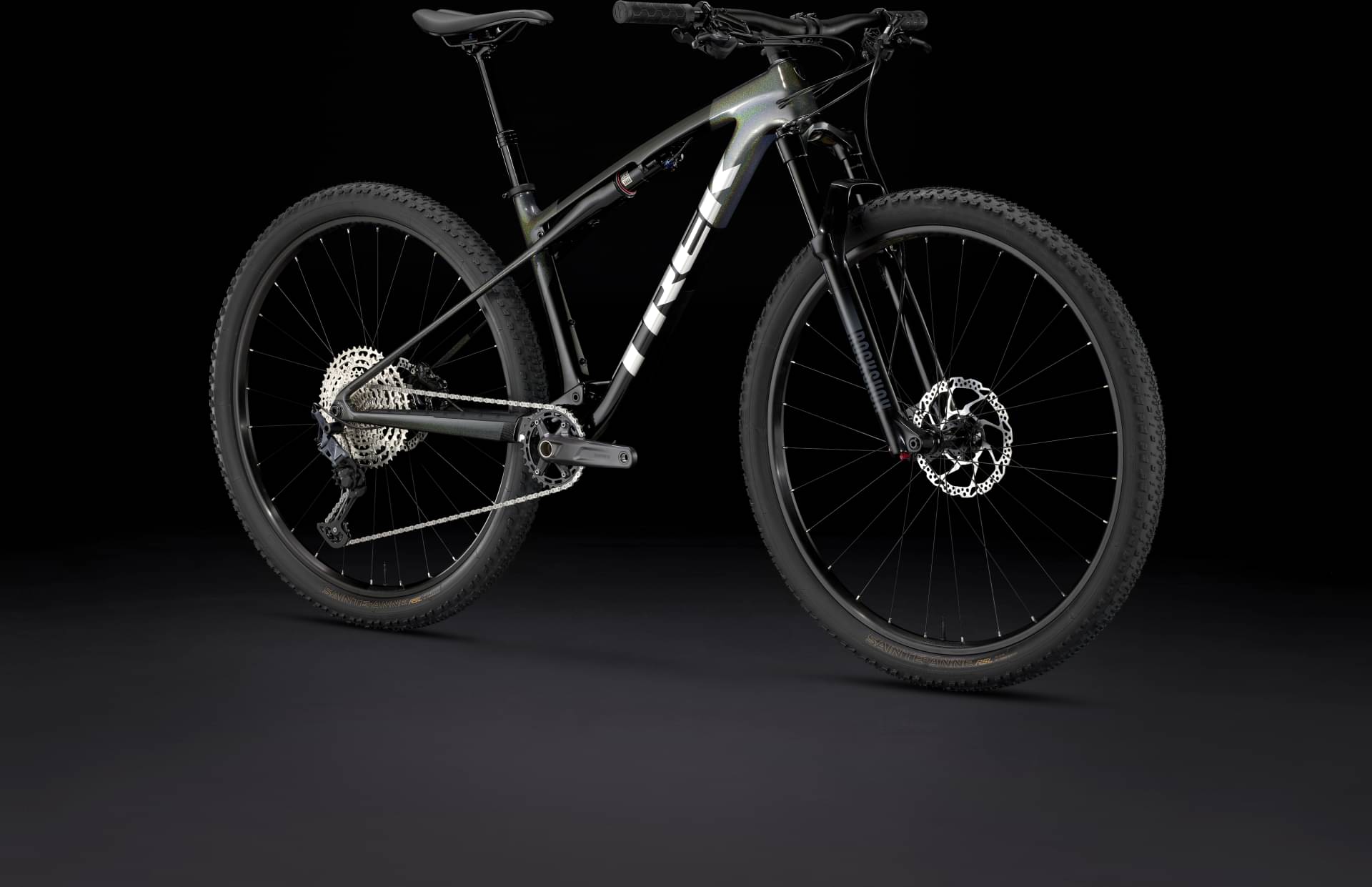

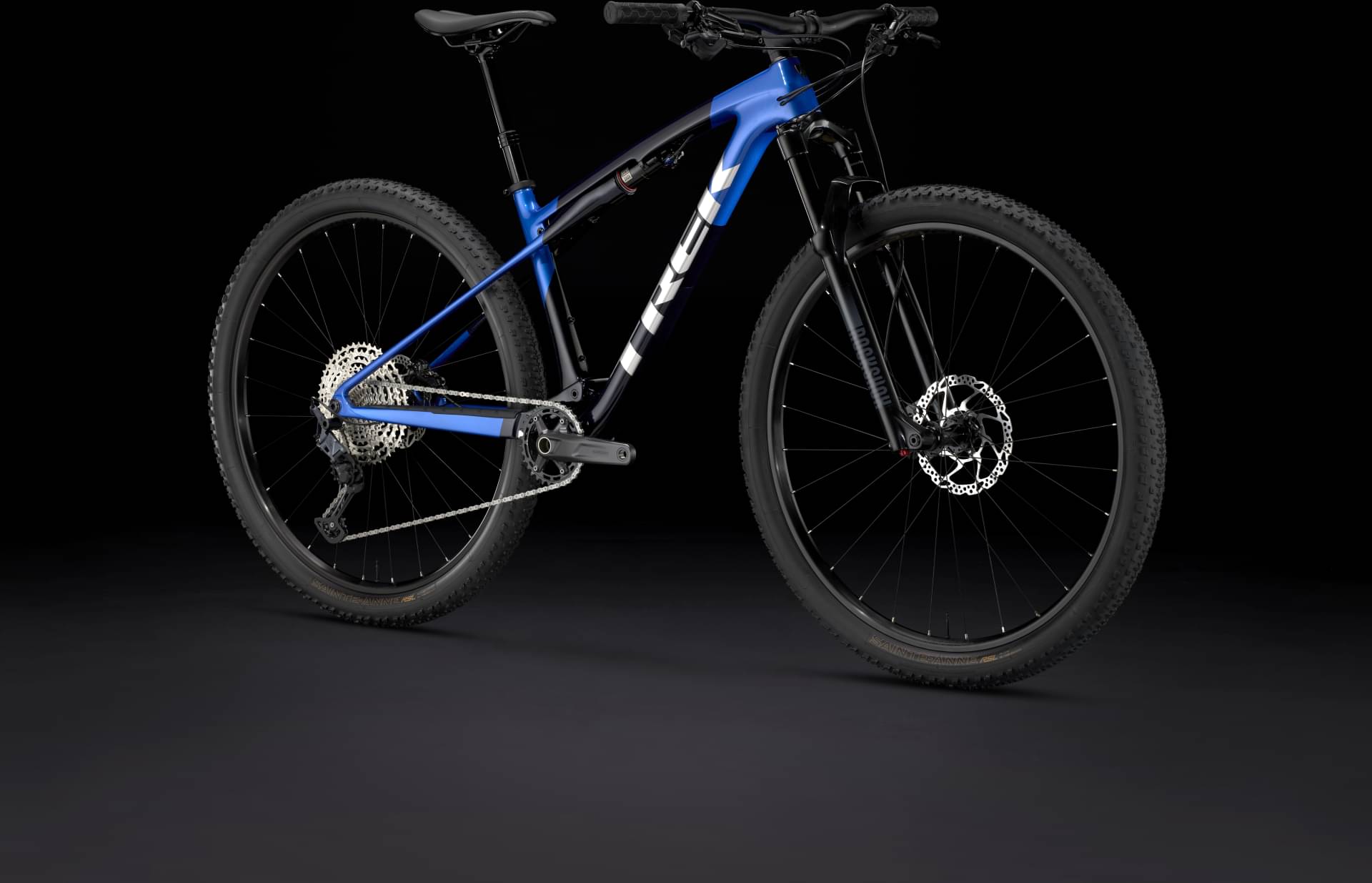

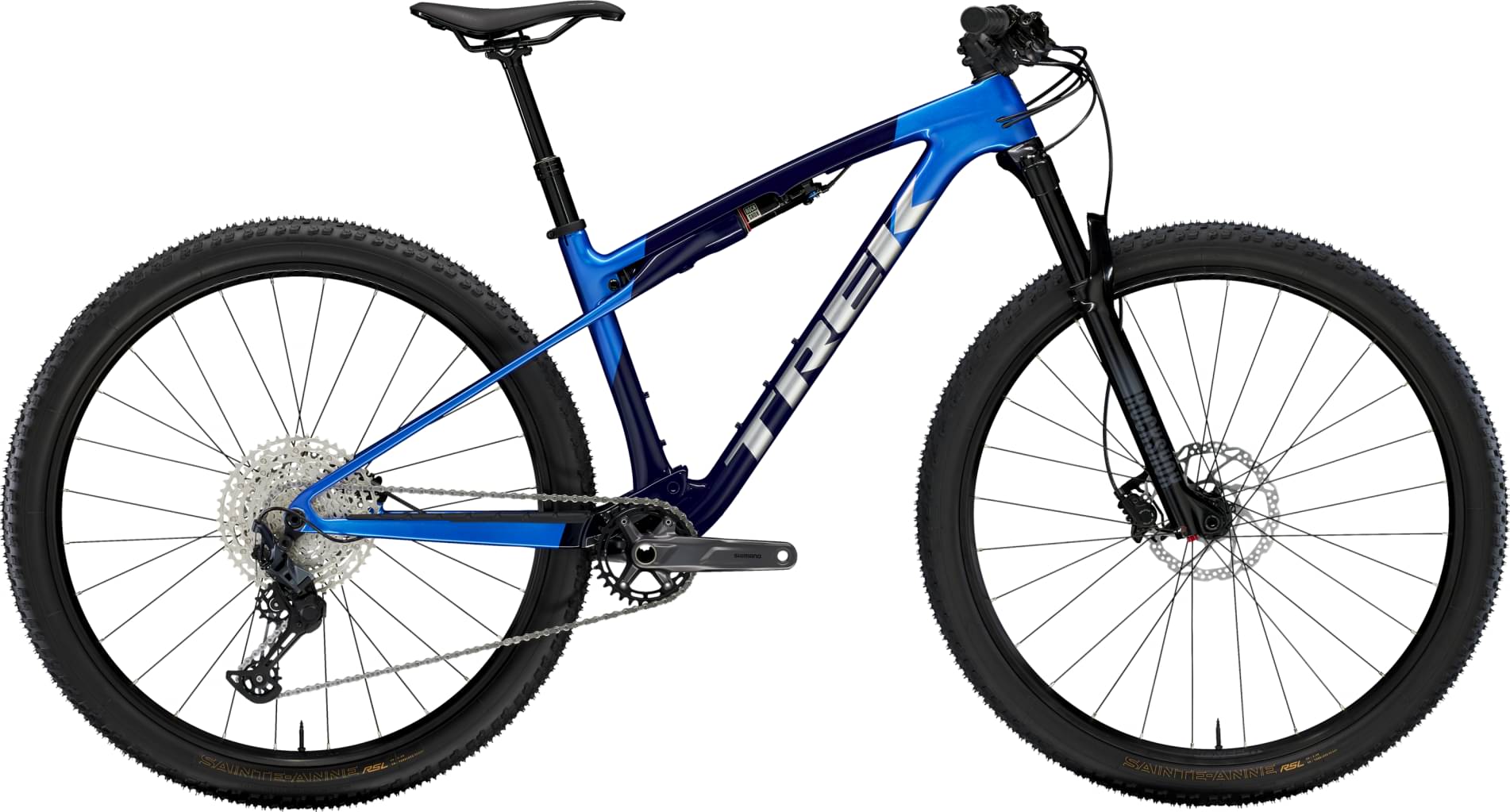

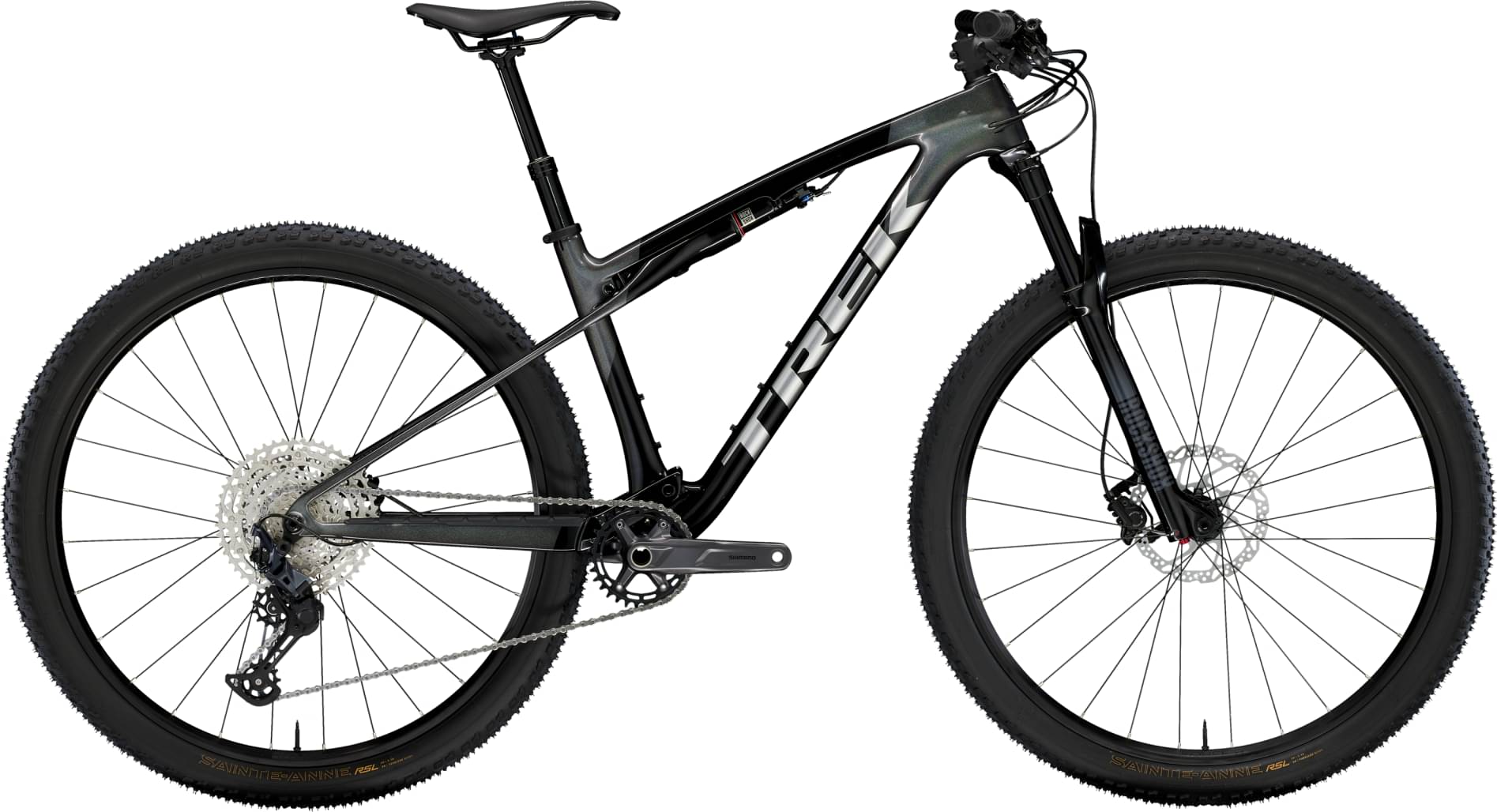

Trek Supercaliber SL 9.6 Gen 2 2024
2024 Mountain
Estimate price |
4,587$
Weight | 13.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 80mm -
Fork RockShox Recon Gold RL
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
MD/LG
173cm - 180cm
LG
177cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

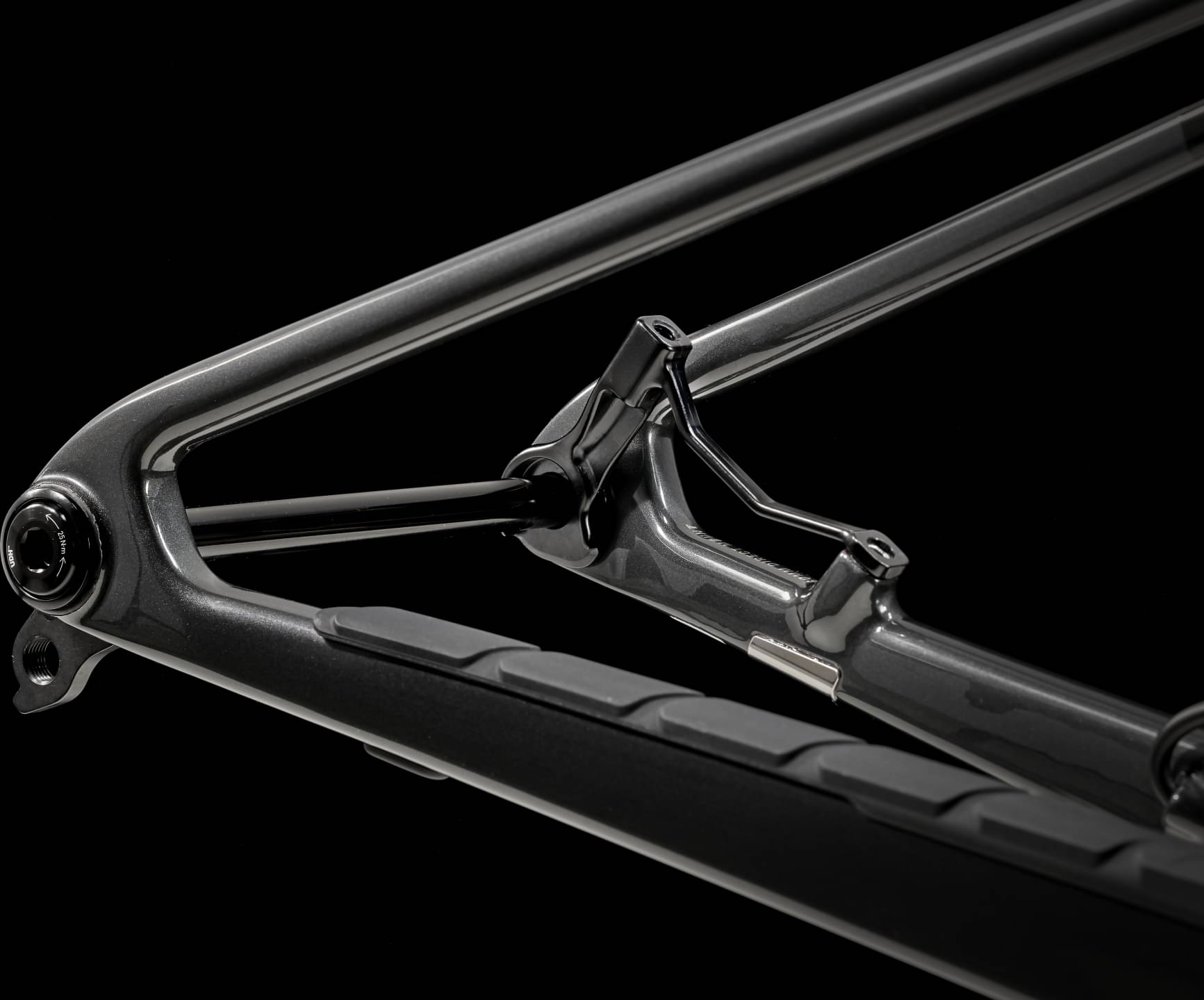

Frame
SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel
Suspension Fork
RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 110mm travel

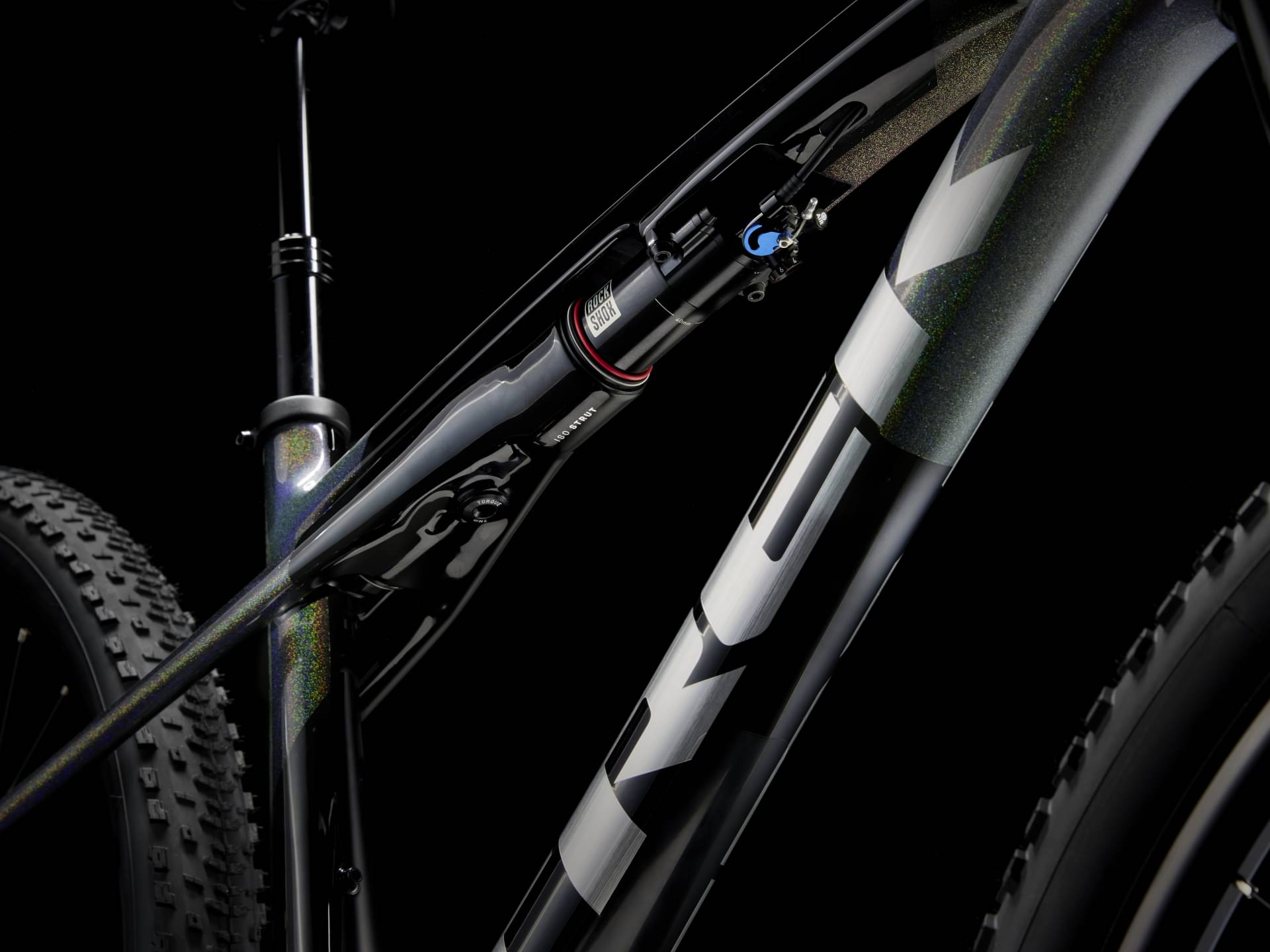

Rear Shock

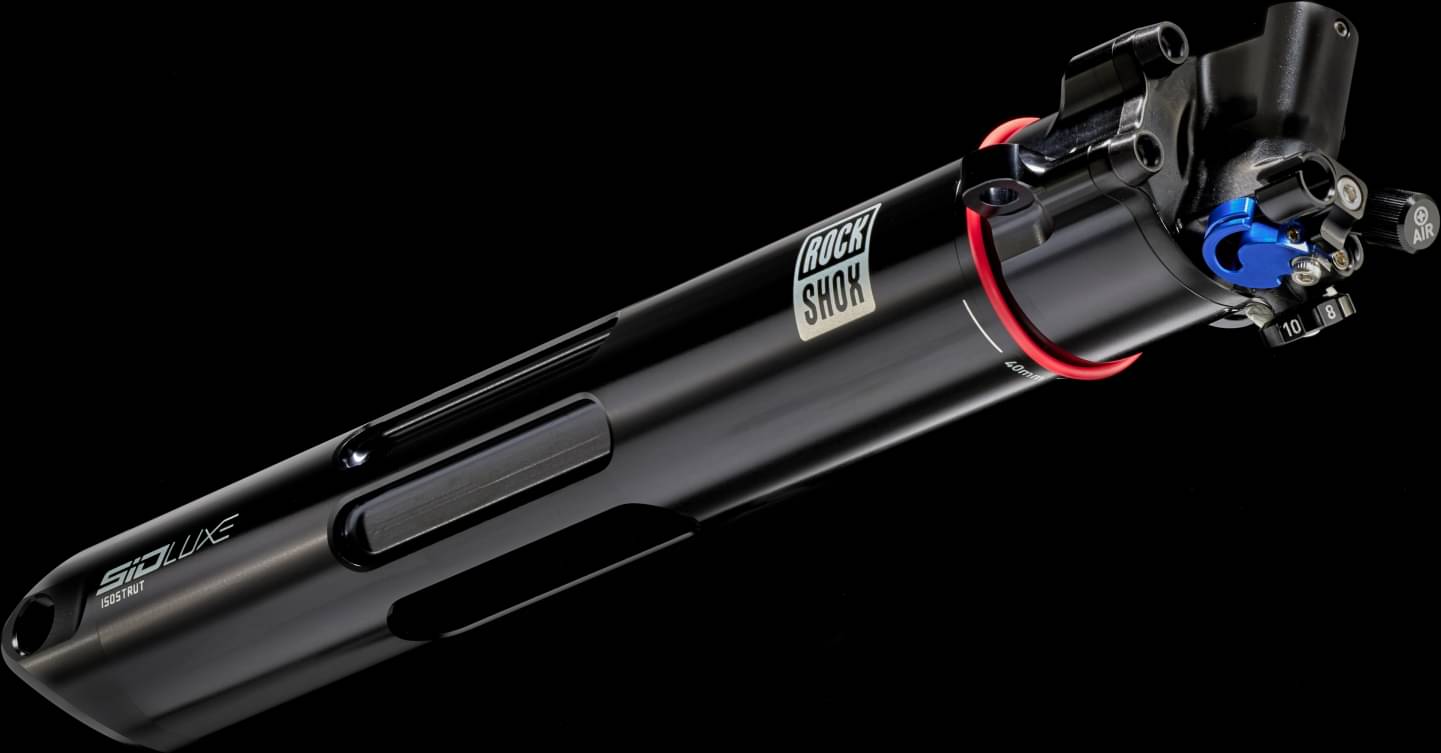

Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Drivetrain
Rear Derailleur

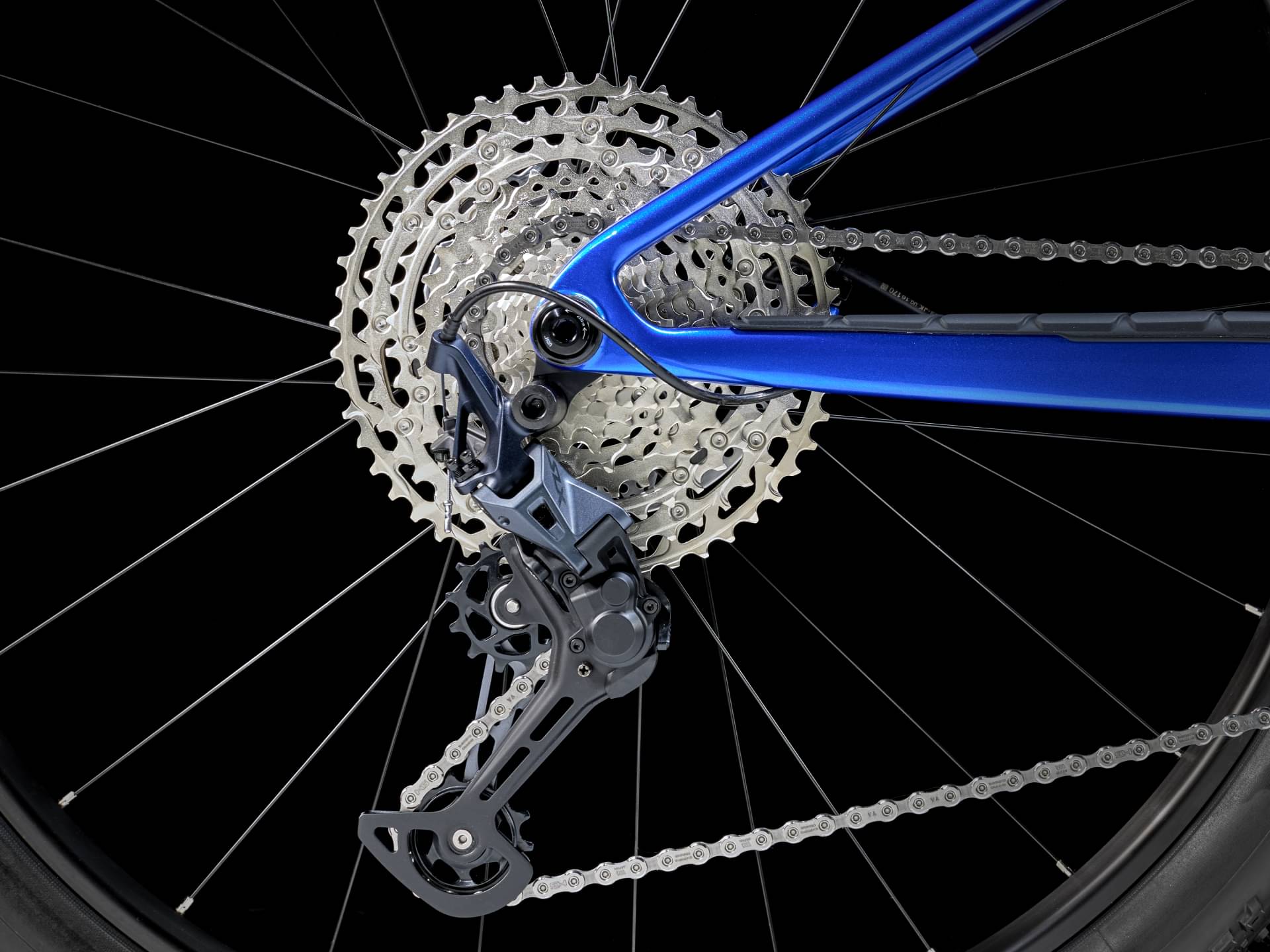

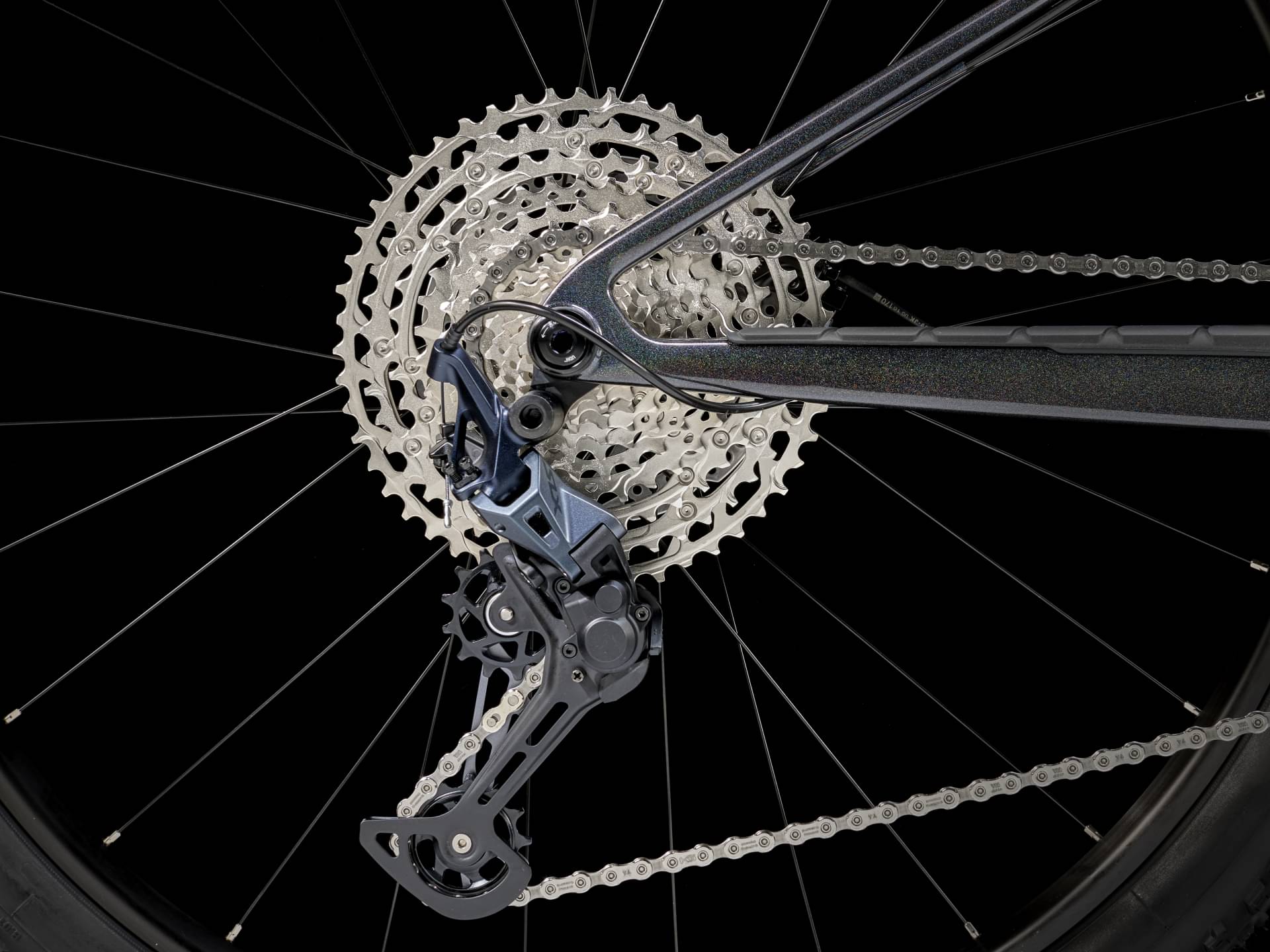

Shimano SLX M7100, long cage
Shift Levers
Shimano Deore M6100, 12 speed
Cassette
Shimano Deore M6100, 10-51, 12 speed

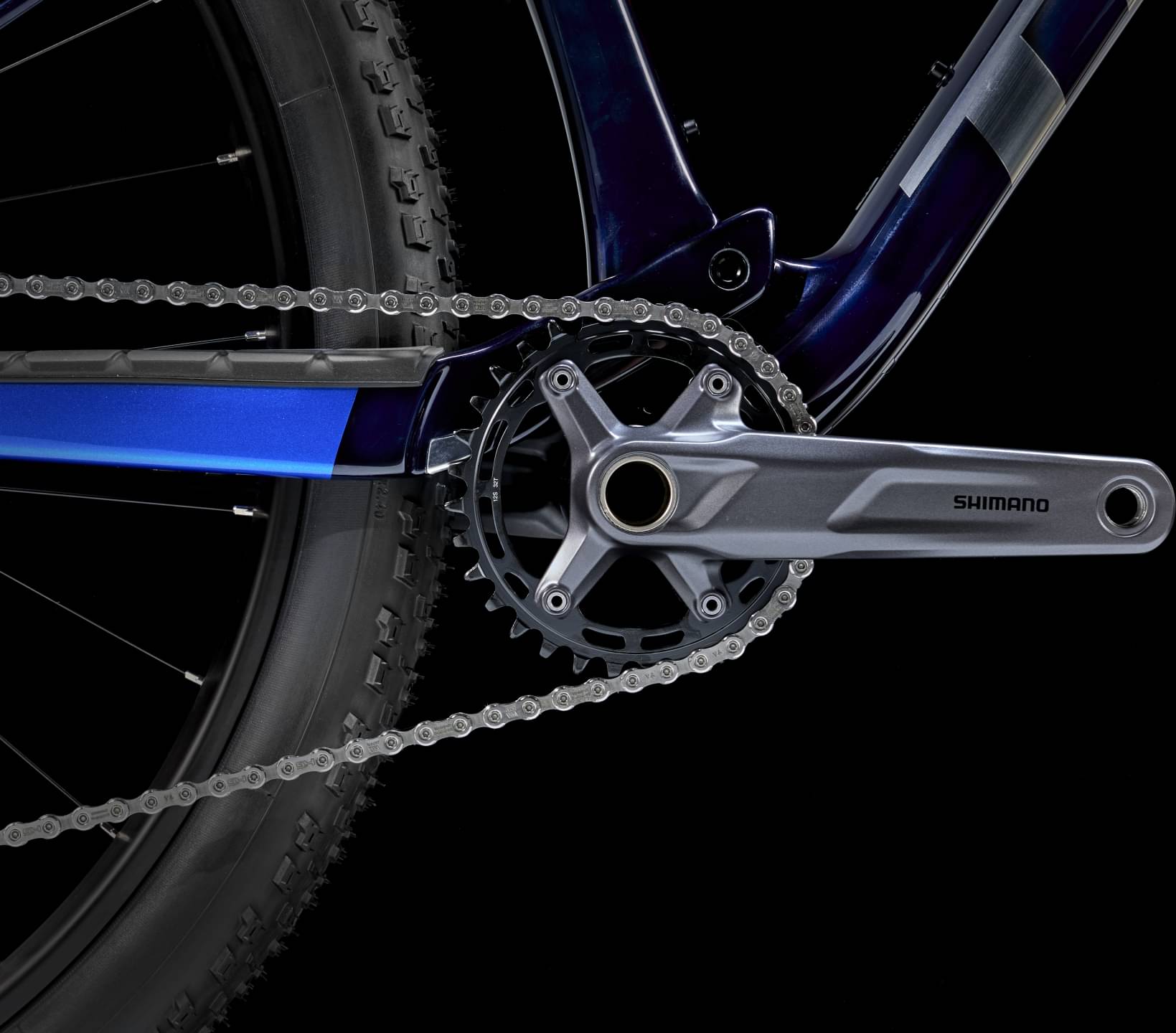

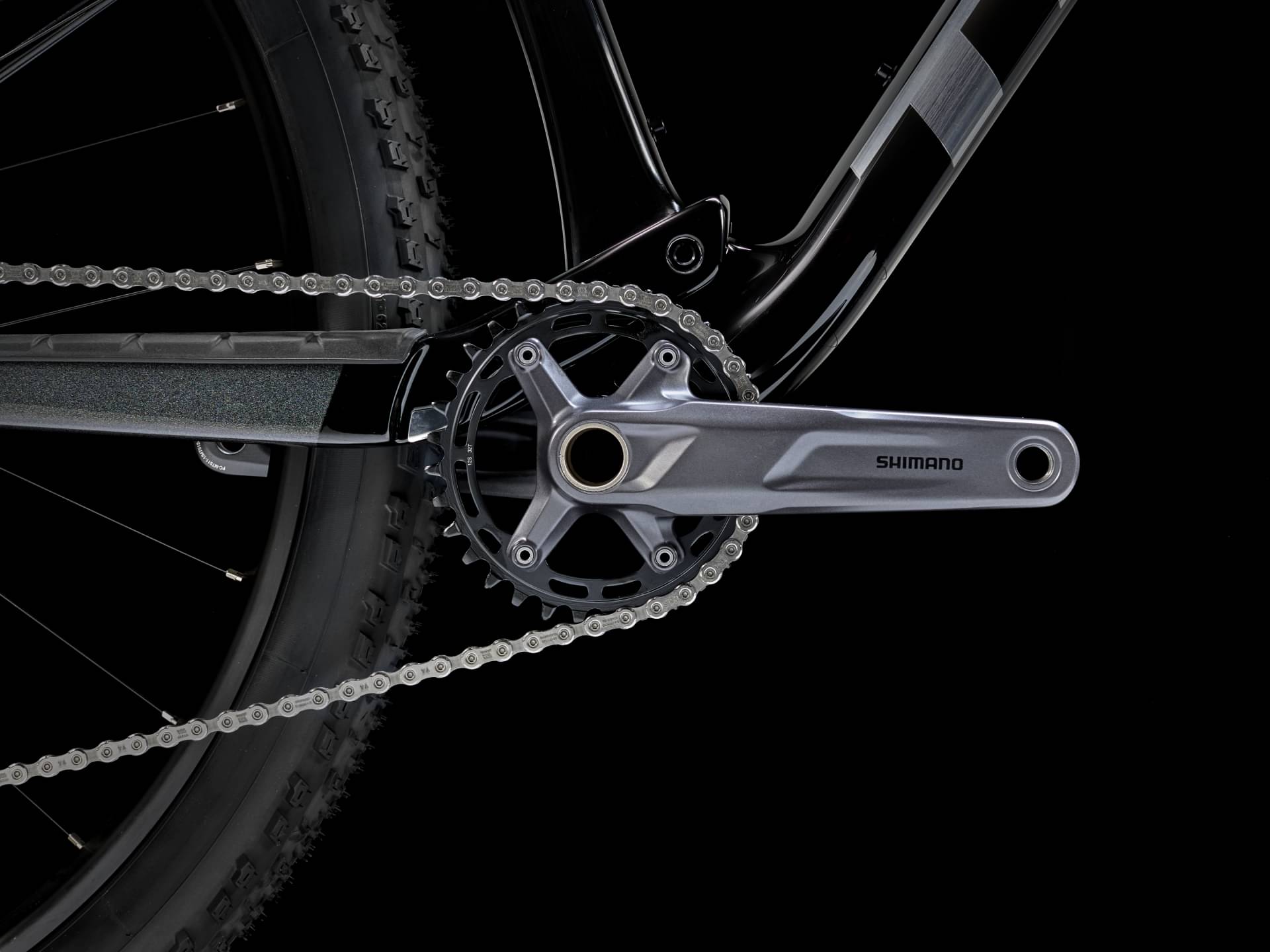

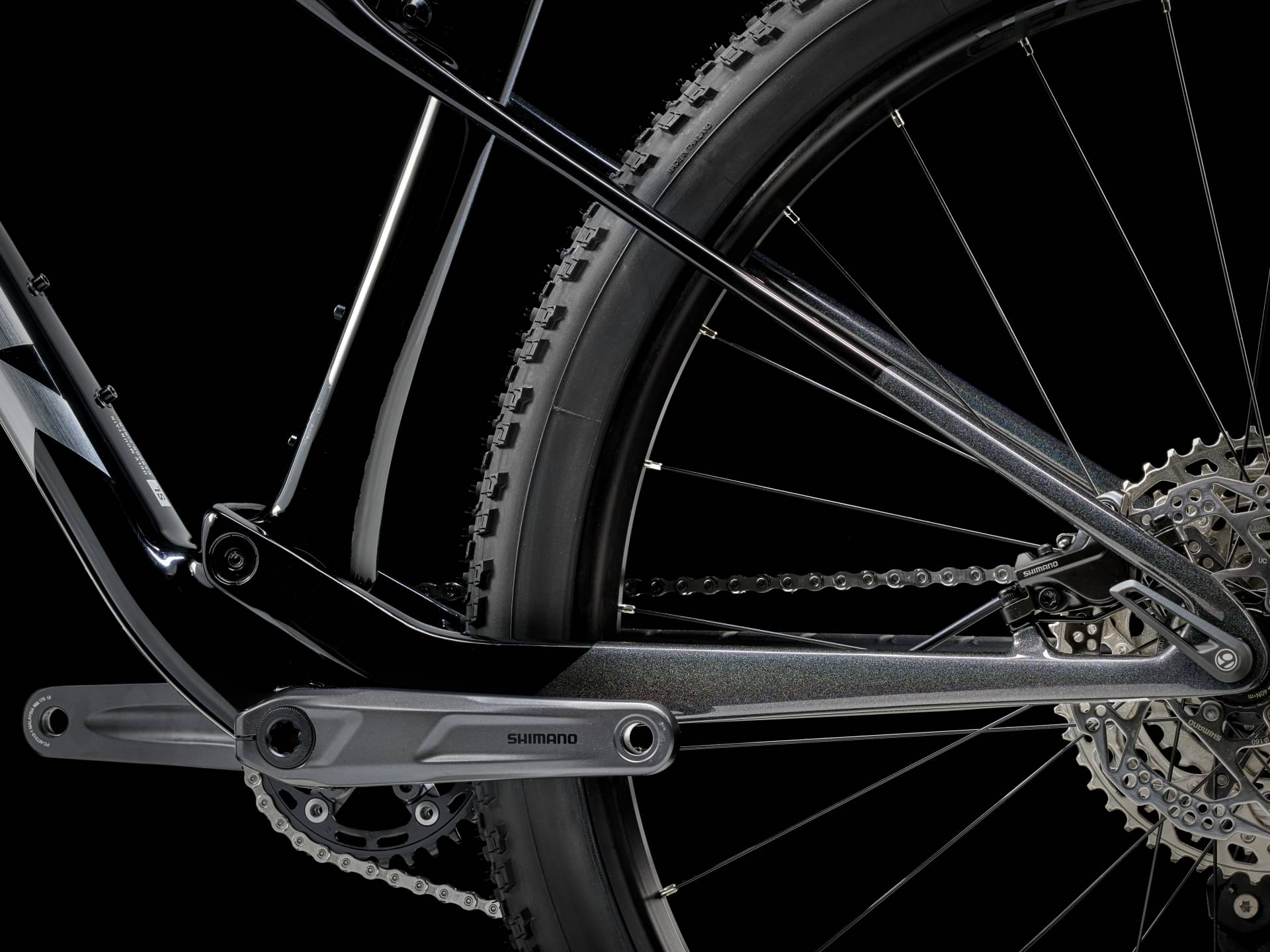

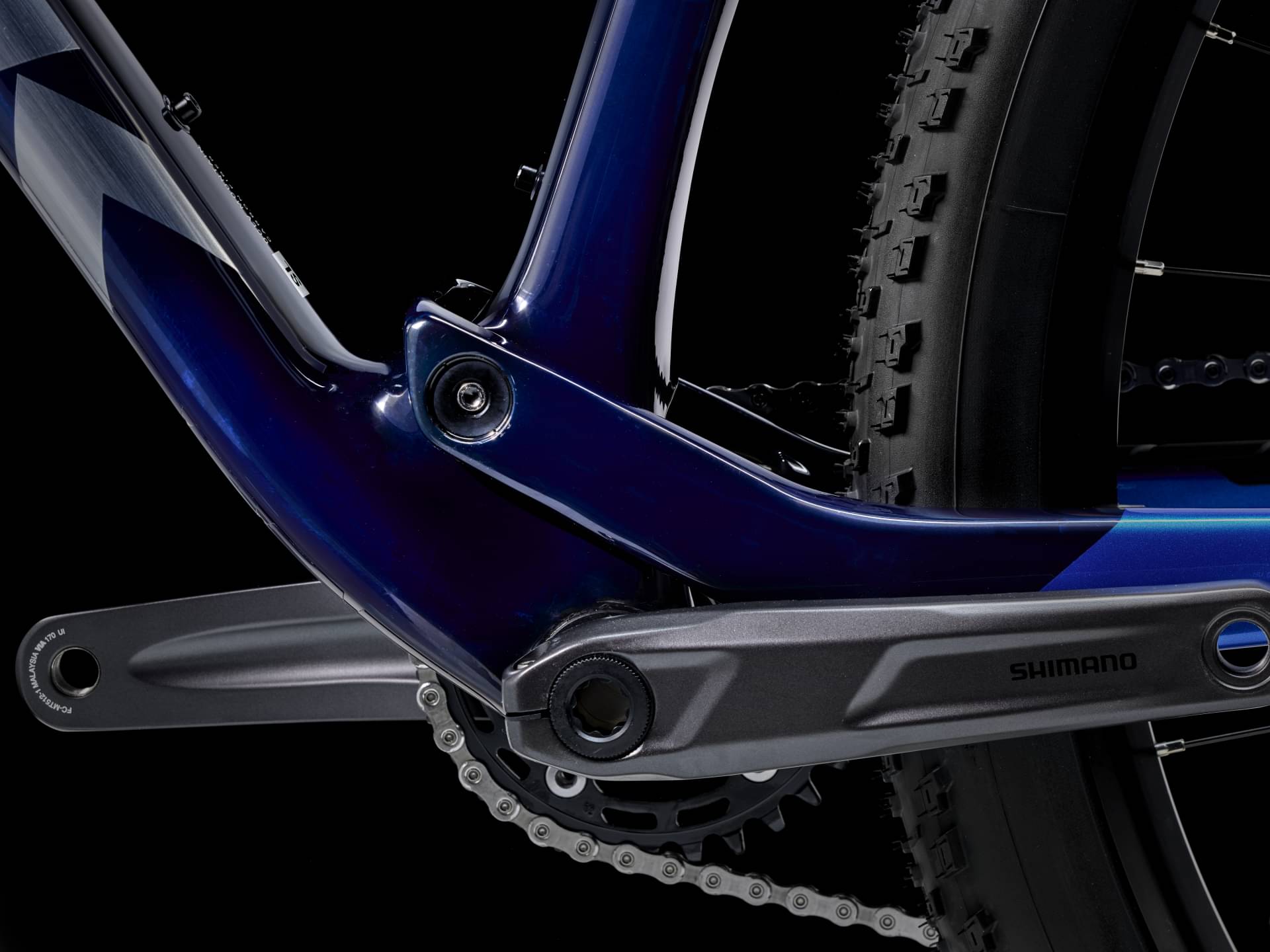

Crank

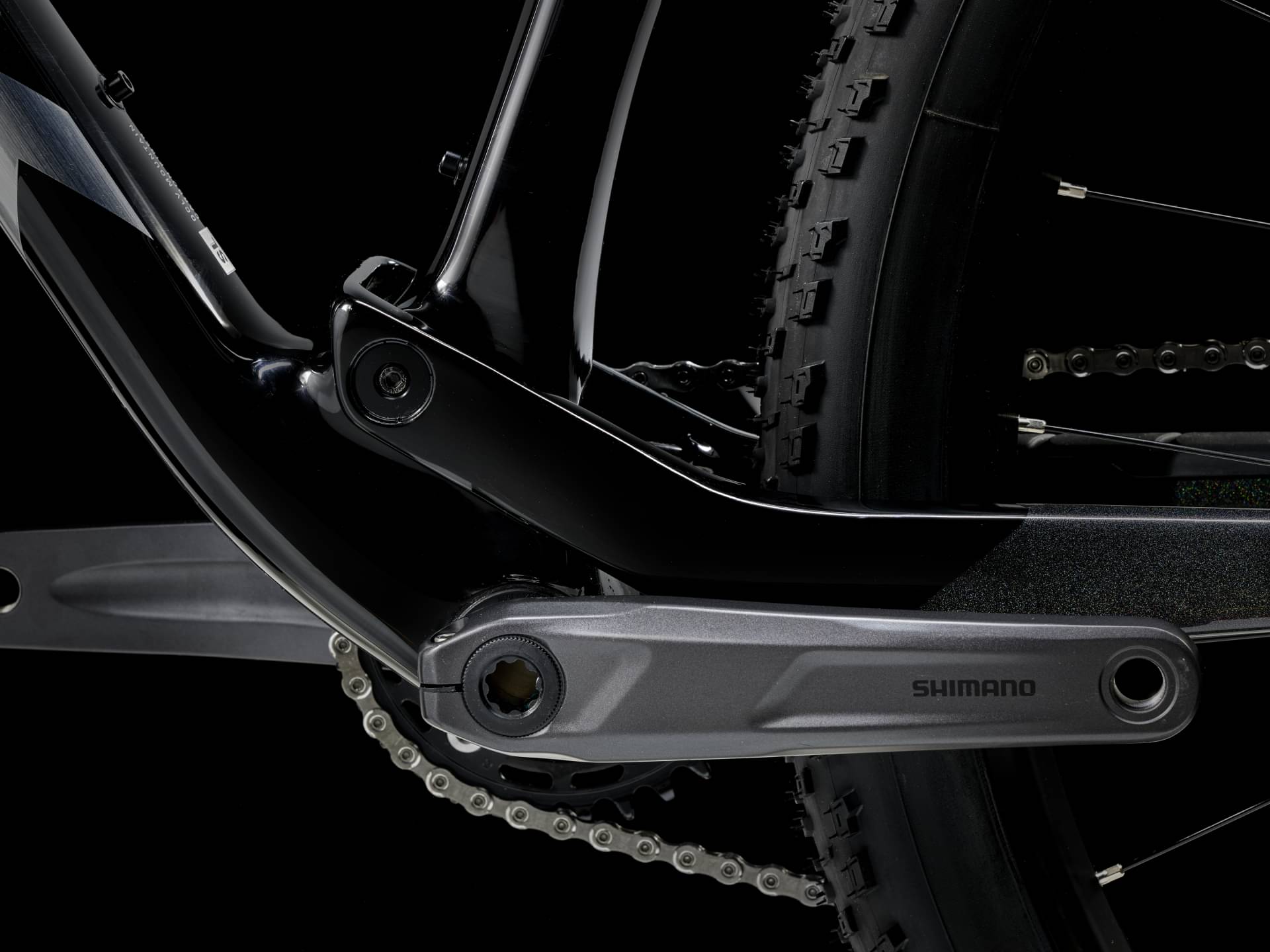

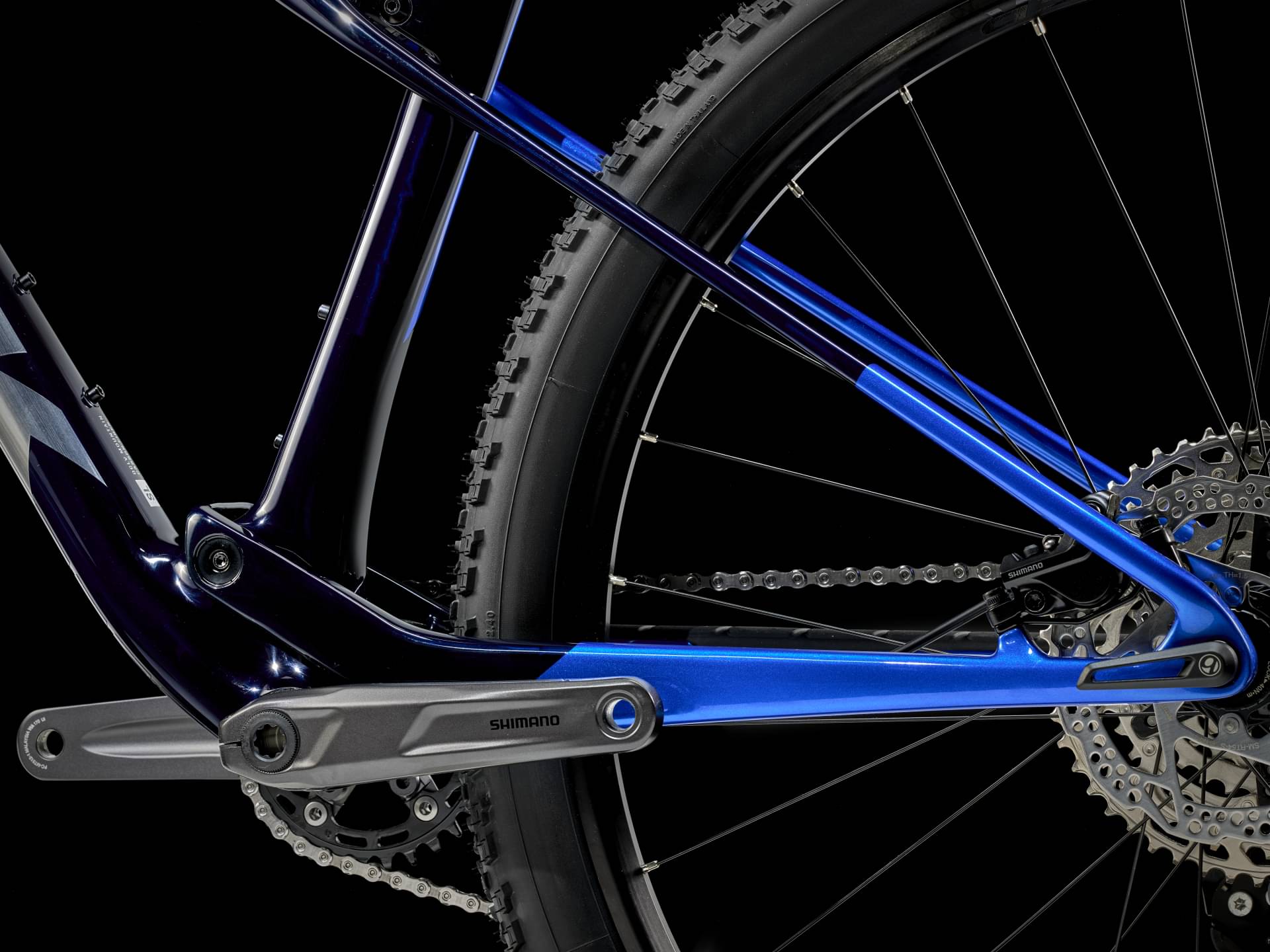

Size: S, M, Shimano MT512, 32T, 55mm chainline, 170mm; Size: M/L, L, XL, Shimano MT512, 32T, 55mm chainline, 175mm
Bottom Bracket
Shimano MT500, 92mm, PressFit
Chain
Shimano Deore M6100, 12 speed
Wheels
Front Hub
Shimano MT400, CenterLock, Boost110, 15 mm thru-axle
Rear Hub
Shimano MT410B, CenterLock, Boost148, 12 mm thru-axle

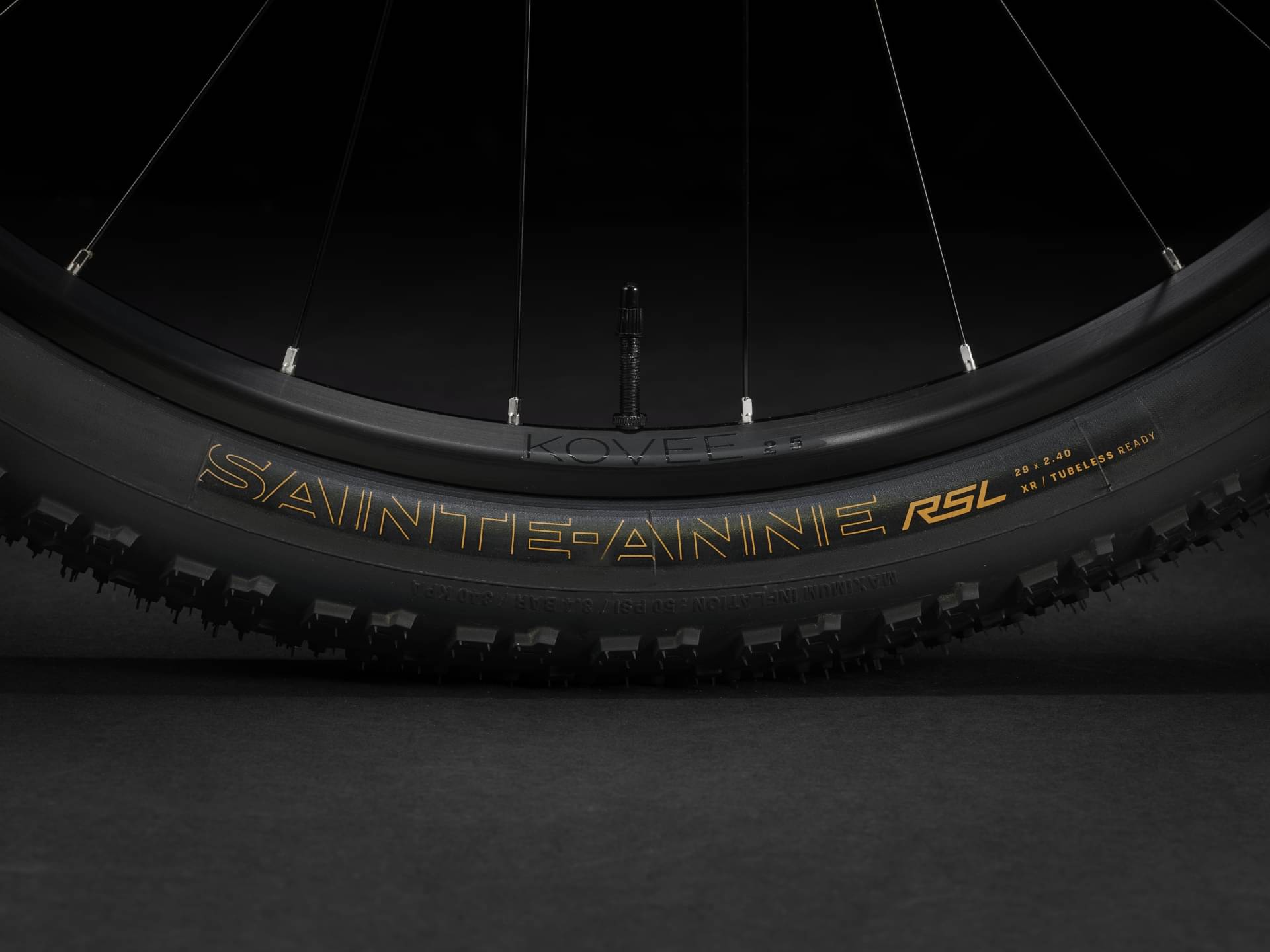

Rims
Front: Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'', Rear: Bontrager Kovee Comp 23, Tubeless Ready, Shimano Microspline freehub, Rapid Drive 108, Boost148, 29''
Brakes
Brakes
Shimano hydraulic disc, MT501 lever, MT500 caliper
Cockpit

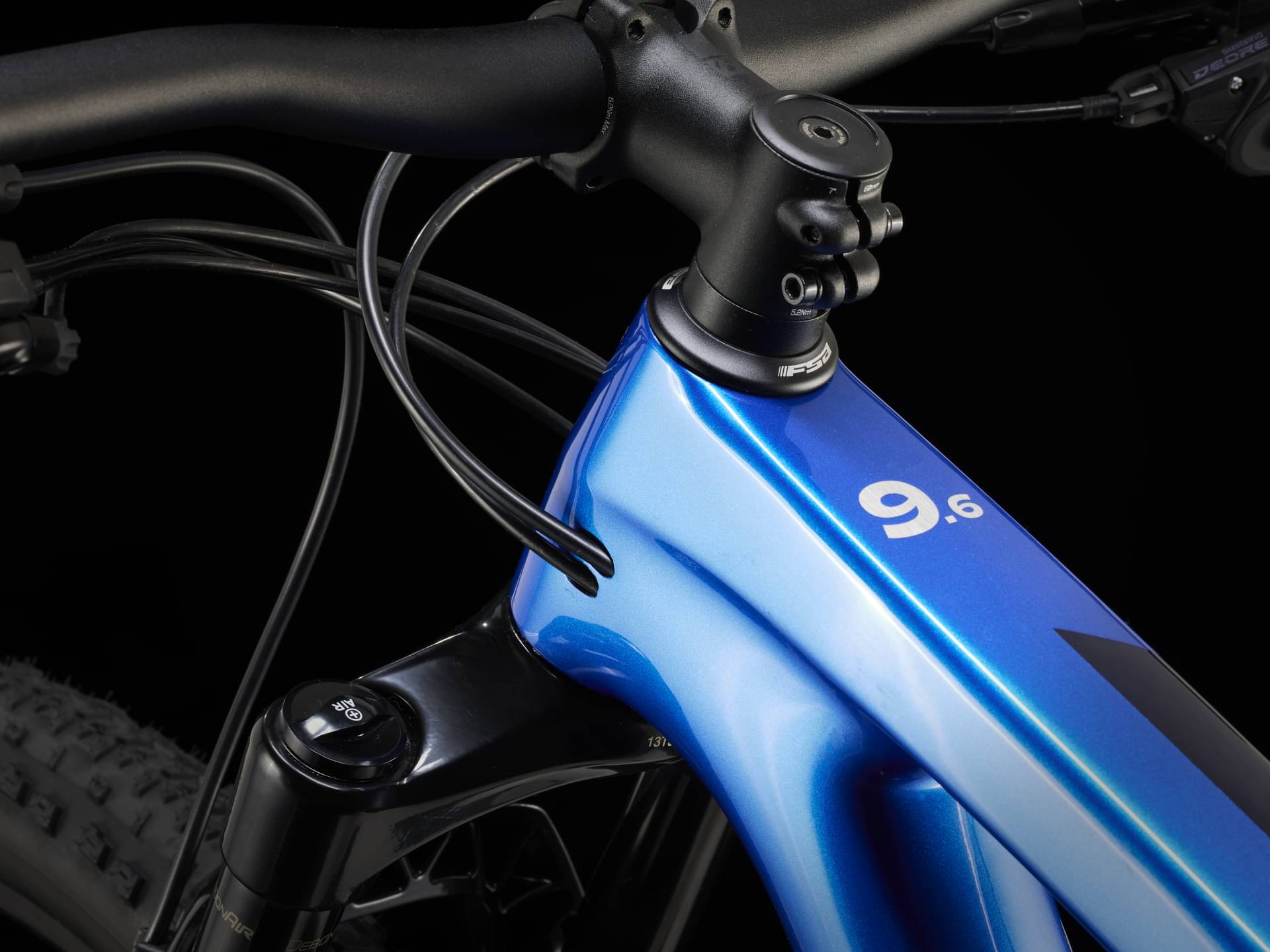

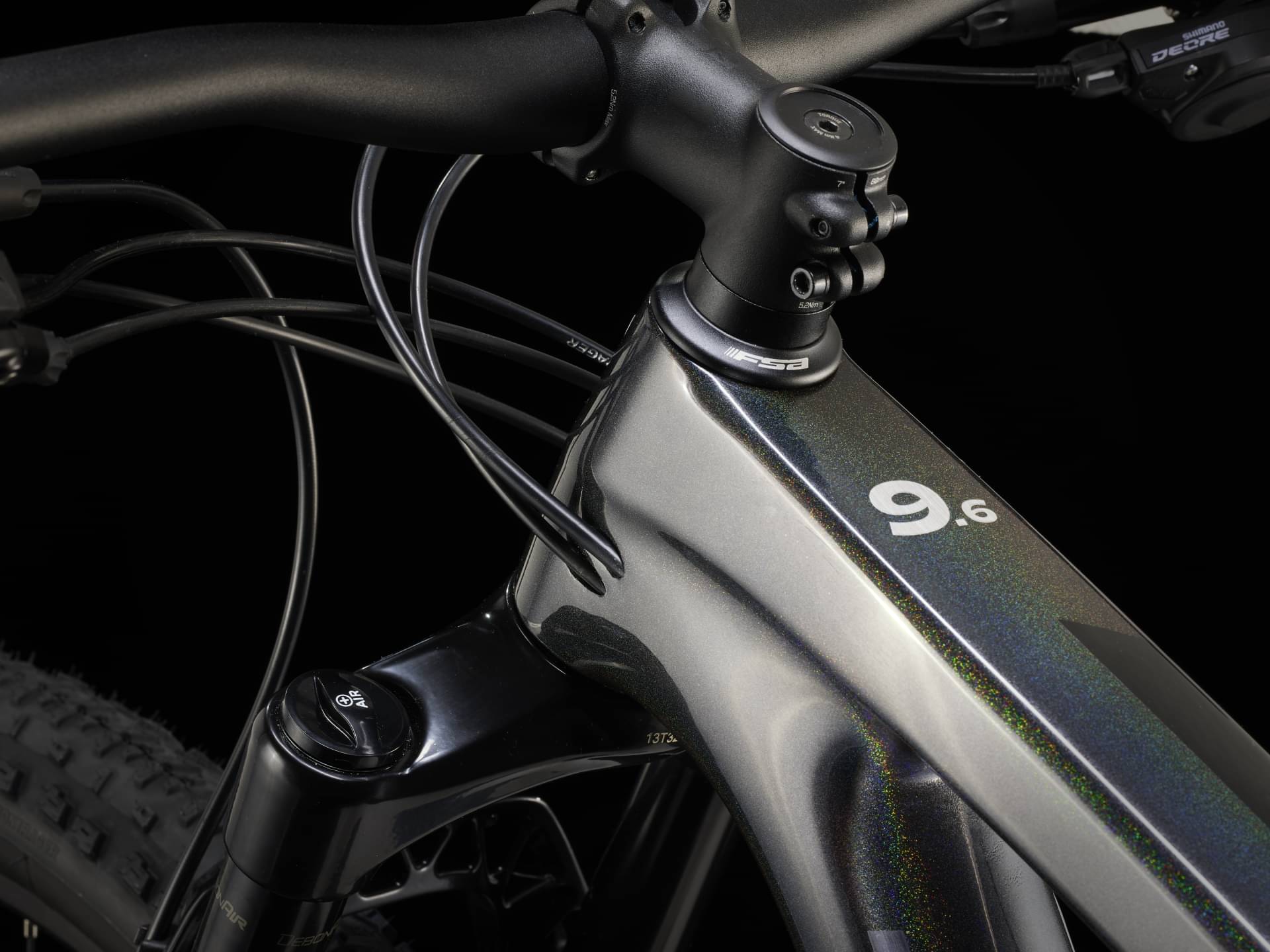

Stem
Size: S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, M/L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Handlebar
Size: S, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: M, M/L, L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length; Size: M, M/L, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length; Size: L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.356 mm | 1.311 mm | 1.288 mm | 1.244 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 682 mm | 707 mm | 722 mm | 741 mm | 786 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 590 mm | 590 mm | 590 mm | 599 mm | 622 mm |
| Reach | 410 mm | 435 mm | 450 mm | 465 mm | 500 mm |
| Top Tube Length | 571 mm | 592 mm | 605 mm | 622 mm | 663 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 395 mm | 420 mm | 440 mm | 460 mm | 525 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 100 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1113 mm | 1138 mm | 1153 mm | 1172 mm | 1217 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Standover Height | 760 mm | 772 mm | 772 mm | 772 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 177 cm | 187 cm |
| Rider Max Height | 166 cm | 176 cm | 180 cm | 189 cm | 195 cm |
About this model
Supercaliber SL 9.6 Gen 2 is a Trek Supercaliber model. There are 70 bikes that carry this model name. You can easily view all of the Trek Supercaliber bikes models from 2024, here.
Model range prices
The most economical model, the Trek Supercaliber SL 9.6 Gen 2 2024 has a starting price of 4199$. Trek Supercaliber SLR 9.9 XX AXS Gen 2 2024 on the other hand is the most expensive at 11699$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4235$. In conclusion, this bike price is 122.31% more expensive than the price of the average Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Supercaliber SL 9.6 Gen 2 weighs 13.1 kg (28.88 lbs) and is a bit heavier than the average. In short, the average Crosscountry bike weight is 5.65% lower than this one.
Supercaliber SL 9.6 Gen 2 components
Fork
Trek Supercaliber SL 9.6 Gen 2 2024 bike is equipped with the RockShox Recon Gold RL fork, and has 110mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock

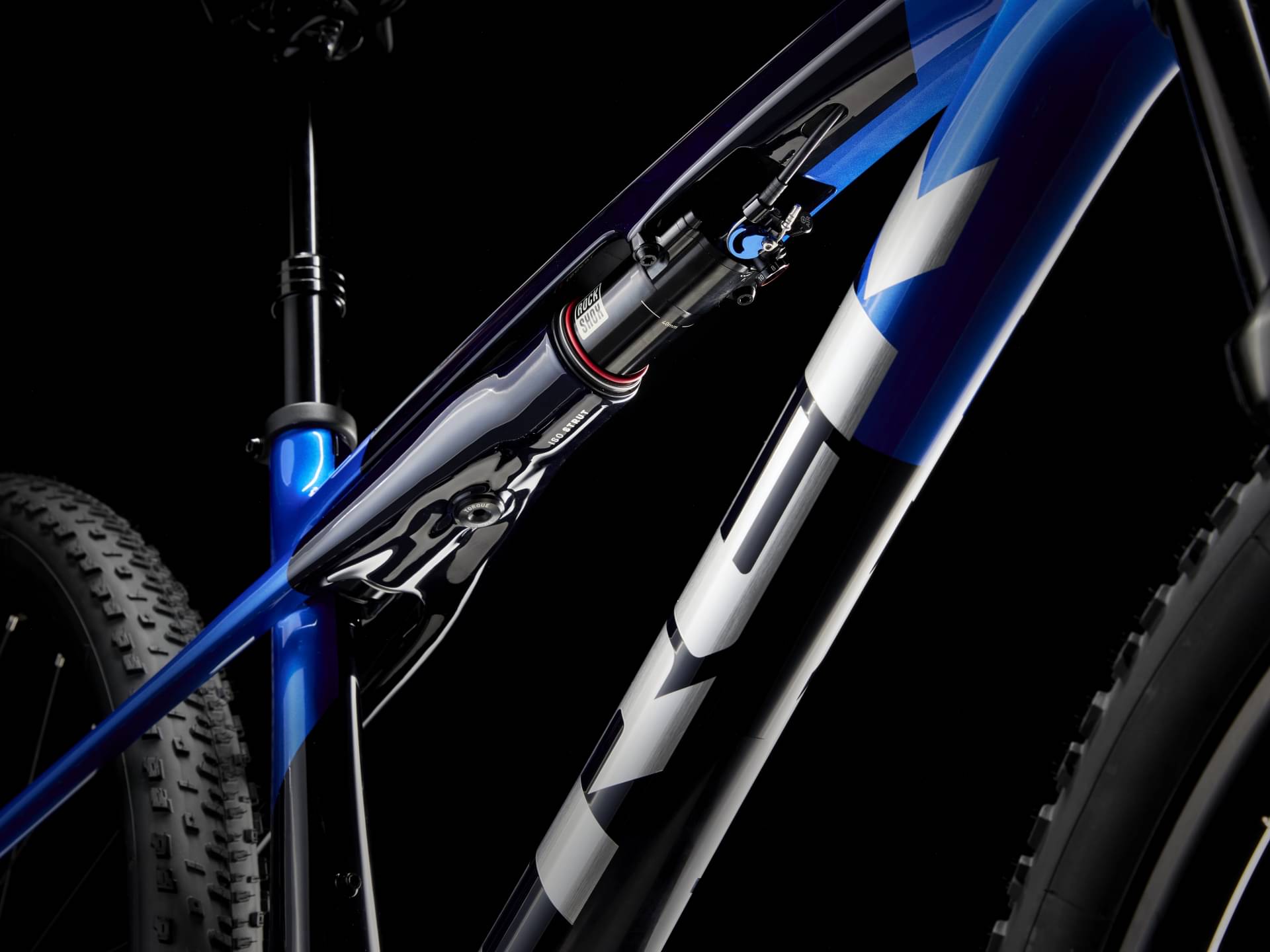

As for the rear shock, this bike has the Trek IsoStrut model, with a travel of 80mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Supercaliber SL 9.6 Gen 2 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Supercaliber SL 9.6 Gen 2 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 155 cm – 195 cm (5.09 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Trek model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
