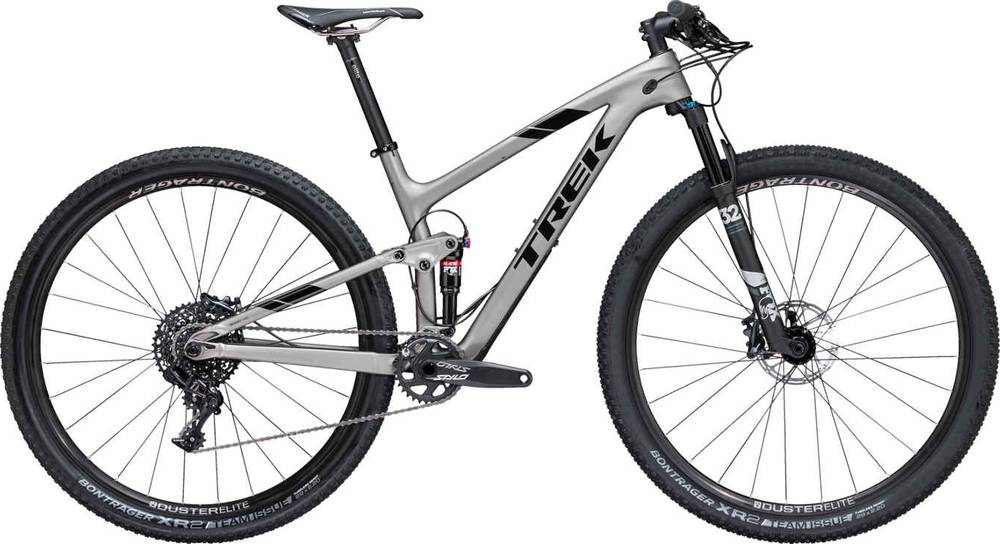

Trek Top Fuel 9.7 2018
2018 Mountain
Estimate price |
3,999$
Weight | 11.52 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Float 32
-
Groupset GX, NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame, alloy stays, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, Control Freak internal routing, Carbon Armor, PF92, Boost148 & G2 Geometry on 29ers, 100mm travel
Suspension Fork
Fox Performance 32 Float, Step Cast, FIT4 2-position damper (with new push-to-unlock remote), E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 100mm travel
Drivetrain
Rear Derailleur
SRAM GX, Roller Bearing Clutch
Shift Levers
SRAM NX, 11 speed
Cassette
SRAM XG-1150, 10-42, 11 speed
Crank
SRAM Stylo 6k Eagle, 32T
Bottom Bracket
PF92
Chain
SRAM PC-1110
Pedals
Not included
Wheels
Rims
Bontrager Duster Elite 23, Tubeless Ready, 54T Rapid Drive, Boost110 front, Boost148 rear (15.5?: 142x12 rear, 21T), tubeless strips included, valves sold separately
Tires
Bontrager XR2 Team Issue, Tubeless Ready, 120 tpi, aramid bead, 29x2.20? (15.5: 27.5x2.20?)
Brakes
Brakes
SRAM Level TL hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree
Handlebar
Bontrager Race Lite, 31.8mm, 5mm rise
Grips
Bontrager Race Lite, lock-on
Headset
FSA IS-2, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Comp, hollow titanium rails
Seatpost
Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" Low | 17.5" Low | 18.5" Low | 19.5" Low | 21.5" Low |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.36 mm | 1.31 mm | 1.29 mm | 1.29 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 638 mm | 679 mm | 695 mm | 712 mm | 734 mm |
| Rake | 48 mm | 52 mm | 52 mm | 51 mm | 51 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 555 mm | 571 mm | 571 mm | 581 mm | 600 mm |
| Reach | 386 mm | 421 mm | 437 mm | 451 mm | 466 mm |
| Top Tube Length | 547 mm | 571 mm | 587 mm | 605 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 90 mm | 90 mm | 100 mm | 120 mm |
| Chainstay Length | 421 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1058 mm | 1105 mm | 1121 mm | 1138 mm | 1160 mm |
| Bottom Bracket Drop | 25 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 741 mm | 724 mm | 718 mm | 724 mm | 732 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
Model Overview
Top Fuel 9.7 completes the Trek Top Fuel model. Trek released 123 bikes variations of this model so far. You can easily view all of the Trek Top Fuel bikes models from 2018, here.
Model range prices
Trek Top Fuel 8 2018 is the most affordable bike of this model and has a price of 2799$. On the other hand, Trek Top Fuel 9.9 Race Shop Limited 2018, is the most expensive and costs 8999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Trek released this model in 2018, its price was 3999$. Doing a quick comparison, we notice that Top Fuel 9.7 price is 109.92% higher than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 11.52 kg (25.4 lbs), Trek bike is a bit lighter than average. In conclusion, the average Crosscountry bike weighs 7.64% more than Top Fuel 9.7.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Top Fuel 9.7 components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Top Fuel 9.7 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Top Fuel 9.7 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
