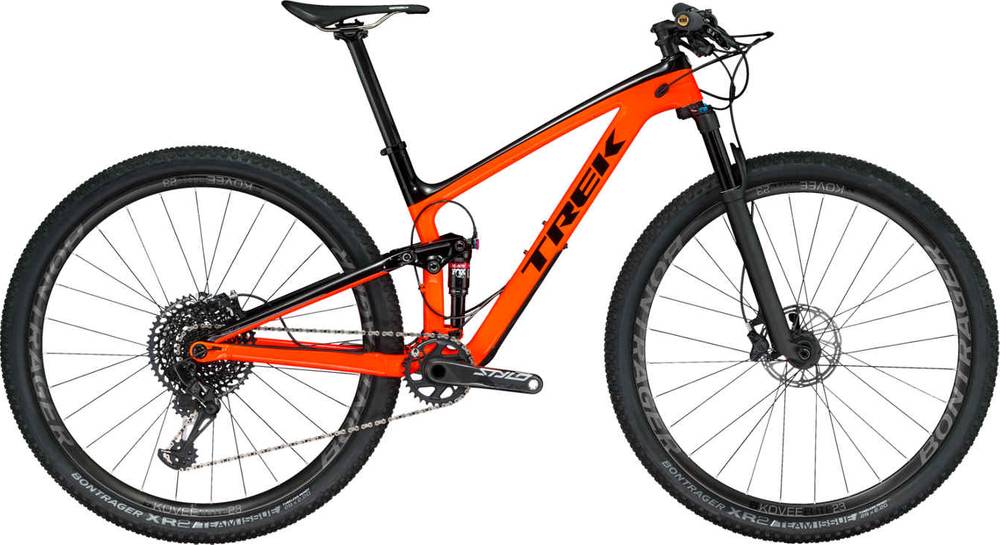

Trek Top Fuel 9.8 SL 2018
2018 Mountain
Estimate price |
5,699$
Weight | 10.93 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Float 32
-
Groupset GX Eagle, Truvativ Stylo Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & seatstay, alloy chainstay, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, Control Freak internal routing, Carbon Armor, PF92, Boost148 & G2 Geometry on 29ers, 100mm travel
Suspension Fork
Fox Performance 32 Float, Step Cast, FIT4 2-position damper (with new push-to-unlock remote), E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 100mm travel
Drivetrain
Rear Derailleur
SRAM GX Eagle, Roller Bearing Clutch
Shift Levers
SRAM GX Eagle, 12 speed
Cassette
SRAM XG-1275, 10-50, 12 speed
Crank
SRAM Stylo Carbon Eagle, 32T
Bottom Bracket
PF92
Chain
SRAM GX Eagle
Pedals
Not included
Wheels
Rims
Bontrager Kovee Elite 23, Tubeless Ready, 54T Rapid Drive, Boost110 front, Boost148 rear (15.5?: 142x12 rear, 21T), tubeless strips included, valves sold separately
Tires
Bontrager XR2 Team Issue, Tubeless Ready, 120 tpi, aramid bead, 29x2.20? (15.5: 27.5x2.20?)
Brakes
Brakes
SRAM Level TLM hydraulic disc
Cockpit
Stem
Bontrager Pro, 31.8mm, 7 degree
Handlebar
Bontrager Race X Lite, OCLV Carbon, 31.8mm, 5mm rise
Grips
ESI Chunky
Headset
FSA IS-2, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Elite, hollow titanium rails
Seatpost
Bontrager Pro, 31.6mm, 5mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" Low | 17.5" Low | 18.5" Low | 19.5" Low | 21.5" Low |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.36 mm | 1.31 mm | 1.29 mm | 1.29 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 638 mm | 679 mm | 695 mm | 712 mm | 734 mm |
| Rake | 48 mm | 52 mm | 52 mm | 51 mm | 51 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 555 mm | 571 mm | 571 mm | 581 mm | 600 mm |
| Reach | 386 mm | 421 mm | 437 mm | 451 mm | 466 mm |
| Top Tube Length | 547 mm | 571 mm | 587 mm | 605 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 90 mm | 90 mm | 100 mm | 120 mm |
| Chainstay Length | 421 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1058 mm | 1105 mm | 1121 mm | 1138 mm | 1160 mm |
| Bottom Bracket Drop | 25 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 741 mm | 724 mm | 718 mm | 724 mm | 732 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
About this model
Top Fuel 9.8 SL is part of the Trek Top Fuel model. Trek released 123 bikes variations of this model so far. Take a sneak peek at all Trek Top Fuel bikes models from 2018, by clicking here.
Model range prices
Trek Top Fuel 8 2018 is the most affordable bike of this model and has a price of 2799$. On the other hand, Trek Top Fuel 9.9 Race Shop Limited 2018, is the most expensive and costs 8999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2018 and its price was 5699$. If we compare this with the average Crosscountry bike cost we notice that the price is 199.16% higher.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Trek Top Fuel 9.8 SL it’s weighing 10.93 kg (24.1 lbs). At this weight, is considerably lighter than average. To sum up, it’s 13.45% lighter than the average weight of Crosscountry bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Top Fuel 9.8 SL components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Top Fuel 9.8 SL 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Top Fuel 9.8 SL has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
