Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Magnesium -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 163cm
SM
160cm - 170cm
MD
167cm - 177cm
LG
174cm - 184cm
XL
180cm - 189cm
XXL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Road 700c disc, AE81 SuperMag, VAAST Road geometry, internal cable routing, fender ready. Up to 30mm tire clearance
Suspension Fork
VAAST Road full-carbon disc. Up to 30mm tire clearance
Drivetrain
Rear Derailleur
SRAM Force eTAP AXS
Front Derailleur
SRAM Force eTAP AXS
Shift Levers
SRAM Force eTAP AXS
Cassette
SRAM CS XG 1270, 12-speed, 10-33t
Crank
SRAM Carbon Force DUB, 12-speed 46/33t
Bottom Bracket
SRAM DUB T47
Chain
SRAM Force 12-speed
Wheels
Rims
VAAST Aero Carbon 45mm, Tubeless Ready
Spokes
Bladed Double butted stainless
Tires
Vittoria Corsa, 700 x 25mm w/Ultralight tubes
Brakes
Brakes
SRAM Force eTAP, hydraulic disc
Cockpit
Stem
VAAST Integrated Pro Carbon
Handlebar
VAAST Integrated Pro Carbon
Seat
Saddle
ProLogo Scratch M5 PAS w/Tirox rails
Seatpost
VAAST Carbon fiber, (300mm 49/52, 350mm 54/56/58/60)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.47 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 272 mm | 272 mm | 275 mm | 275 mm |
| Front Center | 575 mm | 575 mm | 591 mm | 590 mm | 610 mm | 629 mm |
| Rake | 52 mm | 52 mm | 52 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 59 mm | 56 mm | 57 mm | 57 mm | 57 mm |
| Stack | 502 mm | 512 mm | 542 mm | 567 mm | 592 mm | 612 mm |
| Reach | 367 mm | 372 mm | 382 mm | 390 mm | 402 mm | 415 mm |
| Top Tube Length | 496 mm | 513 mm | 542 mm | 563 mm | 582 mm | 602 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 94 mm | 101 mm | 129 mm | 153 mm | 183 mm | 204 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 975 mm | 975 mm | 990 mm | 992 mm | 1011 mm | 1031 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 724 mm | 744 mm | 768 mm | 790 mm | 814 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 160 cm | 167 cm | 174 cm | 180 cm | 187 cm |
| Rider Max Height | 163 cm | 170 cm | 177 cm | 184 cm | 189 cm | 196 cm |
Model Overview

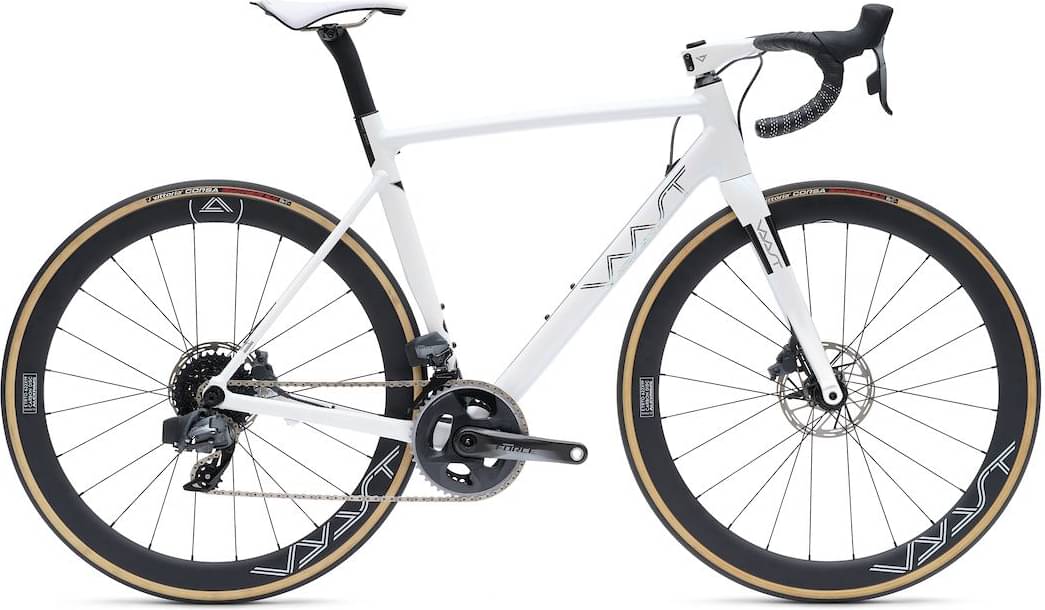

R/1 700C FORCE AXS completes the Vaast R1 model. There are 7 bikes that carry this model name. Take a sneak peek at all Vaast R1 bikes models from 2022, by clicking here.
Model range prices
Vaast R/1 700C 105 2022 is the most affordable bike of this model and has a price of 2299$. On the other hand, Vaast R/1 700C FORCE AXS 2022, is the most expensive and costs 4999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 4999$. Comparing this to the average Race bike price, we see that the price is 49.22% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
R/1 700C FORCE AXS components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on R/1 700C FORCE AXS are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The R/1 700C FORCE AXS comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 196 cm (5.09 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
