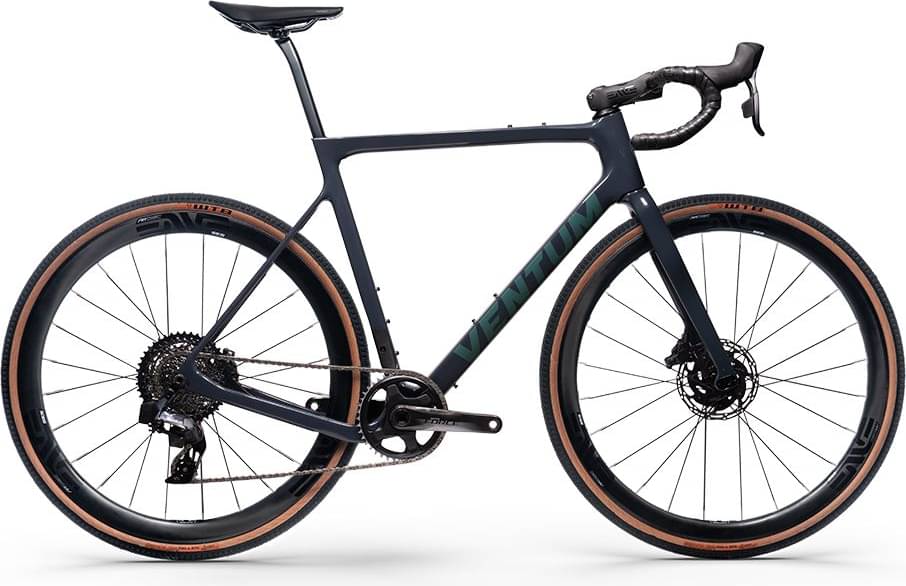

ventum GS1 SRAM FORCE XPLR AXS 2022
2022 Road
Estimate price |
6,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ventum GS1 Disc, Material: Carbon, 12x142mm, Flat Mount Brake
Suspension Fork
Ventum GS1 Fork, Material: Carbon, 12x100mm, Flat Mount Brake, Flip Chip
Drivetrain
Rear Derailleur
SRAM Force RD-FRC1-E-D1
Front Derailleur
N/A
Shift Levers
SRAM Force ED-FRC-D1
Cassette
SRAM CS-XG-1251-D1
Wheels
Rims
FSA NS Alloy, Enve AG25, Enve 3.4, or Enve G23, Zipp 303 S, Zipp 303 Firecrest
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
ENVE Gravel Bar or ENVE AR Bar
Seat
Seatpost
Ventum Seatpost, Material: Carbon, 400mm Length, 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.5 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 592 mm | 604 mm | 612 mm | 617 mm | 626 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 76 mm | 69 mm | 63 mm | 60 mm |
| Stack | 516 mm | 539 mm | 564 mm | 583 mm | 598 mm |
| Reach | 359 mm | 368 mm | 377 mm | 386 mm | 395 mm |
| Top Tube Length | 524 mm | 540 mm | 557 mm | 572 mm | 585 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 547 mm | 571 mm | 598 mm | 618 mm | 633 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° | 72 ° | 72.5 ° |
| Head Tube Length | 105 mm | 128 mm | 150 mm | 166 mm | 180 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 996 mm | 1008 mm | 1016 mm | 1021 mm | 1030 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
About this model
GS1 SRAM FORCE XPLR AXS completes the Ventum Gs1 model. Ventum launched 15 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Ventum GS1 SRAM RIVAL XPLR AXS 2022 is the most economical model, with a starting price of 4199$. Ventum GS1 SRAM RED AXS MULLET 2022 on the other hand costs 7499$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Ventum GS1 SRAM FORCE XPLR AXS price was 6199$. Comparing this to the average Gravel bike price, we see that the price is 151.79% more expensive.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the GS1 SRAM FORCE XPLR AXS model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
