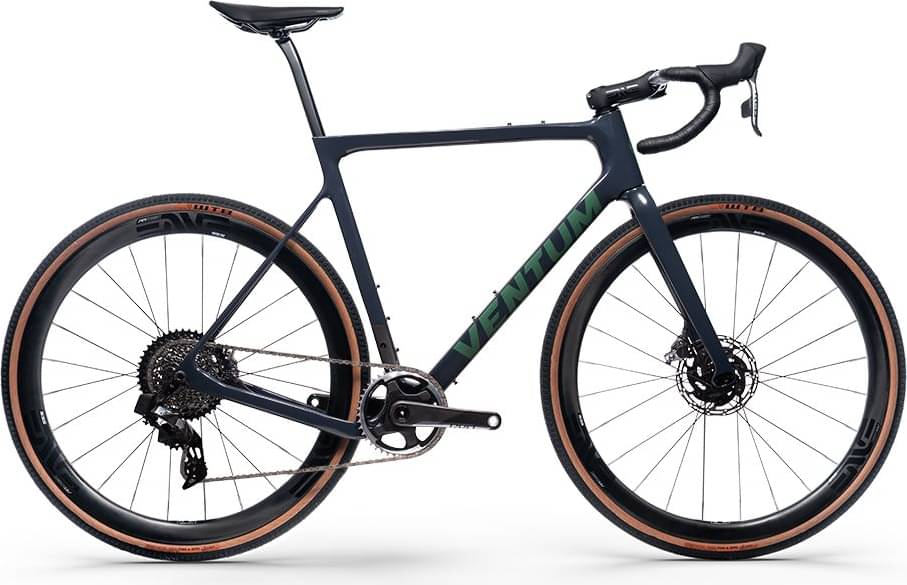

ventum GS1 SRAM RED XPLR AXS 2022
2022 Road
Estimate price |
7,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ventum GS1 Disc, Material: Carbon, 12x142mm, Flat Mount Brake
Suspension Fork
Ventum GS1 Fork, Material: Carbon, 12x100mm, Flat Mount Brake, Flip Chip
Drivetrain
Rear Derailleur
SRAM Red RD-RED1-E-D1
Front Derailleur
N/A
Shift Levers
SRAM ED-RED-D1
Cassette
SRAM CS-XG-1271-D1
Wheels
Rims
FSA NS Alloy, Enve AG25, Enve 3.4, or Enve G23, Zipp 303 S, Zipp 303 Firecrest
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
ENVE Gravel Bar or ENVE AR Bar
Seat
Seatpost
Ventum Seatpost, Material: Carbon, 400mm Length, 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.5 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 592 mm | 604 mm | 612 mm | 617 mm | 626 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 76 mm | 69 mm | 63 mm | 60 mm |
| Stack | 516 mm | 539 mm | 564 mm | 583 mm | 598 mm |
| Reach | 359 mm | 368 mm | 377 mm | 386 mm | 395 mm |
| Top Tube Length | 524 mm | 540 mm | 557 mm | 572 mm | 585 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 547 mm | 571 mm | 598 mm | 618 mm | 633 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° | 72 ° | 72.5 ° |
| Head Tube Length | 105 mm | 128 mm | 150 mm | 166 mm | 180 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 996 mm | 1008 mm | 1016 mm | 1021 mm | 1030 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
Model Overview
GS1 SRAM RED XPLR AXS is part of the Ventum Gs1 model. Ventum released 15 bikes variations of this model so far. Take a sneak peek at all Ventum Gs1 bikes models from 2022, by clicking here.
Model range prices
Ventum GS1 SRAM RIVAL XPLR AXS 2022 is the cheapest bike model and costs 4199$. Ventum GS1 SRAM RED AXS MULLET 2022 is the most expensive one and costs 7499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Ventum GS1 SRAM RED XPLR AXS price was 7499$. Doing a quick comparison, we notice that GS1 SRAM RED XPLR AXS price is 204.59% higher than the average cost of a Gravel bike.
GS1 SRAM RED XPLR AXS components
Fork material
GS1 SRAM RED XPLR AXS has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the GS1 SRAM RED XPLR AXS bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Ventum GS1 SRAM RED XPLR AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Ventum GS1 SRAM RED XPLR AXS bike has 5 sizes, in the range of 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
