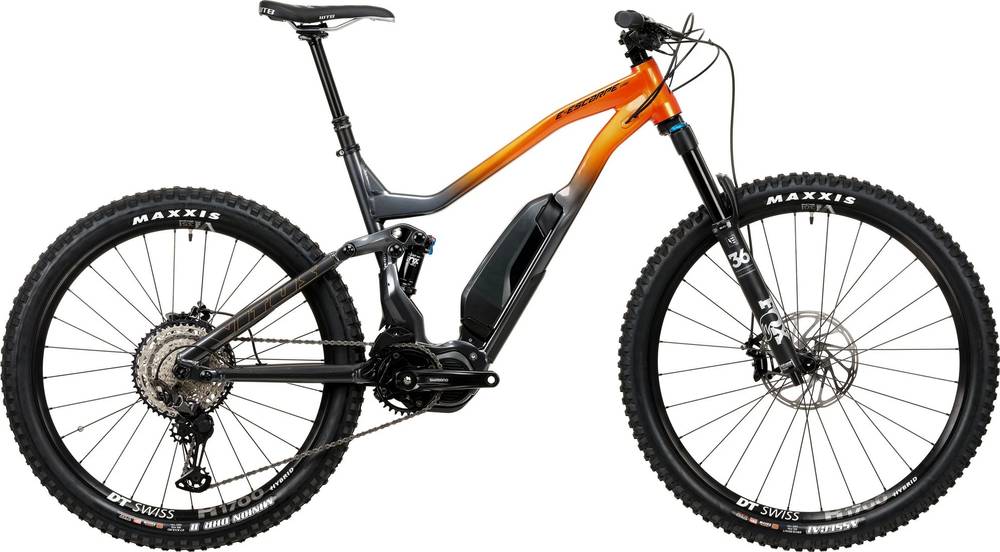

Vitus E-Escarpe VRS 2020
2020 E-bike
Estimate price |
5,753$
Weight | 22.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" / 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset XT, Shimano -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eEscarpe 29"/27.5" 140mm travel full suspension eMTB frame, Boost, 6061 Alloy, Shimano STEPS compatible
Suspension Fork
Fox Float 36 Performance eBike+ 29" 140mm, Grip Damper, Kabolt 110, 44mm Offset
Rear Shock
Fox Float DPS Performance, 3 Position Dial, Trunnion, Evol LV air spring, 205mm x 57.5mm, 0.8 Spacer, custom tune
Drivetrain
Rear Derailleur
Shimano XT 12 speed, RD-M8100, SGS 12-SPEED, TOP NORMAL, SHADOW PLUS
Front Derailleur
0, N/A
Shift Levers
Shimano XT 12 speed M8100, 12-SPEED RAPIDFIRE PLUS
Cassette
Shimano SLX 12 speed 10-51T, CS-M7100-12, HYPERGLIDE+, 10-12-14-16-18-21-24-28-33-39-45-51T
Crank
SHIMANO E8000 34T 165mm, CHAIN LINE 53MM
Bottom Bracket
Shimano E8000, N/A
Chain
Shimano SLX 12 speed N/A
Wheels
Front Hub
DT SWISS H1700 Spline eMTB specific, Boost 110x15mm, 6-bolt Disc
Rear Hub
DT SWISS H1700 Spline, eMTB specific. Boost 148x12mm, 6-bolt Disc, Shimano 12spd MICROSPLINE steel freehub
Rims
DT SWISS H1700 Spline 35, eMTB specific, 27.5", 35mm inner rim width
Spokes
DT SWISS, N/A
Tires
MAXXIS ASSEGAI, 29"x2.5"WT, 3C MaxxTerra/EXO+/TR
Brakes
Brakes
SRAM Guide RE 200mm Centerline Rotor
Cockpit
Stem
Nukeproof Neutron 45mm, 31.8mm bar diameter, 0deg rise
Handlebar
Nukeproof Horizon "AL7050, 25mm Rise, Back 9deg, up 6deg, Bar Diameter 31.8mm Width - S780mm, M780mm, L800mm, XL800mm"
Grips
VITUS Tapered, single alloy clamp, sticky rubber
Headset
ACROS ZS 44mm/56mm
Seat
Saddle
WTB Volt 142 COMP 0
Seatpost
Brand X Ascend 31.6mm, Left hand remote lever, S100mm, M125mm, L150mm, XL170mm
Motor & Battery
Motor
Shimano E8010 500wh N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.33 mm | 1.29 mm |
| Front Center | 757 mm | 777 mm | 798 mm | 824 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 123 mm | 124 mm | 123 mm |
| Stack | 609 mm | 609 mm | 619 mm | 627.5 mm |
| Reach | 429 mm | 449 mm | 466 mm | 487 mm |
| Top Tube Length | 592.5 mm | 612.5 mm | 632.5 mm | 652.5 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 382 mm | 433 mm | 483 mm | 523 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1199 mm | 1219 mm | 1240 mm | 1266 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 200 cm |
About this model
E-Escarpe VRS is a Vitus E E Escarpe model. Vitus released 11 e-bikes variations of this model so far. Take a sneak peek at all Vitus E E Escarpe e-bikes models from 2020, by clicking here.
Model range prices
Vitus E-Escarpe 2020 is the most economical model, with a starting price of 3891$. Vitus E-Escarpe VRX 2020 on the other hand costs 6081$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5229$. If we compare this with the average Trail e-bike cost we notice that the price is 55.39% more expensive.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit lighter than average, E-Escarpe VRS has a weight of 22.3 kg (49.16 lbs). To sum up, it’s 6.28% lighter than the average weight of Trail e-bikes.
Overview of components
Fork
The E-Escarpe VRS comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS Performance, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the E-Escarpe VRS model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 157 cm – 200 cm (5.15 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Vitus E-Escarpe VRS comes with a dropper post. Therefore, climbing or descending will be a breeze.
