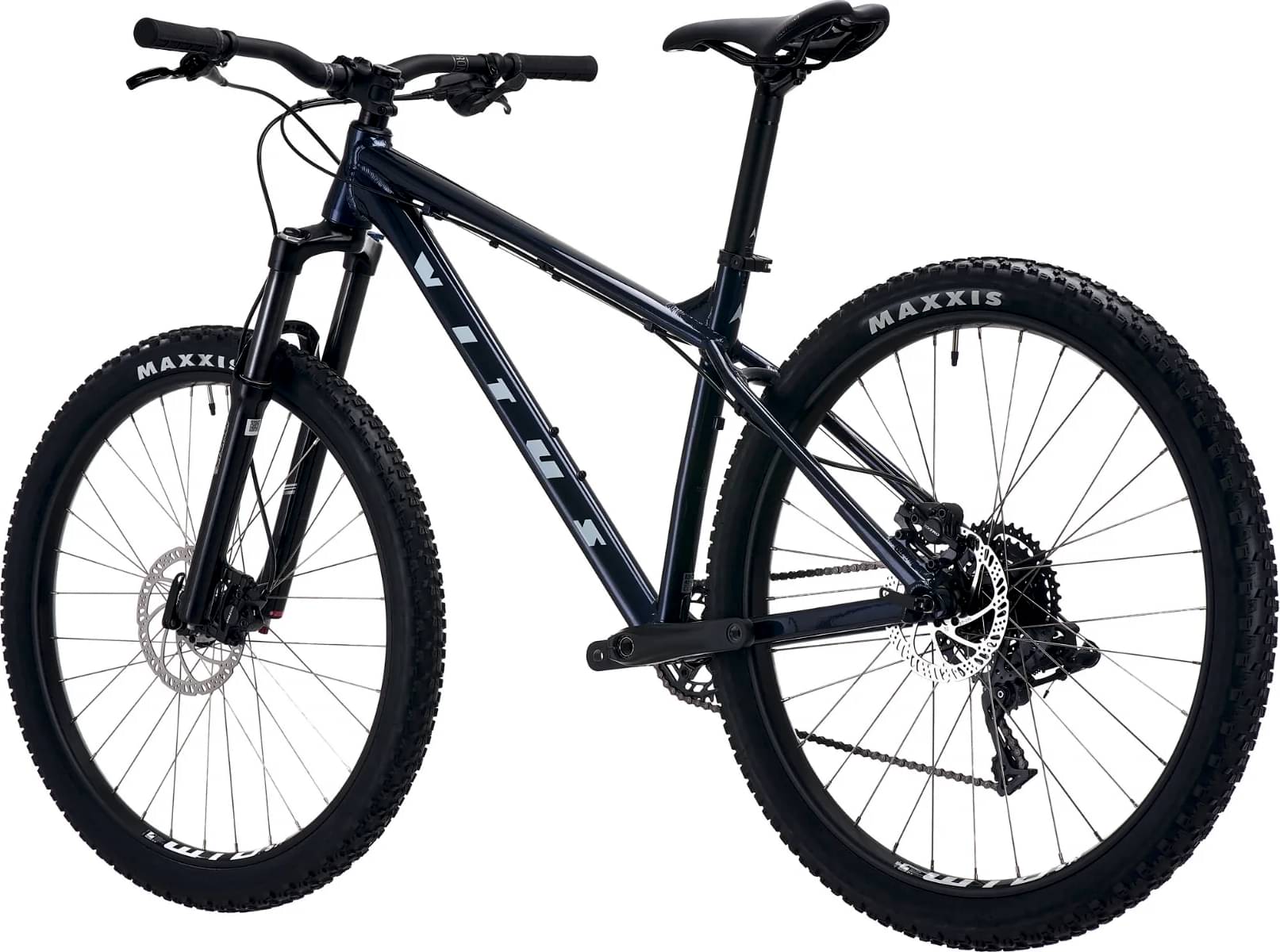

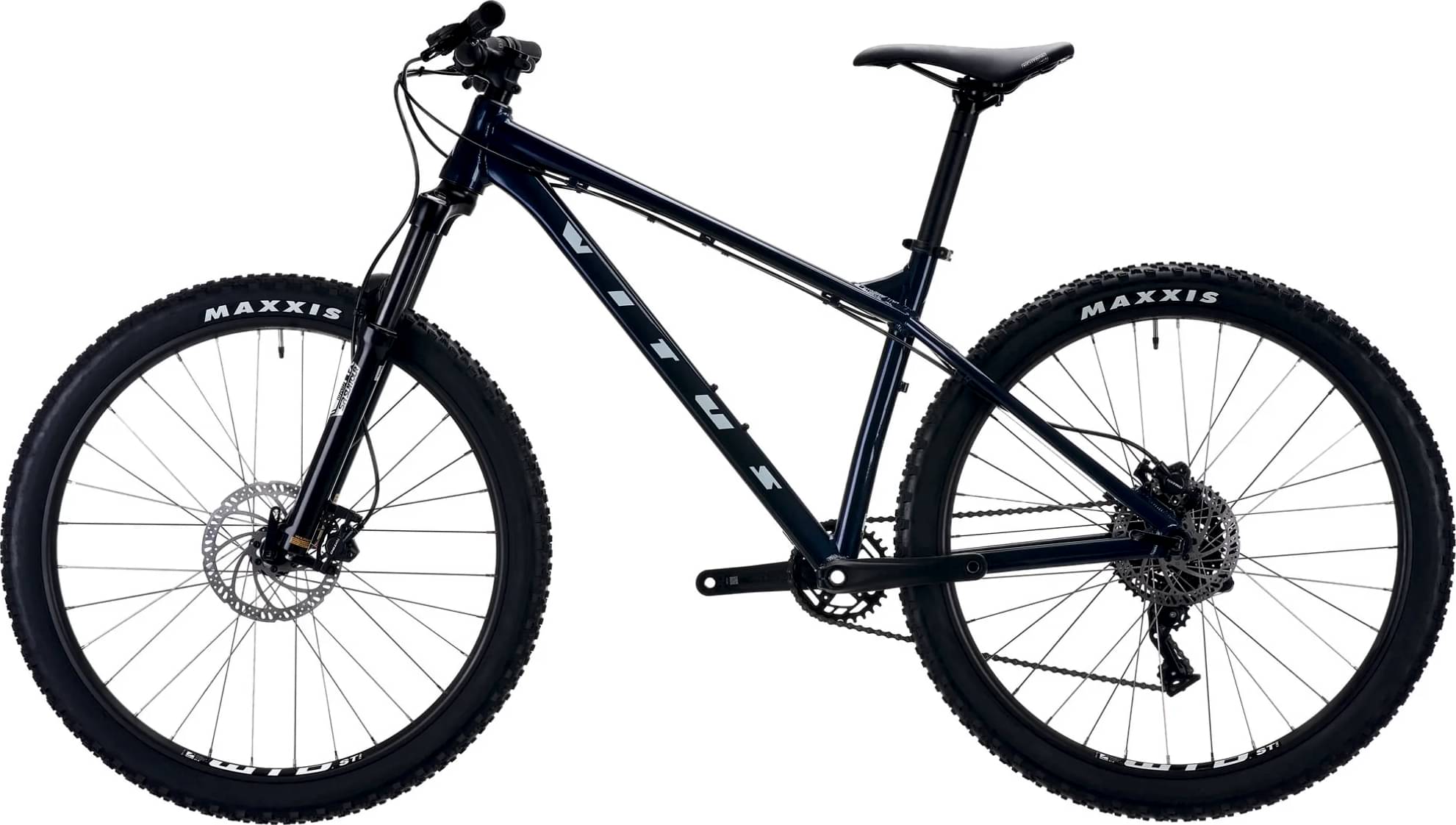

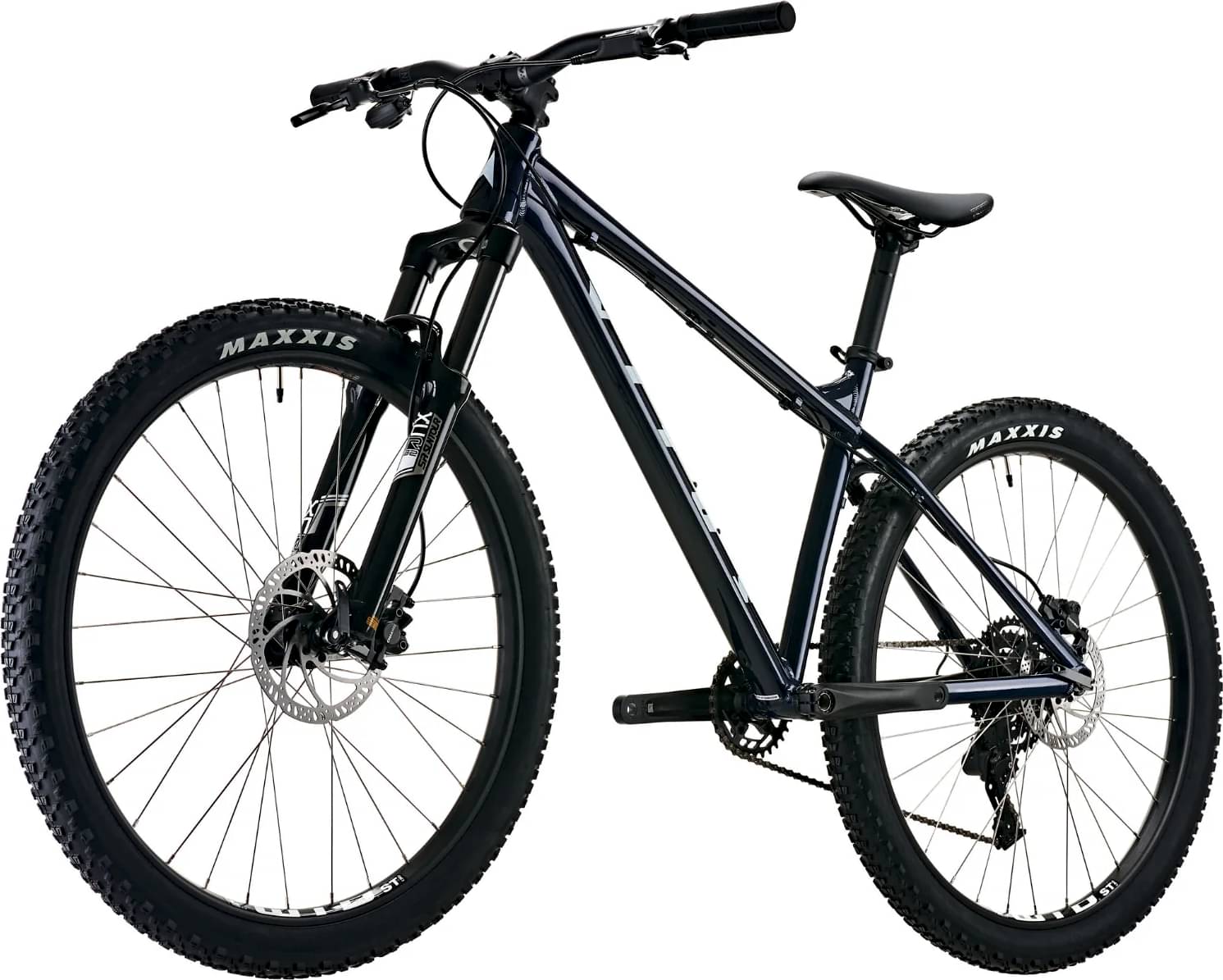

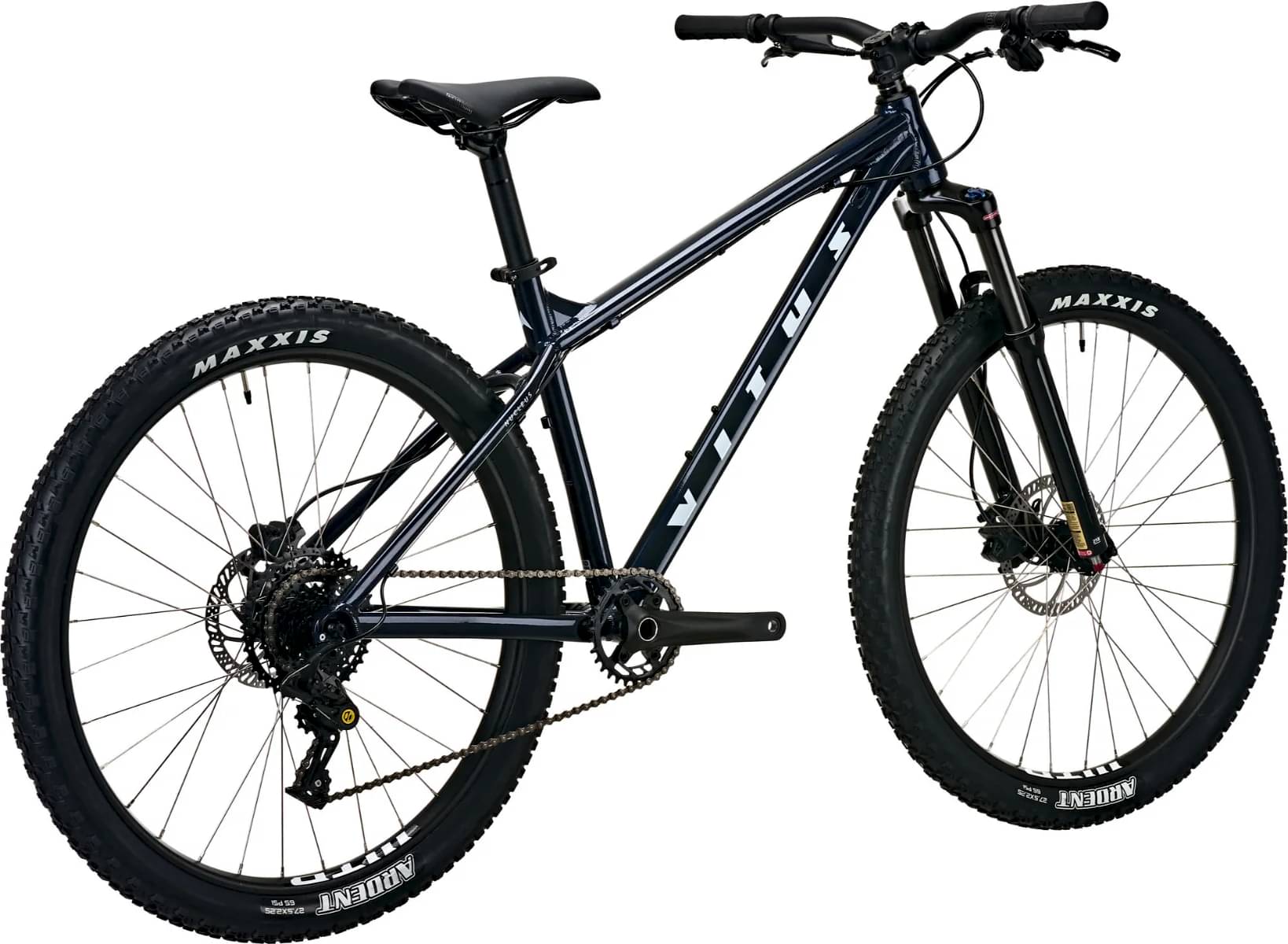

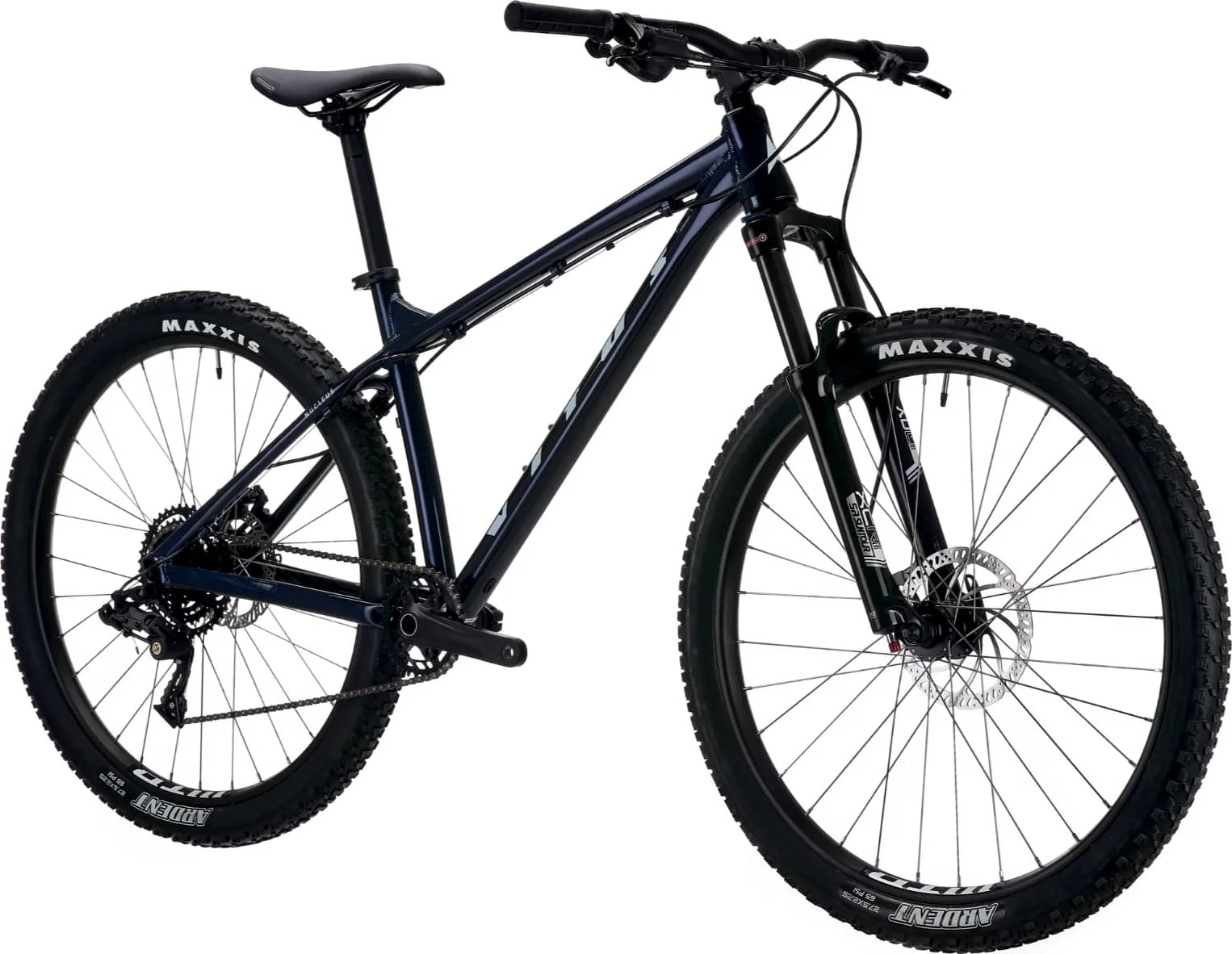

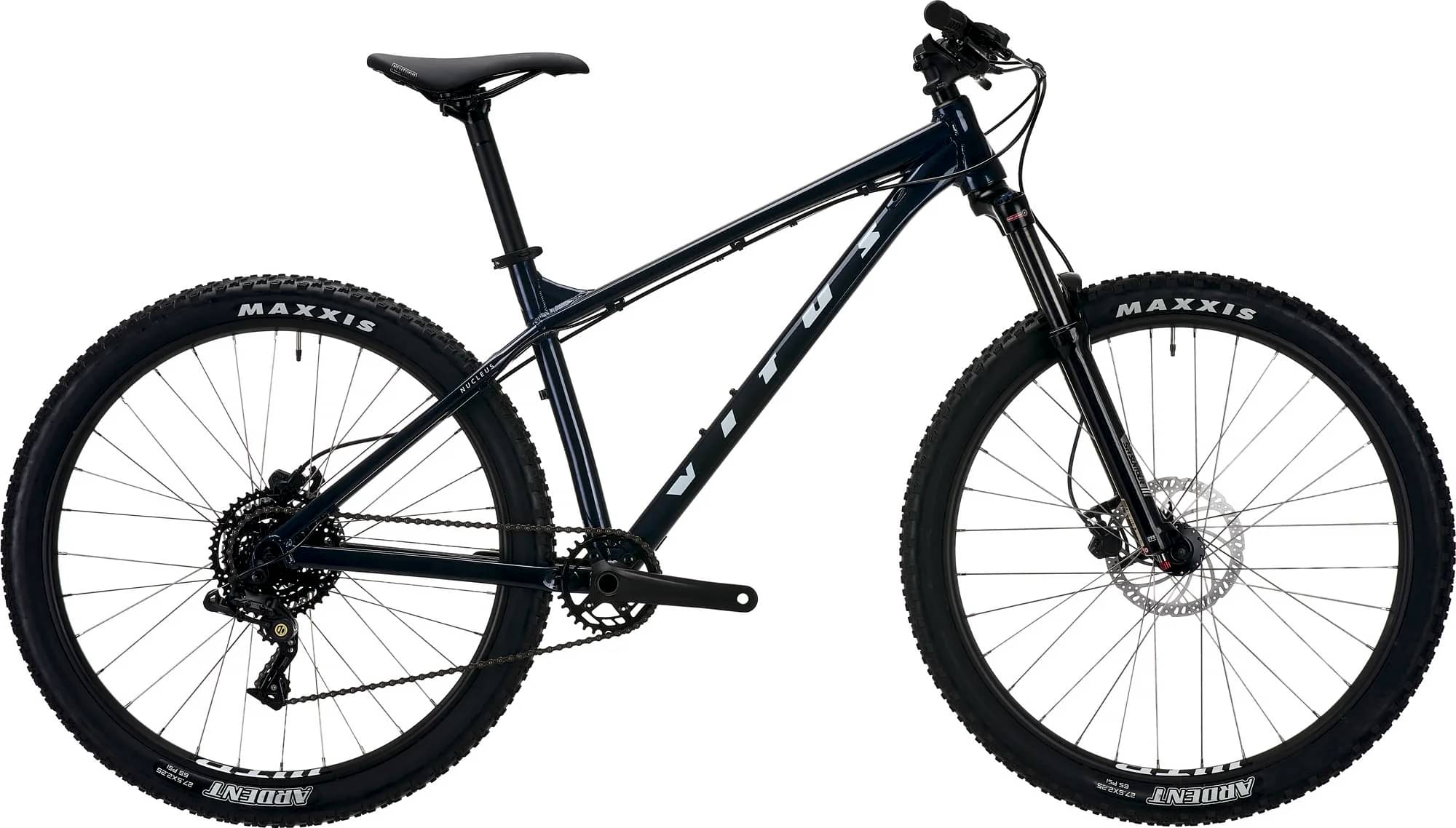

Vitus Nucleus 27 VR Blue 2022
2022 Mountain
Estimate price |
869$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Box Four -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nucleus Aluminium 6061-T6, BSA Threaded BB, IS Disc Brake Mounts, 135mm x 9mm QR Rear Dropouts
Suspension Fork
SR Suntour XCR32 Air LOR DS, 120mm Travel, 27.5", 1 1/8" Straight Steerer, Post Mount Brake Mounts, 100mm x 9mm QR, Air Spring
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
Box Four 8 Speed, Wide Rear Derailleur, Limited Slip Clutch
Front Derailleur
N/A, N/A
Shift Levers
Box Four 8 Speed, Multi Shifter
Cassette
Sunrace 8 Speed, 11-42T Range
Crank
Samox, 170mm, 32t Narrow Wide Chainring, for 73mm BB
Bottom Bracket
Samox BB, BSA Threaded BB, 73mm Shell
Chain
Box Four 8 Speed, 110 Link
Wheels
Front Hub
Vitus KT K68F, 32h, 6 Bolt Disc Fitment, 100mm x 9mm QR
Rear Hub
Vitus KT K68R, 32h, 6 Bolt Disc Fitment, 135mm x 9mm QR
Rims
WTB i30 TCS 2.0, 27.5", 32h, Presta Valve, Tubeless Ready Rim Tape Installed
Tires
Front: Maxxis Ardent, 27.5", 2.25" Width, Rear: Maxxis Ardent, 27.5", 2.25" Width
Brakes
Brakes
Clarks M2, Two Piston Calliper
Cockpit

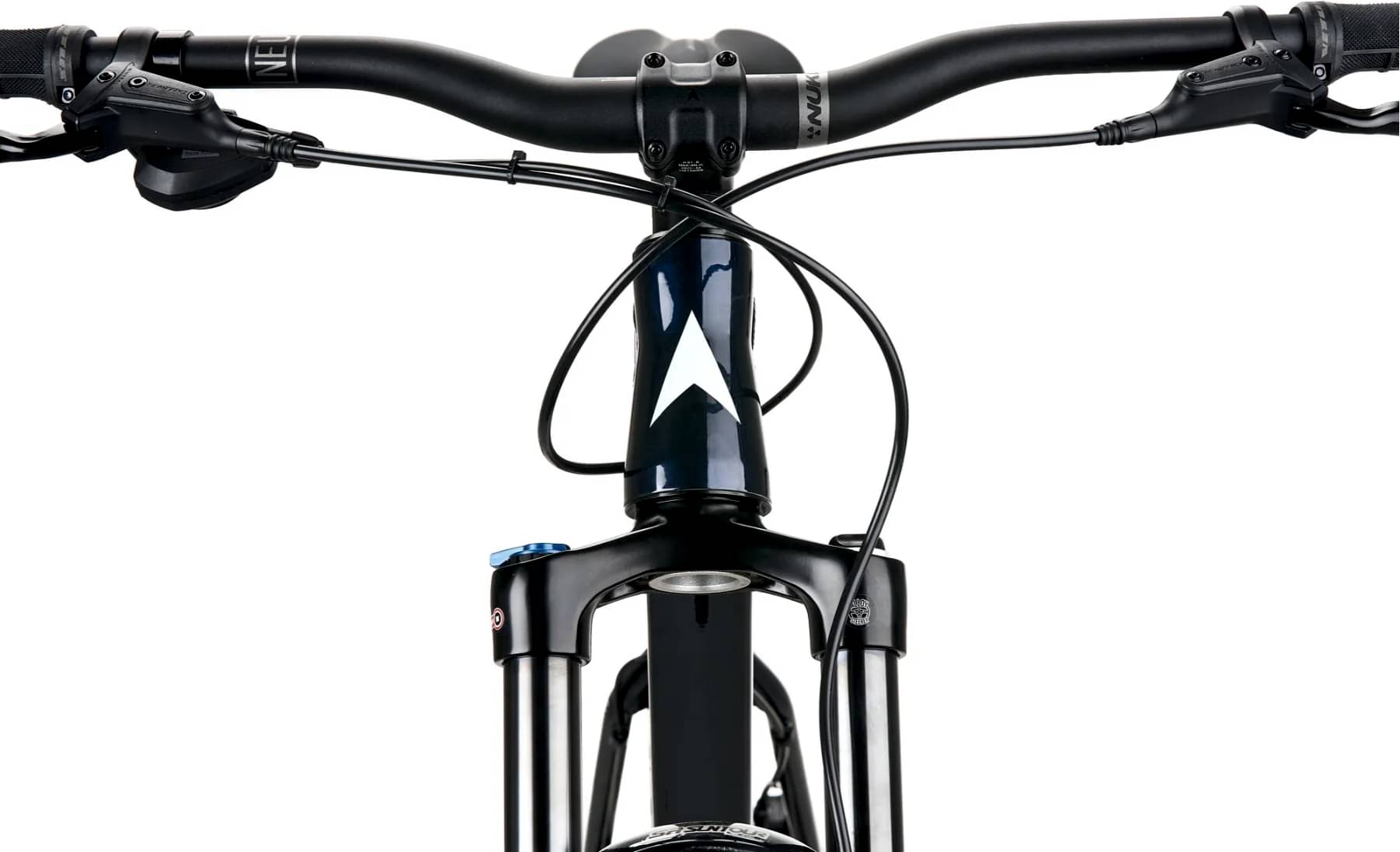

Stem
Vitus 50mm Reach, Alloy, 31.8mm Handlebar Clamp Diameter, 3° Rise
Handlebar
Nukeproof Neutron V2 Riser, 6061 Alloy, 25mm Rise, 9° Back Sweep, 31.8mm Clamp Diameter, 760mm Wide S/M, 780mm Wide L/XL
Grips
Vitus Lock On, N/A

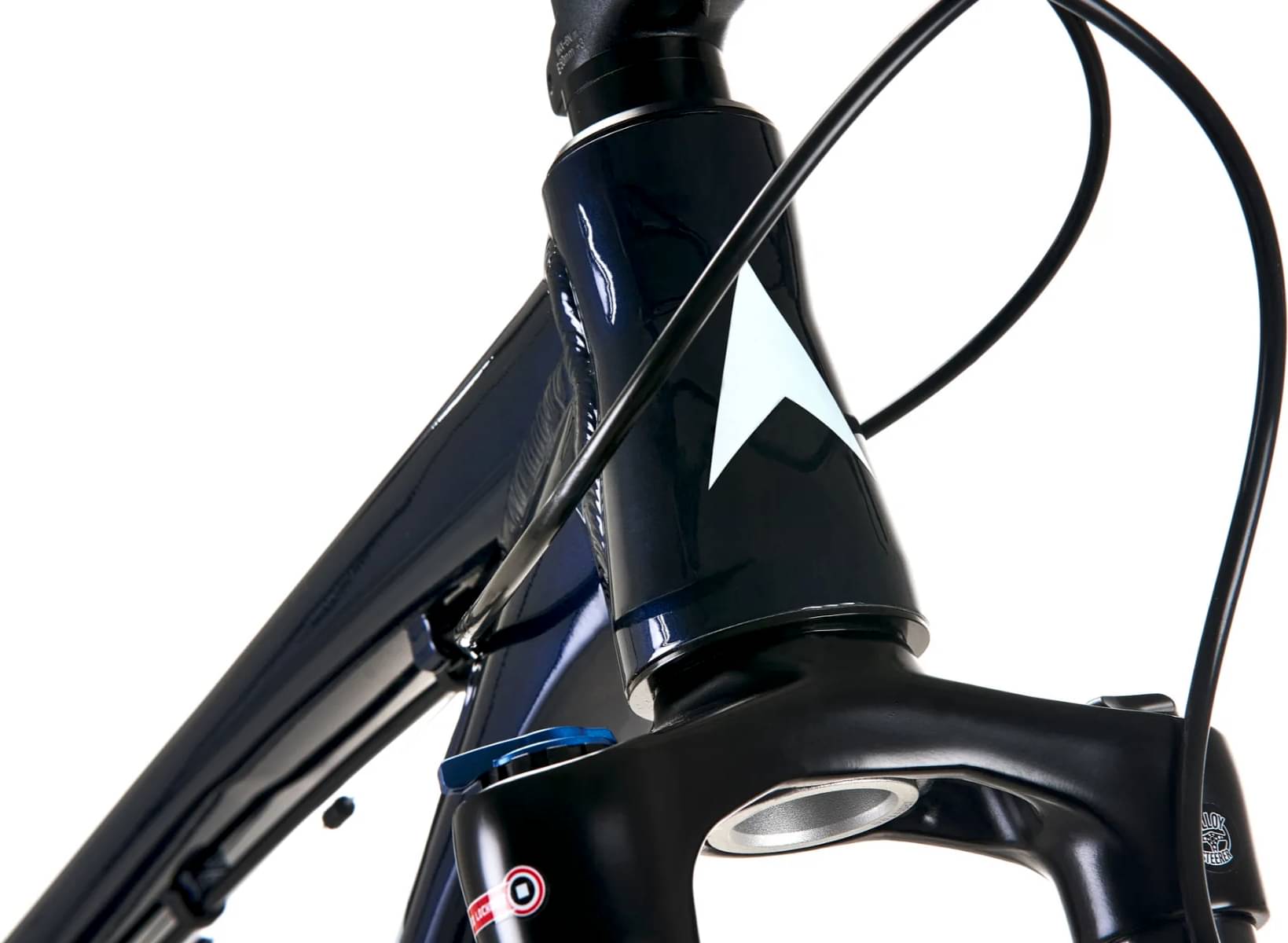

Headset
Neco ZS44/28.6 upper & ZS56/28.6 lower, 1-1/8" Upper To 1.5" Lower Headtube Reduced To Suit 1-1/8" Straight Steerer
Seat
Seatpost
Vitus 6061 Alloy, 31.6mm Diameter x 400mm Long
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 707 mm | 725 mm | 746 mm | 775 mm |
| Rake | 44 mm | 42 mm | 42 mm | 45 mm |
| Trail | 107 mm | 109 mm | 109 mm | 106 mm |
| Stack | 589 mm | 594 mm | 603 mm | 612 mm |
| Reach | 417 mm | 435 mm | 452 mm | 474 mm |
| Top Tube Length | 597 mm | 617 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1125 mm | 1143 mm | 1164 mm | 1193 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 200 cm |
Model Overview
Nucleus 27 VR Blue belongs to the Vitus Nucleus model. Vitus launched 65 bikes of this model so far. Take a sneak peek at all Vitus Nucleus bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Vitus Nucleus 24 Youth Hardtail 2022 has a starting price of 729$. Vitus Nucleus 29 VRS 2022 on the other hand is the most expensive at 972$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 789$. Doing a quick comparison, we notice that Nucleus 27 VR Blue price is 250.06% smaller than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, Nucleus 27 VR Blue has a weight of 13.5 kg (29.76 lbs). In other words, this model is 4.01% heavier than the average Trail bike.
Nucleus 27 VR Blue components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Nucleus 27 VR Blue bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus Nucleus 27 VR Blue is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 200 cm (5.15 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
