Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR 32 Air
-
Groupset microSHIFT, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
142cm - 121cm
SM
149cm - 152cm
MD
167cm - 152cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6, long, slack & low modern geometry
Suspension Fork
120mm Suntour SF14-XCR32 Air
Rear Shock
N/A
Drivetrain
Rear Derailleur
MICROSHIFT MD-462B, 9 speed
Front Derailleur
Shimano RD- M2000 Altus, 2 speed
Shift Levers
Shimano Altus, 2x9 speed
Cassette
Shimano CS-HG200-9 11-32t, 9 speed
Crank
Suntour CW15-XCM, 175mm, 36x22T
Bottom Bracket
Suntour, Threaded 73mm BSA
Chain
KMC Z9, 9 speed
Wheels
Front Hub
KT, 32H, 100x9mm
Rear Hub
KT, 32H, 135x10mm
Rims
WTB ST i29
Spokes
N/A
Tires
WTB Vigilante Comp (F) TrailBoss Comp (R), 27.5x2.3” with High Grip Compound (F) 27.5x2.25”(R)
Brakes
Brakes
Tektro HD-M290, 160mm rotor
Cockpit
Stem
Vitus, 50mm
Handlebar
Nukeproof Neutron, 31.8mm 25mm rise Widths - S 740mm M 760mm L 780mm XL 780mm
Headset
FSA, 1 1/8 - 1.5 tapered
Seat
Saddle
Vitus
Seatpost
Vitus, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.57 mm | 1.48 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 656 mm | 681 mm | 707 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 112 mm | 112 mm | 112 mm |
| Stack | 590 mm | 595 mm | 599 mm |
| Reach | 357 mm | 380 mm | 404 mm |
| Top Tube Length | 539 mm | 564 mm | 589 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 380 mm | 432 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1071 mm | 1096 mm | 1122 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 149 cm | 167 cm |
| Rider Max Height | 121 cm | 152 cm | 152 cm |
About this model

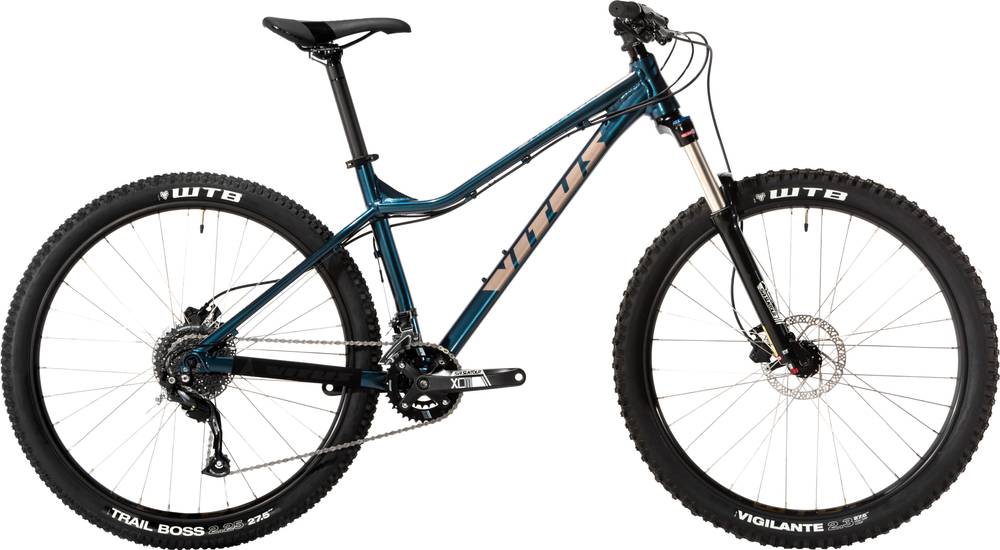

Nucleus 27 VRW completes the Vitus Nucleus model. Vitus released 65 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Vitus Nucleus 24 Kids 2019 is the most affordable bike of this model and has a price of 485$. On the other hand, Vitus Nucleus 27 VRX 2019, is the most expensive and costs 850$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 607$. Doing a quick comparison, we notice that Nucleus 27 VRW price is 355.02% smaller than the average cost of a Trail bike.
Nucleus 27 VRW components
Fork
Vitus Nucleus 27 VRW 2019 bike is equipped with the SunTour XCR 32 Air fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Nucleus 27 VRW bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nucleus 27 VRW has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Nucleus 27 VRW comes in 3 sizes, that range from 142 cm – 152 cm (4.66 ft – 4.99 ft). In short, it won’t be difficult to find the right one for you.
