Vitus Razor Disc Claris 2022
2022 Road
Estimate price |
935$
Weight | 9.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Razor Aluminium, 6061-T6 Double Butted Aluminium, Disc Brake, Internal Cable Routing, Mudguard Mounts, Flat Mount, 12mm x 142mm Hub Spacing, Axle Specifcations: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
Razor Carbon, UD Carbon, Tapered Aluminium Steerer, Mudguard Mounts, Flat Mount, 12 x 100mm Axle
Drivetrain
Rear Derailleur
Shimano Claris R2000, RD-R2000, 8 Speed
Front Derailleur
Shimano Claris R2000, FD-R2000, Braze-On, 2 x 8 Speed
Shift Levers
Shimano Claris R2000, ST-R2000-R, 8 Speed
Cassette
Sunrace M66, 8 Speed, 11-32T
Crank
Prowheel Ounce, 50/34T, 8 Speed, XS:165mm S:170mm M:170mm L:175mm XL:175mm XXL:175mm
Bottom Bracket
Cartridge Square Taper, BSA Threaded, 68mm, English
Chain
KMC HG40, 8 Speed
Wheels
Front Hub
Vitus KT, XF1F-12, 12x100mm, 6 Bolt, 24 Hole
Rear Hub
Vitus KT, M4ZR, 142x12mm, 6 Bolt, 28 Hole, HG Freehub
Rims
Vitus Shining, A-240, 700c, 24 Hole, Eyelets
Tires
Front: Kenda Kwick Roller Sport, 700c x 28c, Rear: Kenda Kwick Roller Sport, 700c x 28c
Brakes
Brakes
Tektro MD-C310 Disc Brake, Flat Mount, Cable Actuated
Cockpit
Stem
Vitus 6061 Aluminium, Bar Bore 31.8mm, +/- 7 degrees, XS:80mm S:90mm M:100mm L:110mm XL:110mm XXL:120mm

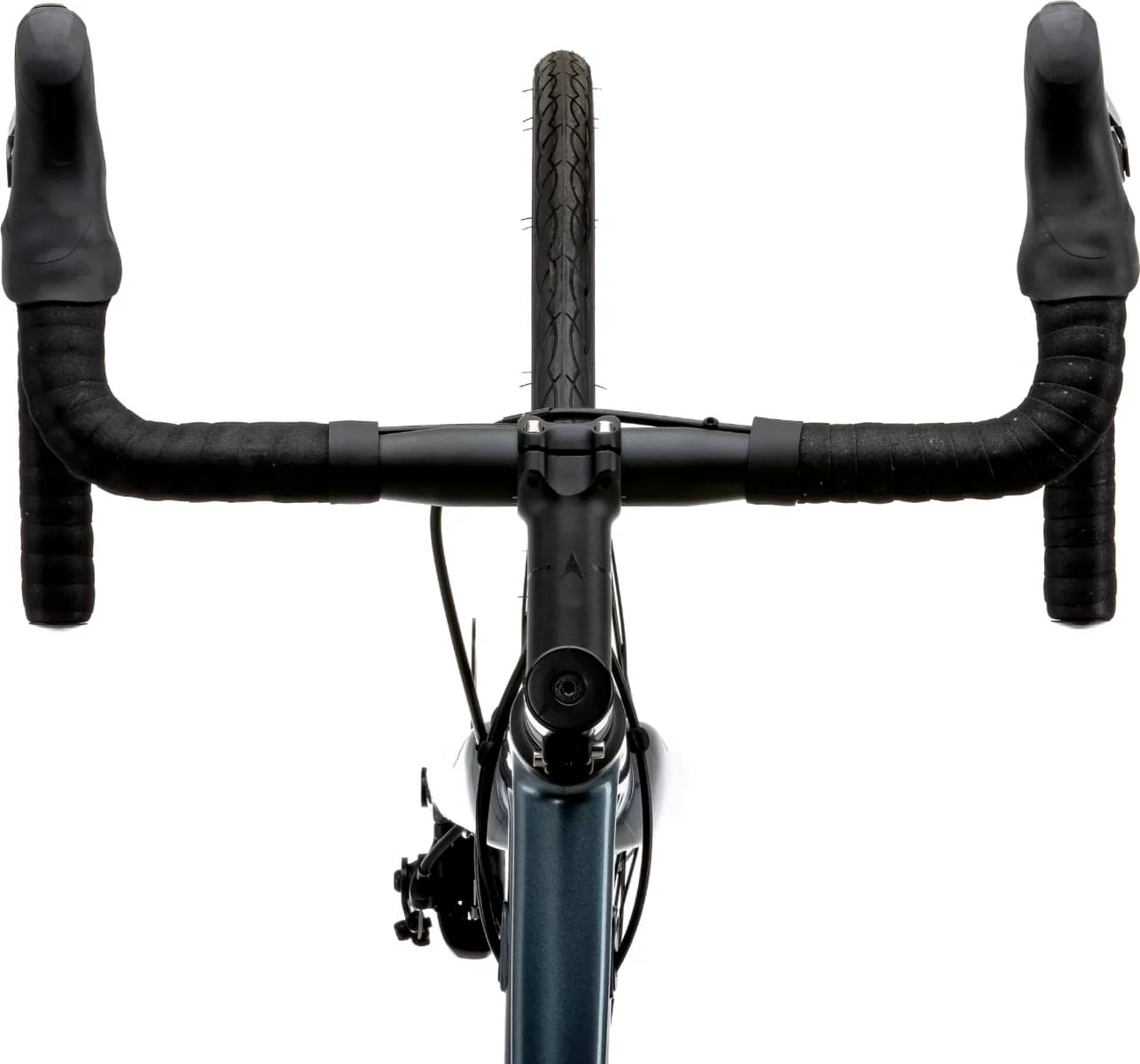

Handlebar
Vitus 6061 Aluminium, 80mm Reach, 124mm Drop, XS:400mm S:400mm M:420mm L:420mm XL:440mm XXL:440mm
Grips
Vitus, EVA Cork
Headset
Neco Integrated Threadless Headset, Sealed Bearings, OD46/56 for 1 1/8” – 1 ½” tapered steerer
Seat

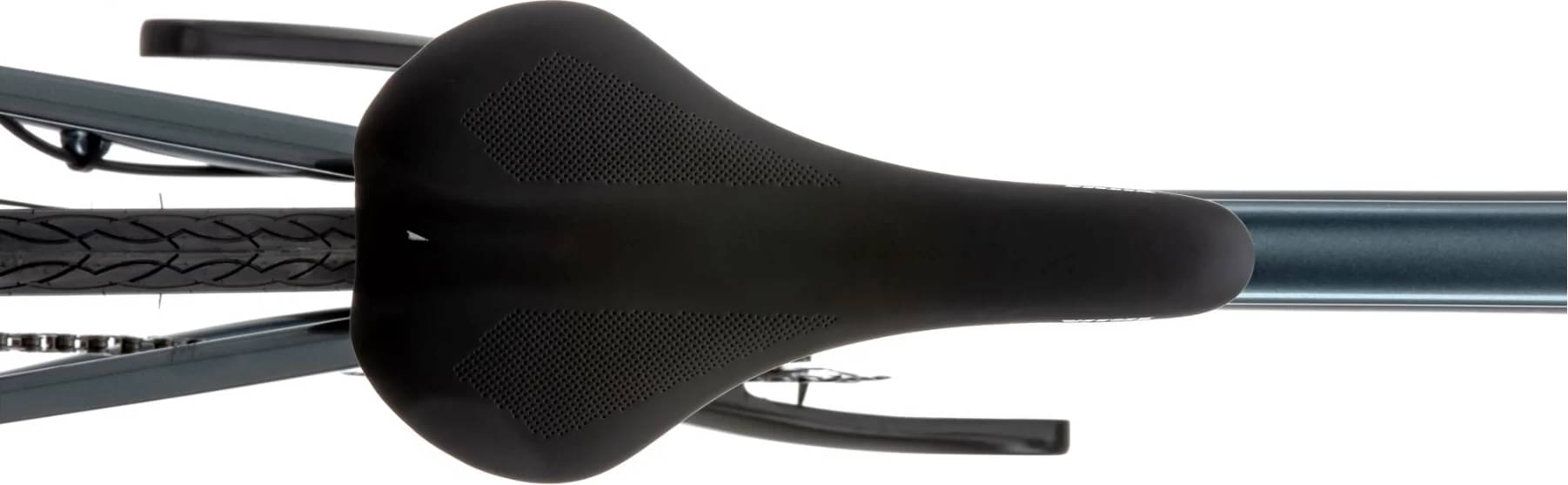

Saddle
Vitus, Steel Rail

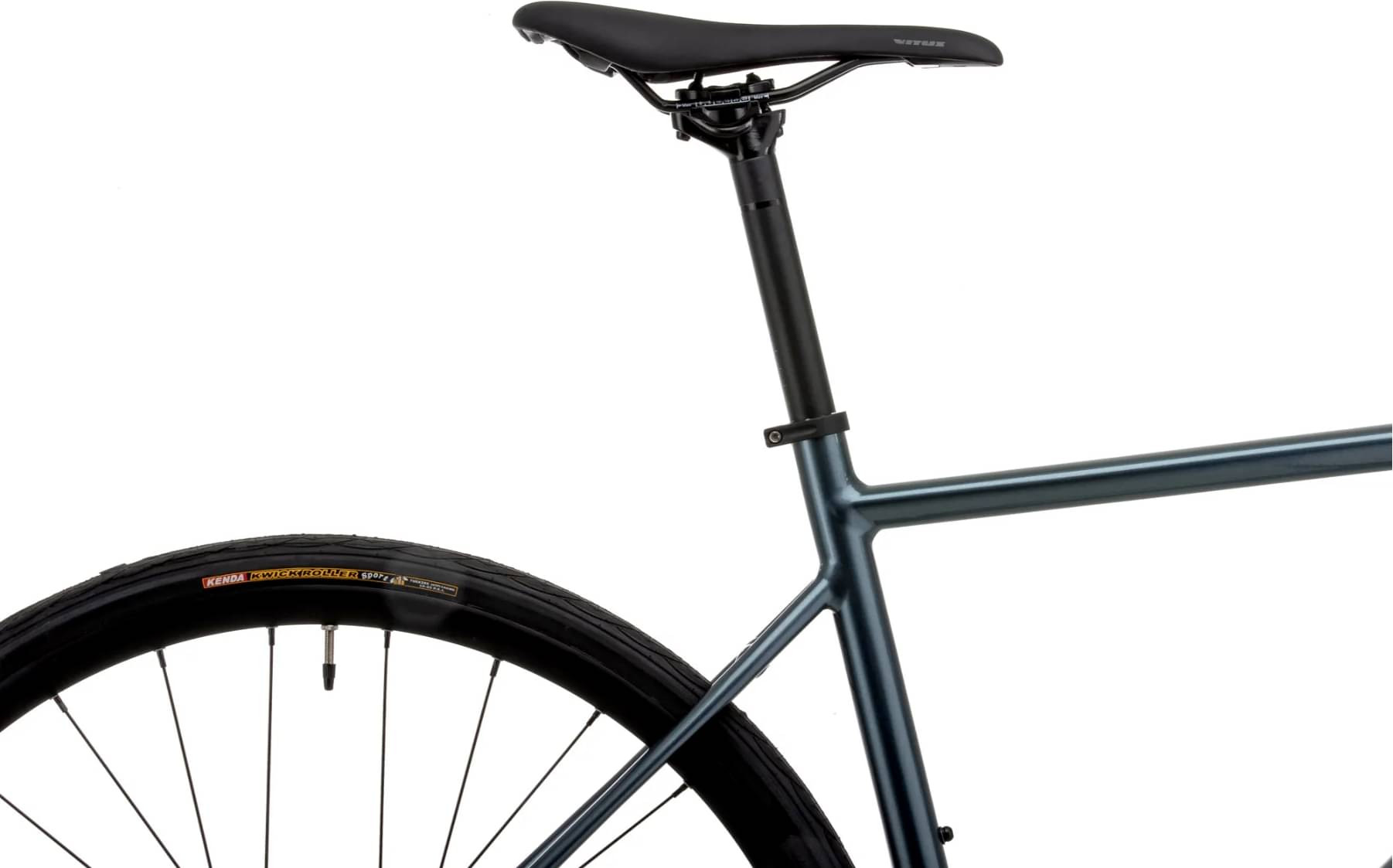

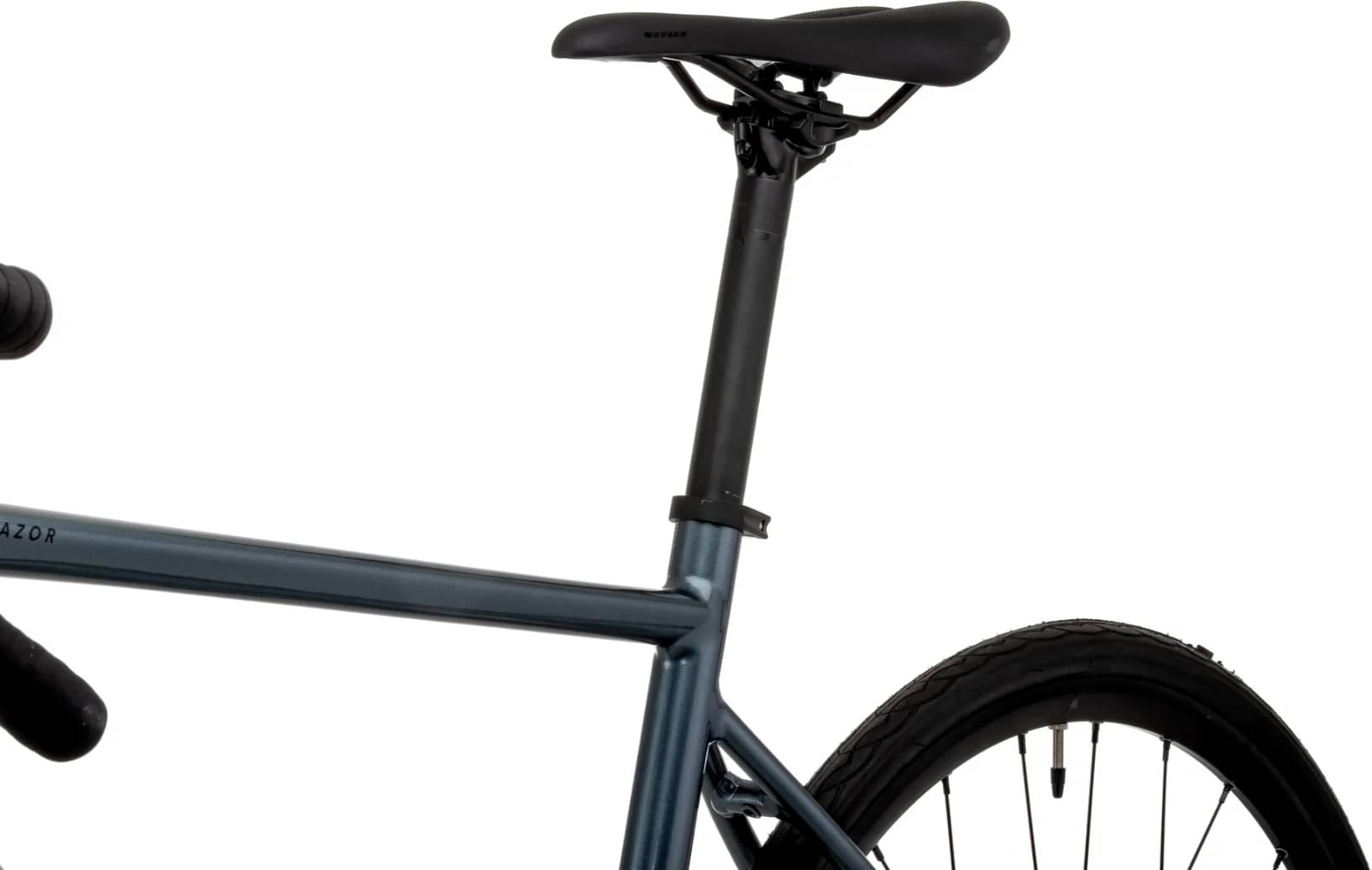

Seatpost
Vitus 6061 Aluminium, 27.2mm x 350mm, 12mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.45 mm | 1.49 mm | 1.53 mm | 1.58 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 270 mm | 270 mm |
| Front Center | 584.3 mm | 588.6 mm | 595.2 mm | 598.3 mm | 610.8 mm | 625.2 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 60 mm | 59 mm | 56 mm | 52 mm | 52 mm | 51 mm |
| Stack | 522.2 mm | 536.9 mm | 557 mm | 576.2 mm | 600 mm | 631 mm |
| Reach | 377 mm | 380 mm | 384 mm | 388 mm | 393 mm | 399 mm |
| Top Tube Length | 522.9 mm | 533.7 mm | 547.6 mm | 561.6 mm | 576.1 mm | 591.6 mm |
| Seat Tube Angle | 74.35 ° | 74 ° | 73.6 ° | 73.2 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 71.4 ° | 71.8 ° | 72.2 ° | 72.9 ° | 72.9 ° | 73 ° |
| Head Tube Length | 120.07 mm | 134 mm | 154 mm | 171 mm | 197 mm | 229 mm |
| Chainstay Length | 416 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 991 mm | 993 mm | 1000 mm | 1003 mm | 1015 mm | 1030 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 66 mm | 66 mm |
| Standover Height | 729 mm | 746 mm | 765 mm | 784 mm | 805 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
Razor Disc Claris completes the Vitus Razor model. 58 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Vitus Razor W 2022 is the most economical model, with a starting price of 729$. Vitus Razor VR Disc Sora 2022 on the other hand costs 972$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2022 and its price was 850$. If we compare this with the average Endurance bike cost we notice that the price is 176% smaller.
Average weight for Endurance bikes
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Vitus Razor Disc Claris it’s weighing 9.1 kg (20.06 lbs). At this weight, is considerably heavier than average. To sum up, it’s 10.98% heavier than the average weight of Endurance bikes.

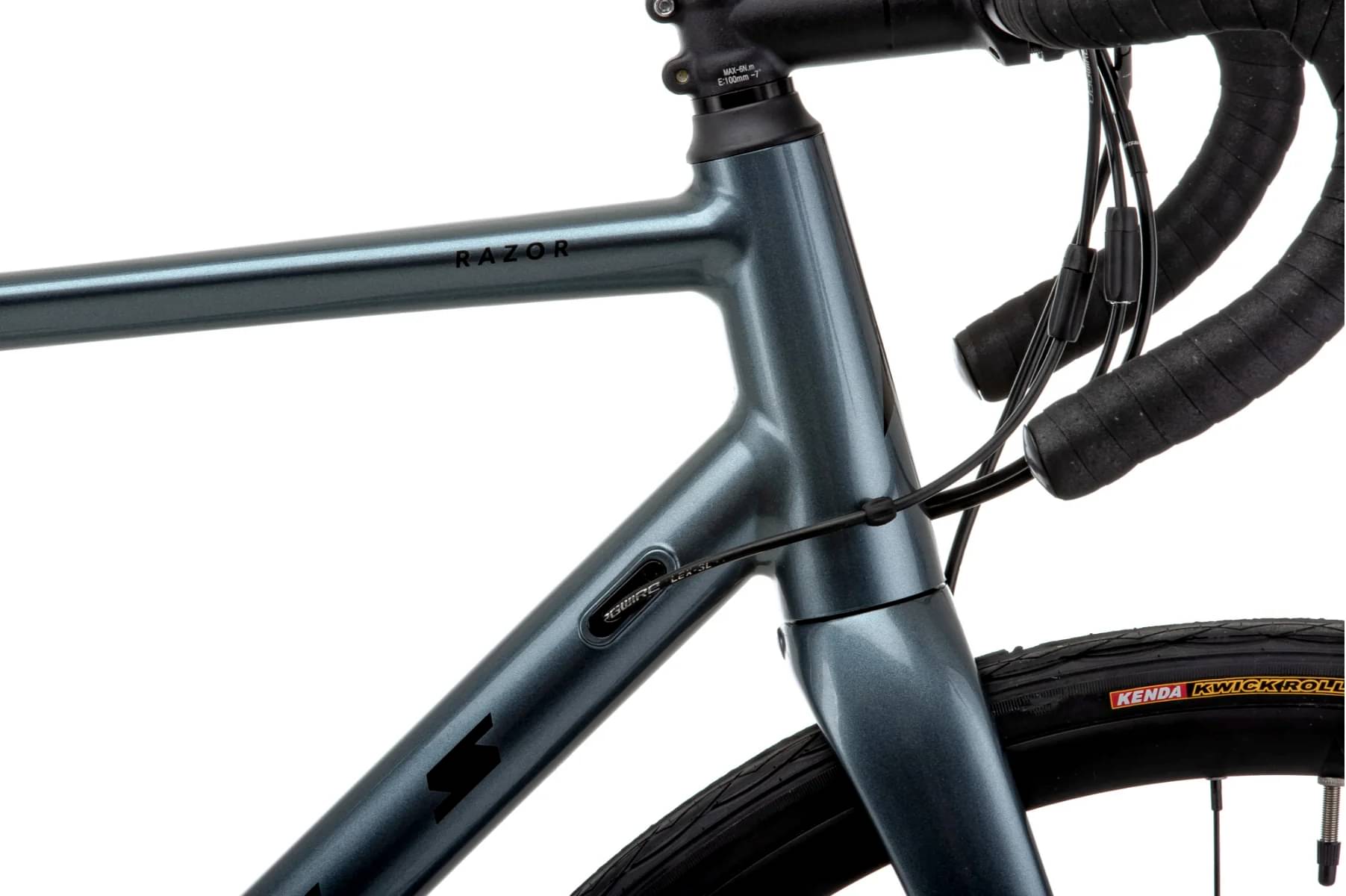

Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Razor Disc Claris components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Razor Disc Claris 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.

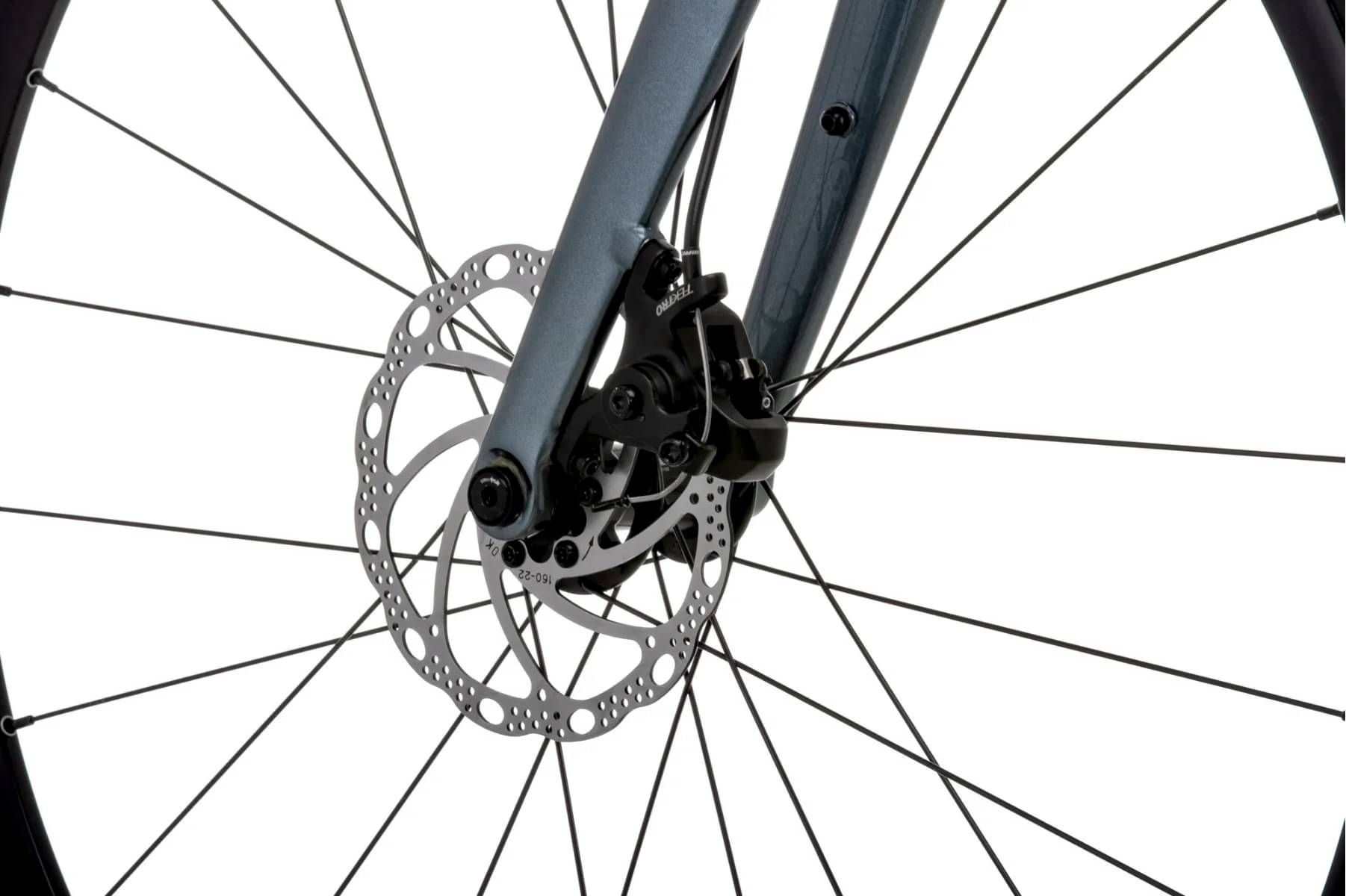

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Razor Disc Claris comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Vitus Razor Disc Claris bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, you can easily find one that suits you.
