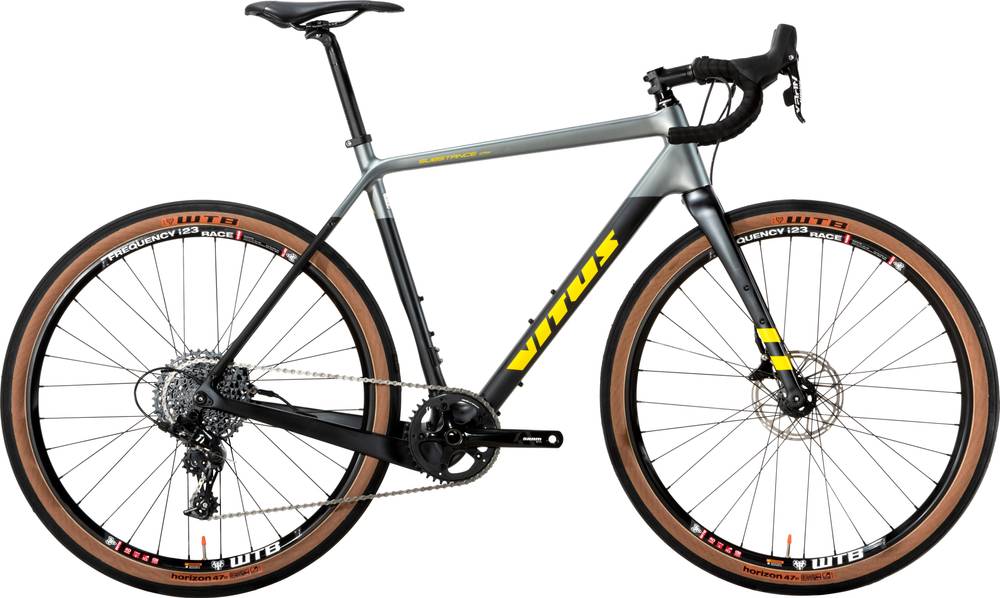

Vitus Substance CRX 2019
2019 Road
Estimate price |
2,408$
Weight | 9.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset Apex, Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon T700-HM UD
Suspension Fork
UD Full carbon Tapered Steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Apex 1X Long Cage
Front Derailleur
n/a (braze on adapter supplied)
Shift Levers
SRAM Apex 1X HRD
Cassette
SRAM XG-1150 10-42T
Crank
SRAM APEX 1 Xsync 40T
Bottom Bracket
SRAM
Chain
SRAM PC 1110
Wheels
Front Hub
Alex Bear Claw
Rear Hub
Alex Bear Claw
Rims
WTB Frequency Race i23 TCS 650B Tubeless Ready
Spokes
Vitus
Tires
WTB Horizon 650 x 47c Road Plus TCS
Brakes
Brakes
SRAM Apex HRD Flat Mount 160mm Rotors
Cockpit
Stem
Vitus
Handlebar
Vitus Adventure Flared
Headset
FSA
Seat
Saddle
Vitus
Seatpost
Vitus
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.52 mm | 1.55 mm | 1.58 mm |
| Front Center | 589.1 mm | 595.3 mm | 595.4 mm | 605.7 mm | 615.2 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 67 mm | 55 mm | 55 mm |
| Stack | 541.6 mm | 562.4 mm | 573 mm | 594.8 mm | 613.9 mm |
| Reach | 371 mm | 374.8 mm | 376 mm | 384.6 mm | 387.9 mm |
| Top Tube Length | 530 mm | 540 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1020 mm | 1026 mm | 1016 mm | 1036 mm | 1046 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Substance CRX is a Vitus Substance model. There are 50 bikes that carry this model name. You can easily view all of the Vitus Substance bikes models from 2019, here.
Model range prices
Vitus Substance FB 2019 is the most economical model, with a starting price of 1033$. Vitus Substance CRX 2019 on the other hand costs 2188$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2019 and its price was 2188$. Doing a quick comparison, we notice that Substance CRX price is 12.52% smaller than the average cost of a Gravel bike.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 9.3 kg (20.5 lbs), the Substance CRX model is considerably heavier than average. In other words, this model is 14.39% heavier than the average Gravel bike.
Substance CRX components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Substance CRX model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Substance CRX comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Substance CRX comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
