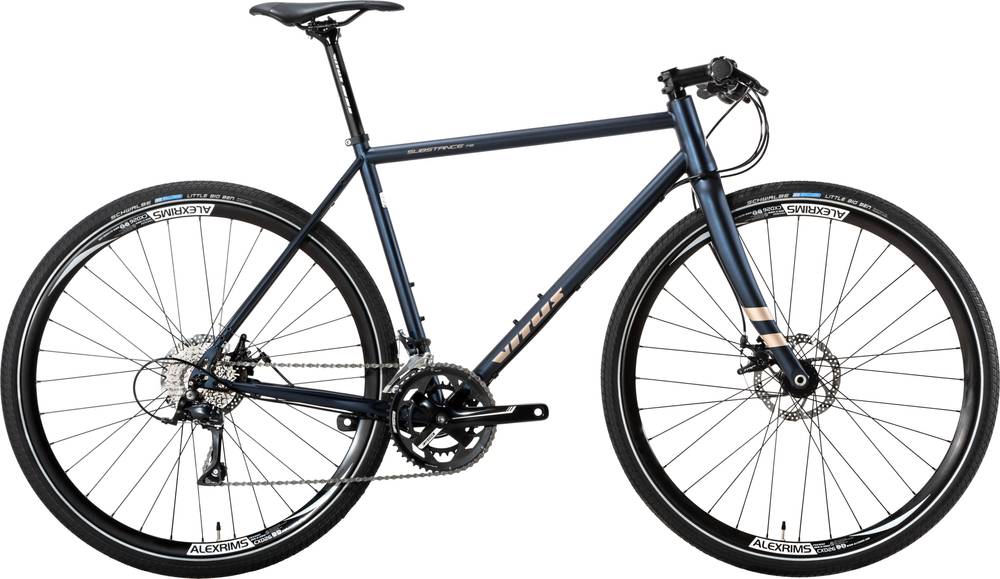

Vitus Substance FB 2019
2019 Road
Estimate price |
1,136$
Weight | 11.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted Cro-Moly FB Specific
Suspension Fork
UD Full carbon 1-1/8"
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Sora RD-R3000
Front Derailleur
Shimano Sora FD-R3000
Shift Levers
Shimano Sora R3000
Cassette
Shimano HG-400 11-32T
Crank
FSA CK-616ST 48-32T
Bottom Bracket
FSA
Chain
KMC Z9
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
WTB STP i23 TCS 700c Tubeless Ready
Spokes
Vitus
Tires
Schwalbe Little Big Ben 700 x 38c RaceGuard Reflective Sidewall
Brakes
Brakes
TRP Spyre Mechanical Flat Mount 160mm Rotors
Cockpit
Stem
Vitus
Handlebar
Vitus Adventure Flared
Headset
FSA
Seat
Saddle
Prime Ti Road
Seatpost
Vitus
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.318 mm | 1.326 mm | 1.336 mm | 1.359 mm | 1.36 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 625.4 mm | 631.4 mm | 642.2 mm | 650.3 mm | 661.3 mm | 670.4 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 77 mm | 75 mm | 71 mm | 70 mm | 71 mm | 70 mm |
| Stack | 532.7 mm | 549.5 mm | 566.3 mm | 575.7 mm | 593.8 mm | 605.2 mm |
| Reach | 413 mm | 417 mm | 427 mm | 431 mm | 437 mm | 445 mm |
| Top Tube Length | 563.7 mm | 574.5 mm | 594.7 mm | 602.5 mm | 616.2 mm | 627.7 mm |
| Seat Tube Angle | 74.2 ° | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 485 mm | 505 mm | 525 mm | 545 mm | 565 mm | 585 mm |
| Head Tube Angle | 70.6 ° | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 108 mm | 123 mm | 140 mm | 150 mm | 169 mm | 180 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 440 mm | 440 mm |
| Wheelbase | 1051 mm | 1057 mm | 1068 mm | 1076 mm | 1092 mm | 1101 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
Substance FB belongs to the Vitus Substance model. Vitus released 50 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Vitus Substance FB 2019 is the most affordable bike of this model and has a price of 1033$. On the other hand, Vitus Substance CRX 2019, is the most expensive and costs 2188$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Vitus released this model in 2019, its price was 1033$. Doing a quick comparison, we notice that Substance FB price is 138.33% lower than the average cost of a Gravel bike.
Gravel bikes average weight
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 11.4 kg (25.13 lbs), the Substance FB model is much heavier than average. In other words, this model is 40.22% heavier than the average Gravel bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Vitus Substance FB 2019, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Substance FB has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Substance FB comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
