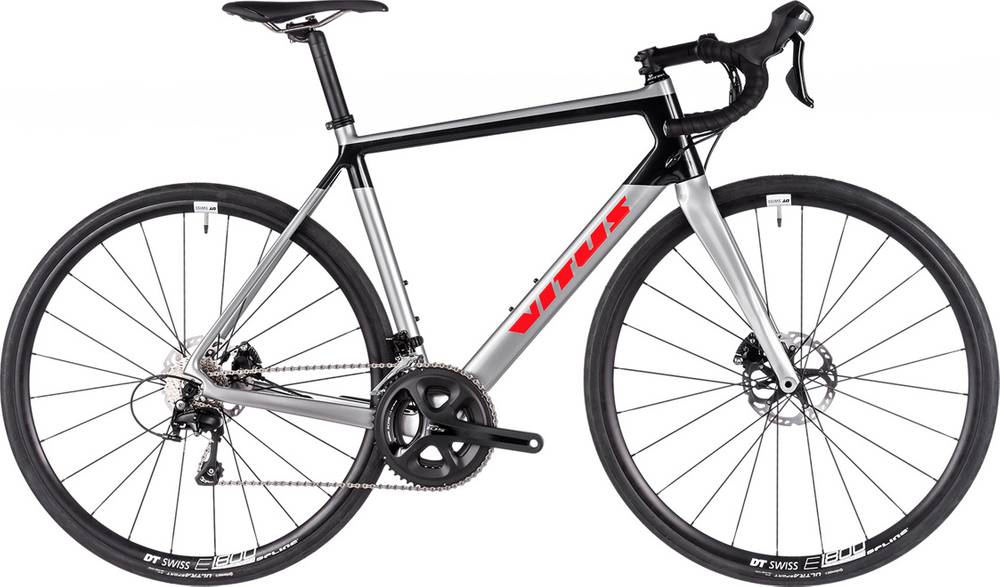

Vitus Venon CR Disc 105 2018
2018 Road
Estimate price |
2,408$
Weight | 8.87 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 172cm
SM
170cm - 177cm
MD
174cm - 152cm
LG
180cm - 189cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, 142x12mm Thru axle, UD, Raw finish
Suspension Fork
Carbon, Raw finish, 100x12mm Thru axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano 105, 11 speed GS cage
Front Derailleur
Shimano 105, 2x Braze on
Shift Levers
Shimano 105, 2 x 11 speed
Cassette
shimano 105, 11 speed 11-28t
Crank
Shimano 105, 52x36t, 50/52cm-170mm, 54/56cm-172.5, 58/60cm-175mm
Bottom Bracket
Shimano, Hollowtech II
Chain
KMC X11
Wheels
Front Hub
DT Swiss E1800, 100x12mm Thru Axle
Rear Hub
DT Swiss E1800, 142x12mm Thru axle
Rims
DT Swiss E1800
Spokes
Double butted
Tires
Continental Ultra sport II, 700x28c
Brakes
Brakes
Shimano BR-RS505, 160mm centre lock
Cockpit
Stem
Vitus alloy, 52cm-80mm, 54cm-90mm, 56/58cm-100mm, 60cm-120mm
Handlebar
Vitus alloy, 50/52cm 400mm, 54/56cm-420mm, 58/60cm-440mm
Headset
Token - Intergrated Ahead tapered, 1 1/8
Seat
Saddle
Vitus
Seatpost
Vitus carbon, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.44 mm | 1.51 mm | 1.57 mm | 1.62 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 579 mm | 580 mm | 592 mm | 608 mm | 622 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 65 mm | 59 mm | 57 mm | 56 mm | 57 mm |
| Stack | 518 mm | 540 mm | 566 mm | 599 mm | 628 mm |
| Reach | 371 mm | 374 mm | 376 mm | 381 mm | 387 mm |
| Top Tube Length | 515 mm | 530 mm | 545 mm | 566 mm | 580 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 120 mm | 140 mm | 170 mm | 205 mm | 235 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 975 mm | 976 mm | 988 mm | 1004 mm | 1018 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 174 cm | 180 cm | 185 cm |
| Rider Max Height | 172 cm | 177 cm | 152 cm | 189 cm | 193 cm |
Model Overview
Venon CR Disc 105 is a Vitus Venon model. There are 32 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Vitus Venon Disc Tiagra 2018 has a starting price of 1702$. Vitus Venon CRi Disc Ultegra Di2 2018 on the other hand is the most expensive at 3648$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Road bikes average price
Our math shows that the average cost of a dependable General Road bike is 1915$. However, this doesn’t mean that if you spend less money on a General Road bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Vitus released this model in 2018, its price was 2188$. If we compare this with the average General Road bike cost we notice that the price is 14.26% higher.
General Road bikes average weight
On a deeper look, we notice that the average weight of a General Road bike is 9 kg (19.84 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Venon CR Disc 105 weighs 8.87 kg (19.55 lbs) and is slightly lighter than the average. To sum up, it’s 1.47% lighter than the average weight of General Road bikes.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Vitus Venon CR Disc 105 2018, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus Venon CR Disc 105 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Vitus Venon CR Disc 105 bike has 5 sizes, in the range of 165 cm – 193 cm (5.41 ft – 6.33 ft). In short, you can easily find one that suits you.
