Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon T700-HM UD
Suspension Fork
UD Full carbon Tapered
Drivetrain
Rear Derailleur
Ultegra R8000
Front Derailleur
Ultegra R8000
Shift Levers
Shimano Ultegra R8020
Cassette
CS-R8000 11-30T
Crank
Ultegra FC-R8000 52-36T
Bottom Bracket
BB386EVO
Chain
KMC X11-1 with Quick-Link
Wheels
Front Hub
Prime
Rear Hub
Prime
Rims
Prime Black Edition 50mm Full Carbon Clincher TL
Spokes
Prime
Tires
Continental Ultra Sport II
Brakes
Brakes
Shimano Ultegra BR-RS8020 Hydraulic Flat Mount, 160mm Rotor
Cockpit
Stem
Prime Doyenne Alloy Aero
Handlebar
Prime Doyenne Alloy Aero
Headset
Ritchey Comp
Seat
Saddle
Prologo Dimension
Seatpost
Vitus ZX1 Carbon Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.43 mm | 1.42 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 267 mm | 269 mm | 269 mm |
| Front Center | 568.8 mm | 573.2 mm | 580 mm | 590.9 mm | 608.2 mm | 619.5 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 67 mm | 61 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 508 mm | 526 mm | 539.5 mm | 548.5 mm | 561 mm | 579.5 mm |
| Reach | 362 mm | 369.9 mm | 377 mm | 385 mm | 398 mm | 404 mm |
| Top Tube Length | 507 mm | 523 mm | 539 mm | 555 mm | 572 mm | 589 mm |
| Seat Tube Angle | 74.3 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 525 mm | 550 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 959 mm | 964 mm | 971 mm | 983 mm | 1001 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 69 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |

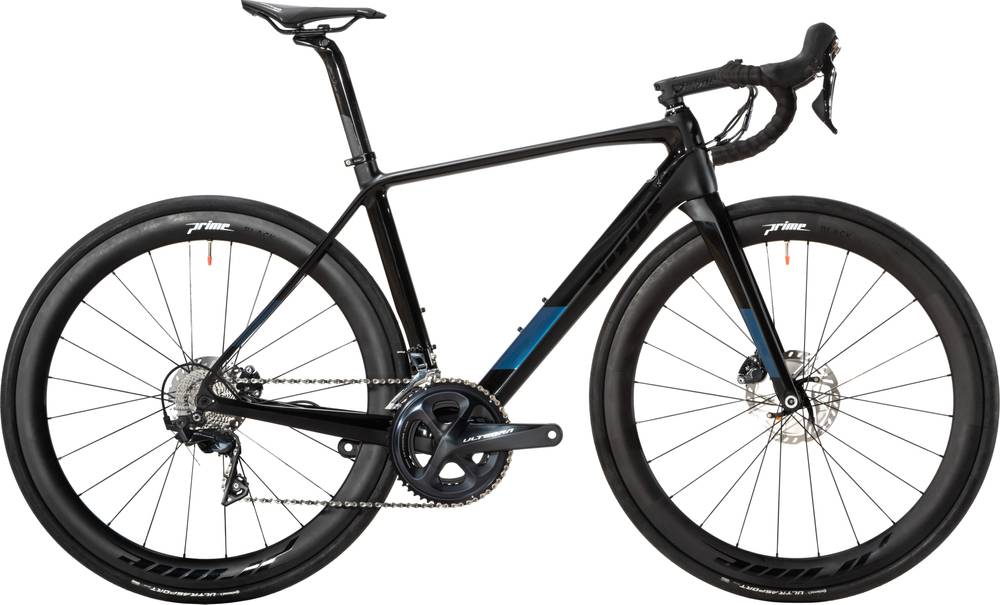

Model Overview
ZX-1 CRS Aero Disc is a Vitus Zx 1 model. 20 bikes variations carry this model name so far. Take a sneak peek at all Vitus Zx 1 bikes models from 2019, by clicking here.
Model range prices
Vitus ZX-1 CR Aero Disc 2019 is the cheapest bike model and costs 2553$. Vitus ZX-1 CRX Aero Disc 2019 is the most expensive one and costs 5594$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 3405$. Comparing the average cost of an Aero bike to this one, you will see that ZX-1 CRS Aero Disc price is 23.67% lower.
ZX-1 CRS Aero Disc components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on ZX-1 CRS Aero Disc are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus ZX-1 CRS Aero Disc has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Vitus ZX-1 CRS Aero Disc bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
