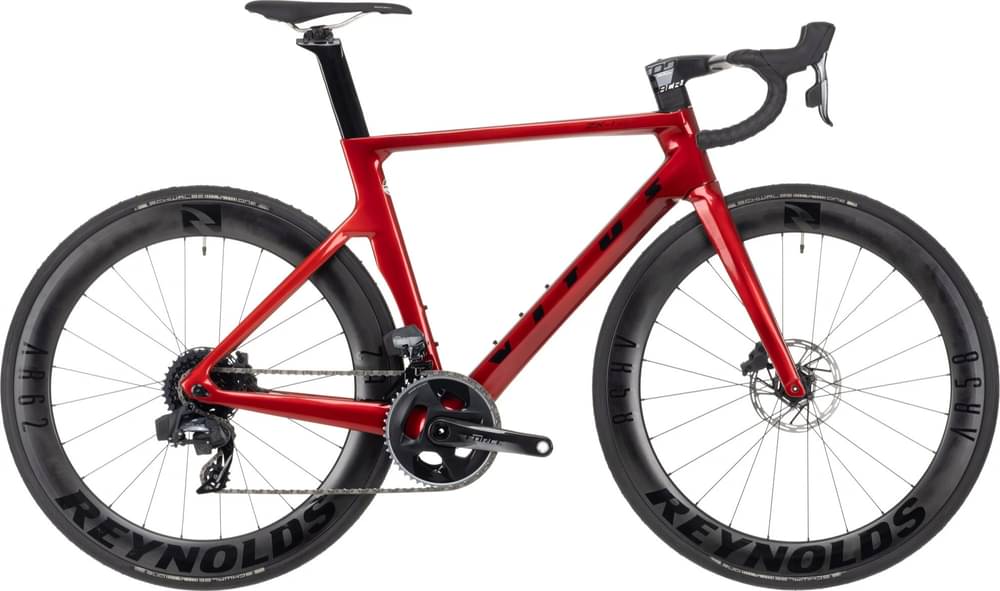

Vitus ZX 1 EVO CRS eTap AXS 2021
2021 Road
Estimate price |
5,619$
Weight | 8.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm axle, Flat Mount
Suspension Fork
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific
Drivetrain
Rear Derailleur
SRAM FORCE eTap AXS, 12 Speed, Short Cage,
Front Derailleur
SRAM FORCE eTap AXS, N/A
Shift Levers
SRAM FORCE eTap AXS 12 Speed
Cassette
SRAM XG 1270 D1, 10-33T
Crank
SRAM FORCE D1 DUB, 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
Bottom Bracket
SRAM DUB 386, DUB For BB386EVO
Chain
SRAM FORCE D1 12 Speed
Wheels
Front Hub
N/A N/A
Rear Hub
N/A, N/A
Rims
N/A N/A
Spokes
N/A N/A
Tires
Schwalbe ONE Performance, 700c x 25, Tubeless Ready TLE, Race Guard
Brakes
Brakes
SRAM FORCE eTap AXS D1 Disc, Hydraulic Disc, Flat Mount
Disk Rotors
SRAM Paceline, Front:160mm, Rear:140mm
Cockpit
Stem
Vision Metron 5D ACR Integrated Bar Bore 31.8mm, - 6 degrees, XS:100mm S:100mm M:110mm L:110mm XL:120mm XXL:120mm
Handlebar
Vision Metron 5D ACR Integrated UD Carbon, 75mm Reach, 125mm Drop, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm, Inc Computer Mount
Grips
VITUS SuperGrip Anti Slip
Headset
FSA/Vitus ACR Sealed Bearings, 1.5" 36x45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover
Seat
Saddle
VITUS Race Performance CRN-Ti Rail, Pressure Relief Channel
Seatpost
ZX-1 EVO Aero +20mm/-2mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.4 mm | 1.42 mm | 1.42 mm | 1.43 mm |
| Bottom Bracket Height | 266 mm | 267 mm | 267 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 590 mm | 591 mm | 599.9 mm | 611 mm | 623 mm |
| Rake | 51 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 58 mm | 57 mm | 55 mm | 53 mm | 52 mm |
| Stack | 502 mm | 524 mm | 545 mm | 564 mm | 580 mm | 597 mm |
| Reach | 374 mm | 383 mm | 389 mm | 398 mm | 408 mm | 418 mm |
| Top Tube Length | 522 mm | 539 mm | 553 mm | 568 mm | 583 mm | 594 mm |
| Seat Tube Angle | 73.6 ° | 73.5 ° | 73.4 ° | 73.3 ° | 73.2 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.9 ° | 71.6 ° | 72.4 ° | 72.9 ° | 73.2 ° | 73.5 ° |
| Head Tube Length | 89.5 mm | 112.3 mm | 129.6 mm | 147.8 mm | 164.5 mm | 181 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 981 mm | 992 mm | 993 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 69 mm | 69 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 754 mm | 776 mm | 796 mm | 817 mm | 833 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
ZX 1 EVO CRS eTap AXS completes the Vitus Zx model. Vitus launched 14 bikes of this model so far. Take a sneak peek at all Vitus Zx bikes models from 2021, by clicking here.
Model range prices
Vitus ZX 1 EVO CR 2021 is the cheapest bike model and costs 3405$. Vitus ZX 1 EVO CRX eTap AXS 2021 is the most expensive one and costs 6567$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5108$. Doing a quick comparison, we notice that ZX 1 EVO CRS eTap AXS price is 21.3% more expensive than the average cost of an Aero bike.
Average weight for Aero bikes
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
ZX 1 EVO CRS eTap AXS weighs 8.2 kg (18.08 lbs) and is considerably heavier than the average. In other words, this model is 11.72% heavier than the average Aero bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the ZX 1 EVO CRS eTap AXS model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus ZX 1 EVO CRS eTap AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Vitus ZX 1 EVO CRS eTap AXS bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
