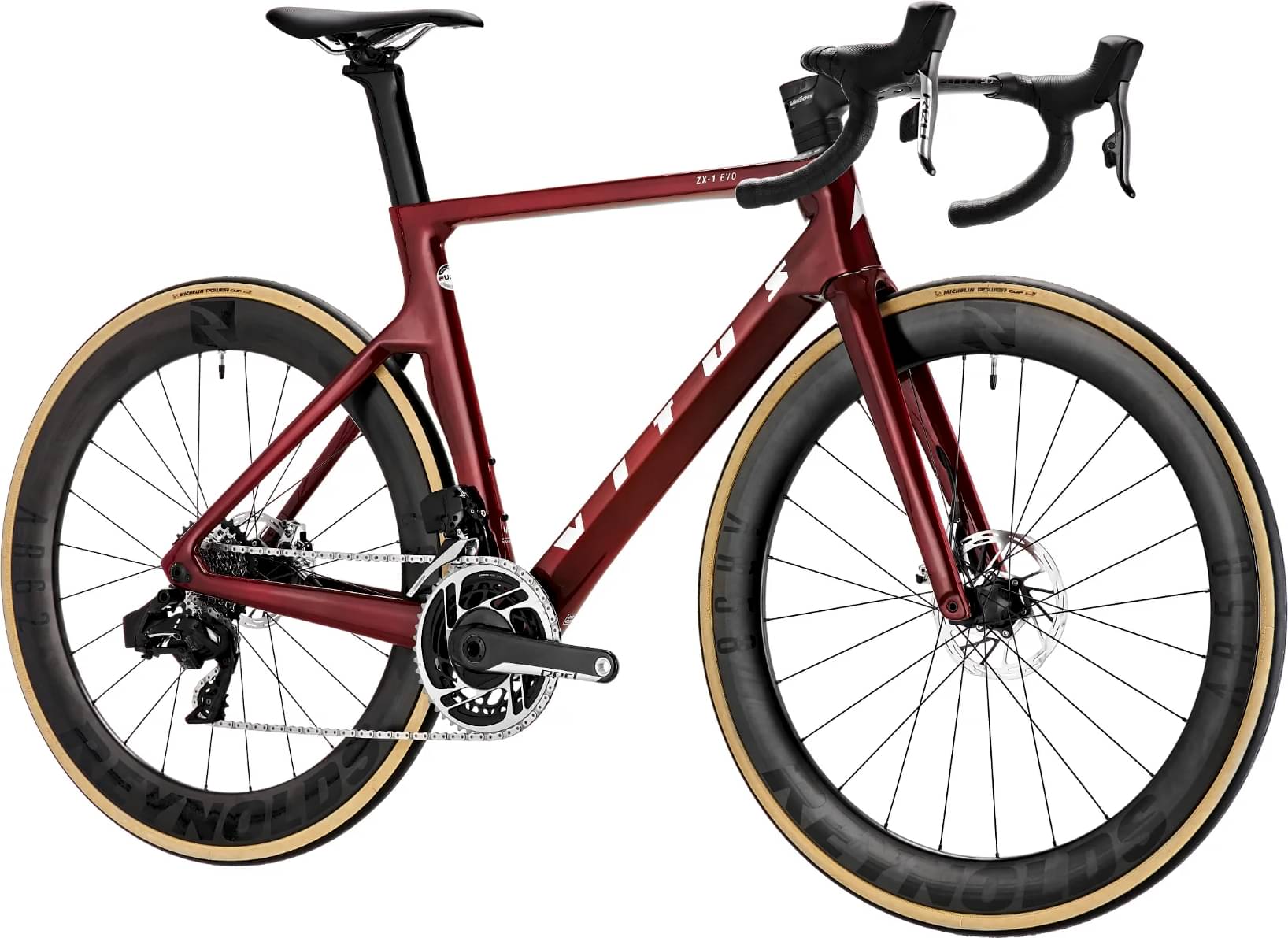

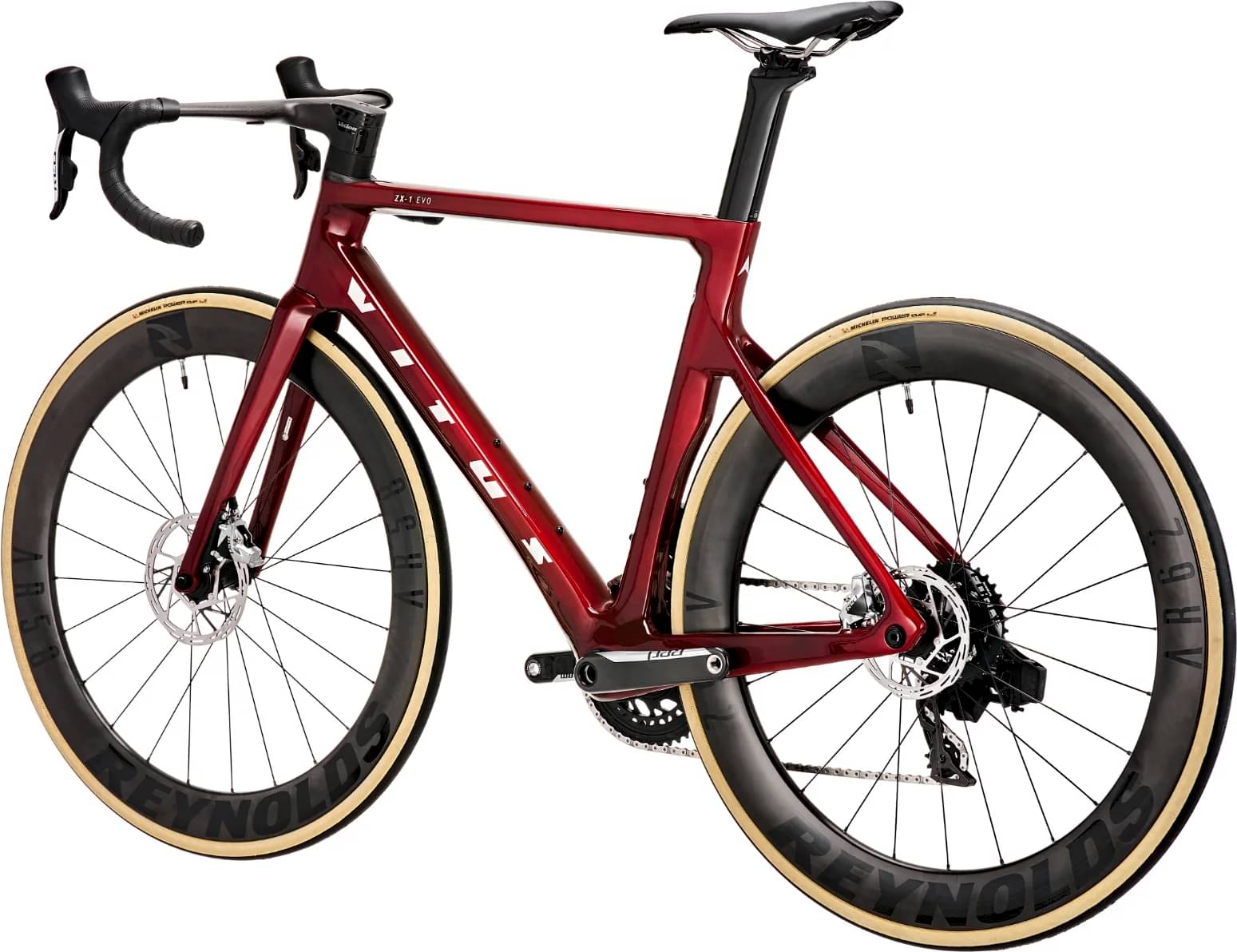

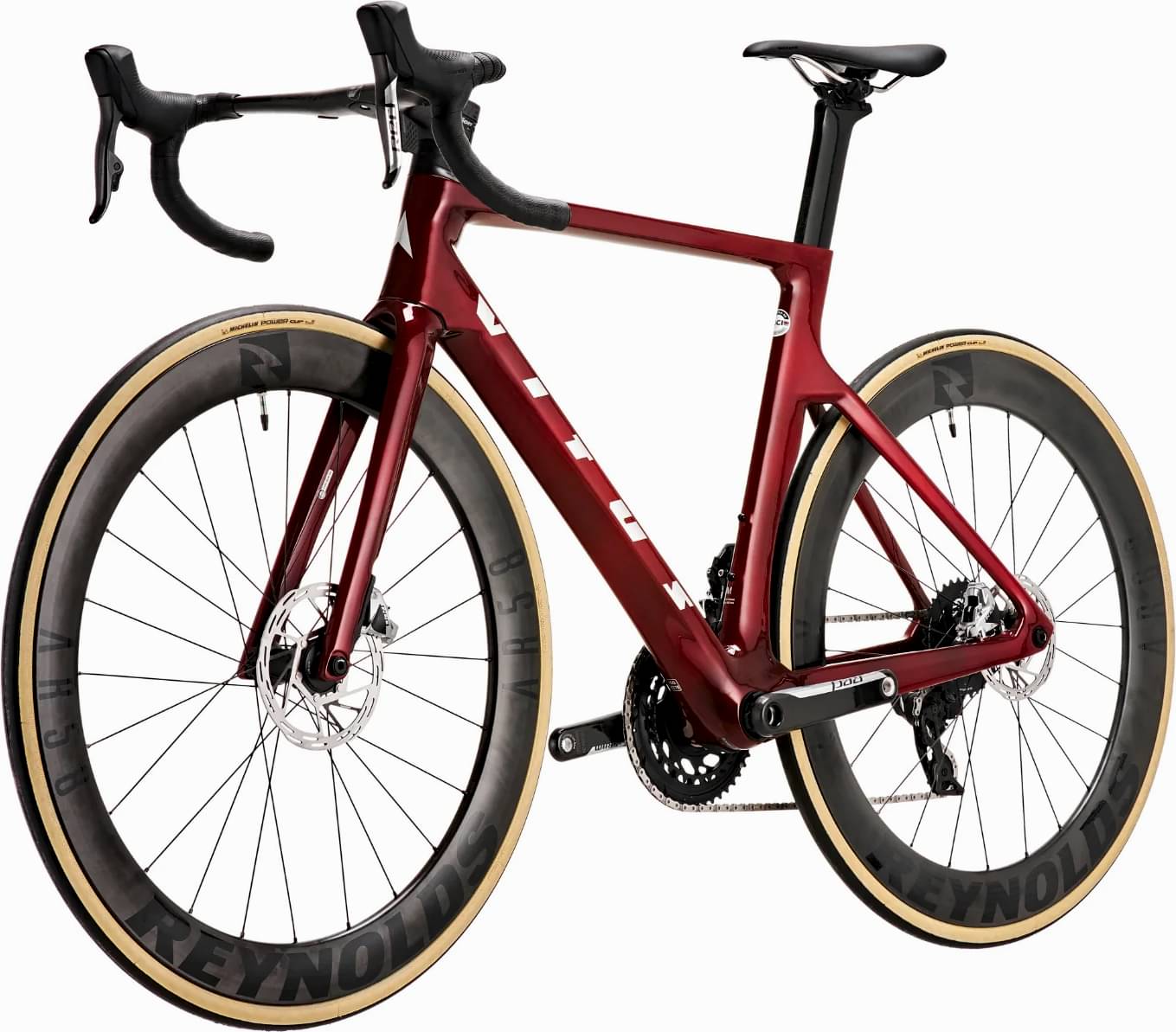

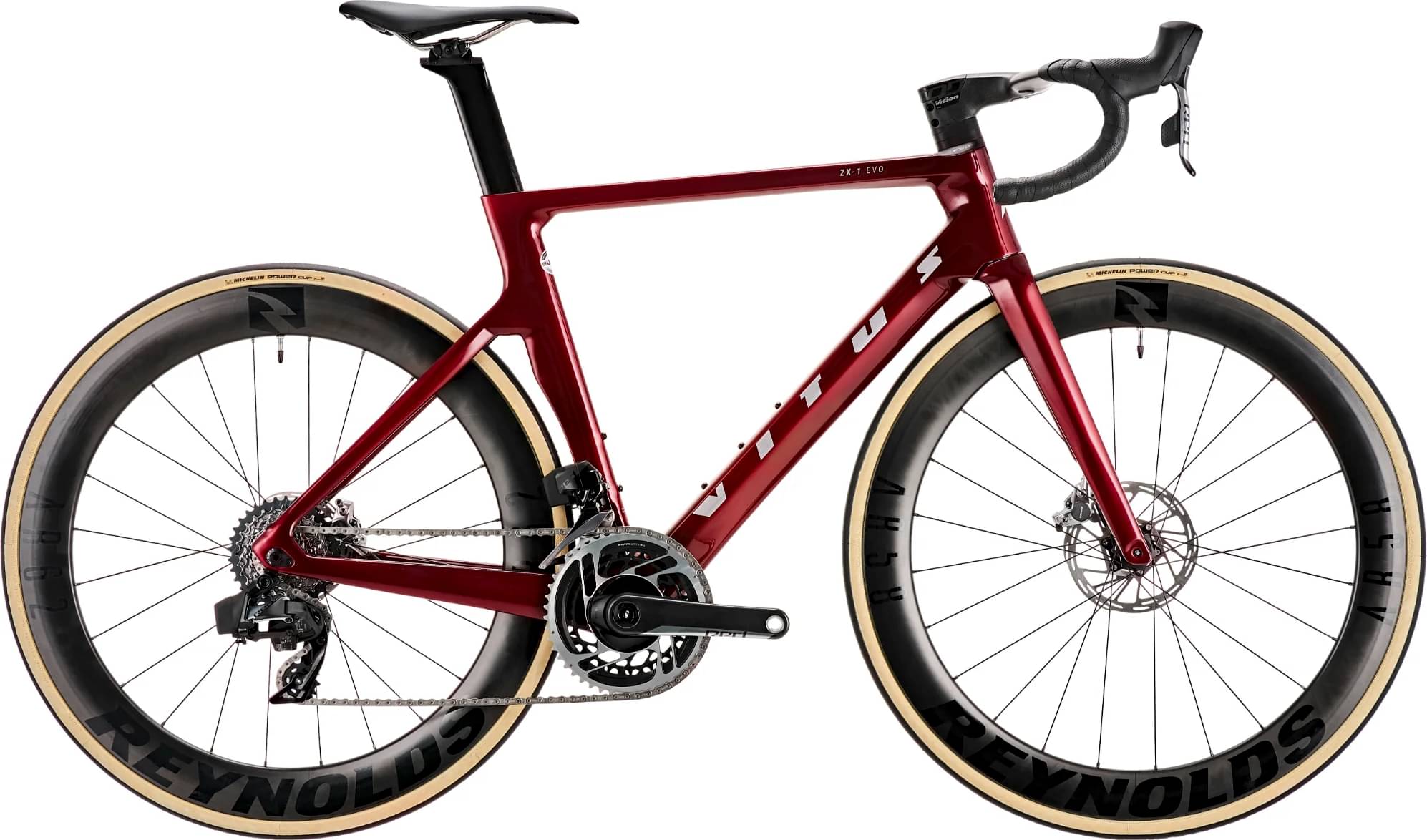

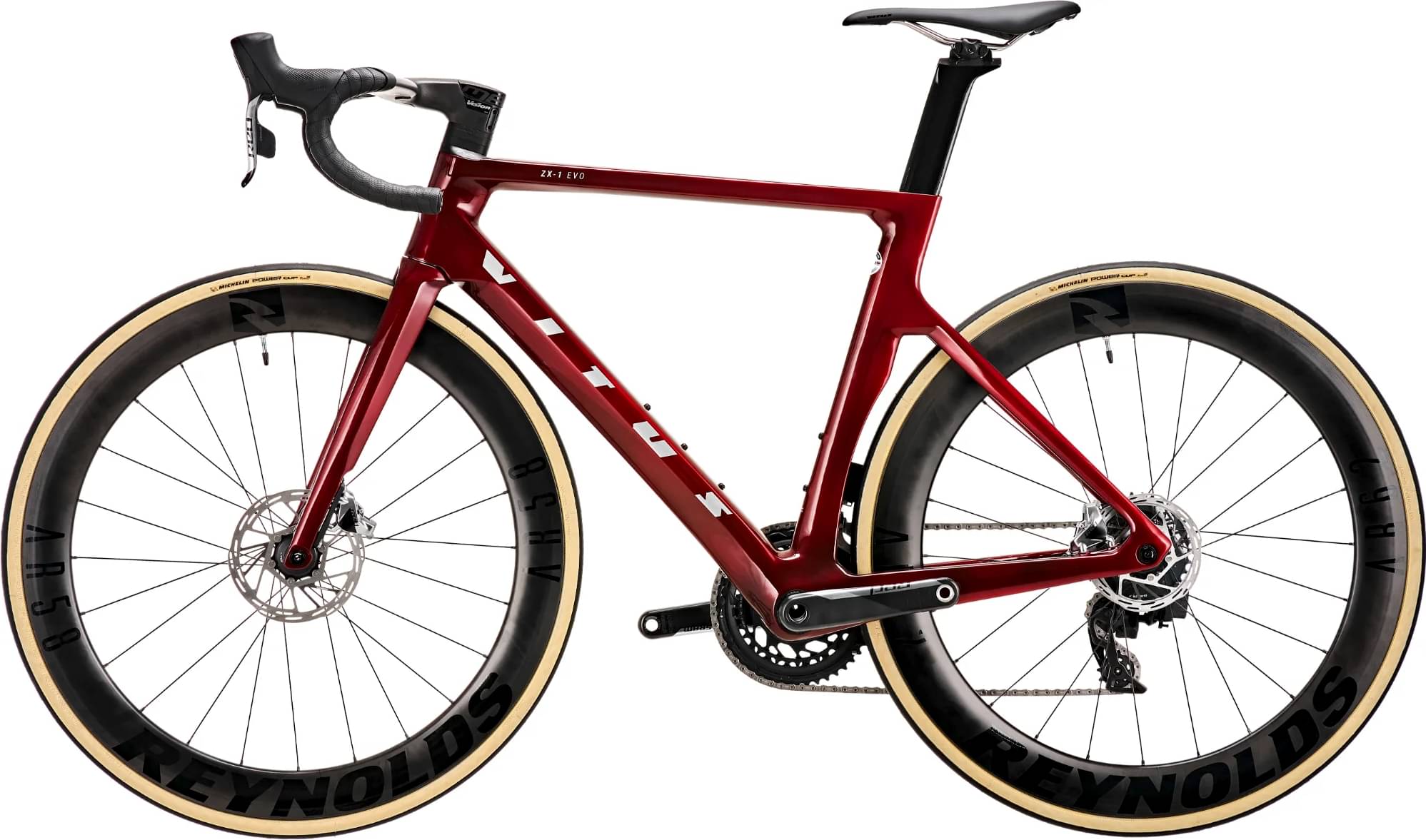

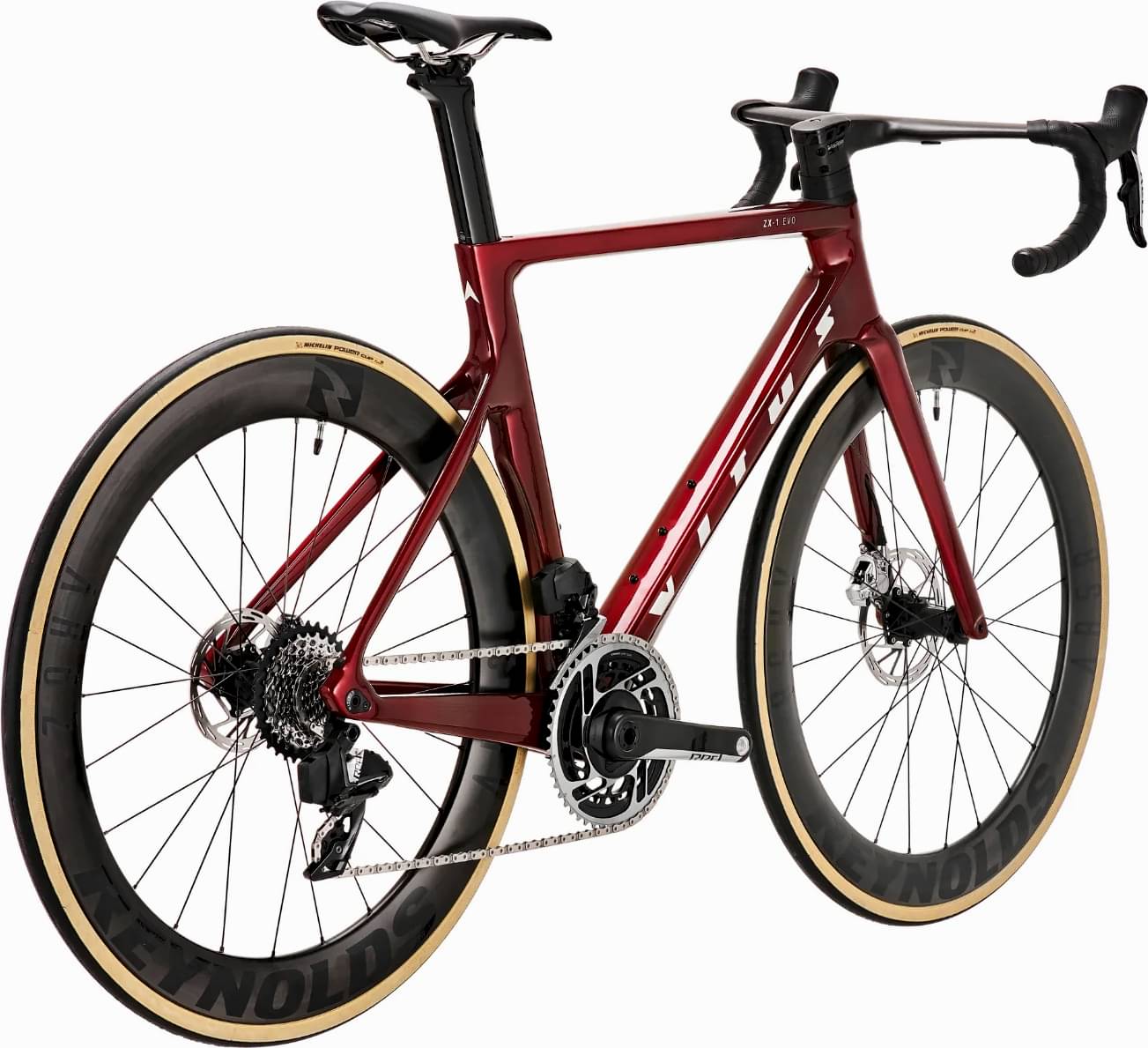

Vitus ZX-1 EVO Red eTap AXS 2023
2023 Road
Estimate price |
8,028$
Weight | 7.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, TapeRed Steerer, 100 x 12mm, Flat Mount, Size Specific Offset
Drivetrain
Rear Derailleur
SRAM Red eTap AXS, 12 Speed, Short Cage
Front Derailleur
SRAM Red eTap AXS, 2 x 12 Speed, Braze-On
Shift Levers
SRAM Red eTap AXS, 12 Speed
Cassette
SRAM XG 1270 D1, 10-33T, 12 Speed
Crank
SRAM Red D1 DUB, 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
Bottom Bracket
SRAM DUB BB386, DUB for BB386EVO
Chain
SRAM Force D1, 12 Speed
Wheels
Front Hub
Reynolds GW TR3, 100 x 12mm, Centre Lock
Rear Hub
Reynolds GW TR3, 142 x 12mm, Centre Lock, XD-R Freehub
Rims
Reynolds AR58, Carbon, TubelessReady, Disc Brake, Rim Depth: 58mm, Inner Rim Width: 19mm, Outer Rim Width: 28mm
Tires
Front: Michelin Power Cup Classic TS TLR, 700c x 25c, Tubeless Ready, Rear: Michelin Power Cup Classic TS TLR, 700c x 25c, Tubeless Ready
Brakes
Brakes
SRAM Red eTap AXS D1 Disc, Hydraulic Disc, Flat Mount
Cockpit

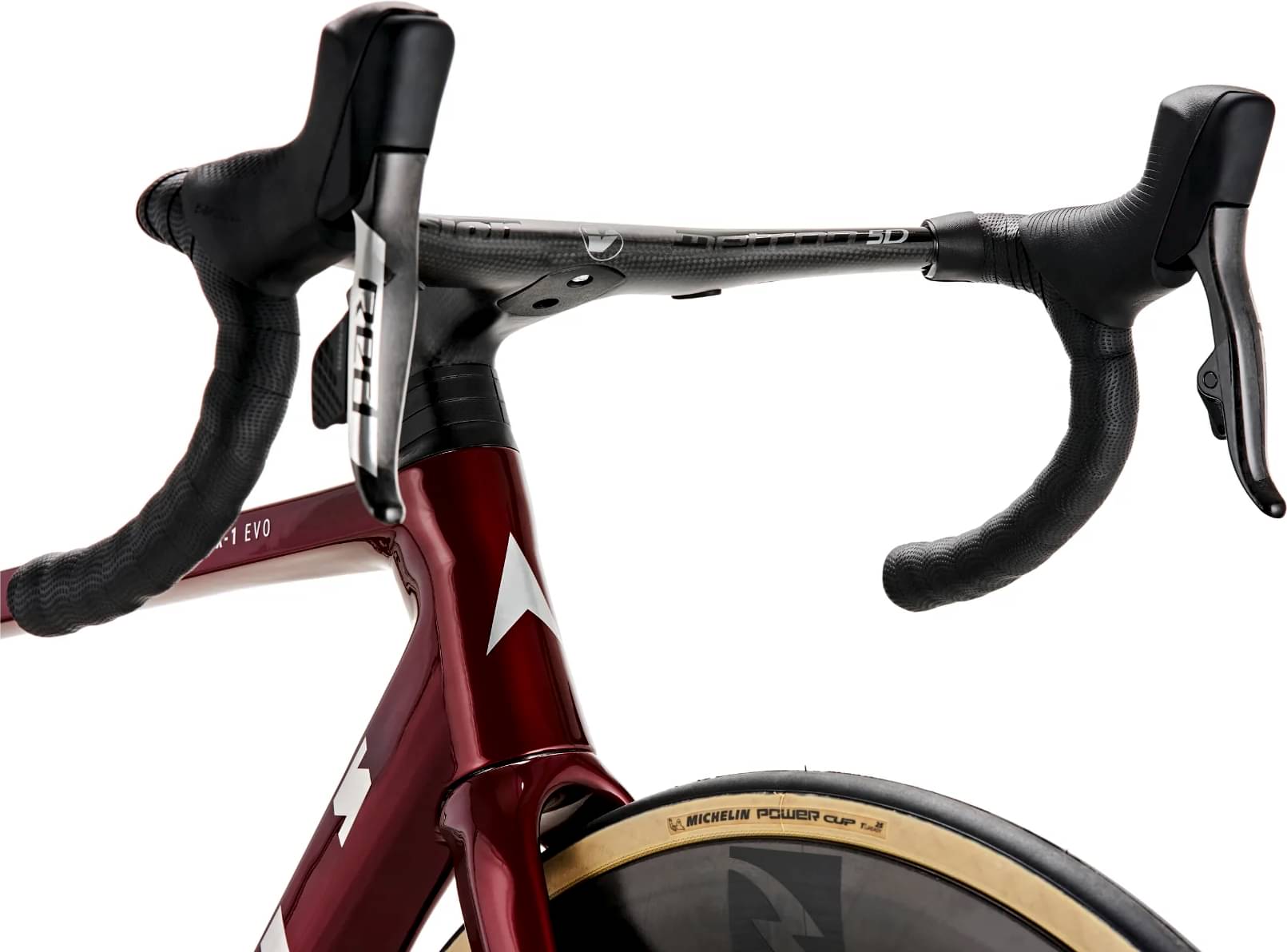

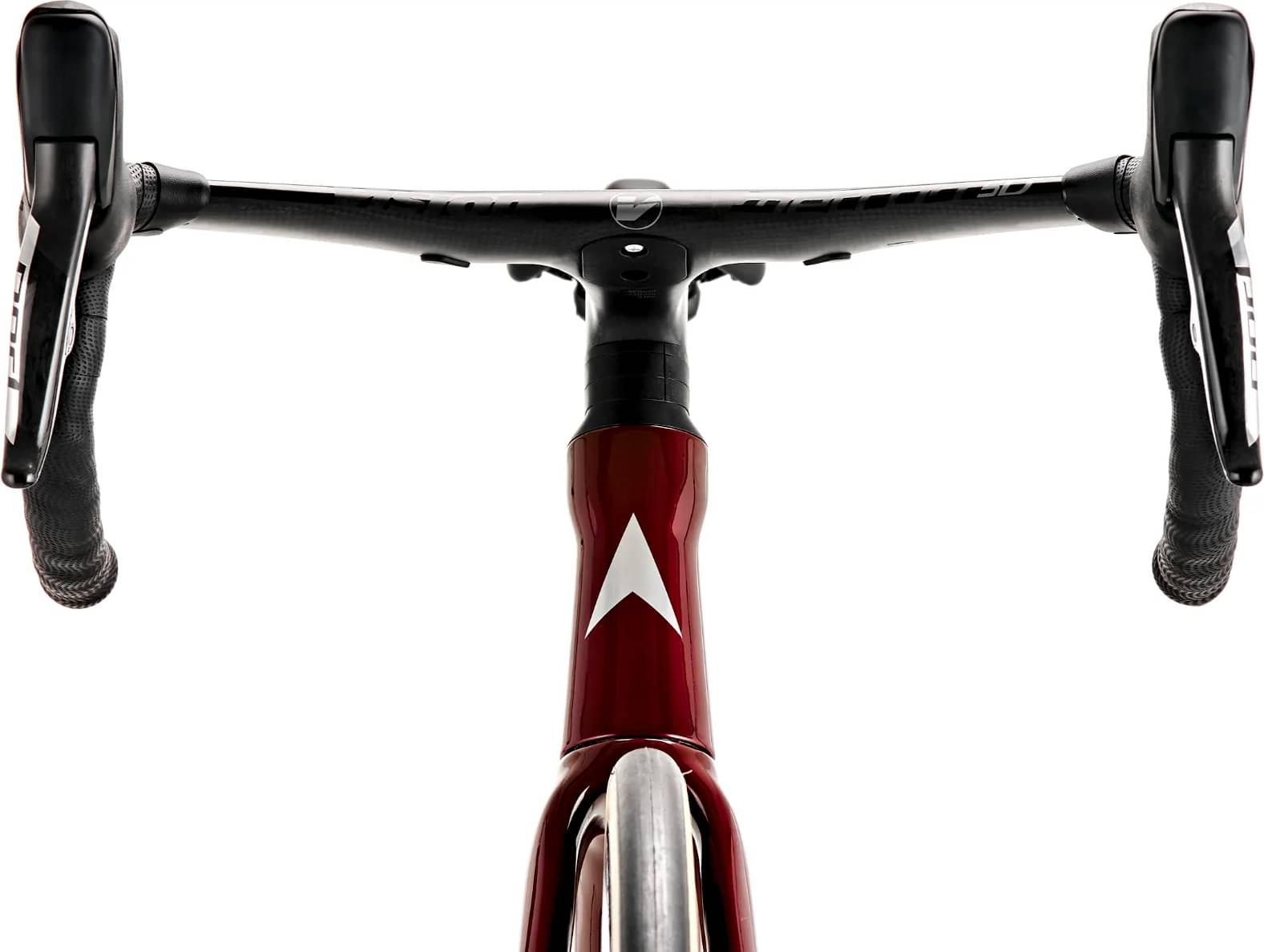

Stem
Vision Metron 5D Acr Integrated Bar/Stem Combo, 125mm drop, - 6 degrees, XS:100mm, S:100mm, M:110mm, L:110mm, XL:120mm, XXL:120mm
Handlebar
Vision Metron 5D ACR Integrated Bar/Stem Combo, UD Carbon, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm
Grips
Vitus Super Grip, Anti Slip
Headset
FSA/Vitus ACR, Sealed Bearings, 1.5" 36x45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover
Seat
Saddle
Vitus Race Performance, CRN-Ti Rail, Pressure Relief Channel
Seatpost
ZX-1 EVO Aero, XS/S: 300mm M/L/XL/XXL: 350mm, +20mm/-2mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.4 mm | 1.42 mm | 1.42 mm | 1.43 mm |
| Bottom Bracket Height | 266 mm | 267 mm | 267 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 590 mm | 591 mm | 599.9 mm | 611 mm | 623 mm |
| Rake | 51 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 58 mm | 57 mm | 55 mm | 53 mm | 52 mm |
| Stack | 502 mm | 524 mm | 545 mm | 564 mm | 580 mm | 597 mm |
| Reach | 374 mm | 383 mm | 389 mm | 398 mm | 408 mm | 418 mm |
| Top Tube Length | 522 mm | 539 mm | 553 mm | 568 mm | 583 mm | 594 mm |
| Seat Tube Angle | 73.6 ° | 73.5 ° | 73.4 ° | 73.3 ° | 73.2 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.9 ° | 71.6 ° | 72.4 ° | 72.9 ° | 73.2 ° | 73.5 ° |
| Head Tube Length | 89.5 mm | 112.3 mm | 129.6 mm | 147.8 mm | 164.5 mm | 181 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 981 mm | 992 mm | 993 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 69 mm | 69 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 754 mm | 776 mm | 796 mm | 817 mm | 833 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
ZX-1 EVO Red eTap AXS completes the Vitus Zx 1 model. 20 bikes variations carry this model name so far. Take a sneak peek at all Vitus Zx 1 bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Vitus ZX-1 EVO Rival AXS 2023 has a starting price of 4199$. Vitus ZX-1 EVO Red eTap AXS 2023 on the other hand is the most expensive at 7297$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 7297$. If we compare this with the average Aero bike cost we notice that the price is 73.28% higher.
Aero bikes average weight
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, ZX-1 EVO Red eTap AXS has a weight of 7.8 kg (17.2 lbs). In short, the average Aero bike weight is 6.27% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The ZX-1 EVO Red eTap AXS 2023 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus ZX-1 EVO Red eTap AXS is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
ZX-1 EVO Red eTap AXS comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
