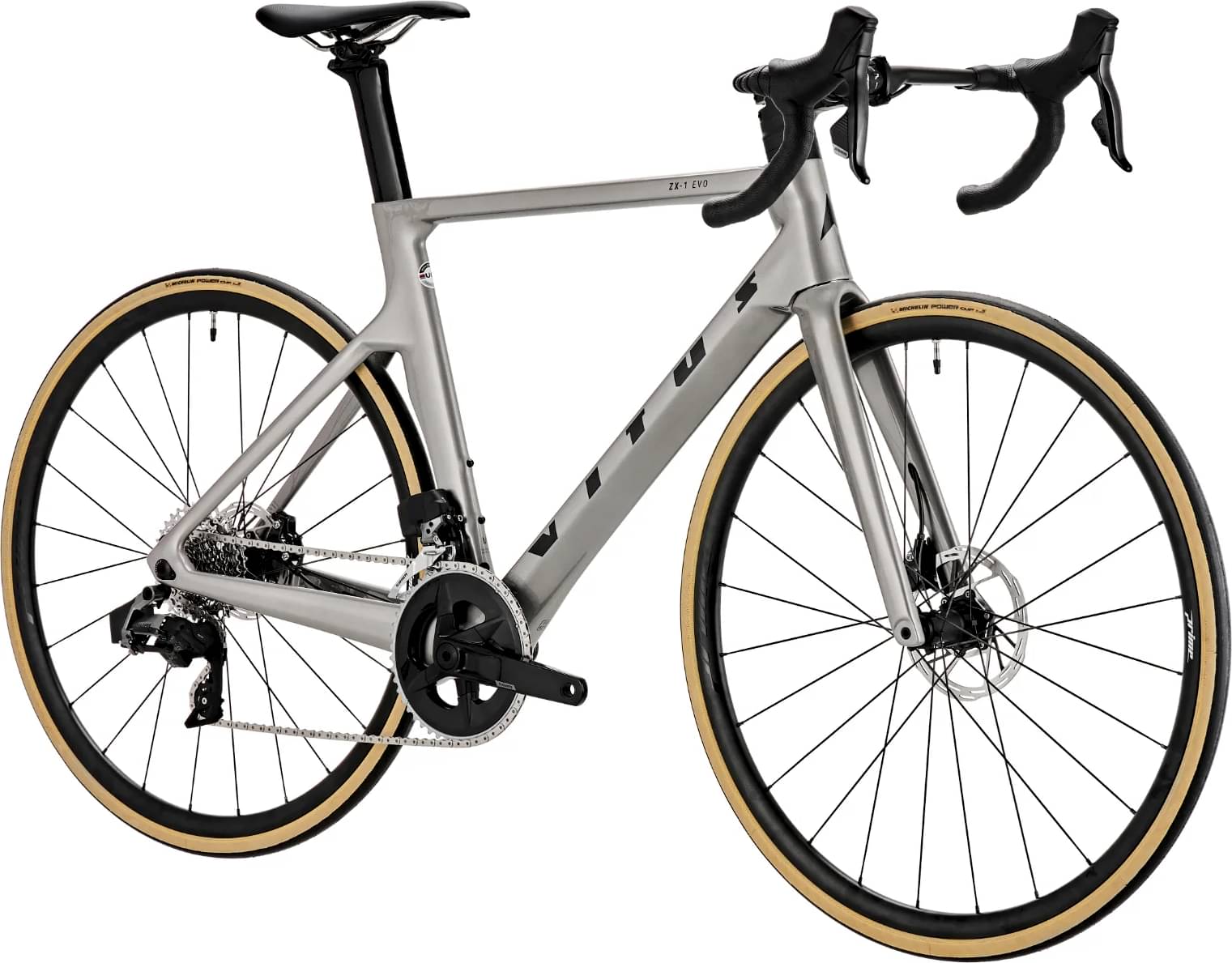

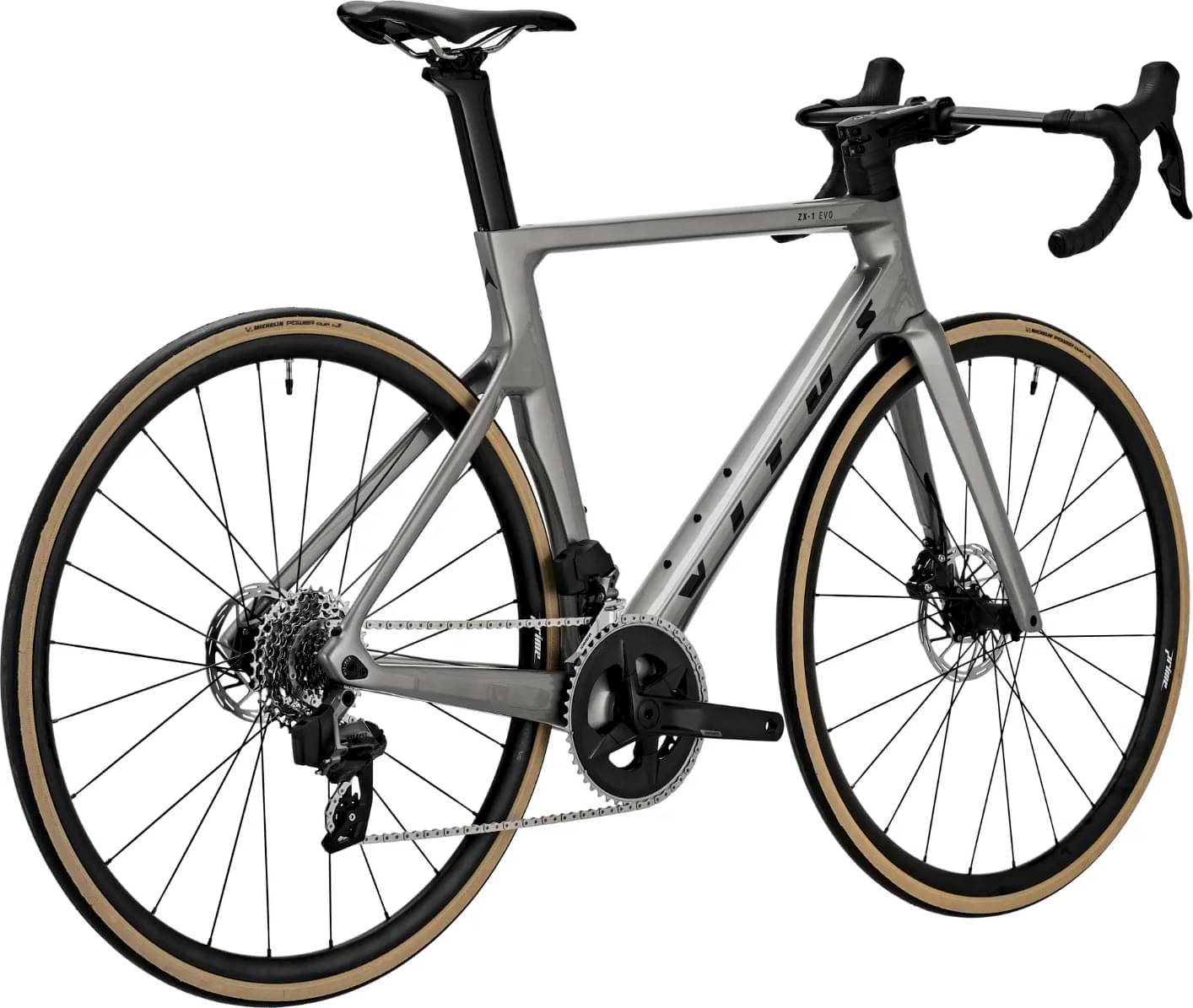

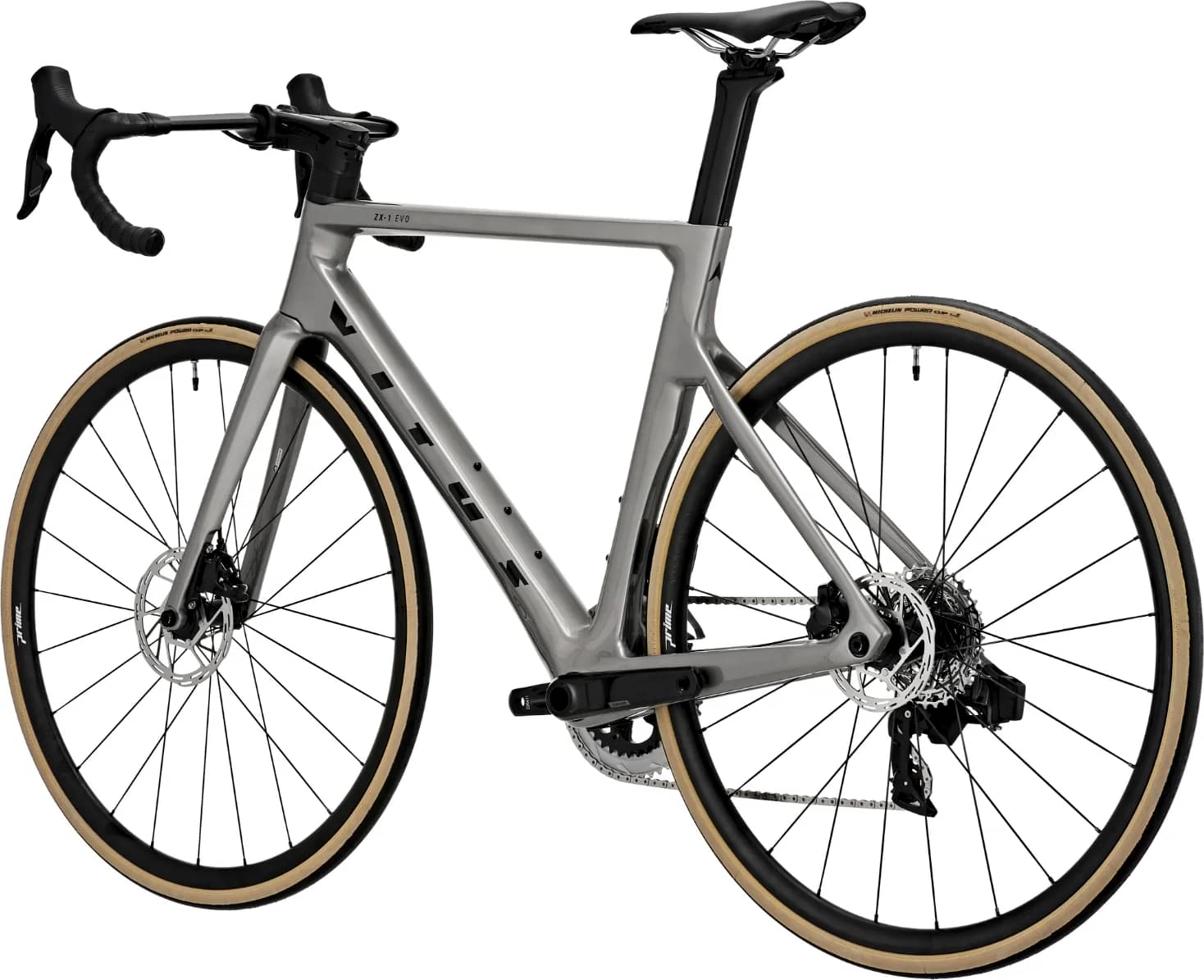

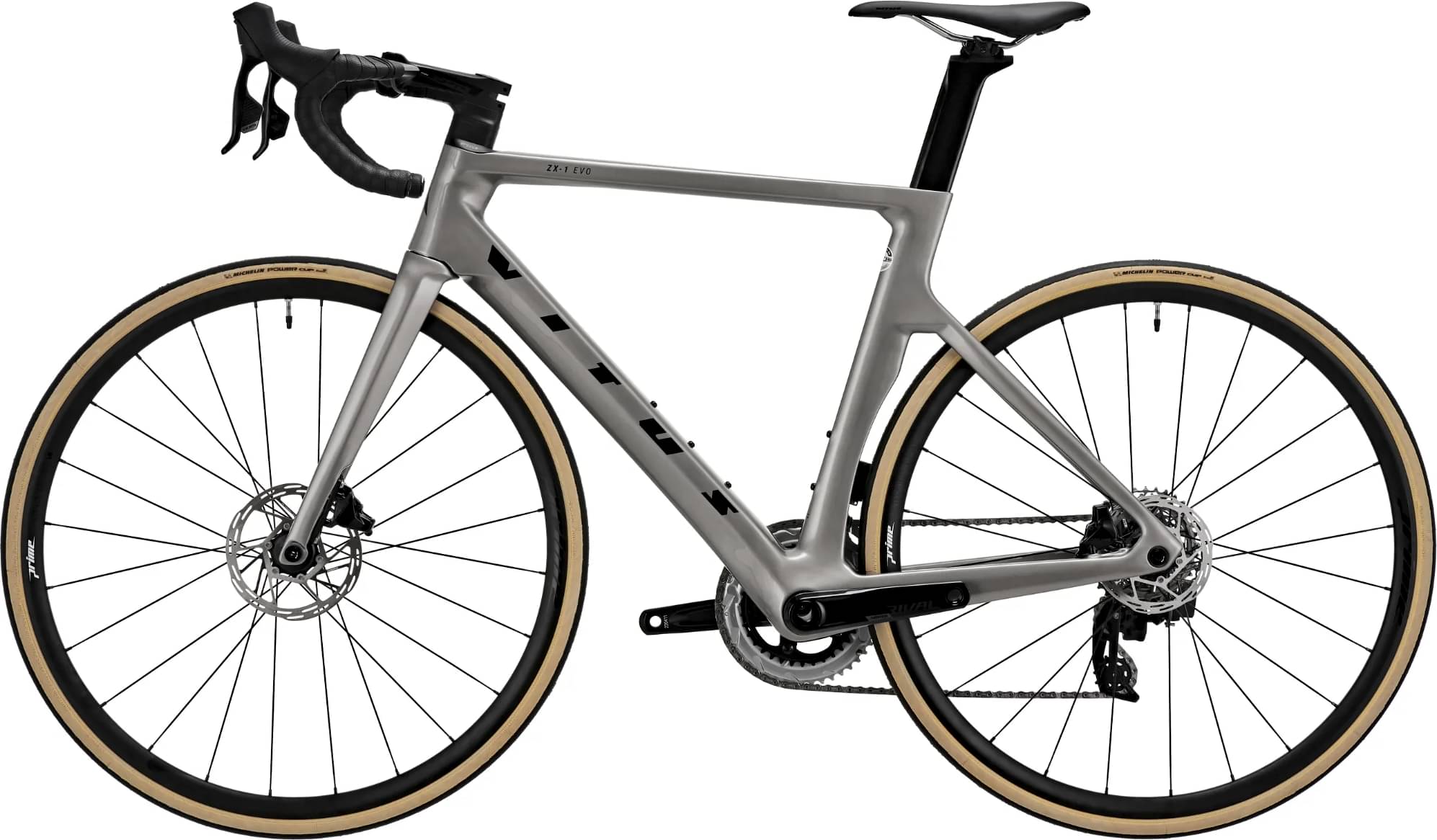

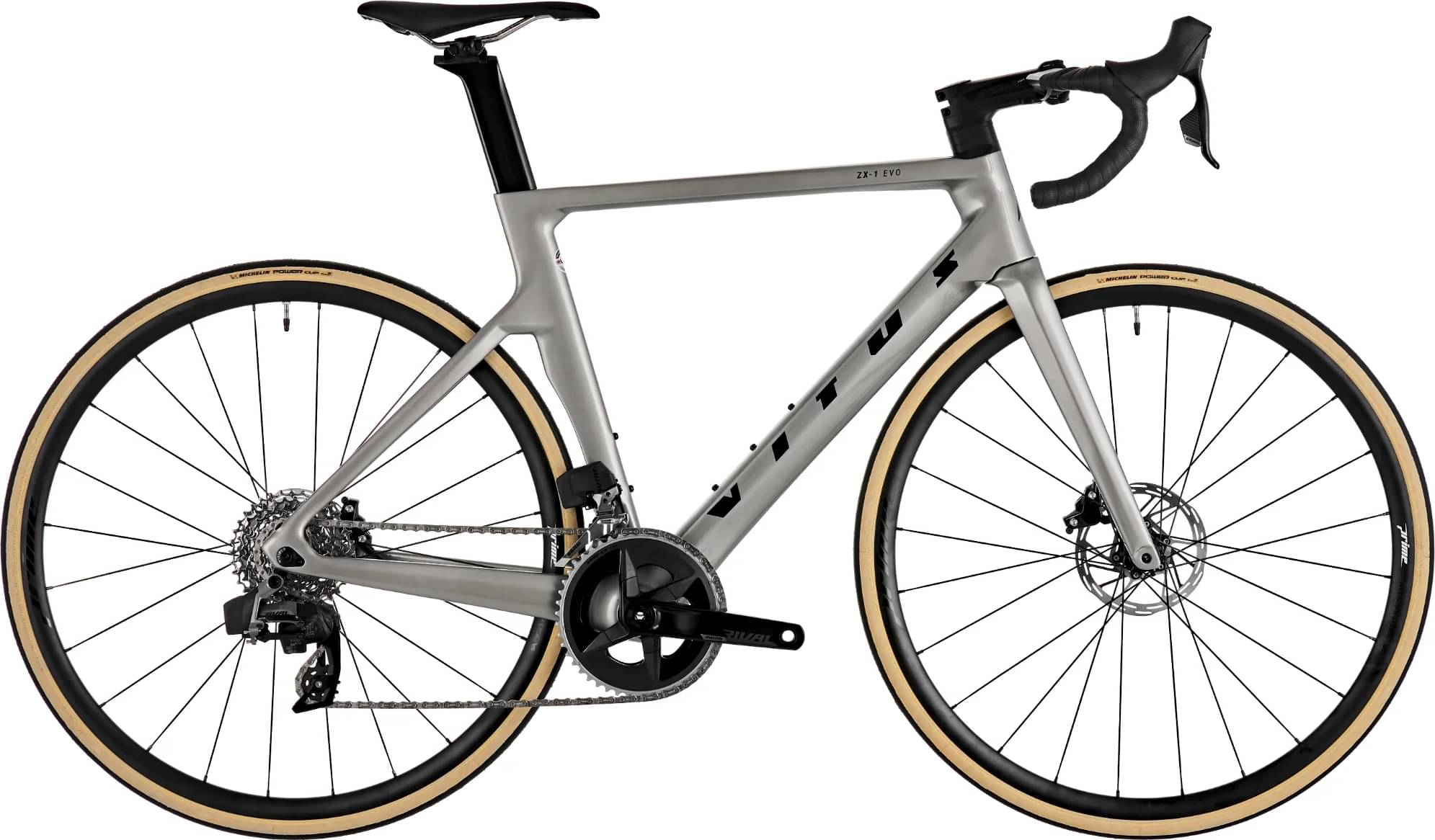

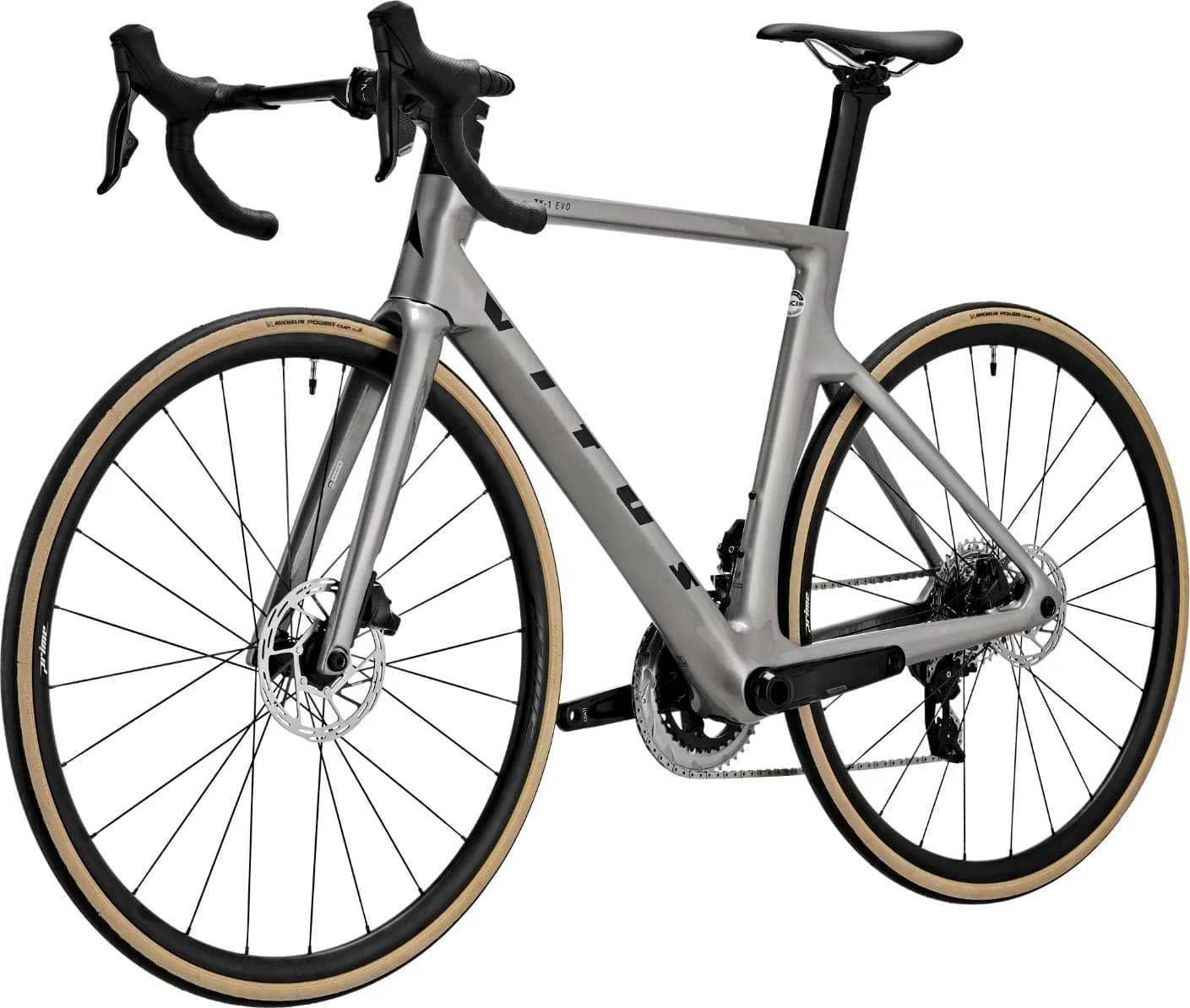

Vitus ZX-1 EVO Rival AXS 2023
2023 Road
Estimate price |
4,199$
Weight | 8.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset
Drivetrain
Rear Derailleur
SRAM Rival AXS, 12 Speed, Short Cage
Front Derailleur
SRAM Rival AXS, 2 x 12 Speed, Braze-On
Shift Levers
SRAM Rival AXS, 12 Speed
Cassette
SRAM XG 1290 D1, 10-36T, 12 Speed
Crank
SRAM Rival D1 DUB, 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
Bottom Bracket
SRAM DUB BB386, DUB for BB386EVO
Chain
SRAM Rival D1, 12-Speed
Wheels
Front Hub
Prime SR1, 100 x 12mm, Centre Lock
Rear Hub
Prime SR1, 142 x 12mm, Centre Lock, 36T Ratchet System, XD-R Freehub
Rims
Prime Attaquer V2, Aluminium, Tubeless Ready, Disc Brake, Rim Depth: 30mm, Inner Rim Width: 19mm, Outer Rim Width: 22mm
Tires
Front: MY23, 700c x 25c, Tubeless Ready, Rear: MY23, 700c x 25c, Tubeless Ready
Brakes
Brakes
SRAM Rival AXS D1 Disc, Hydraulic Disc, Flat Mount

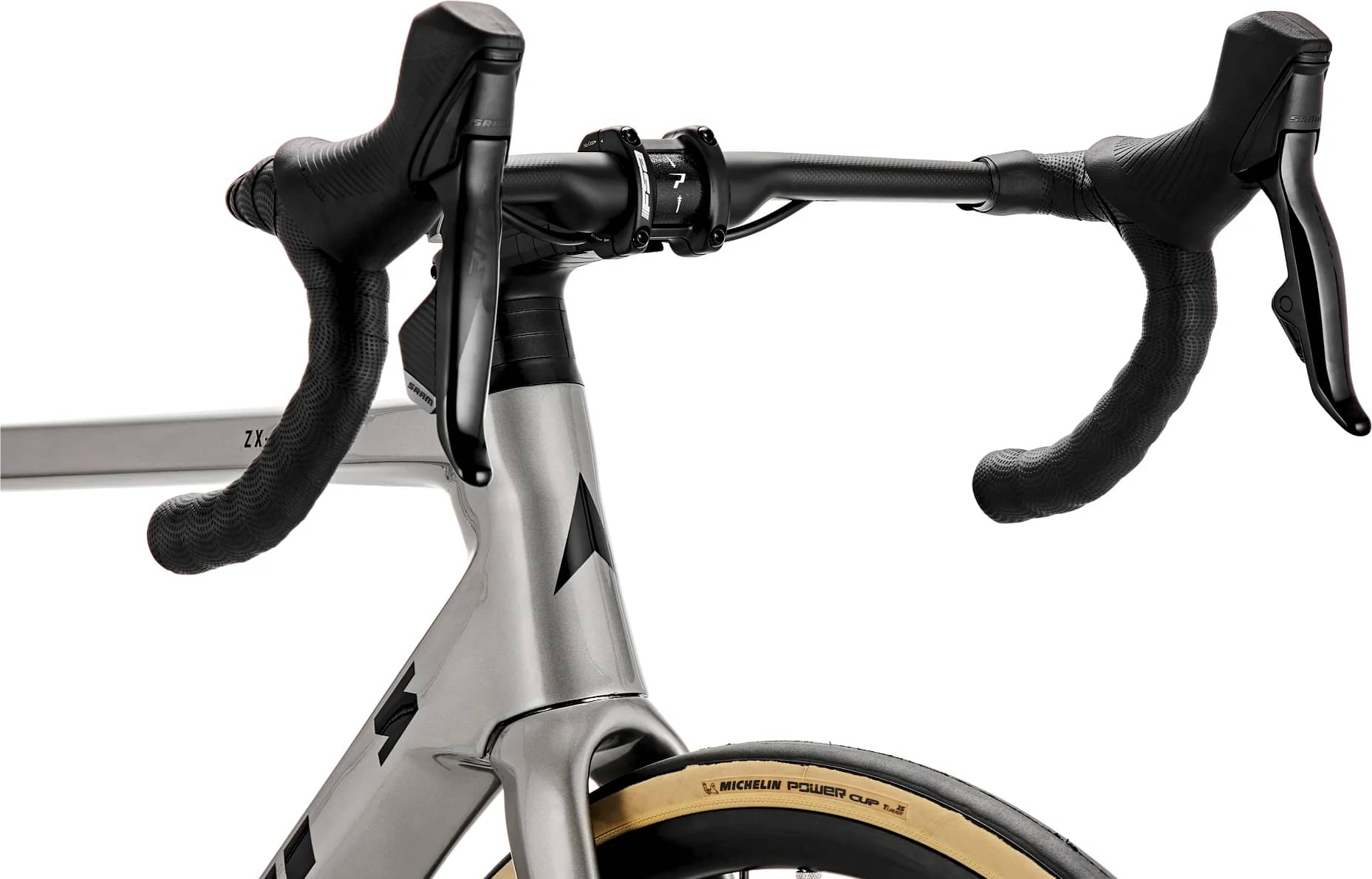

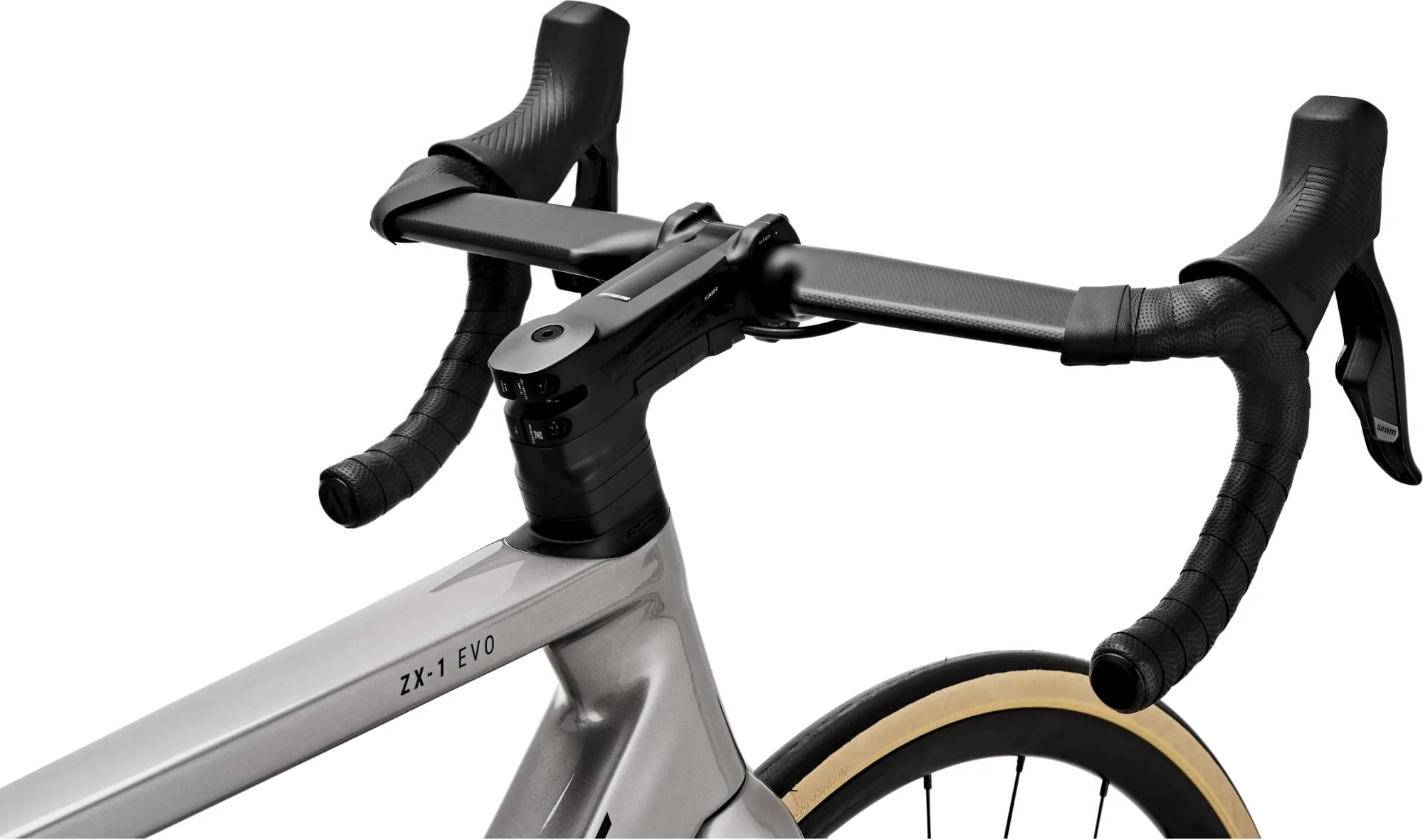

Cockpit
Stem
FSA ST-OS-185 Integrated, Bar Bore 31.8mm, - 6 degrees, XS:100mm, S:100mm, M:110mm, L:110mm, XL:120mm, XXL:120mm
Handlebar
Prime Primavera Carbon Aero, UD Carbon, Rise: 78mm, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm
Grips
Vitus Super Grip, Anti Slip
Headset
FSA/Vitus ACR, Sealed Bearings, 1.5" 36x45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover
Seat
Saddle
Vitus Race Performance, CRN-Ti Rail, Pressure Relief Channel
Seatpost
ZX-1 EVO Aero, XS/S: 300mm M/L/XL/XXL: 350mm, +20mm/-2mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.4 mm | 1.42 mm | 1.42 mm | 1.43 mm |
| Bottom Bracket Height | 266 mm | 267 mm | 267 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 590 mm | 591 mm | 599.9 mm | 611 mm | 623 mm |
| Rake | 51 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 58 mm | 57 mm | 55 mm | 53 mm | 52 mm |
| Stack | 502 mm | 524 mm | 545 mm | 564 mm | 580 mm | 597 mm |
| Reach | 374 mm | 383 mm | 389 mm | 398 mm | 408 mm | 418 mm |
| Top Tube Length | 522 mm | 539 mm | 553 mm | 568 mm | 583 mm | 594 mm |
| Seat Tube Angle | 73.6 ° | 73.5 ° | 73.4 ° | 73.3 ° | 73.2 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.9 ° | 71.6 ° | 72.4 ° | 72.9 ° | 73.2 ° | 73.5 ° |
| Head Tube Length | 89.5 mm | 112.3 mm | 129.6 mm | 147.8 mm | 164.5 mm | 181 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 981 mm | 992 mm | 993 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 69 mm | 69 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 754 mm | 776 mm | 796 mm | 817 mm | 833 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
ZX-1 EVO Rival AXS completes the Vitus Zx 1 model. There are 20 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Vitus ZX-1 EVO Rival AXS 2023 is the cheapest bike model and costs 4199$. Vitus ZX-1 EVO Red eTap AXS 2023 is the most expensive one and costs 7297$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4199$. In conclusion, this bike price is 0.29% lower than the price of the average Aero bike.
Average weight for Aero bikes
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 8.1 kg (17.86 lbs), the ZX-1 EVO Rival AXS model is considerably heavier than average. In conclusion, the average Aero bike weighs 10.35% less than ZX-1 EVO Rival AXS.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
ZX-1 EVO Rival AXS components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Vitus ZX-1 EVO Rival AXS 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus ZX-1 EVO Rival AXS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, you can easily find one that suits you.
