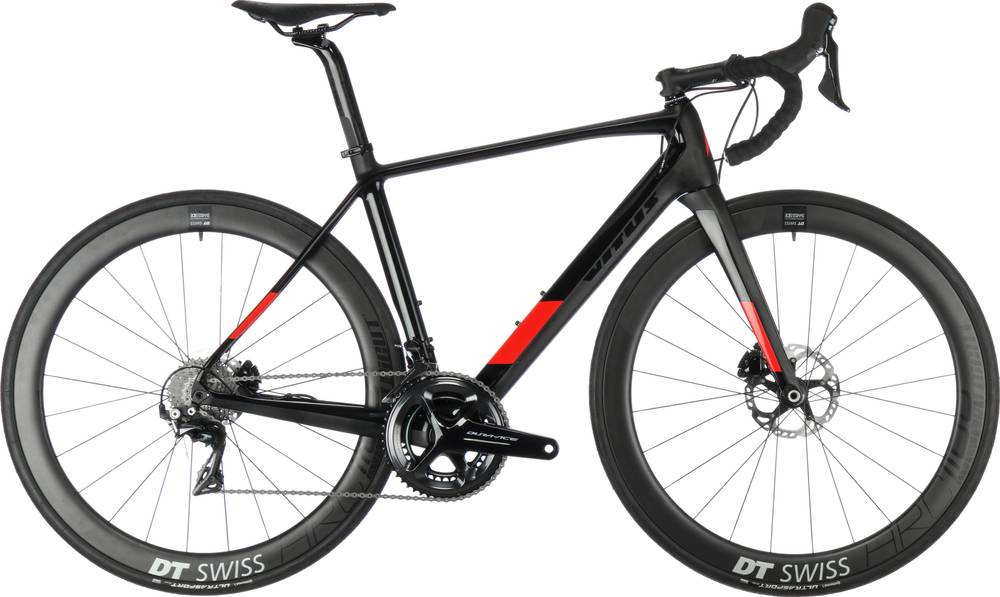

Vitus ZX1 Team Aero Disc Dura-Ace 2018
2018 Road
Estimate price |
5,619$
Weight | 7.83 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
161cm - 169cm
SM
166cm - 175cm
MD
172cm - 181cm
LG
178cm - 157cm
XL
154cm - 187cm
XXL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, UD Carbon, 142x12mm Thru axle
Suspension Fork
Carbon, UD Carbon, Tapered steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Dura-Ace, 11 speed
Front Derailleur
Shimano Dura-Ace, 2x Braze on
Shift Levers
Shimano Dura-Ace, 2 x 11 speed
Cassette
Shimano Ultegra, 11 speed 11-28t
Crank
Shimano Dura-Ace, 52x36t, 49/52cm-170mm, 54/56cm-172.5mm, 58/60/62cm-175mm
Bottom Bracket
Shimano, BB-71 Press fit
Chain
Shimano HG-901
Wheels
Front Hub
DT Swiss, 100x12mm Thru axle
Rear Hub
DT Swiss, 142x12mm Thru axle
Rims
DT Swiss ARC 1100 DiCut, Clincher
Spokes
Double butted
Tires
Continental Ultra sport II, 700x28c folding
Brakes
Brakes
Shimano R9120, 160mm Flat mount
Cockpit
Stem
Ritchey WCS 4 Axis, 49cm-90mm, 52cm-100mm, 54/56cm-110mm, 58/60cm-120mm
Handlebar
Ritchey WCS Streem II, 49/52cm-400mm, 54/56cm-420mm, 58/60cm-440mm
Headset
Ritchey, Comp Logic Zero Drop In 1 1/8
Seat
Saddle
FIZIK, Antares
Seatpost
Prime carbon, Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.43 mm | 1.42 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 267 mm | 269 mm | 269 mm |
| Front Center | 569 mm | 573 mm | 580 mm | 591 mm | 608 mm | 619 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 67 mm | 60 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 508 mm | 525.5 mm | 539.5 mm | 548.5 mm | 561 mm | 579.5 mm |
| Reach | 362 mm | 369.5 mm | 377 mm | 385 mm | 398 mm | 404 mm |
| Top Tube Length | 507 mm | 523 mm | 539 mm | 555 mm | 572 mm | 589 mm |
| Seat Tube Angle | 74.3 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 525 mm | 550 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 959 mm | 964 mm | 971 mm | 983 mm | 1001 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 69 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 161 cm | 166 cm | 172 cm | 178 cm | 154 cm | 184 cm |
| Rider Max Height | 169 cm | 175 cm | 181 cm | 157 cm | 187 cm | 195 cm |
About this model
ZX1 Team Aero Disc Dura-Ace belongs to the Vitus Zx1 model. There are 6 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Vitus ZX1 Aero Disc 105 2018 is the cheapest bike model and costs 2432$. Vitus ZX1 Team Aero Disc Dura-Ace 2018 is the most expensive one and costs 5108$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Vitus ZX1 Team Aero Disc Dura-Ace price was 5108$. If we compare this with the average Aero bike cost we notice that the price is 21.3% higher.
Average weight for Aero bikes
The average weight for Aero bikes is 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Vitus ZX1 Team Aero Disc Dura-Ace it’s weighing 7.83 kg (17.26 lbs). At this weight, is a bit heavier than average. To sum up, it’s 6.68% heavier than the average weight of Aero bikes.
ZX1 Team Aero Disc Dura-Ace components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on ZX1 Team Aero Disc Dura-Ace are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 6 sizes. They vary from 161 cm – 195 cm (5.28 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
