Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Pike Select
-
Groupset X01, X01 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
PIKE SELECT 29" BOOST™ 15X110 MXL STEALTH DEBONAIR 150 DIF BLACK 42 OFFSET 1.5"
Drivetrain
Rear Derailleur
SRAM X01 - 12-speed EAGLE Rear, BLACK
Front Derailleur
n/a
Shift Levers
SL X01 EAGLE TRIGGER LUNAR
Cassette
SRAM XG-1295 12-speed EAGLE, 10-52t
Crank
FC STYLO C EAGLE B148 DUB 175 BLK 32
Bottom Bracket
Truvativ/SRAM DUB BSA MTB73 : BB DUB BSA 73 MTB
Chain
SRAM X01 Eagle 12-speed, 114 links
Pedals
Wellgo LU-895DU Mountain Bike Pedals
Wheels
Tires
Maxxis Assegai Tire - 27.5 x 2.5, Tubeless, Folding, Black, 3C MaxxTerra, EXO, Wide Trail : Maxxis Dissector Tire - 27.5 x 2.4, Tubeless, Folding, Black, 3C MaxxTerra, EXO, Wide Trail
Brakes
Brakes
SRAM G2 RSC : DB-G2RSC DFB FRT 0IS 900 : DB G2RSC DFB RER 0IS 1500
Cockpit
Stem
Race Face Turbine Basic (Size will change between 50, 60 & 70mm)
Handlebar
Race Face HANDLEBAR,RIDE,35,10MM RISER, 760MM
Headset
FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB
Seat
Saddle
WTB Volt Race 142 with Cromo Rails
Seatpost
Race Face Dropper - Turbine R 31.6 457/150 BLK 1X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 317 mm | 317 mm | 317 mm |
| Front Center | 745 mm | 745 mm | 812.6 mm |
| Rake | 144 mm | 42 mm | 42 mm |
| Trail | 4 mm | 116 mm | 119 mm |
| Stack | 627 mm | 652.6 mm | 656.2 mm |
| Reach | 444 mm | 466 mm | 491.6 mm |
| Top Tube Length | 580 mm | 609 mm | 635 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 320 mm | 381 mm | 413 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65 ° |
| Head Tube Length | 100 mm | 108 mm | 115 mm |
| Chainstay Length | 322 mm | 430 mm | 430 mm |
| Wheelbase | 1173 mm | 1203 mm | 1237 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 710 mm | 770 mm | 803 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

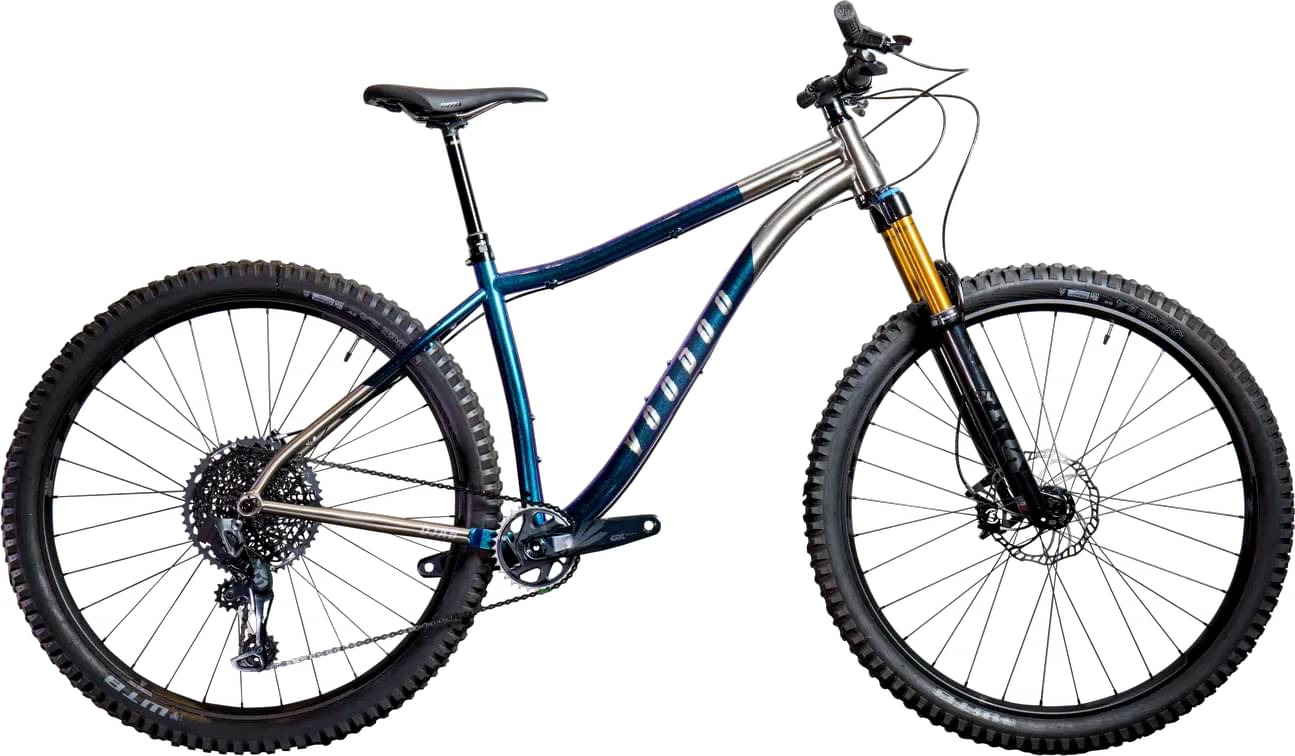

D-JAB E1 is a Voodoo D Jab model. 6 bikes variations carry this model name so far. You can easily view all of the Voodoo D Jab bikes models from 2022, here.
Model range prices
Voodoo D-JAB E2 2022 is the most affordable bike of this model and has a price of 4205$. On the other hand, Voodoo D-JAB E0 2022, is the most expensive and costs 7460$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5606$. Doing a quick comparison, we notice that D-JAB E1 price is 102.97% more expensive than the average cost of a Trail bike.
D-JAB E1 components
Fork
The fork installed on this bike is the RockShox Pike Select model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on D-JAB E1 are the 27.5″ type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
D-JAB E1 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
