Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset X01, X01 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 853 steel
Suspension Fork
Rock Shox SID Select 120mm Boost; 51mm offset, 29/27.5+" Tapered
Drivetrain
Rear Derailleur
SRAM X01 - 12-speed EAGLE Rear, BLACK
Front Derailleur
n/a
Shift Levers
SL X01 EAGLE TRIGGER LUNAR
Cassette
SRAM XG-1295 12-speed EAGLE, 10-52t
Crank
FC STYLO C EAGLE B148 DUB 175 BLK 32
Bottom Bracket
Truvativ/SRAM DUB BSA MTB73 : BB DUB BSA 73 MTB
Chain
SRAM X01 Eagle 12-speed, 114 links
Pedals
Wellgo LU-895DU Mountain Bike Pedals
Wheels
Tires
Maxxis Rekon Front 29: X 2.6", EXO/TR; Agressor Rear 29" X 2.5", EXO/TR
Brakes
Brakes
SRAM G2 RSC : DB-G2RSC DFB FRT 20P 900 : DB G2RSC DFB RER 20P 1500
Cockpit
Stem
Race Face Turbine Basic (Size will change between 50, 60 & 70mm)
Handlebar
Race Face HANDLEBAR,RIDE,35,10MM RISER, 760MM
Headset
FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB
Seat
Saddle
WTB Volt Race 142 with Cromo Rails
Seatpost
LEV 272 X 120mm Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.52 mm | 1.47 mm | 1.44 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 655 mm | 680.5 mm | 700 | 713.5 mm |
| Stack | 605.8 mm | 610.5 mm | 615.1 mm | 619.8 mm |
| Reach | 377 mm | 400.7 mm | 418.2 mm | 430.25 mm |
| Top Tube Length | 566 mm | 591 mm | 610 mm | 635.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 72 ° |
| Seat Tube Length | 343 mm | 368.3 mm | 400 mm | 438.15 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1085 mm | 1111 mm | 1130 mm | 1143 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 740 mm | 762 mm | 785 mm | 811 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

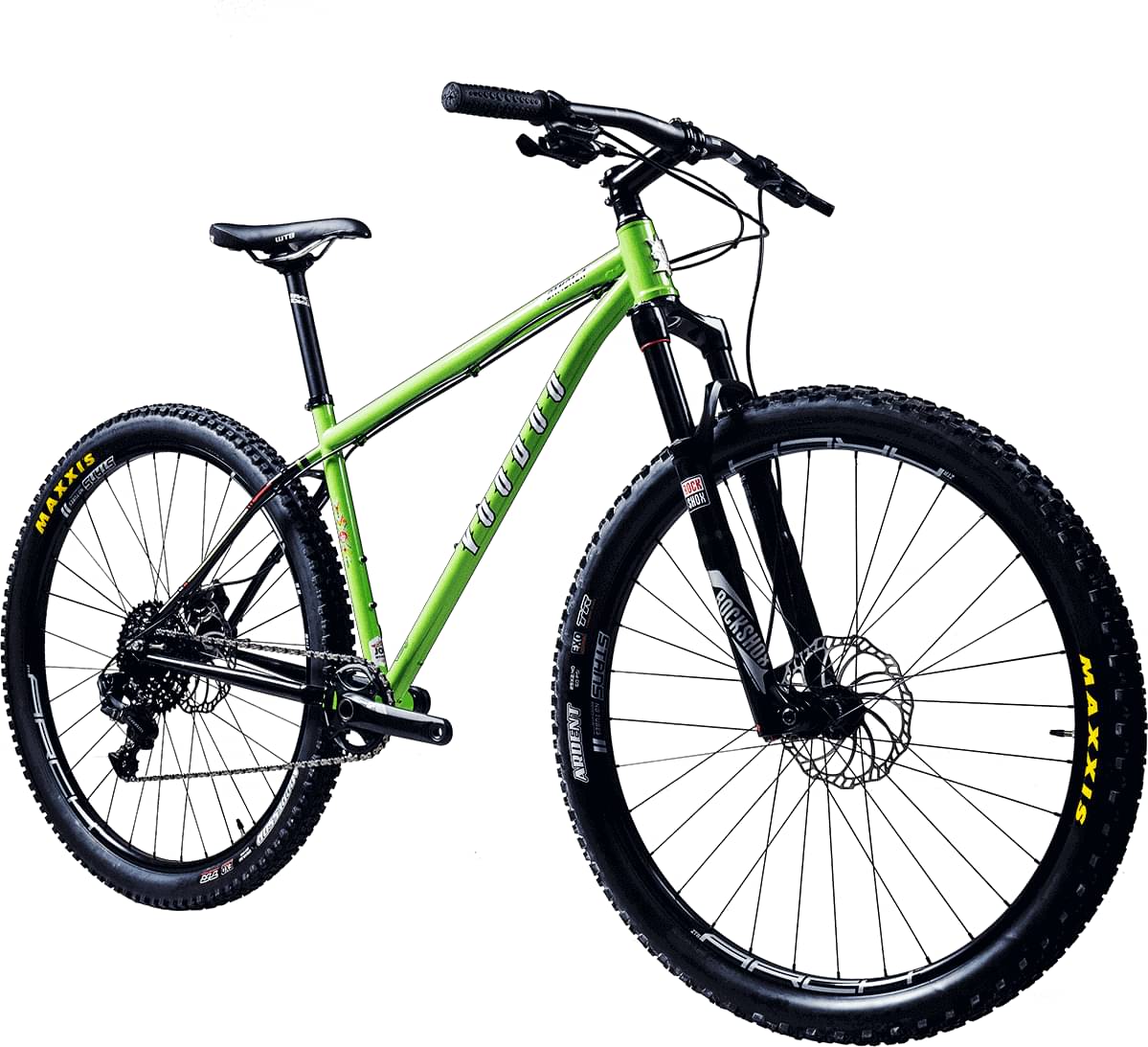

DAMBALA T1 is a Voodoo Dambala model. There are 6 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Voodoo DAMBALA T2 2023 is the most economical model, with a starting price of 3606$. Voodoo DAMBALA T0 2023 on the other hand costs 7429$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Voodoo released this model in 2023, its price was 5210$. Doing a quick comparison, we notice that DAMBALA T1 price is 88.63% more expensive than the average cost of a Trail bike.
DAMBALA T1 components
Fork
This bike has the RockShox SID Select fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on DAMBALA T1 are the 29″ type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Voodoo DAMBALA T1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
DAMBALA T1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the DAMBALA T1. Therefore, climbing or descending will be a breeze.
