Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset X01, X01 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Rock Shox SID Select 120mm Boost; 51mm offset, 29/27.5+" Tapered
Drivetrain
Rear Derailleur
SRAM X01 - 12-speed EAGLE Rear, BLACK
Front Derailleur
n/a
Shift Levers
SL X01 EAGLE TRIGGER LUNAR
Cassette
SRAM XG-1295 12-speed EAGLE, 10-52t
Crank
FC STYLO C EAGLE B148 DUB 175 BLK 32
Bottom Bracket
Truvativ/SRAM DUB BSA MTB73 : BB DUB BSA 73 MTB
Chain
SRAM X01 Eagle 12-speed, 114 links
Pedals
Wellgo LU-895DU Mountain Bike Pedals
Wheels
Tires
Maxxis Rekon Front 29: X 2.6", EXO/TR; Agressor Rear 29" X 2.5", EXO/TR
Brakes
Brakes
SRAM G2 RSC : DB-G2RSC DFB FRT 20P 900 : DB G2RSC DFB RER 20P 1500
Cockpit
Stem
Race Face Turbine Basic (Size will change between 50, 60 & 70mm)
Handlebar
Race Face HANDLEBAR,RIDE,35,10MM RISER, 760MM
Headset
FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB
Seat
Saddle
WTB Volt Pro 142 with Cromo Rails
Seatpost
Race Face Dropper - Turbine R 31.6 406/125 BLK 1X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.52 mm | 1.47 mm | 1.44 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 655 mm | 680.5 mm | 700 | 713.5 mm |
| Stack | 605.8 mm | 610.5 mm | 615.1 mm | 619.8 mm |
| Reach | 377 mm | 400.7 mm | 418.2 mm | 430.25 mm |
| Top Tube Length | 566 mm | 591 mm | 610 mm | 635.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 72 ° |
| Seat Tube Length | 343 mm | 368.3 mm | 400 mm | 438.15 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 406.7 mm | 424.2 mm | 436.25 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1085 mm | 1111 mm | 1130 mm | 1143 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 740 mm | 762 mm | 785 mm | 811 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

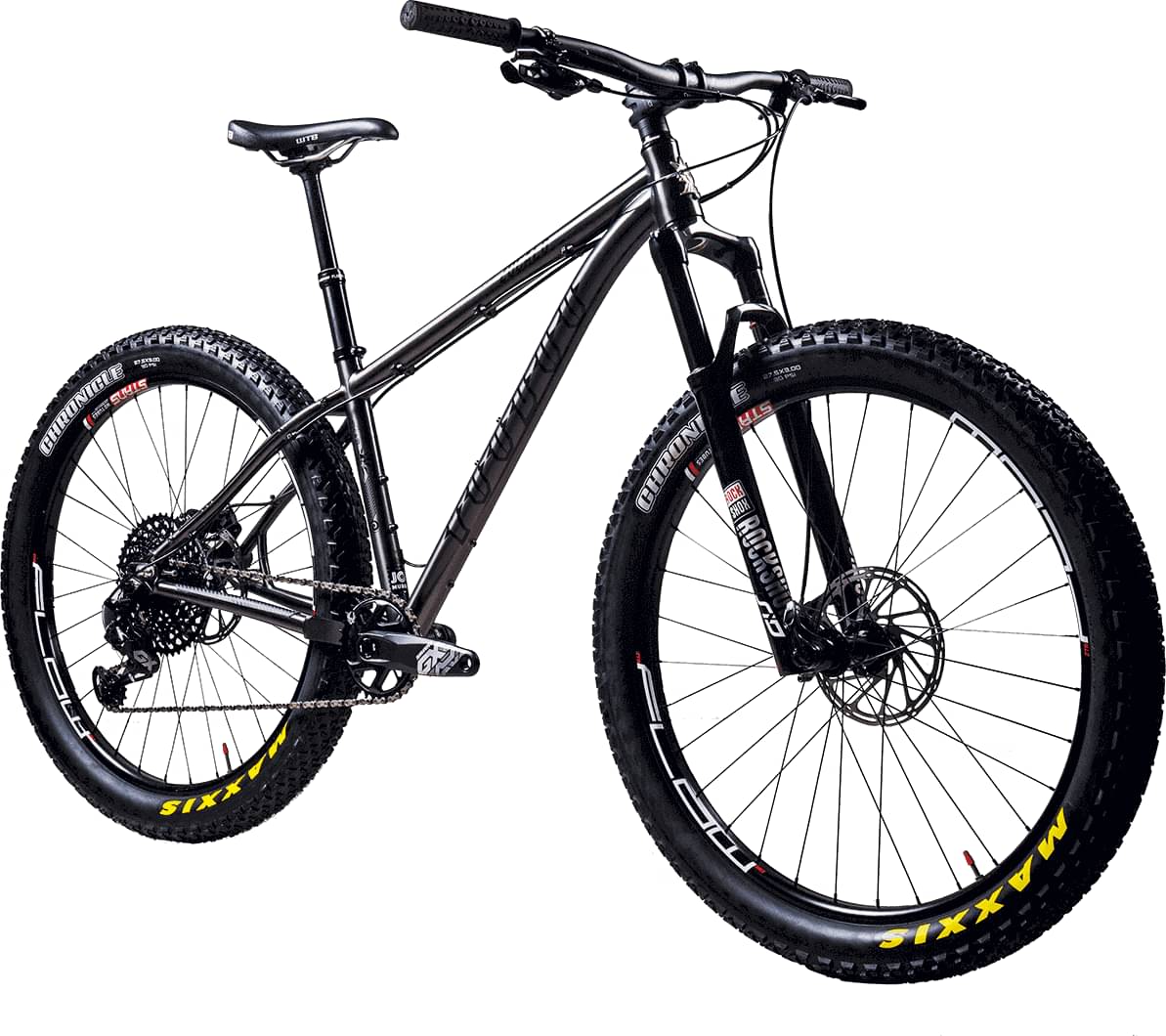

ZOCALO T1 belongs to the Voodoo Zocalo model. Voodoo released 6 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Voodoo ZOCALO T2 2023 is the most affordable bike of this model and has a price of 4206$. On the other hand, Voodoo ZOCALO T0 2023, is the most expensive and costs 7859$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5636$. Doing a quick comparison, we notice that ZOCALO T1 price is 104.06% higher than the average cost of a Trail bike.
Overview of components
Fork
Voodoo ZOCALO T1 2023 bike is equipped with the RockShox SID Select fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Voodoo ZOCALO T1 2023, has a 29″ model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ZOCALO T1 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
ZOCALO T1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Voodoo ZOCALO T1 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
