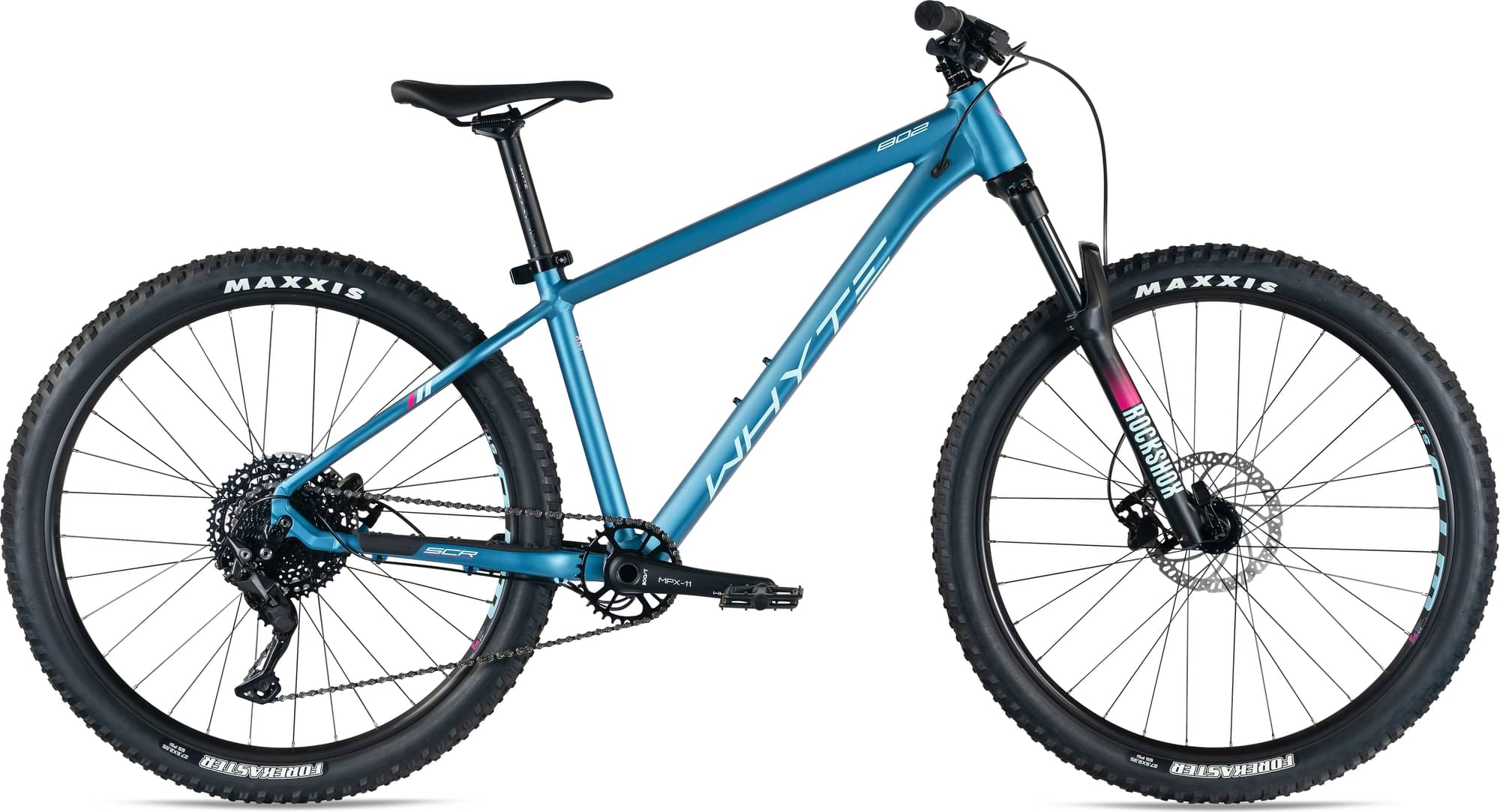

Whyte 802 Compact 2022
2022 Mountain
Estimate price |
1,673$
Weight | 12.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Headtube, Get A Grip Seat Clamp System, Internal Cable Routing with BBX63 and Chainstay Post Mount Dropouts 12mm X 148mm Boost
Suspension Fork
RockShox Recon RL 27.5", 120mm Travel, 37mm Offset, Solo Air, Fast Black Coating, Adjustable Rebound, Tapered Alloy Steerer, 110mm x 15mm Boost, Maxle Lite
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120-SGS, Shadow Plus, 10 Speed
Front Derailleur
N/A
Shift Levers
Shimano Deore SL-M4100, 10 Speed
Cassette
SunRace CSMS2, ED Black, 11-46, 10 Speed
Crank
Whyte, Forged 2pcs Cranks, Direct Mount 32T Narrow/Wide Chainring, 170mm, 10 Speed
Bottom Bracket
BSA, Cartridge Bearings, 73mm
Chain
SunRace 10 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 10mm x 148mm Boost Thru Axle, 32 Hole
Rear Hub
Alloy, Cup & Cone, Double Seal, 10mm x 148mm Boost Thru Axle, 32 Hole
Rims
WTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Forekaster 27.5"x 2.35" Dual Compound, 60TPI
Brakes
Brakes
Tektro Auriga HD-M280, 180mm Disc
Brake Levers
Tektro Auriga HD-M280
Cockpit
Stem
Whyte Alloy, 40mm Extension
Handlebar
Whyte 6061 Alloy, 15mm Rise, 31.8mm, XS 740mm Wide, S/M 760mm Wide
Grips
Whyte Lock-on Enduro Grip
Headset
FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
Seat
Saddle
Whyte Custom
Seatpost
Whyte 6061 Alloy, 15mm Offset, 30.9mm x 350mm, 2 Bolt Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 303.5 mm | 303.5 mm | 303.5 mm |
| Stack | 600 mm | 607 mm | 617 mm |
| Reach | 405 mm | 422 mm | 438 mm |
| Top Tube Length | 578 mm | 597 mm | 625 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381 mm | 406 mm | 444 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 107 mm | 115 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1139 mm | 1159 mm | 1189 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 52 mm |
| Standover Height | 759 mm | 777 mm | 801 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model
802 Compact completes the Whyte 802 model. Whyte launched 7 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Whyte 802 COMPACT v4 2022 is the cheapest bike model and costs 1337$. Whyte 802 Compact Trail Hardtail Bike 2022 is the most expensive one and costs 1520$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1520$. Comparing this to the average Trail bike price, we see that the price is 81.71% smaller.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, 802 Compact has a weight of 12.8 kg (28.22 lbs). To sum up, it’s 1.41% lighter than the average weight of Trail bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
802 Compact components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on 802 Compact are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The 802 Compact has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
802 Compact comes in 3 sizes, that range from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, it won’t take much to find one that’s right for you.
