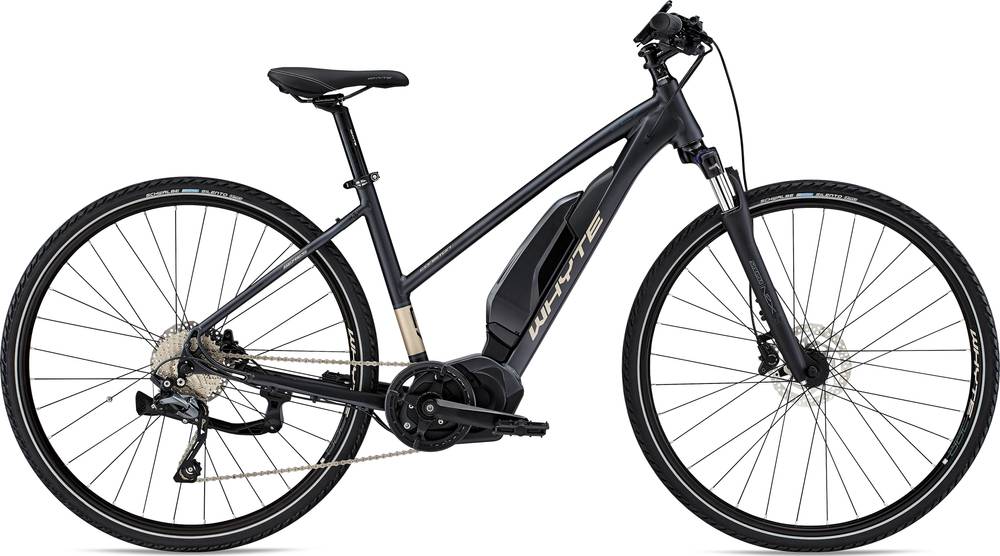

Whyte CONISTON WOMENS v1 2019
2019 E-bike
Estimate price |
3,184$
Weight | 19.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Battery 36 volts, 11.6ah, 418wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand Mount
Suspension Fork
SR Suntour NCX-E25 HLO, 63mm Travel, Tapered Steerer Tube, Coil Spring and Hydro Lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano RD-T6000, Deore, SGS 10-Speed, Shadow
Front Derailleur
N/A
Shift Levers
Shimano SL-T6000, Deore, 10 Speed with STEPS SC-E6010 Display
Cassette
Shimano CS-HG500, 11-34, 10 Speed
Crank
Lasco square taper for Shimano STEPS, 38T with Double Sided Chain Guard, 10 Speed
Bottom Bracket
STEPS Drive Unit E-5000 with Speed Sensor and Magnet
Chain
KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rear Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rims
Whyte T-23 x 700c, 32 hole, with eyelets
Spokes
2.0mm, Black Stainless with Brass Nipples
Tires
Schwalbe Road Cruiser TOUR, 700x47c, - Green Compound - K-Guard Puncture Protection
Brakes
Brakes
Shimano MT400, 160mm Disc
Brake Levers
Shimano MT400
Cockpit
Stem
Whyte Alloy 6061, S 60mm, M 70mm, L 80mm
Handlebar
Whyte Alloy 6061, 31.8mm, 20mm Rise, 620mm Wide
Grips
Whyte Custom Dual Density Lock-on
Headset
FSA No. 57B Orbit ZS, 1 1/2” Lower and 1 1.8” Caged Upper Bearings
Seat
Saddle
Whyte Custom, Triple Panel Design
Seatpost
Whyte 6061 Alloy, 15mm Offset, 30.9mm, 2 Bolt Clamp
Motor & Battery
Battery
36 volts, 11.6ah, 418wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm |
| Top Tube Length | 587.4 mm | 611.4 mm | 636.4 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 406.4 mm | 444.5 mm | 495.3 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 107 mm | 115 mm | 125 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1143 mm | 1163 mm | 1183 mm |
| Standover Height | 683 mm | 697 mm | 708 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
CONISTON WOMENS v1 completes the Whyte E Coniston model. Whyte released 7 e-bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Whyte CONISTON LADIES v1 2019 has a starting price of 2796$. Whyte CONISTON v1 2019 on the other hand is the most expensive at 2859$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Whyte released this model in 2019, its price was 2859$. Comparing this to the average Hybrid e-bike price, we see that the price is 15.28% higher.
Average weight for Hybrid e-bikes
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
CONISTON WOMENS v1 weighs 19.6 kg (43.21 lbs) and is much lighter than the average. To sum up, it’s 21.38% lighter than the average weight of Hybrid e-bikes.
CONISTON WOMENS v1 components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Whyte CONISTON WOMENS v1 2019, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
