Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
Suspension Fork
Whyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards
Rear Shock
N/A
Drivetrain

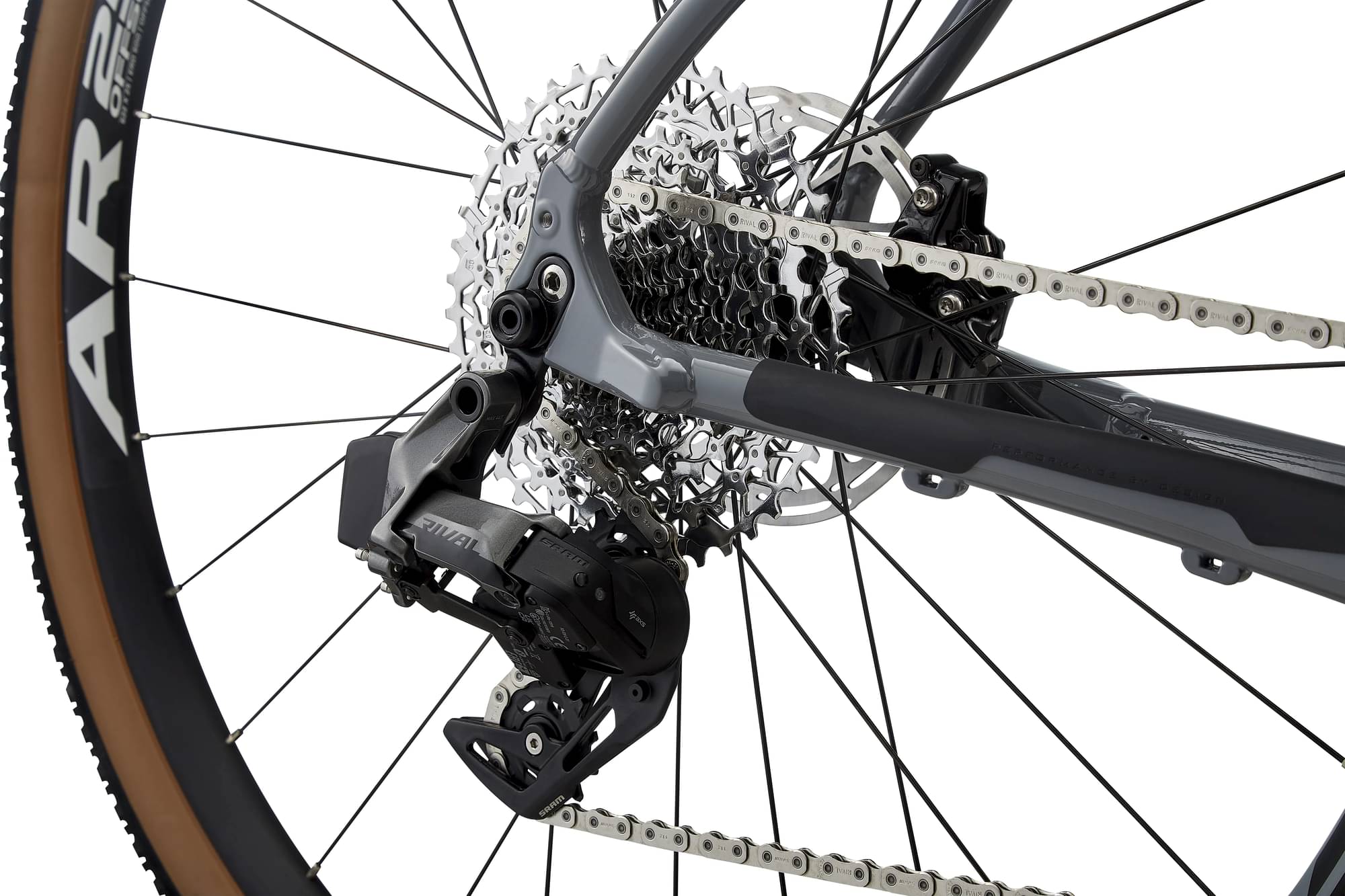

Rear Derailleur
SRAM Rival XPLR eTap AXS
Front Derailleur
N/A
Shift Levers
SRAM Rival eTAP AXS
Cassette
SRAM XG1251, XPLR, 10-44

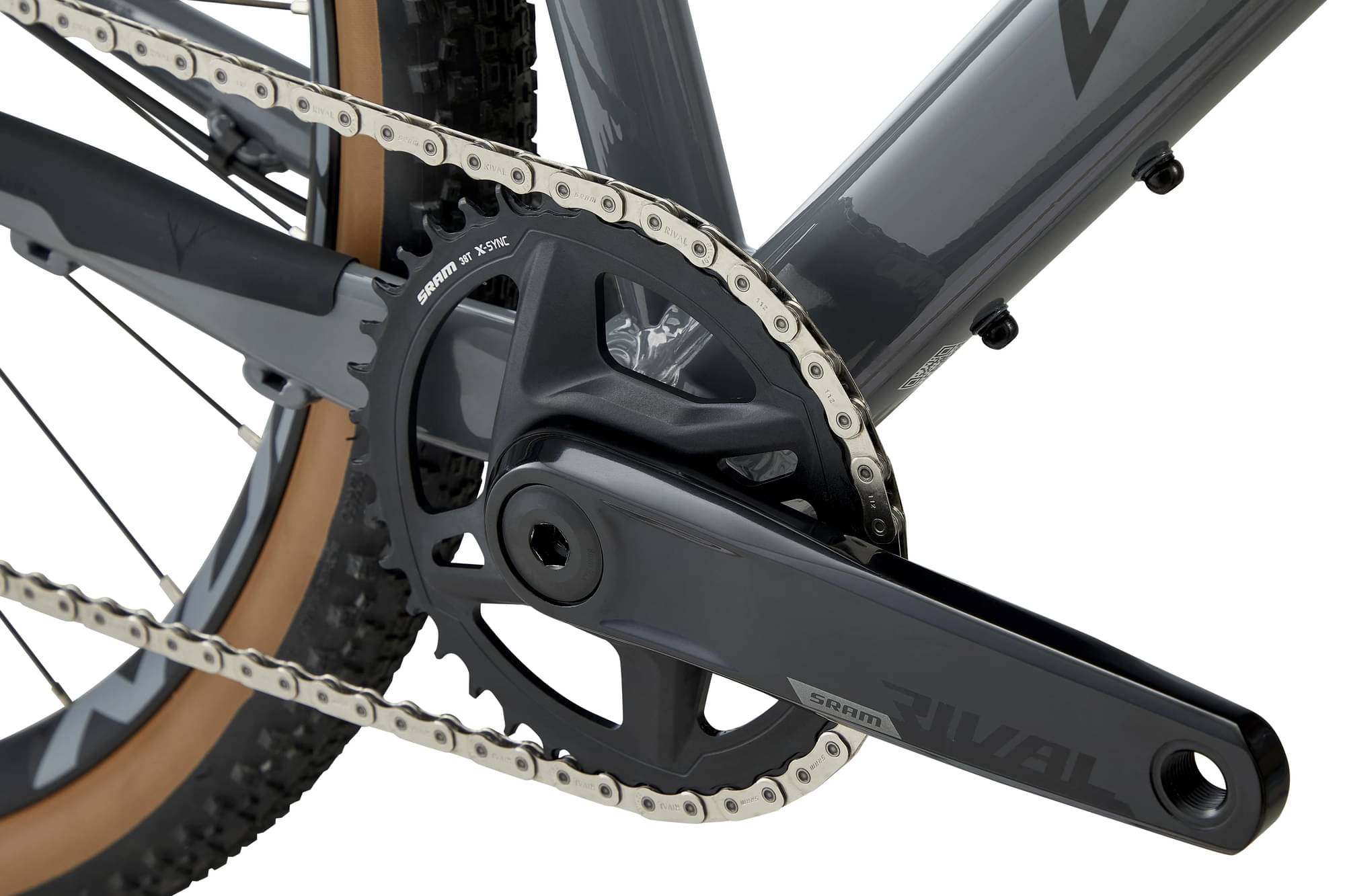

Crank
SRAM Rival 1 Wide, 38T, DUB, 50/52 170mm, 54 172.5mm, 56/58 175mm 12 Speed
Bottom Bracket
SRAM DUB, BSA, 73mm
Chain
SRAM Rival
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 100mm Thru Axle, 28 Hole, Concealed Hex Key
Rear Hub
Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 142mm Thru Axle, 28 Hole
Rims
Easton AR-25, Pinned Joint, Tubeless Ready, 28 Hole
Spokes
DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis, Rambler TR, 700c x 45c 60TPI EXO Tan Sidewall Protection, Dual Compound
Brakes
Brakes
SRAM Rival, 180mm CentreLine Rotor, Centre Lock
Brake Levers
SRAM Rival
Cockpit
Stem
Whyte Alloy, +-7° Rise, 50/52cm 60mm, 54cm 70mm, 56/58cm 80mm, Extension

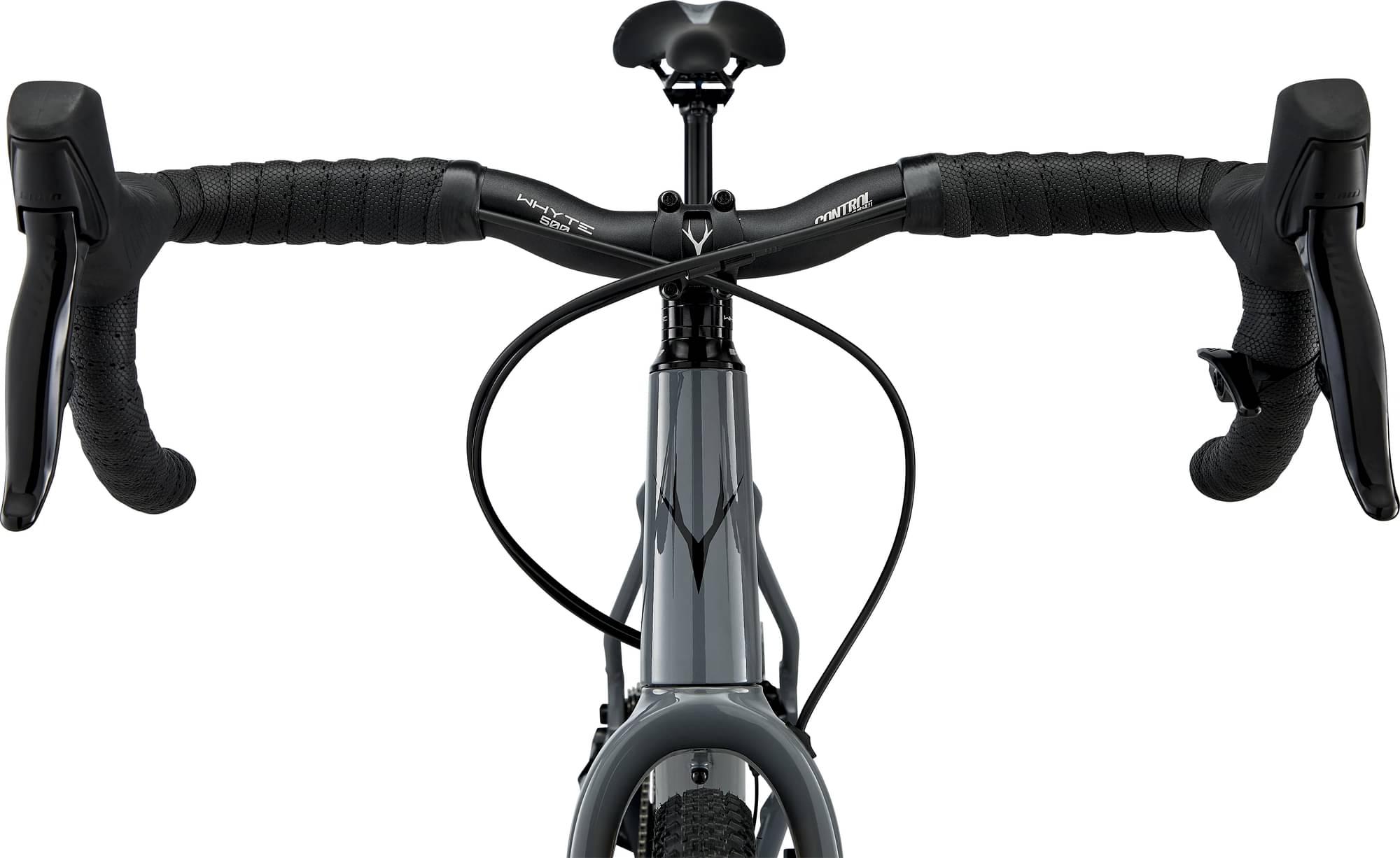

Handlebar
Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm Riser Bar, 31.8mm x 500mm
Grips
Whyte Anti Slip, Cross Bar Tape
Headset
FSA No. 42, Integrated Road, 1 1/2"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design
Seatpost
Trans-X YSP38 dropper post, 27.2mm, 50/52/54 70mm Travel, 56 90mm Travel, 58 110mm Travel, Control Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.41 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 617 mm | 627 mm | 657 mm | 666 mm | 687 mm |
| Rake | 34 mm | 34 mm | 34 mm | 33 mm | 34 mm |
| Trail | 91 mm | 91 mm | 91 mm | 92 mm | 91 mm |
| Stack | 568 mm | 582 mm | 596 mm | 610 mm | 624 mm |
| Reach | 394 mm | 398.4 mm | 423 mm | 428 mm | 443 mm |
| Top Tube Length | 557 mm | 566 mm | 595 mm | 604 mm | 622 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1030 mm | 1040 mm | 1070 mm | 1079 mm | 1100 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 782 mm | 799 mm | 816 mm | 833 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Gisburn belongs to the Whyte Gisburn model. 7 bikes variations carry this model name so far. You can easily view all of the Whyte Gisburn bikes models from 2023, here.
Model range prices
Whyte Gisburn Gravel Bike 2023 is the most affordable bike of this model and has a price of 3652$. On the other hand, Whyte Gisburn 2023, is the most expensive and costs 3652$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 3652$. In conclusion, this bike price is 48.33% higher than the price of the average Gravel bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Gisburn components

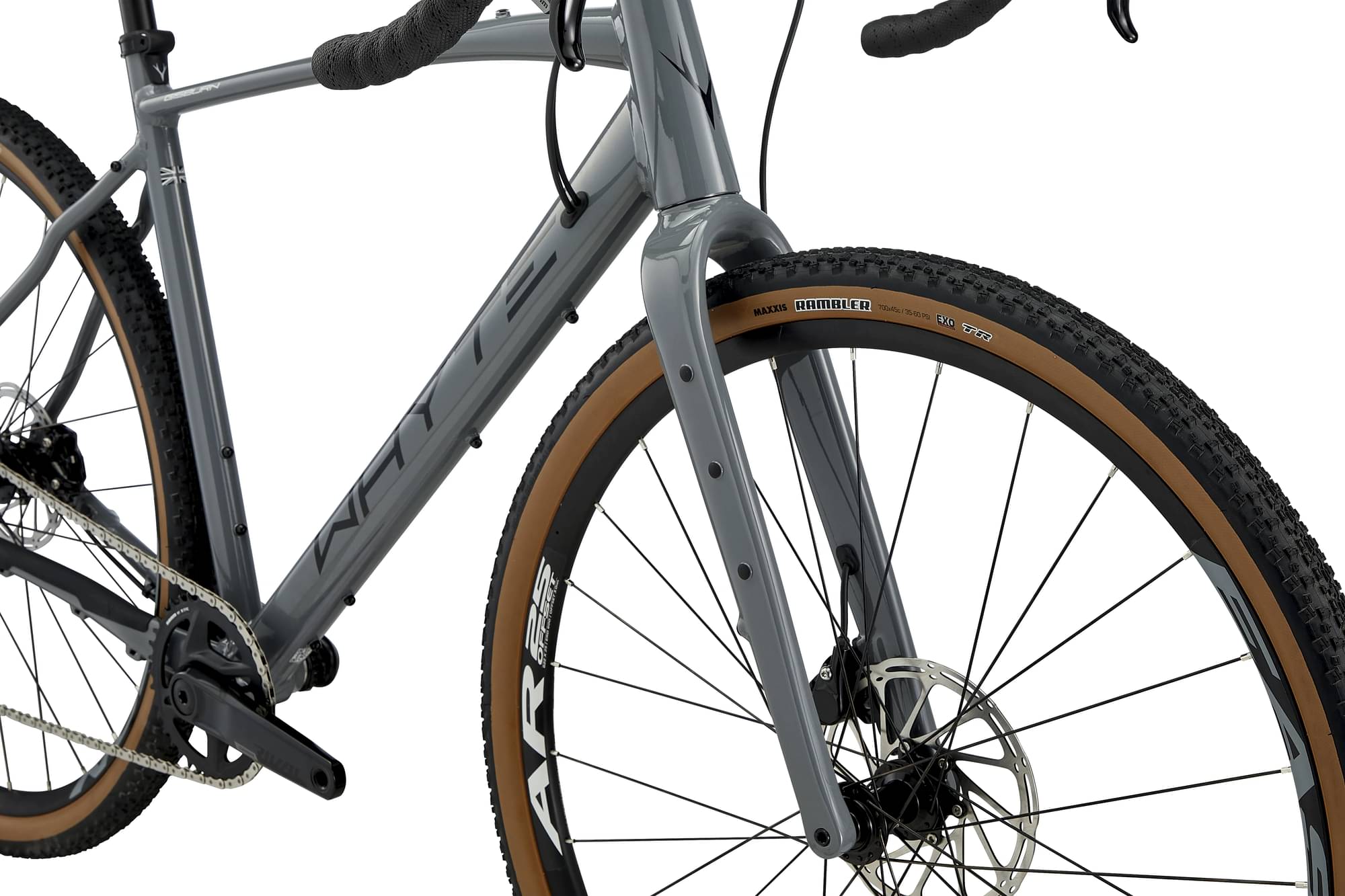

Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Whyte Gisburn 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Gisburn has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.

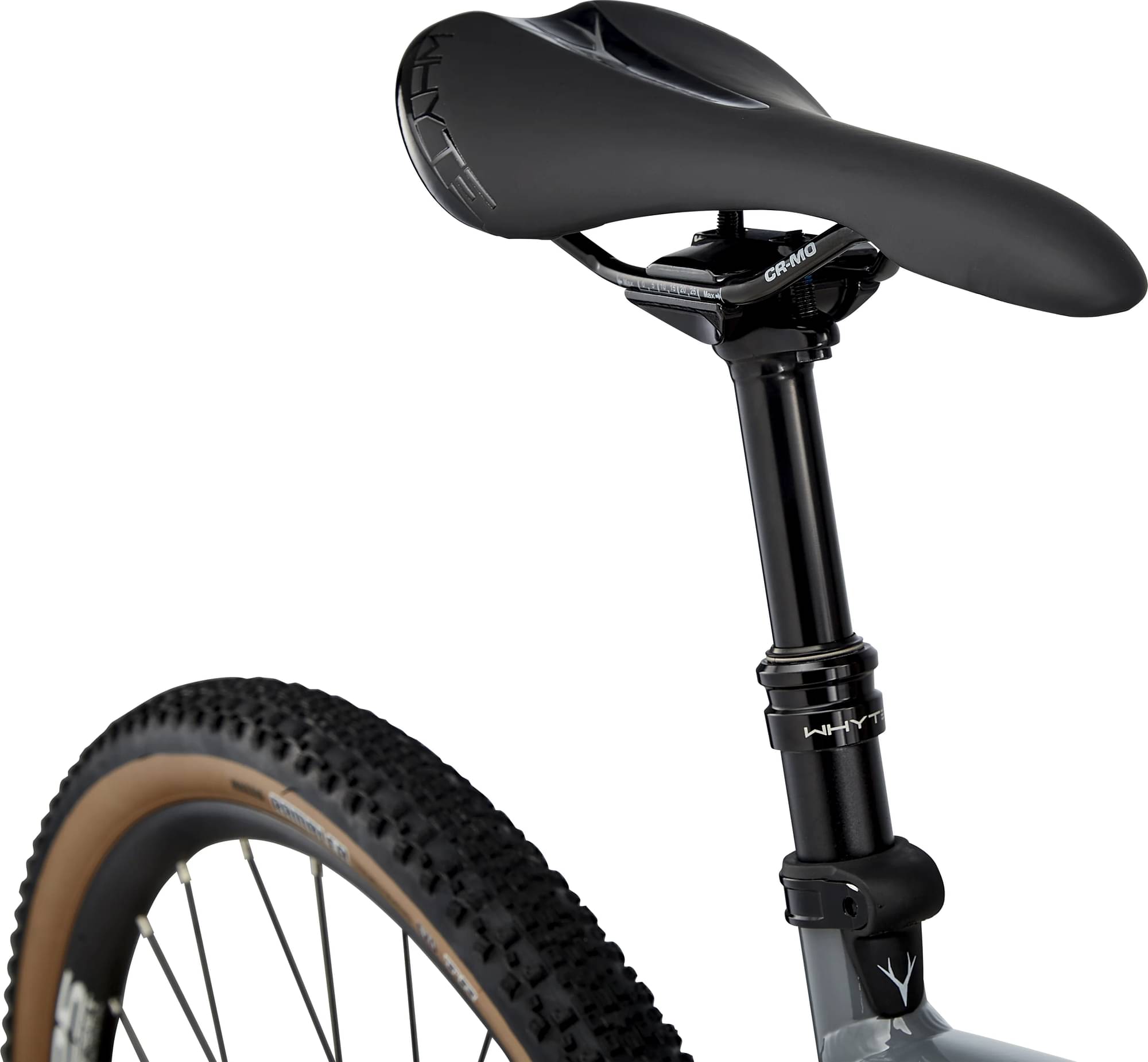

Dropper post
The Whyte model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
