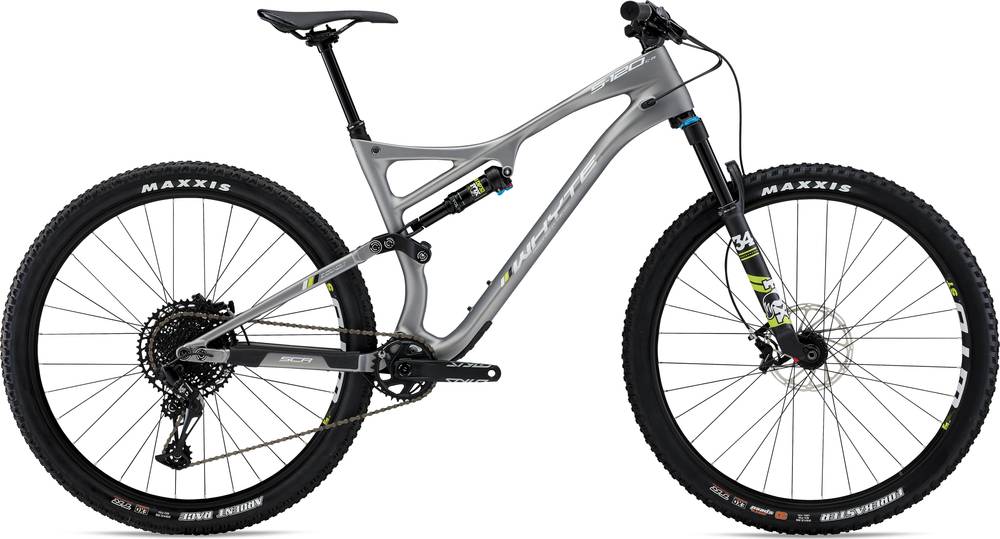

Whyte S-120C R v2 2020
2020 Mountain
Estimate price |
4,147$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, Uni-directional Multi Monocoque Front Triangle with Internal Cable Routing, Tapered Head Tube, Intergrip Seat Clamp System, 2 hole ISCG Mount, Alloy Symmetrical SCR Rear Triangle and 148mm Boost Dropouts
Suspension Fork
Fox Float Performance SC 34, Step Cast, 29", 120mm Travel, 44mm Offset, GRIP 3-Pos Damper, Tapered Steerer, Black Coating, 110mm x 15mm Boost, E-Thru Axle
Rear Shock
Fox Float DPS, Performance, Black Coating, Rebound Adjustment and 3pos Adjust Evol LV
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle, Matchmaker, 12 Speed
Cassette
SRAM PG-1230 Eagle, 11-50, 12 Speed
Crank
SRAM Stylo 6K Eagle, X-SYNC 2, Direct Mount 34T, Boost, 175mm, 12 Speed
Bottom Bracket
SRAM DUB, BSA, 73mm
Chain
SRAM Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 32 Hole
Rear Hub
Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 32 Hole
Rims
WTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Forekaster TR 29" x 2.35" 120TPI 3C MaxxSpeed Compound, EXO Sidewall Protection, Front, Ardent Race TR 29" x 2.35" 60TPI Dual Compound, EXO Sidewall Protection, Rear
Brakes
Brakes
SRAM Guide T, 4 Pot, 180mm Rotor
Brake Levers
SRAM Guide T, Matchmaker
Cockpit
Stem
Whyte Gravity Stem, 40mm Extension
Handlebar
Whyte 6061 Alloy, 15mm Low Rise, 31.8mm, 780mm Wide
Grips
Whyte Lock-on V Grip
Headset
FSA No. 42 Orbit ZS Plus, Integrated, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom Dual Density, Triple Panel Design
Seatpost
KS RAGEi, Dropper Post, 30.9mm, S 125mm Travel, M/L/XL 150mm Travel, Southpaw-Alloy Remote Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.35 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 610.4 mm | 622.4 mm | 633.4 mm | 645.4 mm |
| Reach | 438.4 mm | 462.4 mm | 486.4 mm | 510.4 mm |
| Top Tube Length | 598.4 mm | 618.4 mm | 646.4 mm | 675.4 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406.4 mm | 431.8 mm | 457.2 mm | 482.6 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 112 mm | 125 mm | 140 mm | 150 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1174 mm | 1204 mm | 1233 mm | 1262 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 802 mm | 808 mm | 814 mm | 821 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
S-120C R v2 is part of the Whyte S 120c model. Whyte released 5 bikes variations of this model so far. Take a sneak peek at all Whyte S 120c bikes models from 2020, by clicking here.
Model range prices
Whyte S-120C R v2 2020 is the most economical model, with a starting price of 3770$. Whyte S-120C RS v2 2020 on the other hand costs 4378$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Whyte S-120C R v2 price was 3770$. Comparing this to the average Trail bike price, we see that the price is 36.5% more expensive.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
S-120C R v2 weighs 14 kg (30.86 lbs) and is a bit heavier than the average. In other words, this model is 7.86% heavier than the average Trail bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
S-120C R v2 components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on S-120C R v2 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The S-120C R v2 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
S-120C R v2 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Whyte S-120C R v2 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
