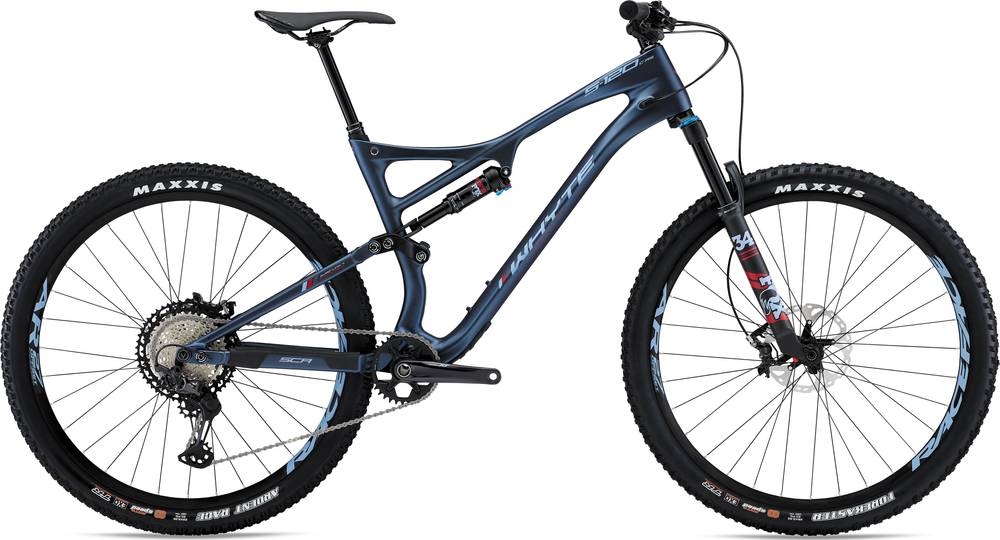

Whyte S-120C RS v2 2020
2020 Mountain
Estimate price |
4,816$
Weight | 13.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, Uni-directional Multi Monocoque Front Triangle with Internal Cable Routing, Tapered Head Tube, Intergrip Seat Clamp System, 2 hole ISCG Mount, Alloy Symmetrical SCR Rear Triangle and 148mm Boost Dropouts
Suspension Fork
Fox Float Performance SC 34, Step Cast, 29", 120mm Travel, 44mm Offset, GRIP 3-Pos Damper, Tapered Steerer, Black Coating, 110mm x 15mm Boost, E-Thru Axle
Rear Shock
Fox Float DPS, Performance, Black Coating, Rebound Adjustment and 3pos Adjust Evol LV
Drivetrain
Rear Derailleur
Shimano XT RD-M8100, Shadow Plus, 12 Speed
Front Derailleur
N/A
Shift Levers
Shimano XT SL-M8100, I-Spec EV, 12 Speed
Cassette
Shimano XT M8100, 10-51, 12 Speed
Crank
Shimano XT FC-M8100, Direct Mount 34T, Hollow Tech 2, 175mm, Boost 12 Speed
Bottom Bracket
Shimano MT800, BSA, 73mm
Chain
Shimano XT M7100, 12 Speed
Pedals
None
Wheels
Front Hub
Alloy, Centre-lock, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 32 Hole
Rear Hub
Shimano XT M8110, Centre-lock, Micro Spline, 12mm x 148mm Boost Through Axle, 32 Hole
Rims
RaceFace AR-27, Offset, 27mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Forekaster TR 29" x 2.35" 120TPI 3C MaxxSpeed Compound, EXO Sidewall Protection, Front, Ardent Race TR 29" x 2.35" 60TPI Dual Compound, EXO Sidewall Protection, Rear
Brakes
Brakes
Shimano XT BR-M8120, 4 Pot with Metal Pads and Cooling Fins, 180mm Centre-lock Rotor
Brake Levers
Shimano XT, I-Spec EV
Cockpit
Stem
Whyte Gravity Stem, 40mm Extension
Handlebar
Whyte 6061 Alloy, 15mm Low Rise, 31.8mm, 780mm Wide
Grips
Whyte Lock-on V Grip
Headset
FSA No. 42 Orbit ZS Plus, Integrated, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom Dual Density, Triple Panel Design
Seatpost
Bike Yoke Divine, 30.9mm, S 125mm Travel, M/L/XL 160mm Travel, I-Spec EV Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.35 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 610.4 mm | 622.4 mm | 633.4 mm | 645.4 mm |
| Reach | 438.4 mm | 462.4 mm | 486.4 mm | 510.4 mm |
| Top Tube Length | 598.4 mm | 618.4 mm | 646.4 mm | 675.4 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406.4 mm | 431.8 mm | 457.2 mm | 482.6 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 112 mm | 125 mm | 140 mm | 150 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1174 mm | 1204 mm | 1233 mm | 1262 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 802 mm | 808 mm | 814 mm | 821 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
S-120C RS v2 completes the Whyte S 120c model. 5 bikes variations carry this model name so far. You can easily view all of the Whyte S 120c bikes models from 2020, here.
Model range prices
Whyte S-120C R v2 2020 is the cheapest bike model and costs 3770$. Whyte S-120C RS v2 2020 is the most expensive one and costs 4378$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 4378$. In conclusion, this bike price is 58.51% higher than the price of the average Trail bike.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
S-120C RS v2 weighs 13.7 kg (30.2 lbs) and is a bit heavier than the average. To sum up, it’s 5.55% heavier than the average weight of Trail bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
S-120C RS v2 components
Fork
The S-120C RS v2 comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Whyte S-120C RS v2 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Whyte S-120C RS v2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
S-120C RS v2 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Whyte S-120C RS v2 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
