Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Pike Select
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube and Intergrip Seat Clamp System, ISCG, 2 Bolt Guide Mounts, Alloy Symmetrical SCR Rear Triangle, 148mm Boost Dropouts
Suspension Fork
RockShox Pike Select RC 27.5", 140mm Travel, 37mm Offset, DebonAir, Charger RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
Rear Shock
RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position Compression
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12 Speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, MMX Clamp, 12 Speed
Cassette
SRAM PG-1230 Eagle, 11-50, 12 Speed
Crank
SRAM X1 Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost, 12 Speed
Bottom Bracket
SRAM DUB, BSA, 73mm
Chain
SRAM Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 31mm Torque Caps, 32 Hole
Rear Hub
Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 32 Hole
Rims
WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis High Roller II TR 27.5" x 2.6" 120TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Rekon TR 27.5" x 2.6" 60TPI, EXO Sidewall Protection, 3C Maxx Terra, Rear
Brakes
Brakes
SRAM Guide G2 R, 4 Piston, 180mm Disc
Brake Levers
SRAM Guide G2 R, Matchmaker
Cockpit
Stem
Whyte Gravity Stem, 35mm Extension
Handlebar
Whyte 6061 Alloy, 31.8mm, S 15mm Rise, 760mm Wide, M/L/XL, 30mm Rise 780mm Wide
Grips
Whyte Lock-on V Grip
Headset
FSA No. 57 Orbit ZS, ACB, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Dual Density, Triple Panel Design
Seatpost
Whyte drop.it II Adjust, 30.9mm, S/M 120-150mm Travel, L/XL 140-170mm Travel, Paddle Remote Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm |
| Stack | 600.4 mm | 622.4 mm | 636.4 mm | 645.4 mm |
| Reach | 438.4 mm | 462.4 mm | 486.4 mm | 510.4 mm |
| Top Tube Length | 589.4 mm | 618.4 mm | 646.4 mm | 675.4 mm |
| Seat Tube Angle | 74.7 ° | 74.5 ° | 74.3 ° | 74.1 ° |
| Seat Tube Length | 406.4 mm | 431.8 mm | 457.2 mm | 482.6 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 112 mm | 125 mm | 140 mm | 150 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1174 mm | 1204 mm | 1234 mm | 1262 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 802 mm | 808 mm | 814 mm | 821 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

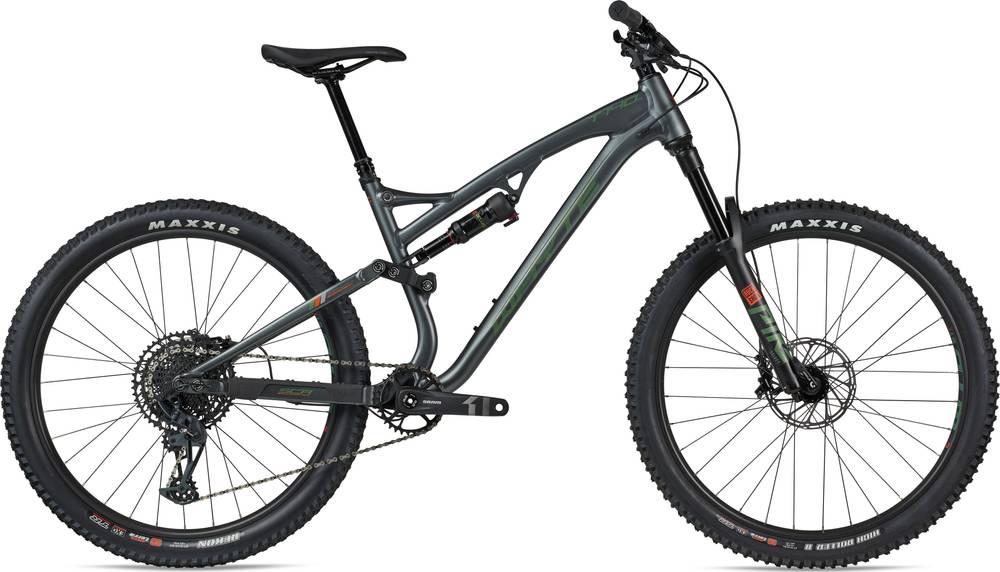

T-140 S V1 is part of the Whyte T 140 model. Whyte launched 6 bikes of this model so far. You can easily view all of the Whyte T 140 bikes models from 2021, here.
Model range prices
Whyte T-140 SR V1 2021 is the cheapest bike model and costs 2980$. Whyte T-140 S V1 2021 is the most expensive one and costs 3406$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3406$. If we compare this with the average Trail bike cost we notice that the price is 23.32% more expensive.
Overview of components
Fork
This bike has the RockShox Pike Select fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The T-140 S V1 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Whyte T-140 S V1 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
