Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, Uni-directional Multi Monocoque Front Triangle with Internal Cable Routing, Tapered Head Tube, ISCG, 2 Bolt Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts
Suspension Fork
RockShox Pike Ultimate RC 27.5"", 140mm Travel, 37mm Offset, DebonAir, Charger RCT3 Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate

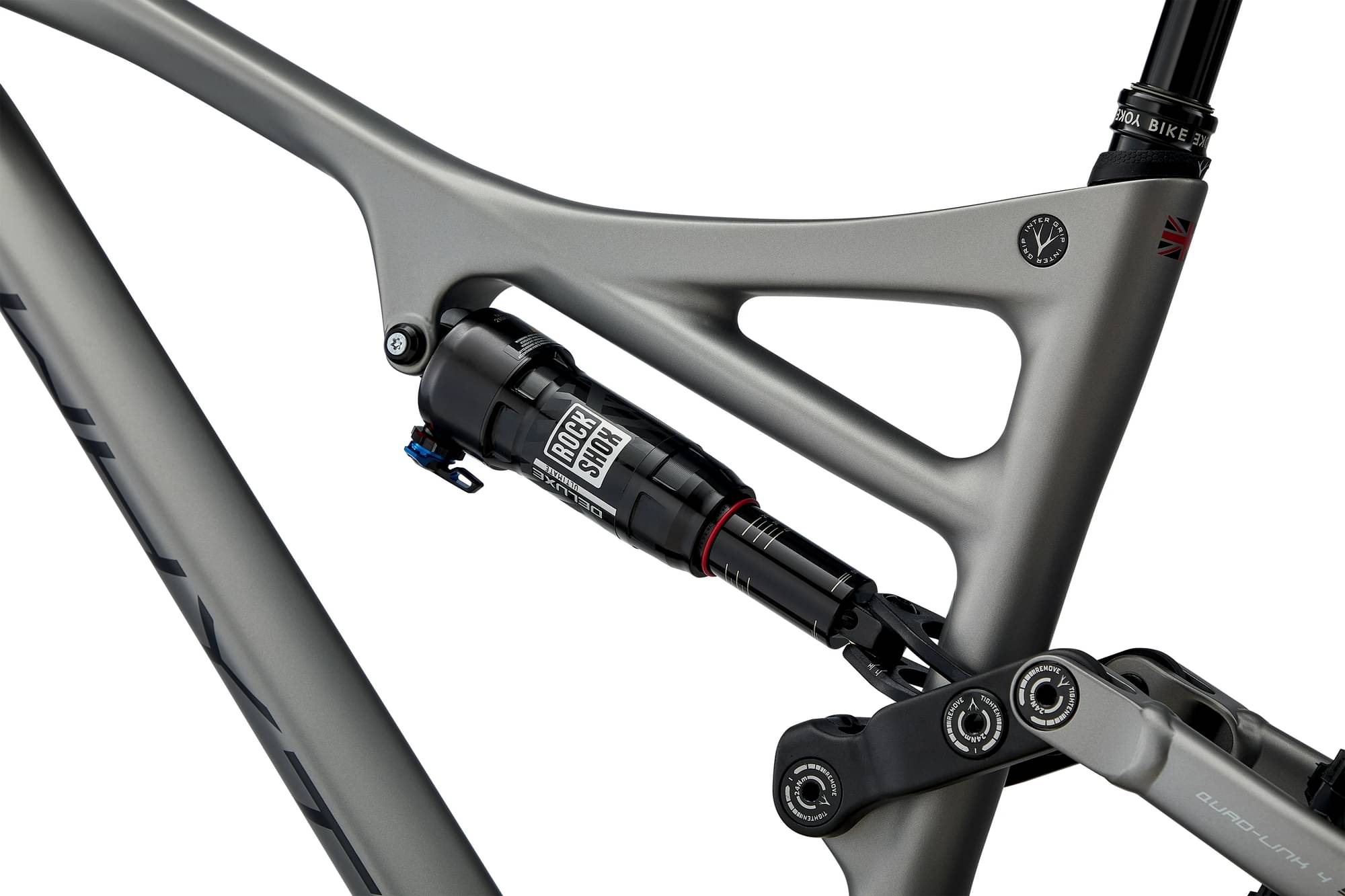

Rear Shock
RockShox Deluxe Ultimate RCT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position Compression
Drivetrain

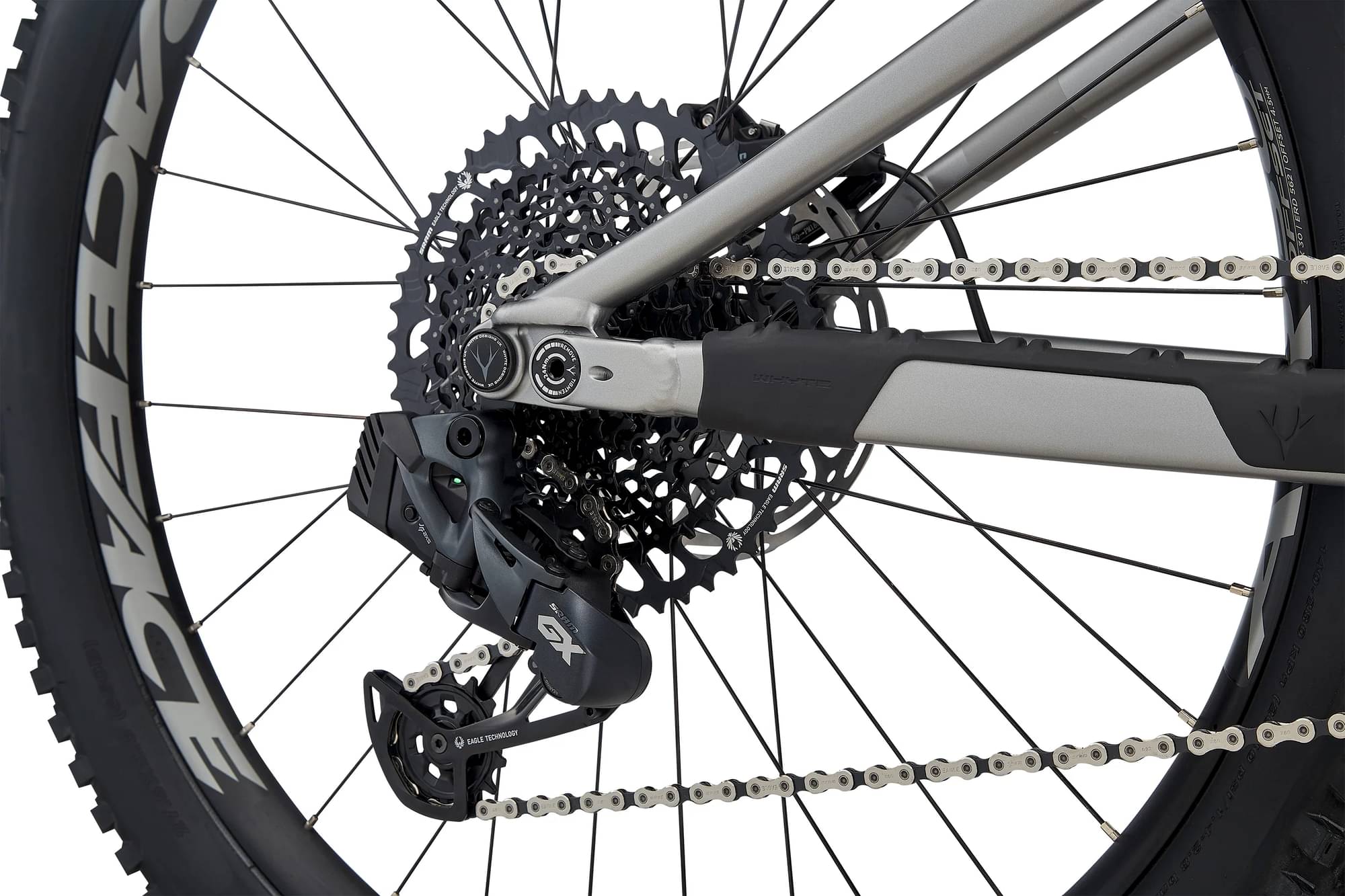

Rear Derailleur
SRAM GX Eagle AXS Lunar, with Battery Protector, 12 Speed
Front Derailleur
N/A
Shift Levers
SRAM GX AXS Eagle, 2 Button, MMX, 12 Speed
Cassette
SRAM XG-1275 Eagle, 10-52, 12 Speed
Crank
SRAM GX Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost, 12 Speed
Bottom Bracket
SRAM DUB, BSA, 73mm
Chain
SRAM GX Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Rear Hub
Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 9 deg Micro Engagement 4 Pawl, XD Driver, 32 Hole
Rims
Race Face AR-30, Offset, 30mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Minion DHF TR 27.5"" x 2.6"" 120TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Dissector TR 27.5"" x 2.6"" 120TPI, EXO+ Sidewall Protection, 3C Maxx Terra, Rear
Brakes
Brakes
SRAM Guide G2 RS, 4 Piston, 180mm Disc
Brake Levers
SRAM Guide G2 RS, MMX
Cockpit
Stem
Whyte Gravity Stem, 35mm Extension
Handlebar
Whyte 6061 Alloy, 31.8mm, S 15mm Rise, 760mm Wide, M/L/XL, 30mm Rise 780mm Wide
Grips
Whyte Lock-on Enduro Grip
Headset
FSA No. 42 Orbit ZS Plus, Integrated, 1 1/2"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Dual Density, Triple Panel Design
Seatpost
Bike Yoke Revive, 30.9mm, S 125mm Travel, M/L/XL 160mm Travel, Triggy Remote with MMX attachment
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 330.1 mm | 330.1 mm | 330.1 mm | 330.1 mm |
| Stack | 600.4 mm | 622.4 mm | 636.4 mm | 645.4 mm |
| Top Tube Length | 589.4 mm | 618.4 mm | 646.4 mm | 675.4 mm |
| Seat Tube Angle | 74.7 ° | 74.5 ° | 74.3 ° | 74.1 ° |
| Seat Tube Length | 406.4 mm | 431.8 mm | 457.2 mm | 482.6 mm |
| Head Tube Angle | 65.9 ° | 65.9 ° | 65.9 ° | 65.9 ° |
| Head Tube Length | 112 mm | 125 mm | 140 mm | 150 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1174 mm | 1204 mm | 1234 mm | 1262 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 802 mm | 808 mm | 814 mm | 821 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
T-140C RSX is part of the Whyte T 140c model. 6 bikes variations carry this model name so far. Take a sneak peek at all Whyte T 140c bikes models from 2023, by clicking here.
Model range prices
Whyte T-140C R 2023 is the cheapest bike model and costs 5108$. Whyte T-140C RSX 2023 is the most expensive one and costs 6689$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6689$. Comparing the average cost of a Trail bike to this one, you will see that T-140C RSX price is 142.18% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components

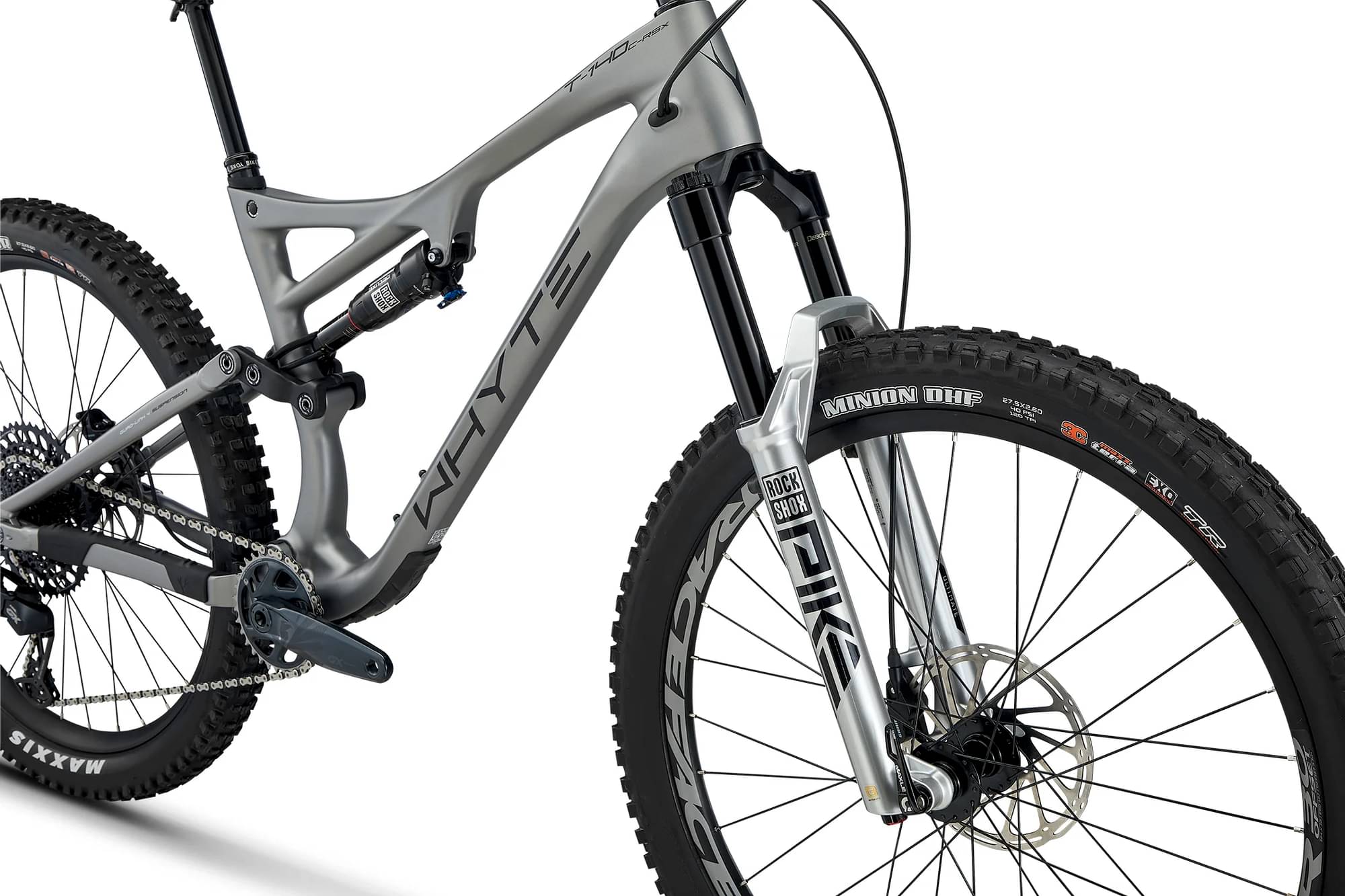

Fork
This bike has the RockShox Pike Ultimate fork installed. The fork’s travel is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on T-140C RSX are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.

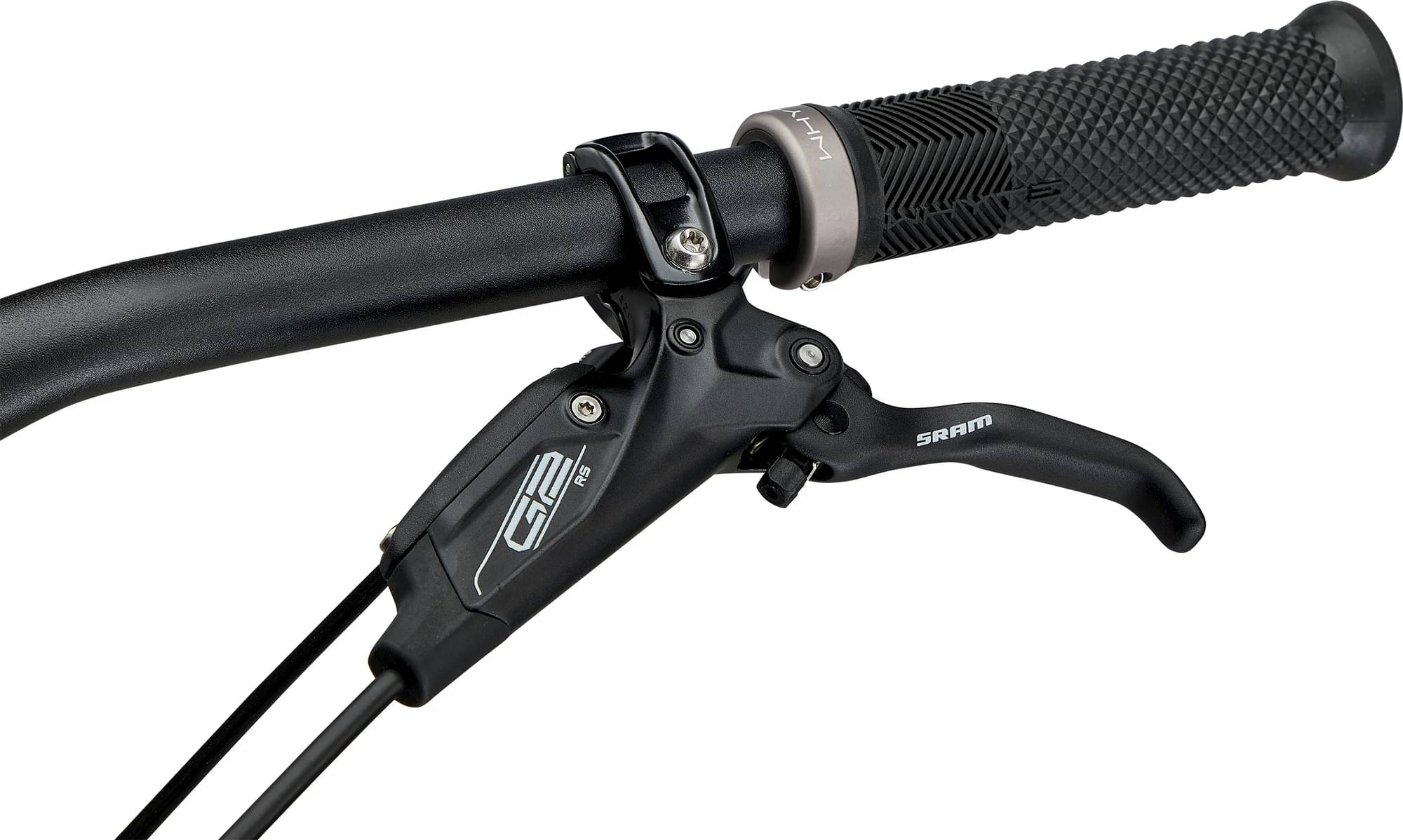

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The T-140C RSX comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.

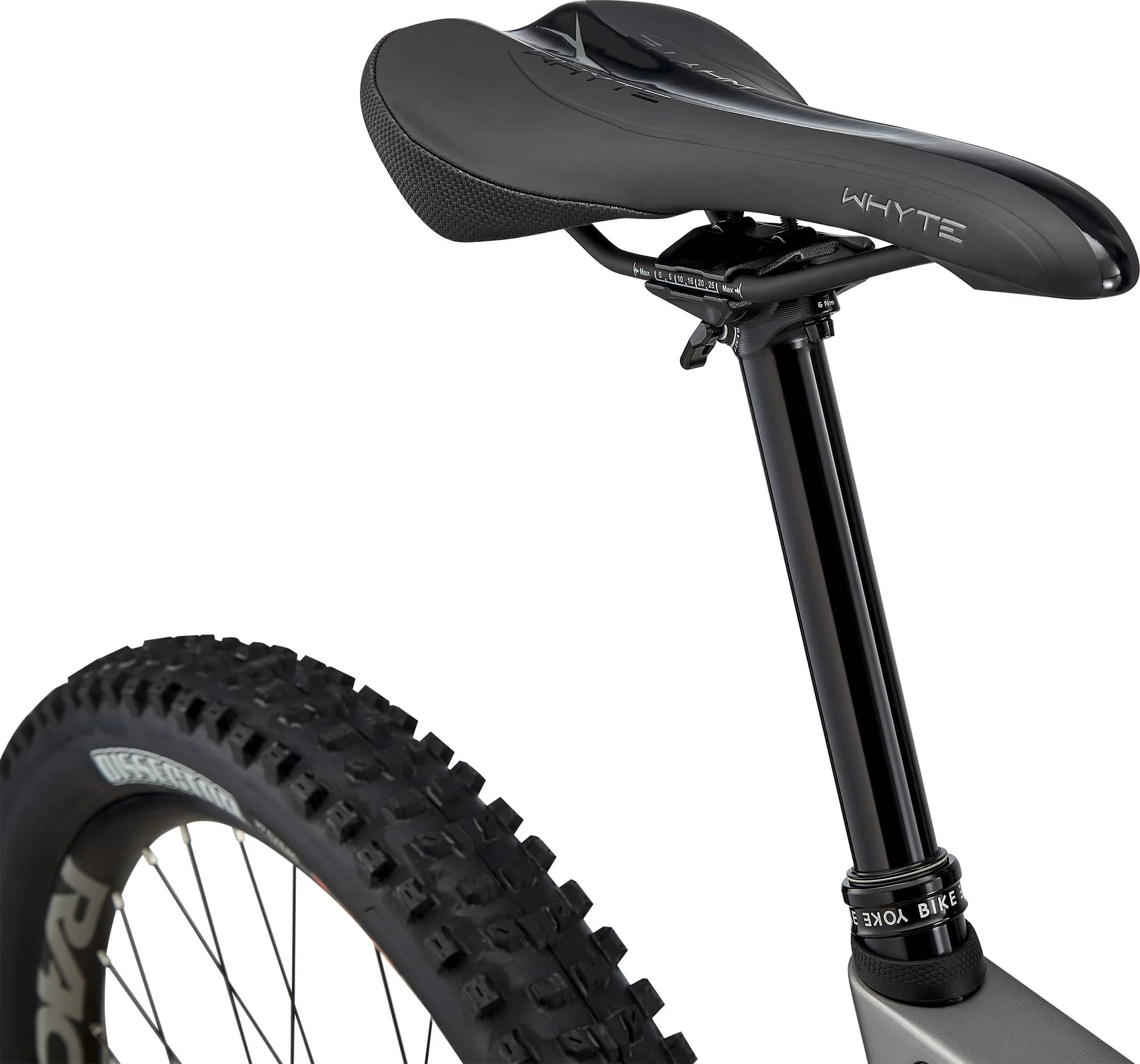

Dropper post
Whyte T-140C RSX comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
